Model Whirlpool RB151PLA REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

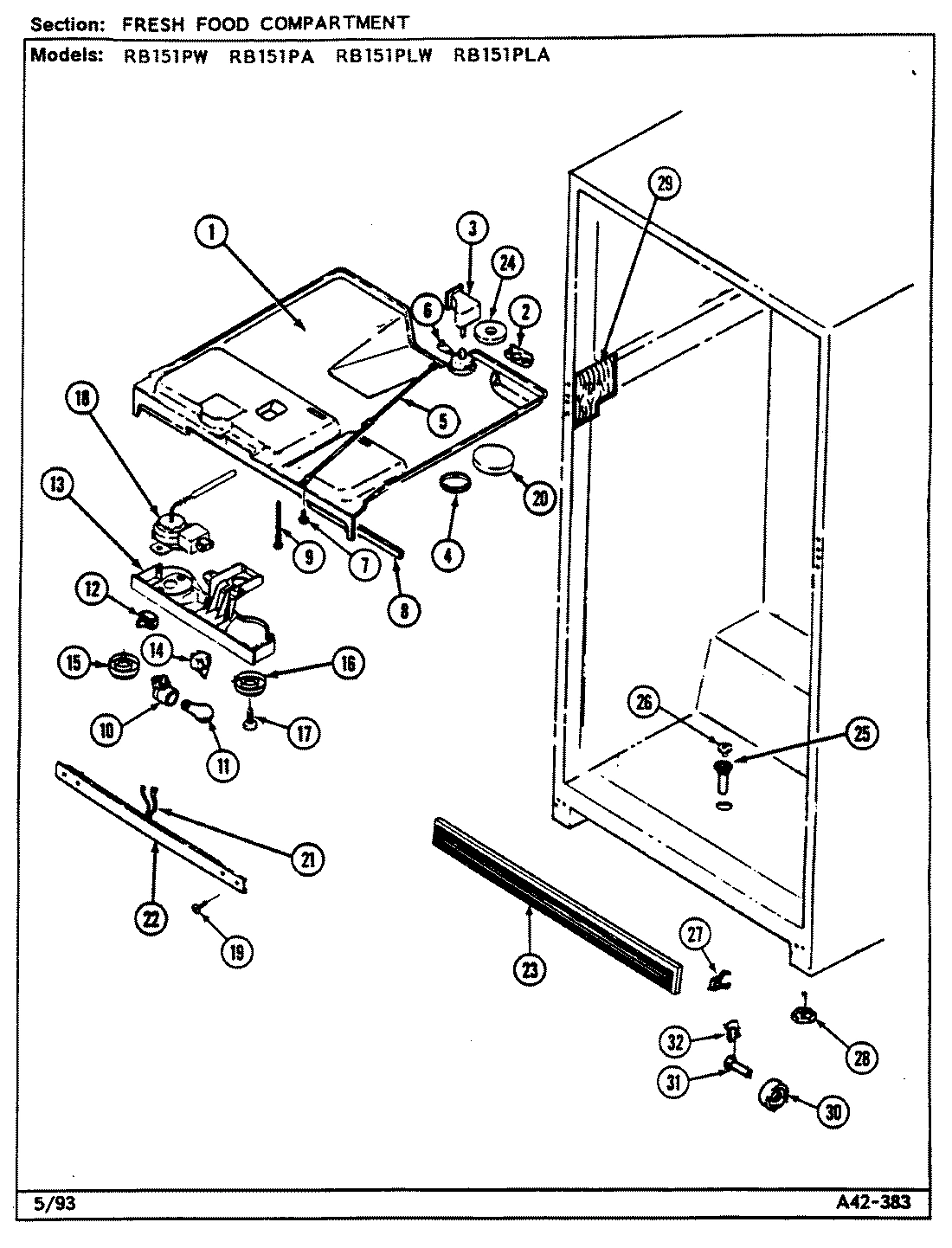

03 - FRESH FOOD COMPARTMENT

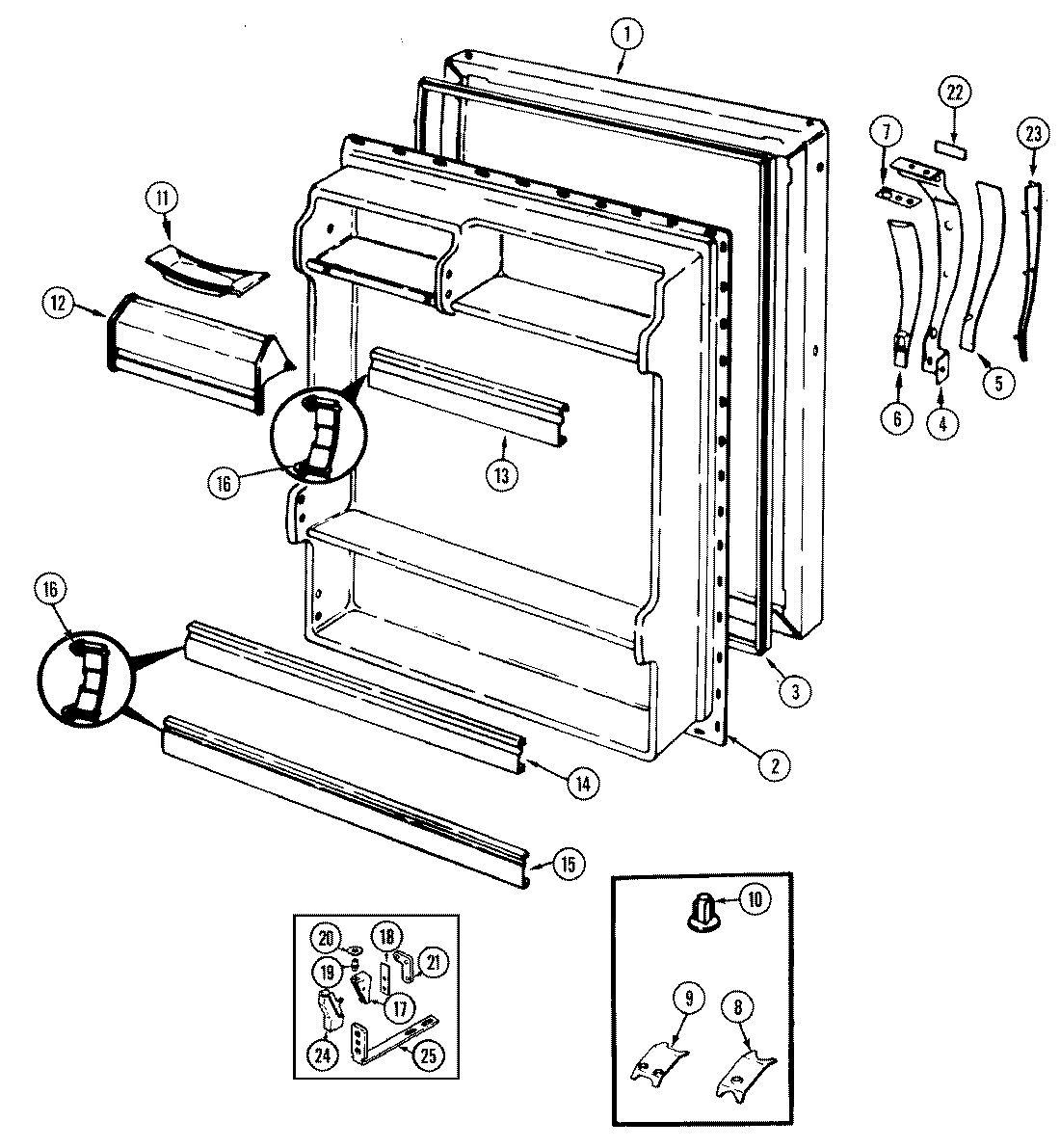

04 - FRESH FOOD DOOR
05 - OPTIONAL ICE MAKER

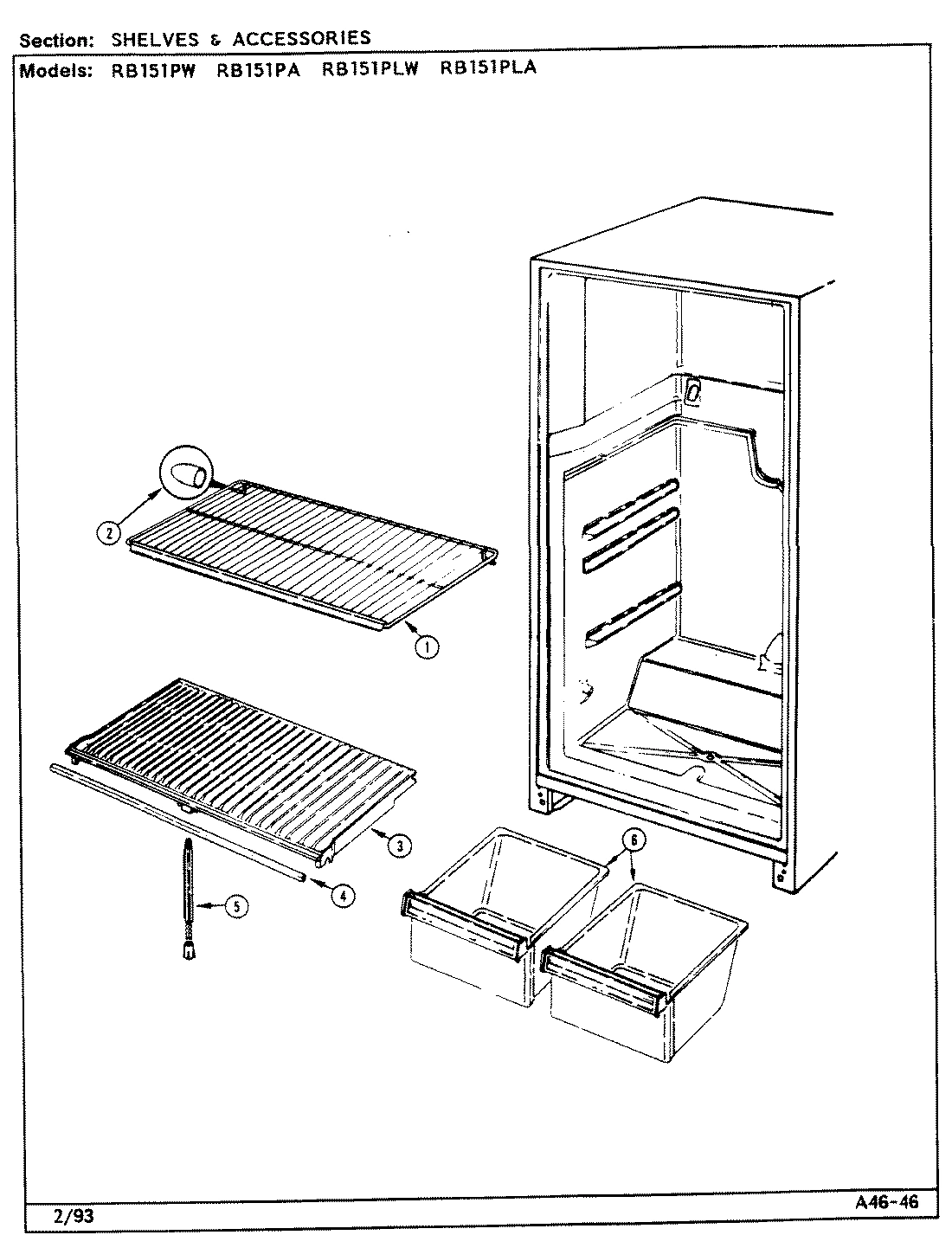

06 - SHELVES & ACCESSORIES

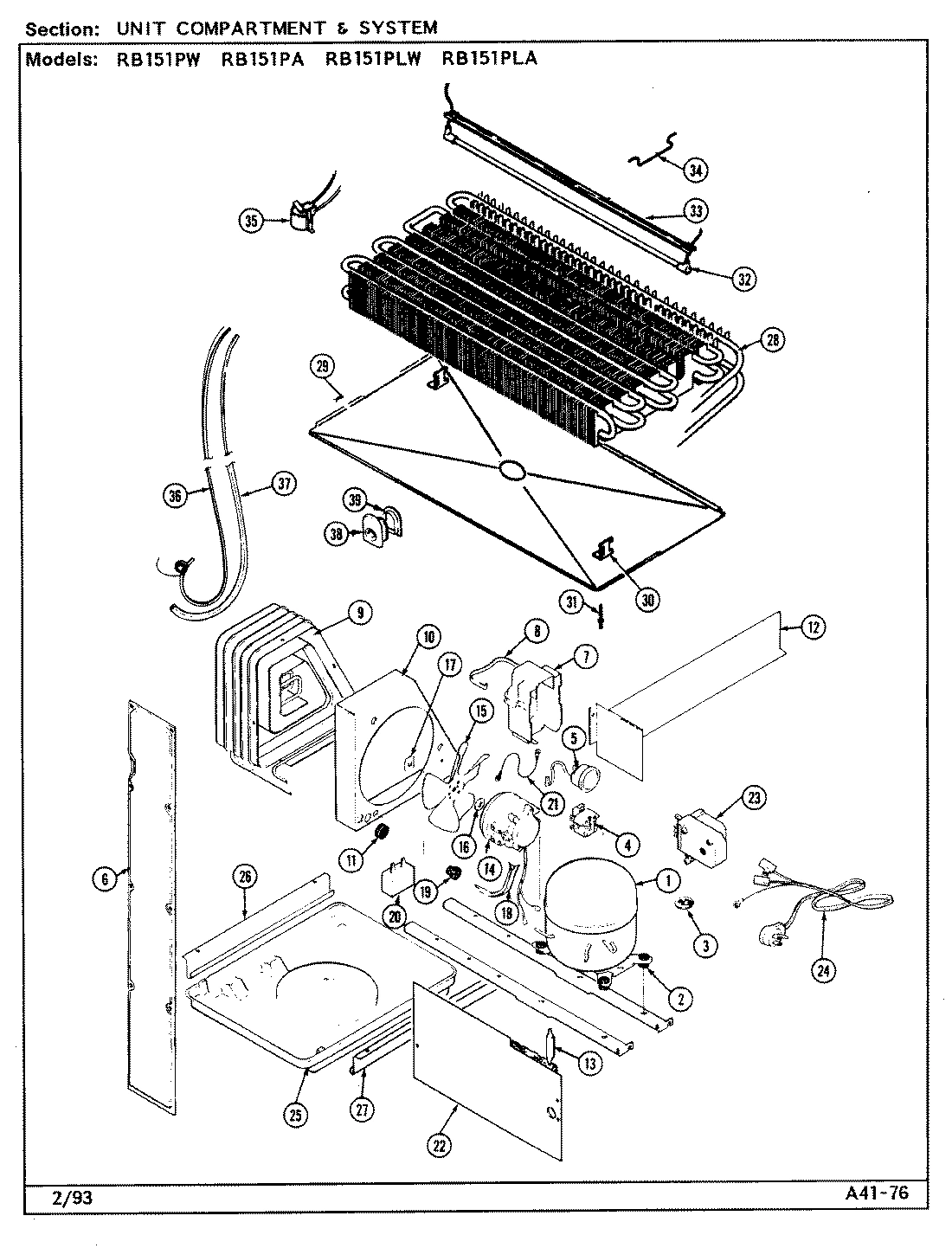

07 - UNIT COMPARTMENT & SYSTEM

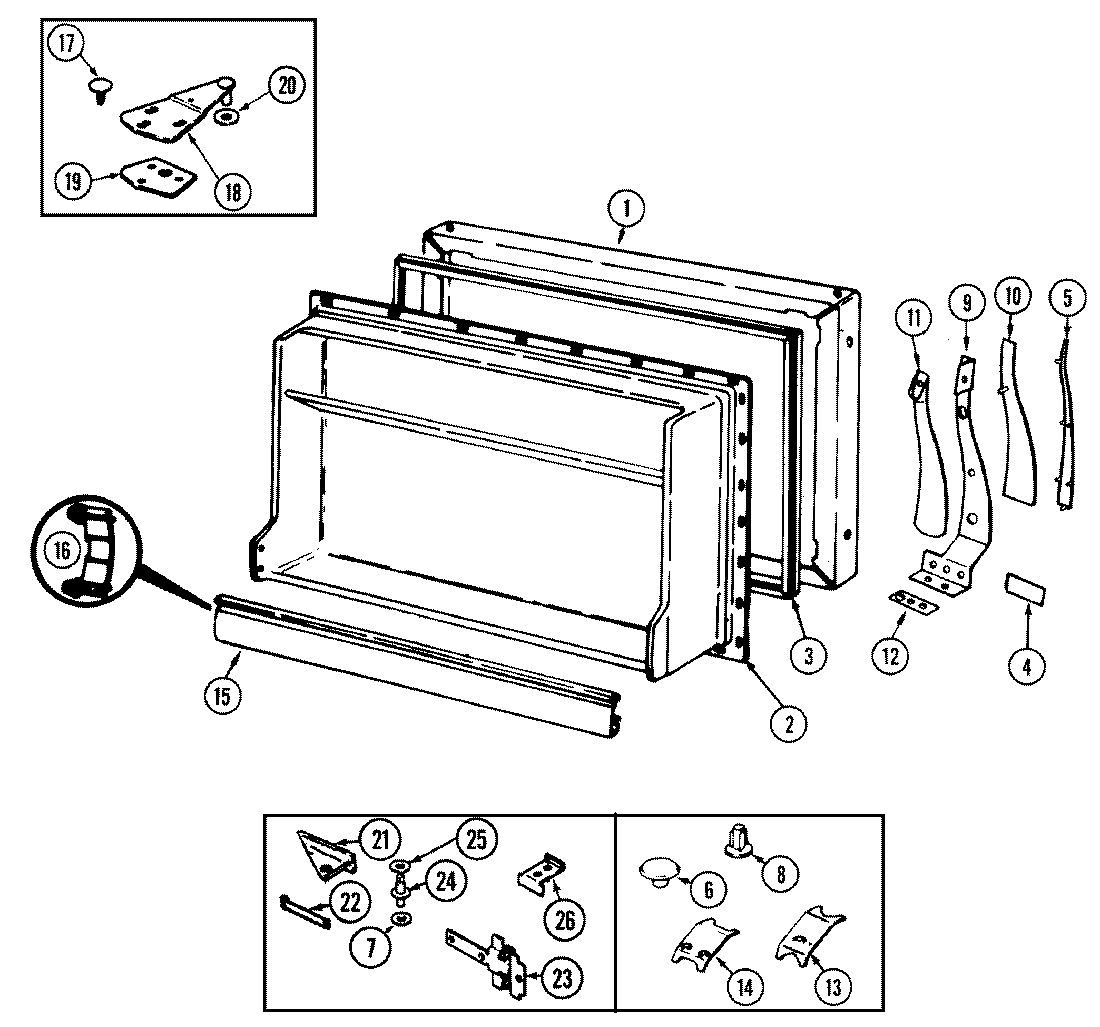

02 - FREEZER DOOR
Common parts from model Whirlpool RB151PLA REFRIGERATOR
1
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723494AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
SHELF, SLIDE-OUT WPL 700954 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 723454AM Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694431 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
TIP WPL 245803 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LINER WPL 694641 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
ORIFICE, DAMPER WPL 679151 Contact Us For Availability
3
GASKET, DOOR WPL 700202 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SHELF, CRISPER WPL 668341 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GASKET, DOOR WPL 700201 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
HANDLE, DOOR WPL 693001 Contact Us For Availability
4
HANDLE, DOOR WPL 693003 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
INSERT, NAMEPLATE WPL 6060318 Contact Us For Availability
4
NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
HANDLE INSERT, FRONT WPL 680166 Contact Us For Availability
5
INSERT, VINYL CLAD WPL 680173 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
5
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
5
OVERLOAD WPL 691059 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
PAN, CRISPER WPL 68221138 Contact Us For Availability
6
WIRE COVER WPL 601101 Contact Us For Availability
6
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
WASHER WPL 542332 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
8
MAGNET WPL 694131 Contact Us For Availability
8
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
8
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
SCREW WPL 9986122 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
HANDLE, DOOR WPL 693002 Contact Us For Availability
9
HANDLE, DOOR----NA WPL 693004 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
INSERT WPL 689592 Contact Us For Availability
10
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
HANDLE INSERT, FRONT WPL 680165 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
INSERT, HANDLE (BACK) WPL 604454 Contact Us For Availability
11
SCREW WPL 9986112 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
TRAY, ICE WPL 592812 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
SHIM, HANDLE WPL 693011 Contact Us For Availability
12
DOOR, DAIRY WPL 6905823 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
TRIVET WPL 682597 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability
13
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 65151344 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SEAL WPL 689461 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
15
PLUG BUTTON WPL 701462 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability
15
TRIM, DOOR SHELF WPL 65151113 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
TRIM WPL 688323 Contact Us For Availability
16
COVER, PLENUM WPL 664804 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability
16
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
CAP, CONNECTOR WPL 681871 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 681196 Contact Us For Availability
18
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
HINGE, UPPER WPL 5370920 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
20
WASHER WPL 674834 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
WASHER WPL 542337 Contact Us For Availability
20
SCREW WPL 998687 Contact Us For Availability
21
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability
21
SCREW WPL 4031001 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
HINGE, CENTER WPL 695142 Contact Us For Availability
22
SCREW WPL 40001512 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
22
INSERT, NAMEPLATE WPL 6060325 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
23
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (BLK) WPL 701281 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 695432 Contact Us For Availability
23
SCREW WPL 6527562 Contact Us For Availability
23
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
WASHER WPL 674836 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
STOP, DOOR WPL 692562 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
28
EVAPORATOR WPL 698221 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
40
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
Login and Registration Form
