Model Whirlpool RB151PA-P REFRIGERATOR – Common Parts & Diagrams
02 - FRESH FOOD COMPARTMENT

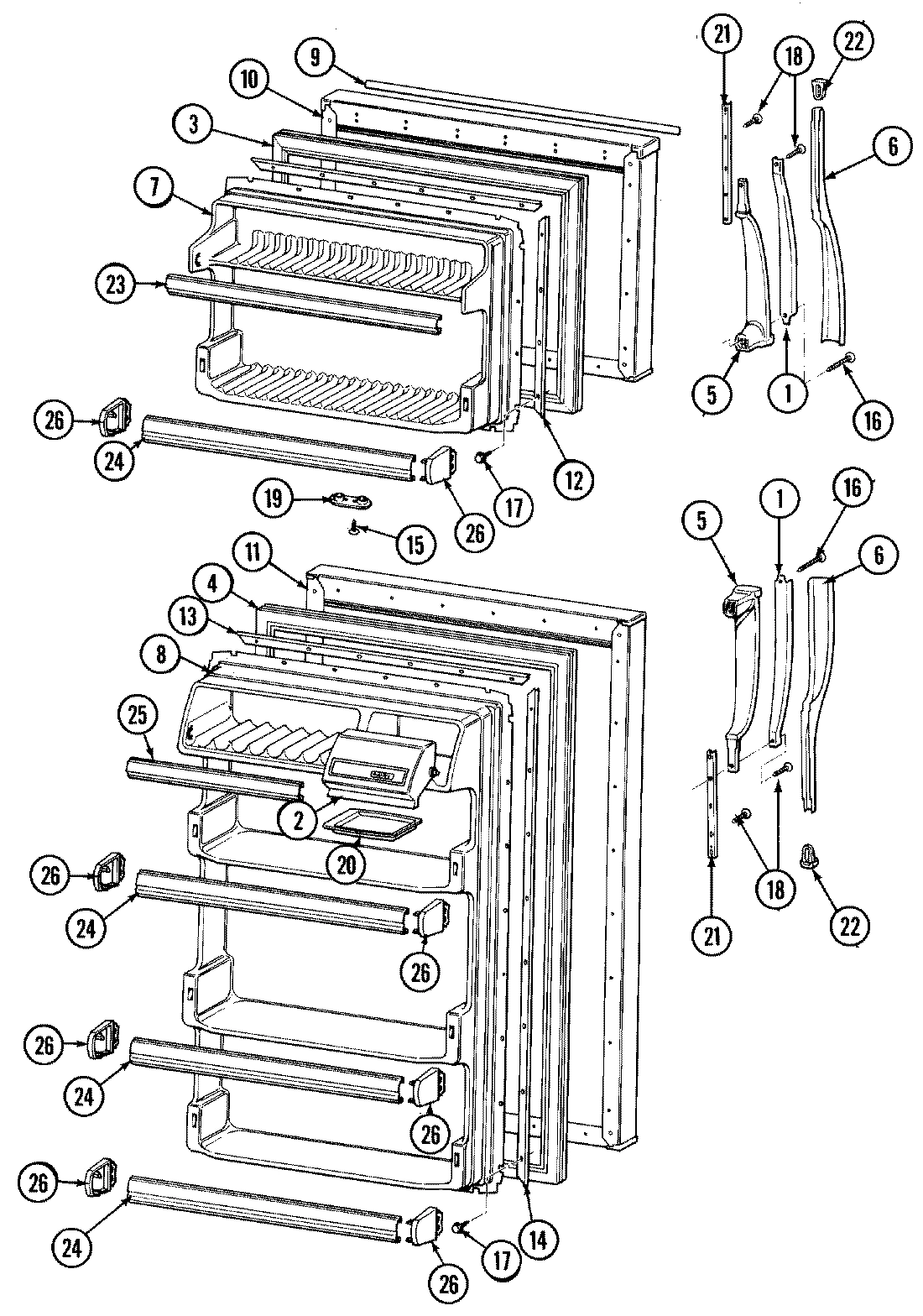

01 - DOORS

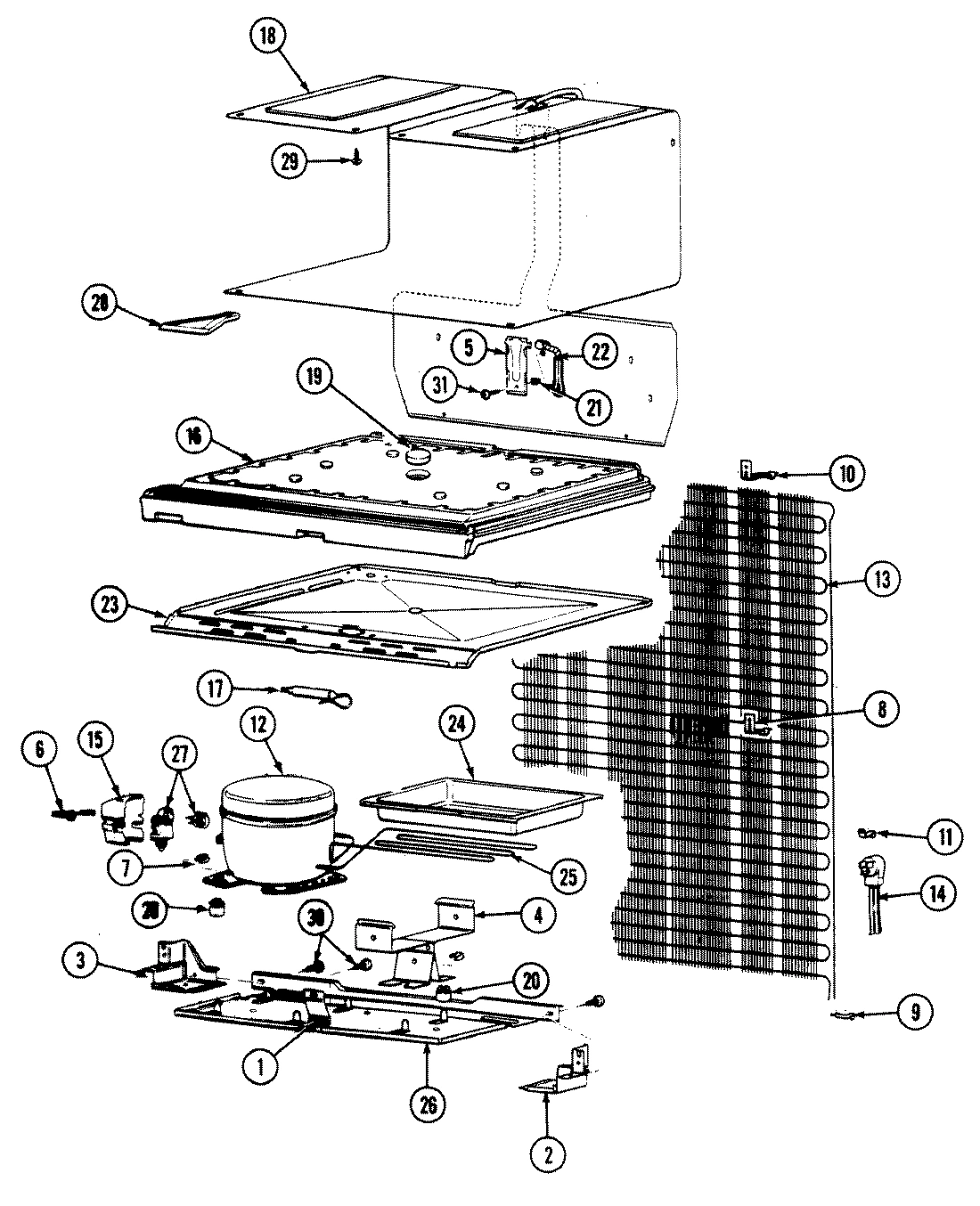

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RB151PA-P REFRIGERATOR
1
BRACKET, CONTROL WPL 70500059 Contact Us For Availability
1
STIFFENER, HANDLE WPL 62001005 Contact Us For Availability
1
BRACKET WPL 70100023 Contact Us For Availability
2
WASHER WPL 70200038 Contact Us For Availability
2
NUTSTRIP WPL 70200039 Contact Us For Availability
2
BRACKET, MULLION WPL 70500032 Contact Us For Availability
2
GASKET, FOAM WPL 70500033 Contact Us For Availability
2
DOOR, DAIRY WPL 62001012 Contact Us For Availability
2
SCREW WPL 70200026 Contact Us For Availability
3
BRACKET, TENSION WPL 70500037 Contact Us For Availability
3
GASKET, DOOR FRZ WPL 70300051 Contact Us For Availability
3
BRACKET WPL 70100025 Contact Us For Availability
4
CLAMP WPL 70200044 Contact Us For Availability
4
GASKET, DOOR WPL 70300025 Contact Us For Availability
4
BRACKET WPL 70100022 Contact Us For Availability
5
CONTROL, TEMP. WPL 62001020 Contact Us For Availability
5
HANDLE, DOOR WPL 62001004 Contact Us For Availability
5
CLAMP WPL 70200012 Contact Us For Availability
6
COVER, EVAPORATOR WPL 70500057 Contact Us For Availability
6
INSERT, DOOR HANDLE WPL 62001006 Contact Us For Availability
6
CLIP, RELAY COVER WPL 62001031 Contact Us For Availability
7
COVER, VEGTABLE PAN WPL 62001019 Contact Us For Availability
7
LINER, FRZ. DOOR WPL 62001003 Contact Us For Availability
7
CLIP, COMPRESSOR MOUNT WPL 62001032 Contact Us For Availability
8
CUP, DRAIN WPL 70500055 Contact Us For Availability
8
LINER, F.F. DOOR WPL 62001011 Contact Us For Availability
8
CLIP, CONDENSER (LOWER) WPL 62001027 Contact Us For Availability
9
GASKET, MULLION WPL 70500034 Contact Us For Availability
9
STRIP, FOAM WPL 70500035 Contact Us For Availability
9
NAMEPLATE WPL 70300041 Contact Us For Availability
9
CLIP WPL 70200018 Contact Us For Availability
10
GROMMET WPL 70200045 Contact Us For Availability
10
PANEL, FRZ DOOR WPL 62001002 Contact Us For Availability
10
CLIP, CONDENSER (UPPER) WPL 62001028 Contact Us For Availability
11
HEATER, MULLION WPL 70500041 Contact Us For Availability
11
PANEL, F.F DOOR WPL 62001001 Contact Us For Availability
11
CLAMP, CABLE NYLON WPL 62001035 Contact Us For Availability
12
HINGE, BOTTOM & PIN ASSY WPL 70500062 Contact Us For Availability
12
RETAINER, GASKET WPL 70300023 Contact Us For Availability
12
COMPRESSOR ASSY. WPL 62001024 Contact Us For Availability
13
RETAINER WPL 70300007 Contact Us For Availability
13
CONDENSER ASSY. WPL 62001026 Contact Us For Availability
14
TOP HINGE ASSY. WPL 70500014 Contact Us For Availability
14
RETAINER, GASKET WPL 70300028 Contact Us For Availability
14
POWER CORD WPL 70100001 Contact Us For Availability
14
CLAMP WPL 70200013 Contact Us For Availability
15
HOUSING, CONTROL WPL 70500053 Contact Us For Availability
15
SCREW WPL 70200021 Contact Us For Availability
15
COVER, RELAY WPL 62001030 Contact Us For Availability
16
INSULATION WPL 70500038 Contact Us For Availability
16
SCREW WPL 62001007 Contact Us For Availability
16
INSULATOR, DIVIDER WPL 62001022 Contact Us For Availability
17
KICKPLATE WPL 70500015 Contact Us For Availability
17
SCREW WPL 70200023 Contact Us For Availability
17
DRYER WPL 70100042 Contact Us For Availability
18
KNOB, CONTROL WPL 70500051 Contact Us For Availability
18
SCREW WPL 62001014 Contact Us For Availability
18
EVAPORATOR WPL 70100017 Contact Us For Availability
19
LEG, LEVELING WPL 70500016 Contact Us For Availability
19
DOOR STOP WPL 70300009 Contact Us For Availability
19
FILTER WPL 70100015 Contact Us For Availability
20
MULLION WPL 70500031 Contact Us For Availability
20
TRAY, BUTTER WPL 299362 Contact Us For Availability
20
GROMMET WPL 70200016 Contact Us For Availability
21
GROMMET WPL 70200041 Contact Us For Availability
21
HINGE, CENTER WPL 70500048 Contact Us For Availability
21
MULLION (INNER) WPL 70500036 Contact Us For Availability
21
TRIM, DOOR HANDLE WPL 62001059 Contact Us For Availability
22
PAN, VEGTABLE WPL 62001018 Contact Us For Availability
22
CAP, HANDLE WPL 62001015 Contact Us For Availability
22
EVAP HEATER WPL 70100027 Contact Us For Availability
22
HTR RETAINER WPL 70100028 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 62001008 Contact Us For Availability
23
LINER TOP FF WPL 70100045 Contact Us For Availability
24
CAP, CORNER WPL 70500030 Contact Us For Availability
24
TRIM, DOOR SHELF WPL 62001010 Contact Us For Availability
24
DRAIN PAN WPL 70100029 Contact Us For Availability
25
SCREW WPL 70200046 Contact Us For Availability
25
TRIM, DOOR SHELF WPL 62001013 Contact Us For Availability
25
AUX. COND. & PAN ASSY. WPL 62001033 Contact Us For Availability
26
SCREW WPL 70200033 Contact Us For Availability
26
CAP, DOOR SHELF TRIM----NA WPL 62001009 Contact Us For Availability
26
COMPR MTG PLATE WPL 70100024 Contact Us For Availability
27
SCREW WPL 70200048 Contact Us For Availability
27
RELAY WPL 62001029 Contact Us For Availability
28
SCREW WPL 70200049 Contact Us For Availability
28
SCRAPER WPL 70100005 Contact Us For Availability
29
SCREW WPL 70200050 Contact Us For Availability
29
SCREW WPL 70200001 Contact Us For Availability
30
SCREW WPL 70200011 Contact Us For Availability
31
SCREW WPL 70200051 Contact Us For Availability
31
SHELF, FRESH FOOD WPL 62001016 Contact Us For Availability
32
SHELF, FRESH FOOD WPL 62001017 Contact Us For Availability
33
SHIELD, LIGHT WPL 70500040 Contact Us For Availability
34
SHIM, HINGE (CTR) WPL 70500049 Contact Us For Availability
35
SHIM, UPPER HINGE WPL 62001021 Contact Us For Availability
36
SKIRT, KNOB WPL 70500052 Contact Us For Availability
37
SOCKET, LIGHT WPL 70500024 Contact Us For Availability
38
SUPPORT WPL 70500046 Contact Us For Availability
39
SWITCH, LIGHT WPL 70500058 Contact Us For Availability
40
SWITCH, POWERSAVER WPL 70500047 Contact Us For Availability
41
TRAY, ICE WPL 592812 Contact Us For Availability
42
CAP, CORNER (ALM) WPL 62001042 Contact Us For Availability
43
TROUGH, DRAIN WPL 70500054 Contact Us For Availability
44
TUBE, DRAIN WPL 70500056 Contact Us For Availability
45
WASHER WPL 70200042 Contact Us For Availability
45
WASHER WPL 70200043 Contact Us For Availability
× ![]()
