Model Whirlpool RAX34 REFRIGERATOR – Common Parts & Diagrams

Common parts from model Whirlpool RAX34 REFRIGERATOR

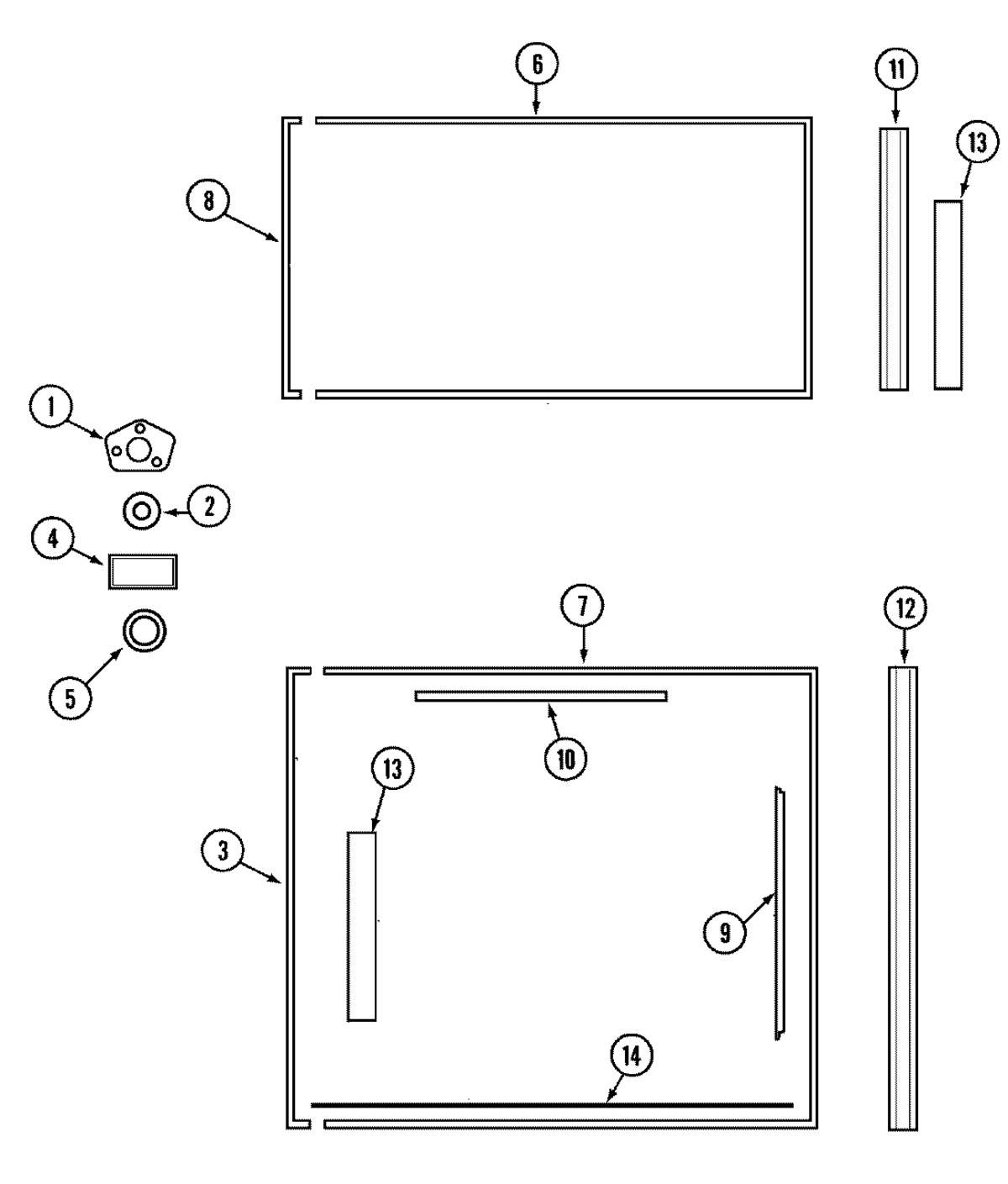

01 - DOOR TRIM

Print

• This Diagram
• All Diagrams

1

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

View on Model

2

WASHER WPL 542331 Contact Us For Availability

View on Model

3

TRIM, END FF WPL 675682 Contact Us For Availability

View on Model

4

INSERT, NAMEPLATE WPL 671941 Contact Us For Availability

View on Model

5

WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability

View on Model

5

WASHER, LOWER HINGE WPL 674832 Contact Us For Availability

View on Model

6

TRIM, PERIMETER FRZ. DOOR WPL 675712 Contact Us For Availability

View on Model

7

SCREW WPL 41400313 Contact Us For Availability

View on Model

7

PERIMETER TRIM F.F. DOOR WPL 675722 Contact Us For Availability

View on Model

8

TRIM END WPL 675681 Contact Us For Availability

View on Model

9

TAPE, 1/2`` X 15` WPL 951151 Contact Us For Availability

View on Model

10

CHANNEL ESCUT BOTTOM WPL 675761 Contact Us For Availability

View on Model

10

SIDE WPL 675762 Contact Us For Availability

View on Model

10

TOP WPL 675763 Contact Us For Availability

View on Model

10

BOTTOM & TOP WPL 675766 Contact Us For Availability

View on Model

10

SIDES WPL 675767 Contact Us For Availability

View on Model

11

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 View Details $371.04

View on Model

12

RETAINER F.F. WPL 675772 Contact Us For Availability

View on Model

13

INSERT, RETAINER WPL 675751 Contact Us For Availability

View on Model

14

SHIM WPL 676063 Contact Us For Availability

View on Model

15

TAPE (16 FT) WPL 678751 Contact Us For Availability

View on Model

×
