Model Whirlpool RAE20 REFRIGERATOR – Common Parts & Diagrams

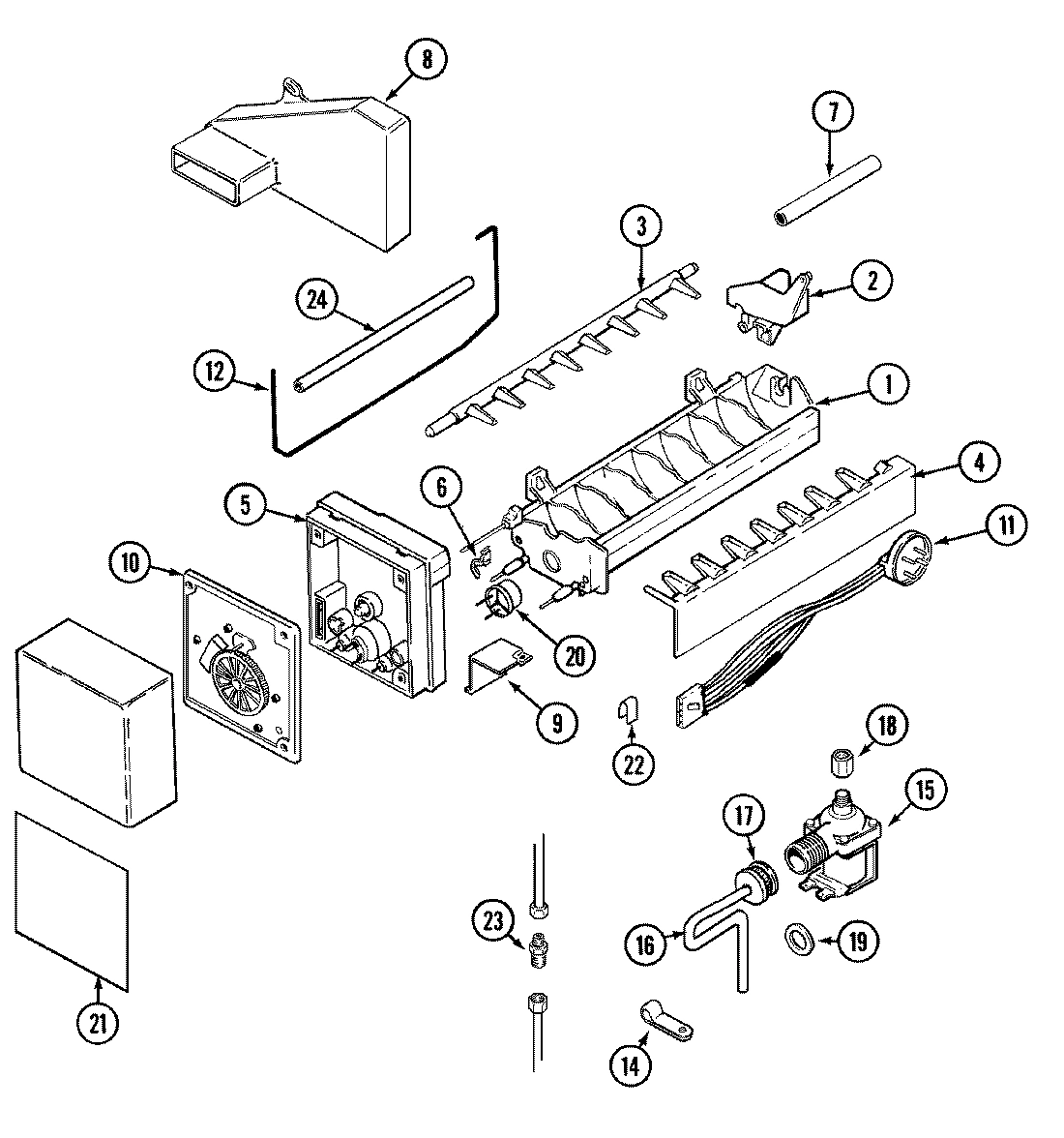

01 - ICE MAKER KIT
Common parts from model Whirlpool RAE20 REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
13
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
15
SCREW WPL 4010171 Contact Us For Availability
15
VALVE, WATER WPL 601843 Contact Us For Availability
16
INLET TUBE ASSY WPL 602193 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
UNION, COMPRESSION WPL 542671 Contact Us For Availability
24
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
× ![]()
