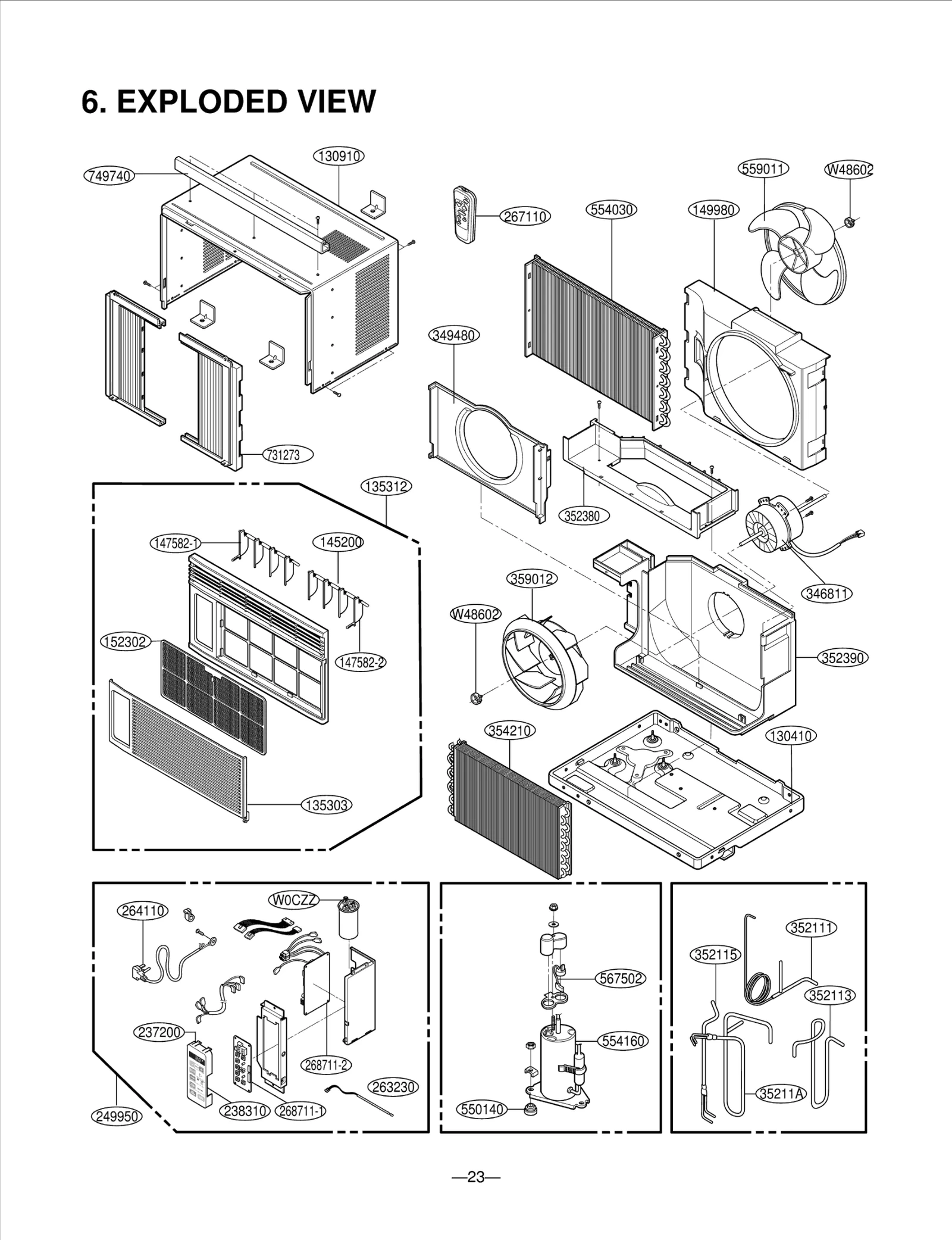

Model LG RADS-51C – Common Parts & Diagrams

135303
Grille,Inlet
Grille,Inlet LGE 3530A10039H Contact Us For Availability
View on Model
135312
Grille Assembly,Front
Grille Assembly,Front LGE 3531A20087D Contact Us For Availability
View on Model
145200
LINK HOLDER PP JI-350 LW-A0512
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
View on Model
147582-2
VANE,VERTICAL
VANE,VERTICAL LGE 5990AR3190D Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998AR1608A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20017A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A10001F Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE ABQ57504312 Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20066C Contact Us For Availability
View on Model
268711-1
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20432B Contact Us For Availability
View on Model
268711-2
PCB Assembly,Main
PCB Assembly,Main LGE EBR39266506 Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A10016N Contact Us For Availability
View on Model
352113
Tube Assembly,Suction
Tube Assembly,Suction LGE 5211A10062R Contact Us For Availability
View on Model
352380
AIR GUIDE
AIR GUIDE LGE 5238A20013A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20016L Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE TBZ32611801 Contact Us For Availability
View on Model
567502
Overload Protect
Overload Protect LGE 6750U-L010C Contact Us For Availability
View on Model
749740
UPPER GUIDE LW-A0510/511CL
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
View on Model
