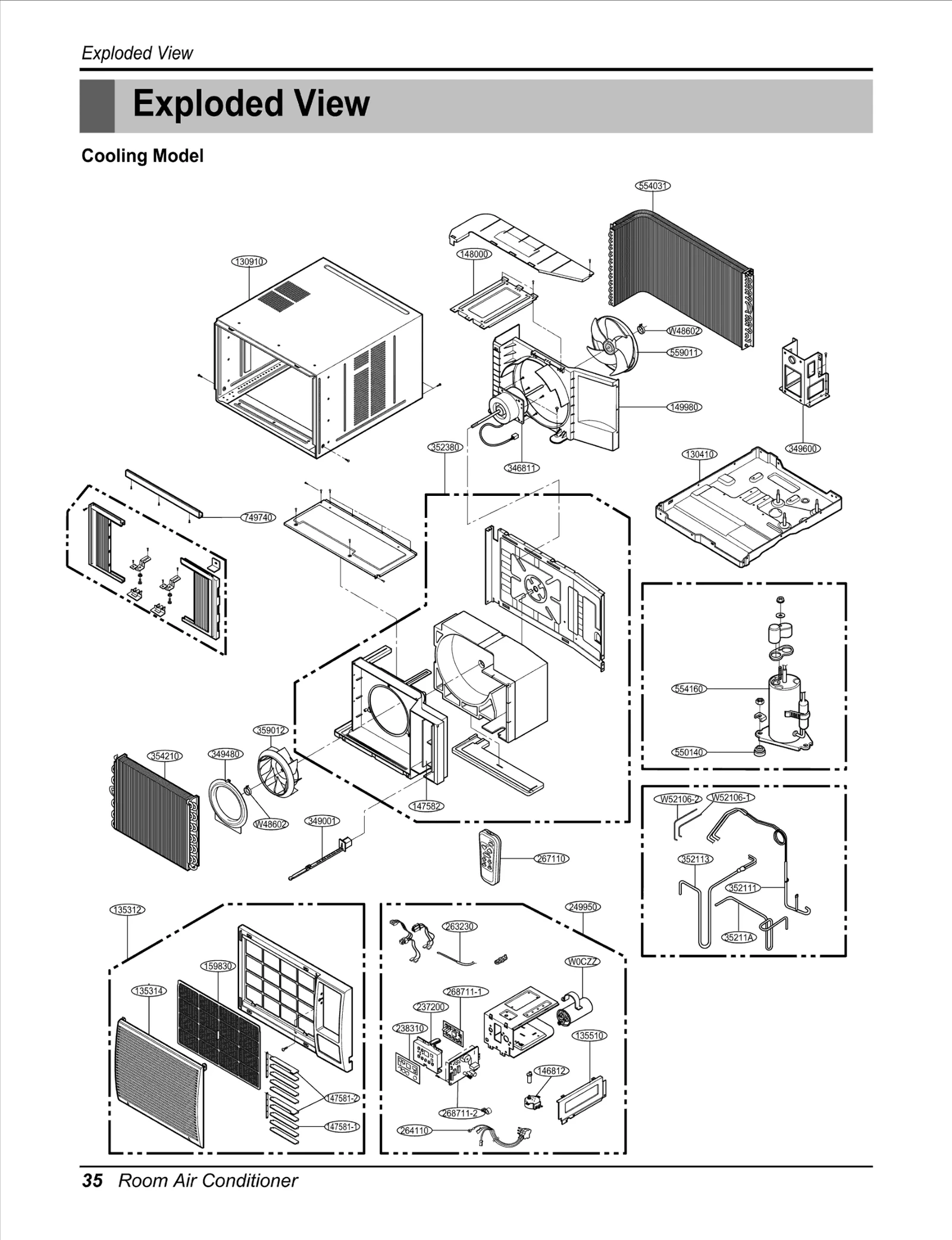

Model LG RAD-243A – Common Parts & Diagrams

135312
Grille Assembly,Front
Grille Assembly,Front LGE AEB30969403 Contact Us For Availability
View on Model
135510
COVER ASSY,CONTROL(SINGLE)
COVER ASSY,CONTROL(SINGLE) LGE 3551A30015A Contact Us For Availability
View on Model
147582
LOUVER
LOUVER LGE 4758AR6157A Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE 4998AR1597B Contact Us For Availability
View on Model
238310
Escutcheon
Escutcheon LGE 3831A20032L Contact Us For Availability
View on Model
249950
Case Assembly
Case Assembly LGE ABQ32895801 Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSY
REMOTE CONTROLLER ASSY LGE 6711A20035A Contact Us For Availability
View on Model
268711-2
PCB Assembly,Main
PCB Assembly,Main LGE EBR39215613 Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960AR1596A Contact Us For Availability
View on Model
352111
TUBE ASSY,CONDENSER OUT
TUBE ASSY,CONDENSER OUT LGE 5211AR7059E Contact Us For Availability
View on Model
352113
TUBE ASSEMBLY,DISCHARGE SINGLE
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21526J Contact Us For Availability
View on Model
352380
Guide Assembly,Air
Guide Assembly,Air LGE AEC72809901 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20248A Contact Us For Availability
View on Model
550140
Damper
Damper LGE 4022A30008A Contact Us For Availability
View on Model
554031
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20062F Contact Us For Availability
View on Model
554160
COMPRESSOR
COMPRESSOR LGE 5416A20045B Contact Us For Availability
View on Model
749740
FRAME GUIDE PP LW-B0811CL,B081
FRAME GUIDE PP LW-B0811CL,B081 LGE 3210AR3337A Contact Us For Availability
View on Model
W52106-1
Tube,Evaporator
Tube,Evaporator LGE 5210A21083U Contact Us For Availability
View on Model
W52106-2
Tube,Evaporator
Tube,Evaporator LGE 5210A21083V Contact Us For Availability
View on Model
