Model LG RAD-141A – Common Parts & Diagrams

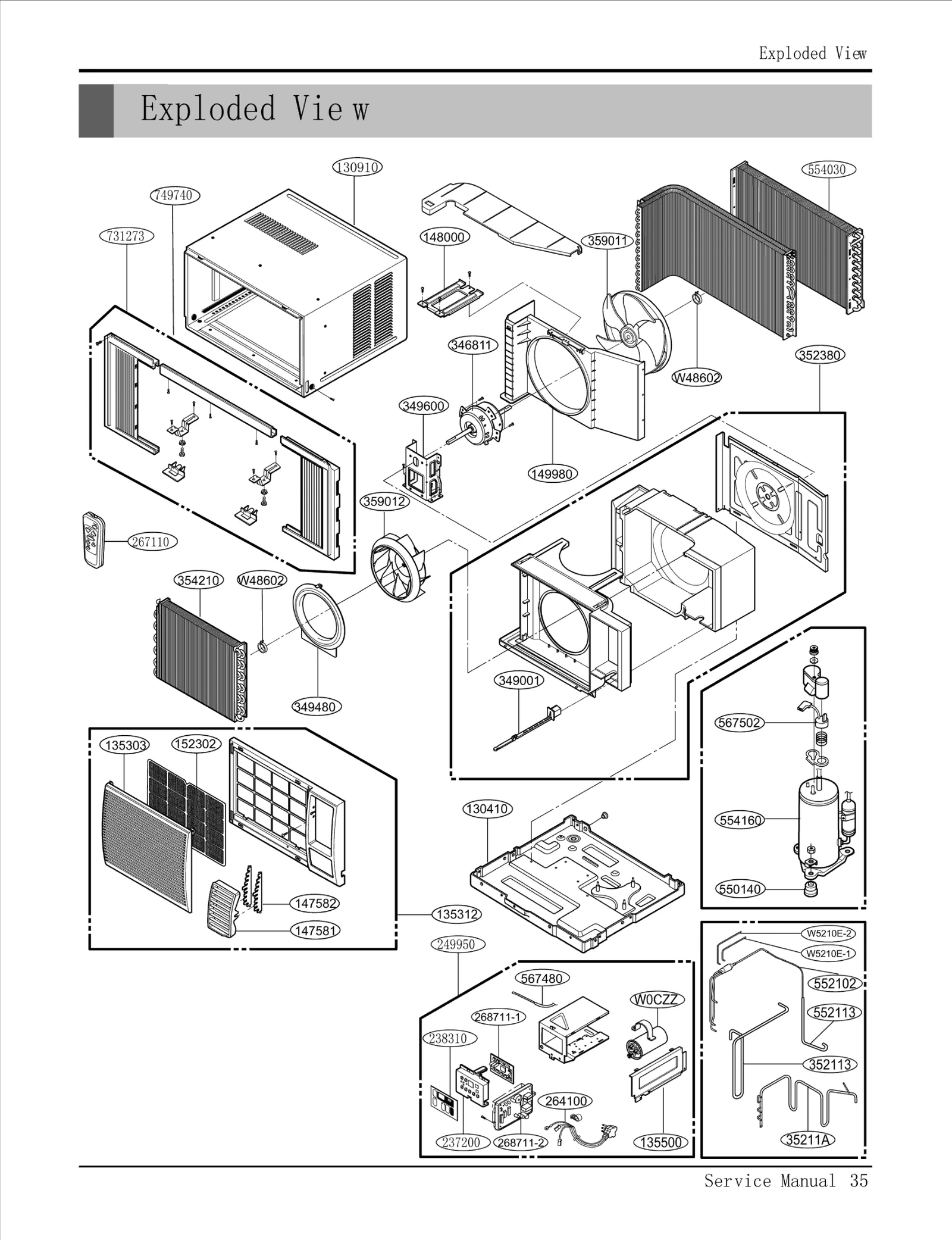

Diagram 0
Common parts from model LG RAD-141A
147581
VANE,HORIZONTAL LGE 5990AR6191A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A10003A Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20031L Contact Us For Availability
249950
Case Assembly,Control LGE 4995A30014M Contact Us For Availability
267110
Remote Controller Assembly LGE 6711A20066C Contact Us For Availability
268711-1
PCB Assembly,Display LGE 6871A20431D Contact Us For Availability
268711-2
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10123F Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20174B Contact Us For Availability
349001
DAMPER LGE 4900AR7024B Contact Us For Availability
349480
ORIFICE LGE 4948A10005B Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21446A Contact Us For Availability
352380
AIR GUIDE ASSEMBLY LGE 5239A20027B Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421AR6086J Contact Us For Availability
552102
TUBE ASSEMBLY,CAPILLARY LGE 5211A21448B Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403AR2921N Contact Us For Availability
554160
COMPRESSOR SET,CHINA LGE 2520UCBK017 Contact Us For Availability
567502
O.L.P LGE 6750U-L046A Contact Us For Availability
749740
GUIDE LGE 4974AR3262K Contact Us For Availability
W5210E-1
TUBE,EVA IN-1,2 LGE 5210AR7062A Contact Us For Availability
W5210E-2
TUBE,EVA IN-1,2 LGE 5210AR7063A Contact Us For Availability
× ![]()
