Model LG RAD-121B – Common Parts & Diagrams

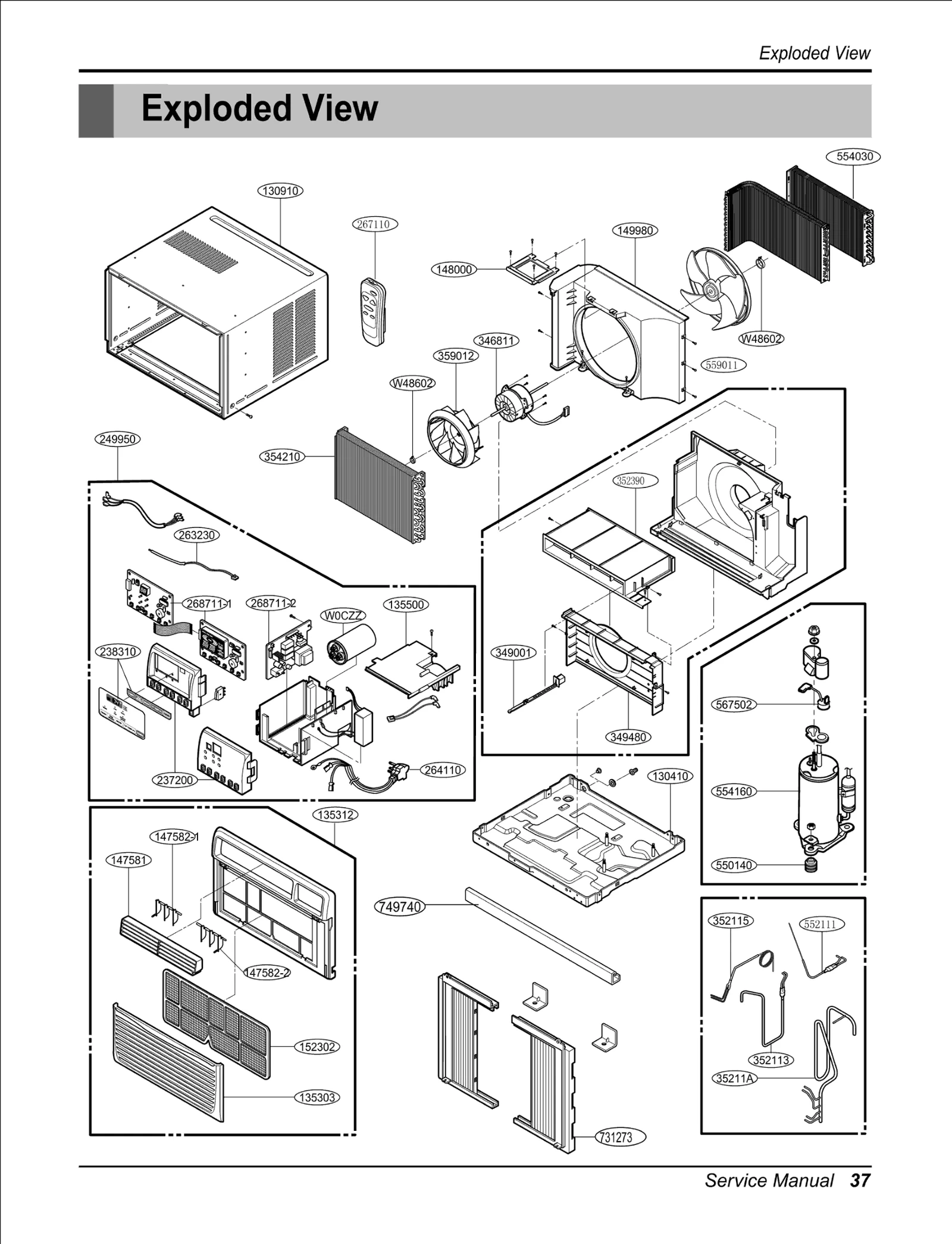

Diagram 0
Common parts from model LG RAD-121B
135303
GRILLE,INLET LGE 3530A20038A Contact Us For Availability
135312
Grille Assembly,Front LGE AEB72912901 Contact Us For Availability
147581
LOUVER,HORIZONTAL LGE 4758A20019A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20040B Contact Us For Availability
148000
BRACE LGE 4800A30002C Contact Us For Availability
149980
Shroud LGE 4998A10023C Contact Us For Availability
152302
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20006A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A10111C Contact Us For Availability
238310
Escutcheon LGE MDD61841201 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ33478622 Contact Us For Availability
267110
Remote Controller Assembly LGE 6711A20089K Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY, DISPLAY LGE 6871A20418A Contact Us For Availability
268711-2
PCB Assembly,Main LGE EBR39283902 Contact Us For Availability
346811
Motor Assembly,AC LGE EAU60153001 Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20003A Contact Us For Availability
352113
Tube Assembly,Discharge LGE 5211A21237D Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE 5211A20470Q Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10026P Contact Us For Availability
554030
Condenser Assembly,First LGE ACG32514901 Contact Us For Availability
554160
Compressor Set,China LGE TBZ34627601 Contact Us For Availability
559011
FAN ASSEMBLY - AXIAL LGE 5900AR1167B Contact Us For Availability
731273
INSTALL PART ASSEMBLY,SINGLE LGE 3127A10015B Contact Us For Availability
× ![]()
