Model Whirlpool R613 – Common Parts & Diagrams
06 - INSTALLATION

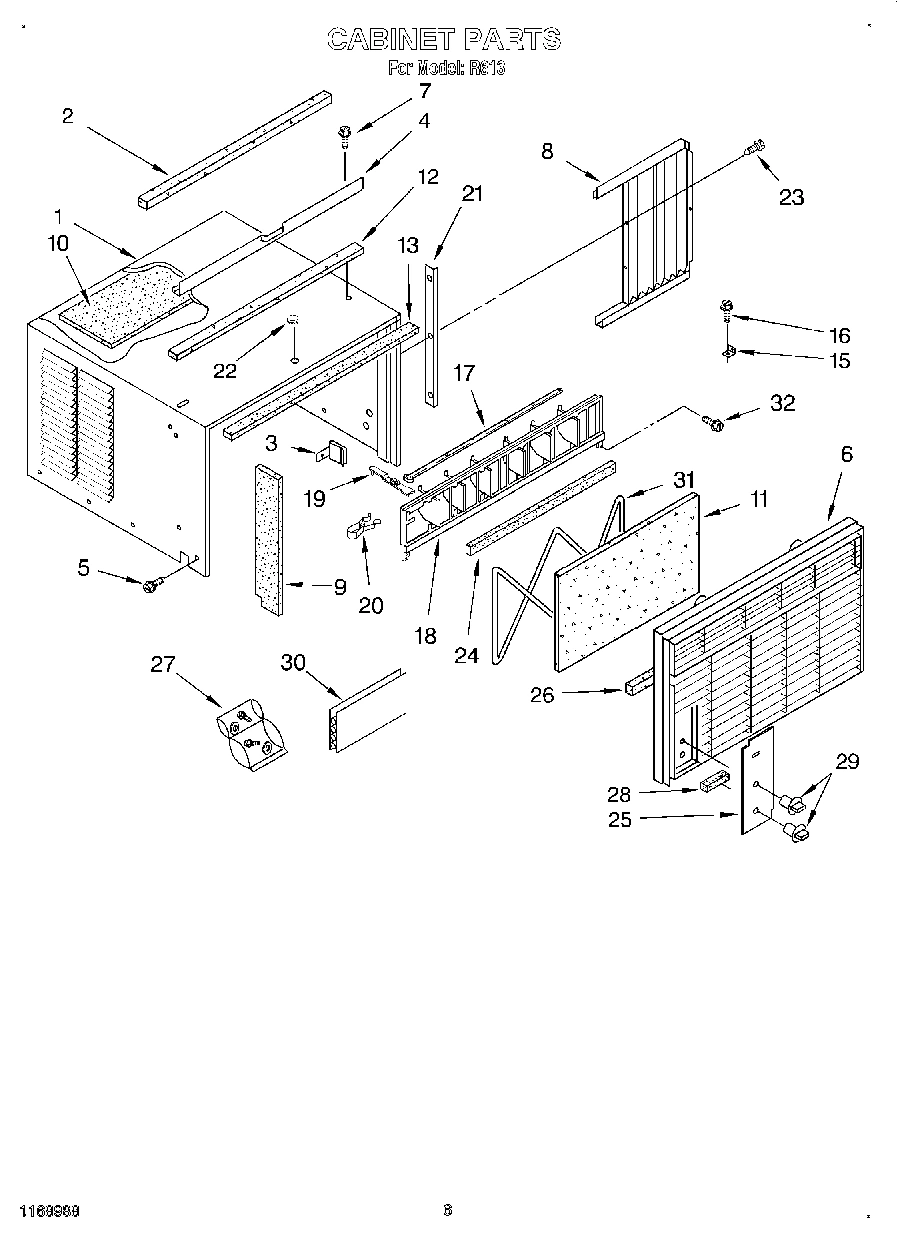

04 - CABINET

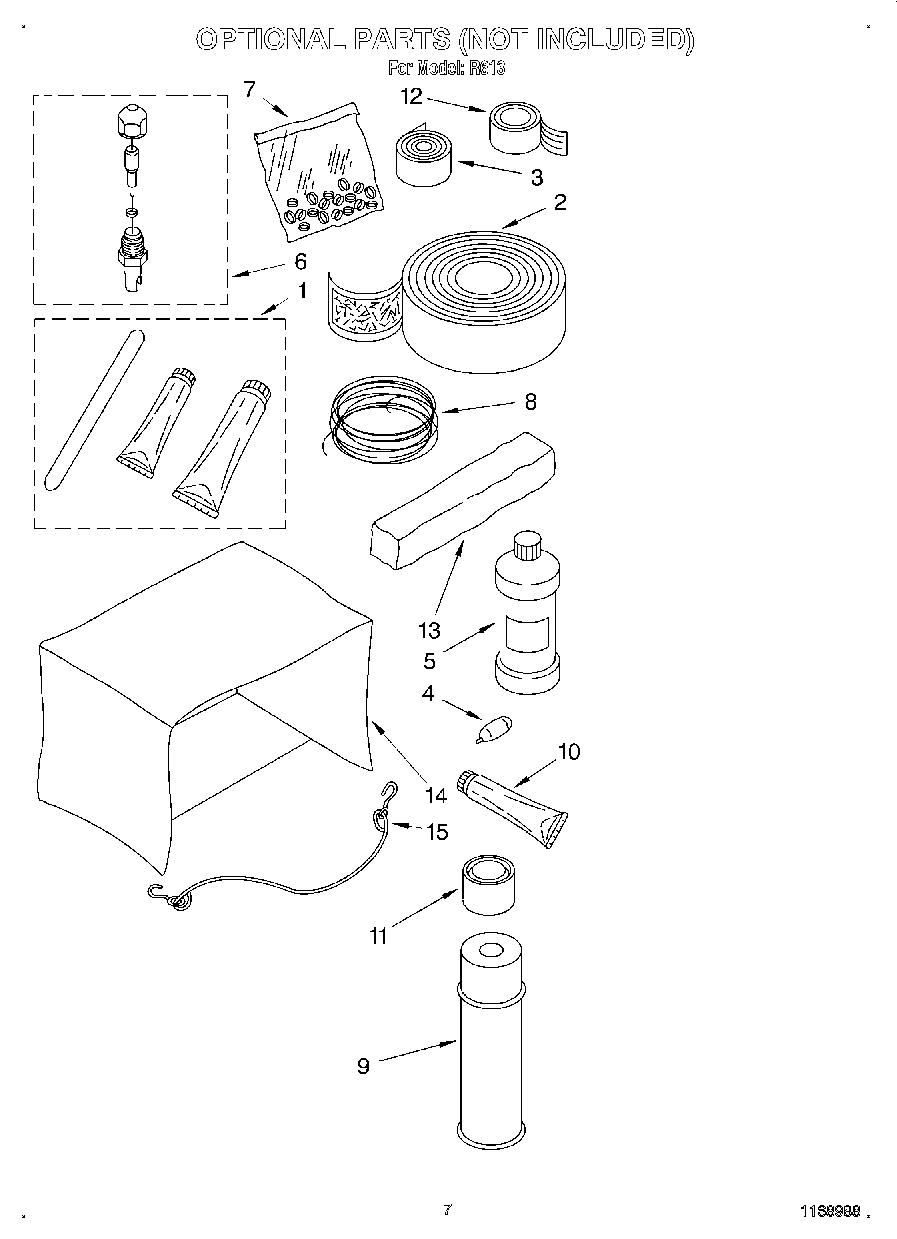

05 - OPTIONAL

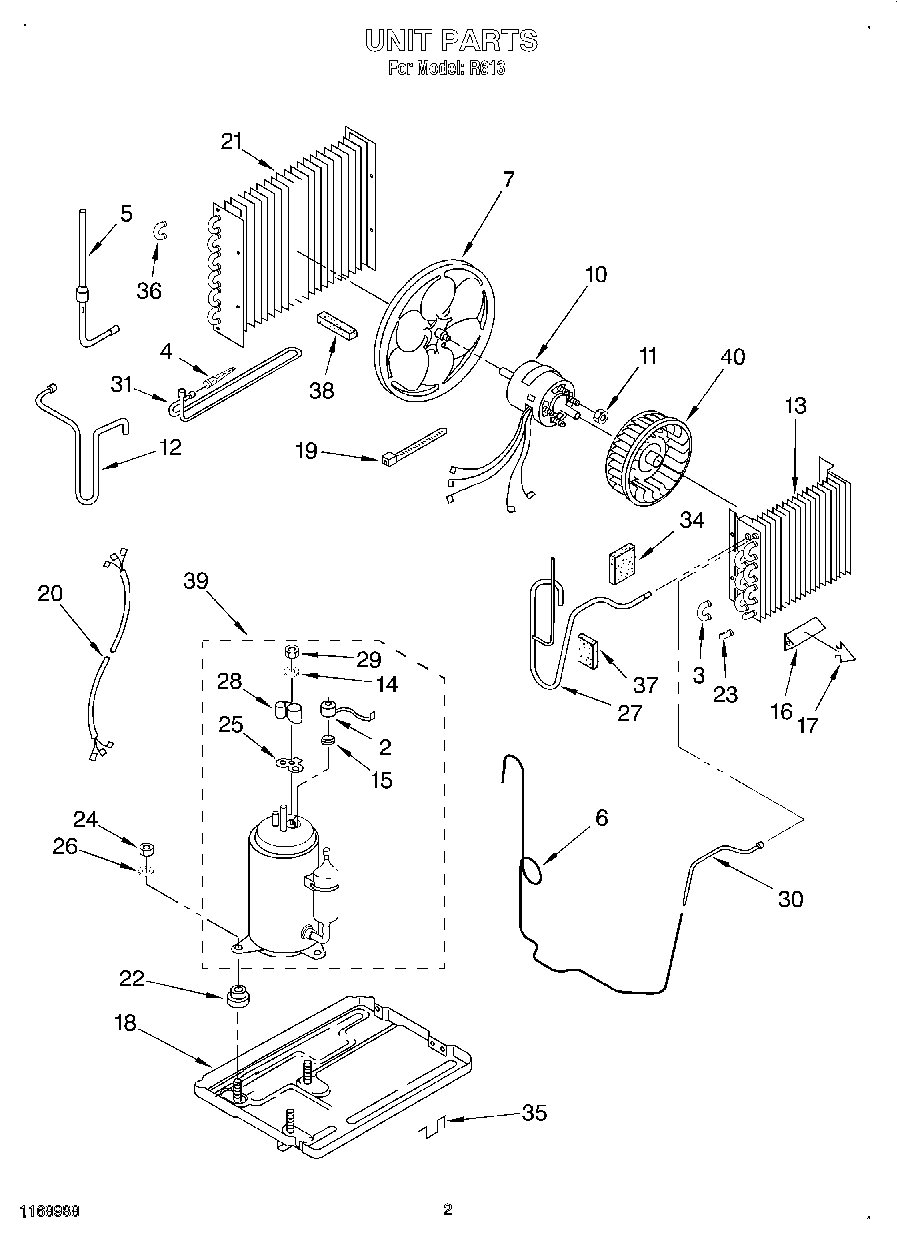

02 - UNIT, LITERATURE

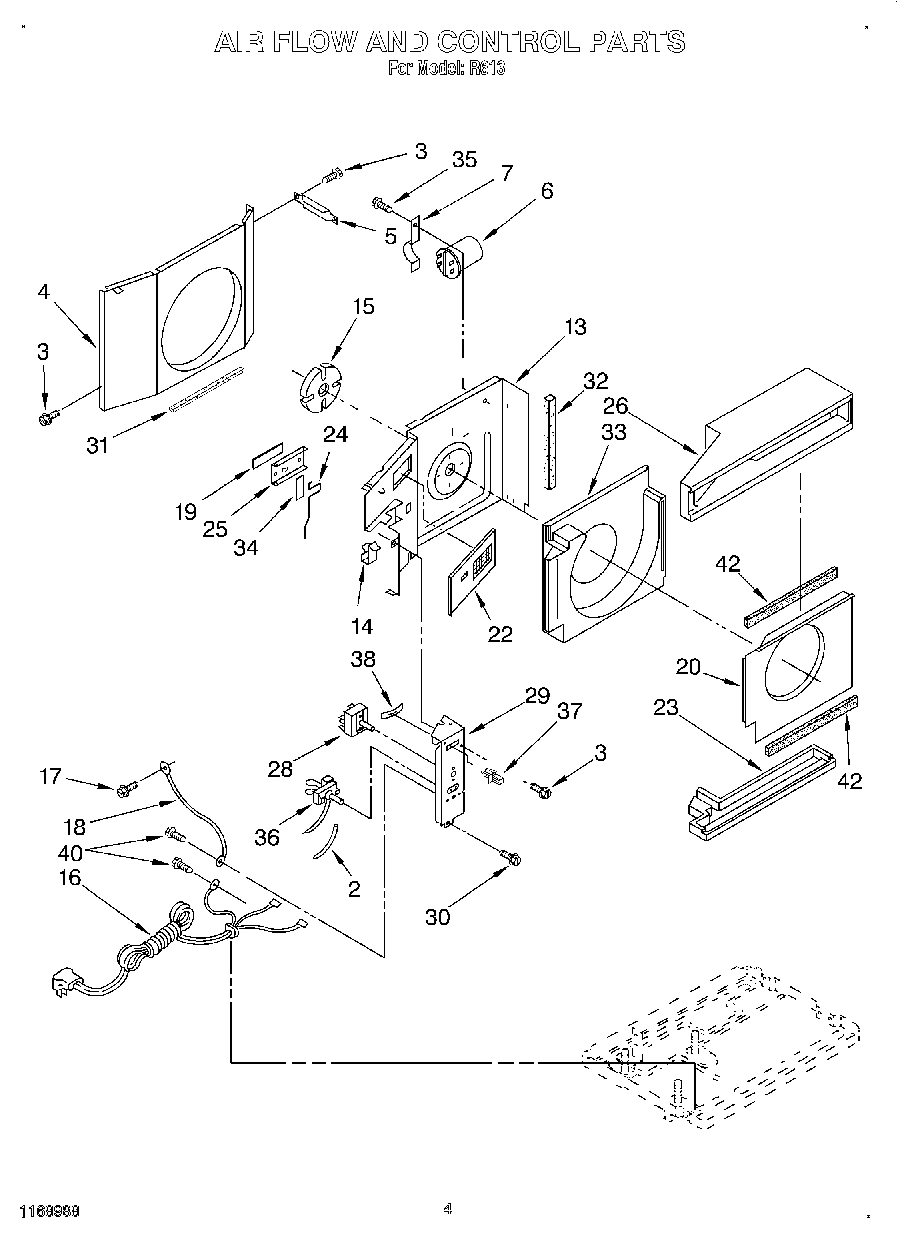

03 - AIRFLOW AND CONTROL
Common parts from model Whirlpool R613
Wiring Diagram WPL LIT1165177 Contact Us For Availability
Repair Parts List WPL LIT1168988 Contact Us For Availability
Owners Manual WPL LIT1169191 Contact Us For Availability
Tech Sheet WPL LIT1169474 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Sleeve, Insul. WPL 475841 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Clip WPL 1158294 Contact Us For Availability
3
Bend, Return (6) WPL 855199 Contact Us For Availability
4
Channel, Top WPL 1168393 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Charge WPL 1169002 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet WPL 1159799 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1168624 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
8
Curtain (R.S.) WPL 1162961 Contact Us For Availability
8
Curtain (L.S.) WPL 1162963 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Side WPL 1168285 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
10
Motor, Fan WPL 1166119 Contact Us For Availability
11
Filter WPL 852344 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Tube, Discharge WPL 1162781 Contact Us For Availability
13
Seal WPL 1159283 Contact Us For Availability
13
Evaporator WPL 1164540 Contact Us For Availability
13
Wall, Dividing WPL 1158284 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
14
Clamp, Wiring WPL 852451 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Insulation, Motor WPL 1168622 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Cord, Appliance WPL 1164674 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Seal, Meeting Rail WPL 855841 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
19
Barrier Protective WPL 1158323 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Shroud, Evaporator WPL 1164655 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
21
Condenser WPL 1168118 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Screen/Insul. Assembly WPL 1162876 Contact Us For Availability
23
Screw (4) WPL 1161561 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
25
Escutcheon WPL 1160387 Contact Us For Availability
25
Door, Exhaust WPL 1158280 Contact Us For Availability
26
Hood, Air Housing WPL 1164649 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
27
Tube, Suction WPL 1166117 Contact Us For Availability
28
Spacer, (2) WPL 470036 Contact Us For Availability
28
Switch, Rotary WPL 1165246 Contact Us For Availability
29
Knob (2) WPL 1158639 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Retainer, Filter WPL 646963 Contact Us For Availability
31
Tube, Wet Loop WPL 1169000 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
34
Sealer, Tube WPL 1164551 Contact Us For Availability
34
Spacer, Exhaust Door (2) WPL 1159175 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
35
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
36
Bend, Return (5) WPL 708531 Contact Us For Availability
36
Control, Temp. WPL 950403 Contact Us For Availability
37
Sealer, Tube WPL 1159443 Contact Us For Availability
37
Actuator, Door WPL 1167162 Contact Us For Availability
38
Spring, Detent WPL 858765 Contact Us For Availability
39
Compressor Assembly WPL 1156603 Contact Us For Availability
40
Screw WPL 1159222 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
