Model LG R5050Y3 – Common Parts & Diagrams

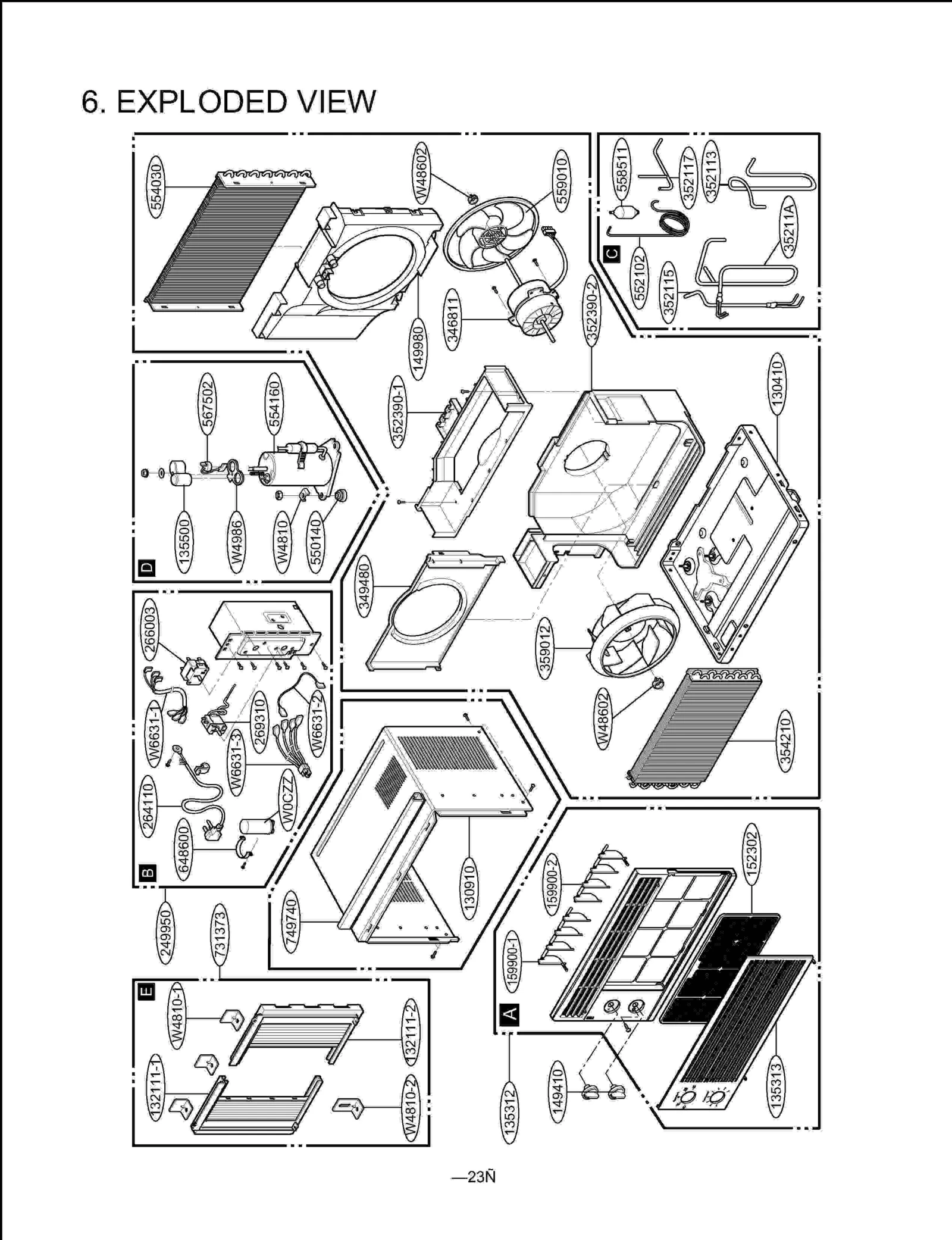

Diagram 0
Diagram 1
Common parts from model LG R5050Y3
135312
GRILLE ASSY,FRONT LGE 3531AR1644A Contact Us For Availability
135313
GRILLE LGE 3530AR1616A Contact Us For Availability
149410
KNOB ASSY LGE 4941AR7315A Contact Us For Availability
149980
SHROUD LGE 4998AR1608A Contact Us For Availability
159900
VANE,VERTICAL LGE 5990AR3190D Contact Us For Availability
249950
CONTROL BOX ASSEMBLY. SINGLE LGE 4995AR6202P Contact Us For Availability
264110
POWER CODE ASSY WA-CHASSIS, S LGE 2H00677P Contact Us For Availability
266003
SWITCH ROTARY SRB-315-4-2 LGE 2H00154H Contact Us For Availability
269310
THERMOSTAT LGE 2H01109H Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A10016C Contact Us For Availability
352115
TUBE ASSY,EVAPORATOR IN LGE 5211A10063A Contact Us For Availability
352117
TUBE ASSEMBLY,FORMED COND LGE 5211AR3399U Contact Us For Availability
352380
AIR GUIDE ASSEMBLY LGE 5239A30003D Contact Us For Availability
354210
EVAPORATOR ASSY,FIRST LGE 5421A10008B Contact Us For Availability
554160
COMPRESSOR LGE 5416A20014G Contact Us For Availability
558511
DRIER ASSEMBLY LGE 5851A30001L Contact Us For Availability
648600
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
738290
LGE 3828A20290A LGE 3828A20290A Contact Us For Availability
749740
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
W4810
BRACKET,BASE LGE 4810A30113A Contact Us For Availability
W4810
BRACKET LGE 4810A30152A Contact Us For Availability
W6631
CONDUCTOR ASSY LGE 6631AR3843R Contact Us For Availability
W6631
CONDUCTOR ASM AWG18, UL1015 LGE 2H01045E Contact Us For Availability
× ![]()
