Model LG R2403 WINDOW AC – Common Parts & Diagrams

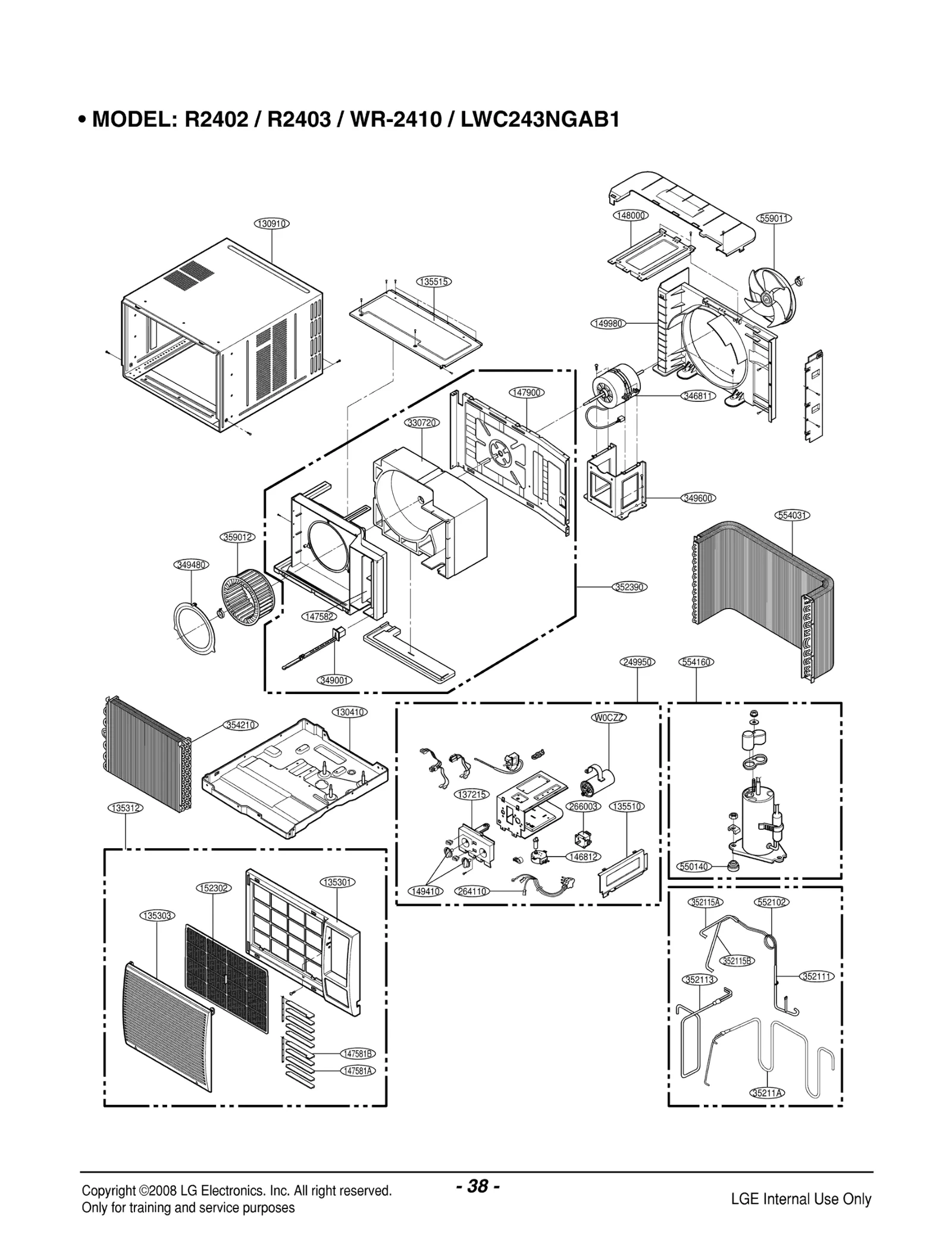

Diagram 0
Common parts from model LG R2403 WINDOW AC
130910
CABINET ASSY,SINGLE LGE 3091AR6056A Contact Us For Availability
135301
GRILLE,FRONT LGE 3530AR1603A Contact Us For Availability
135303
GRILLE,INLET LGE 3530AR1604A Contact Us For Availability
135312
GRILLE ASSY,FRONT LGE 3531A20005C Contact Us For Availability
135510
COVER ASSY,CONTROL(SINGLE) LGE 3551A30015A Contact Us For Availability
135515
COVER ASSY,TOP(INDOO LGE 3551A30001A Contact Us For Availability
137215
PANEL ASSY,FRONT(SINGLE) LGE 3721A20002B Contact Us For Availability
146812
Motor,AC LGE 2H01102K Contact Us For Availability
147582
LOUVER LGE 4758AR6157A Contact Us For Availability
149410
KNOB ASSY LGE 4941A30001A Contact Us For Availability
149980
SHROUD LGE 4998AR1602A Contact Us For Availability
249950
CONTROL BOX ASSY,SINGLE LGE 4995A20065K Contact Us For Availability
330720
SCROLL LGE 3072AR1583A Contact Us For Availability
346811
MOTOR ASSEMBLY,AC LGE 4681A20043A Contact Us For Availability
349480
ORIFICE LGE 4948A30006A Contact Us For Availability
352111
TUBE ASSY,CONNECTOR LGE 5211AR7059Q Contact Us For Availability
352113
TUBE ASSY,DISCHARGE SINGLE LGE 5211A30325C Contact Us For Availability
352115A
TUBE,EVAPORATOR LGE 5210A30144A Contact Us For Availability
352115B
TUBE,EVAPORATOR LGE 5210A30144B Contact Us For Availability
352390
AIR GUIDE ASSY LGE 5239A20001J Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A90005A Contact Us For Availability
354210
EVAPORATOR ASSY,FIRST LGE 5421A20017A Contact Us For Availability
552102
TUBE ASSY,CAPILLARY LGE 5211A30296E Contact Us For Availability
554031
CONDENSER ASSY,BENT LGE 5403A20032B Contact Us For Availability
554160
COMPRESSOR ASSY,FINAL LGE 5417A20012M Contact Us For Availability
559011
FAN LGE 5900AR1330A Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20001P Contact Us For Availability
× ![]()
