Model Whirlpool R200 ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - BLOWER ASSEMBLY

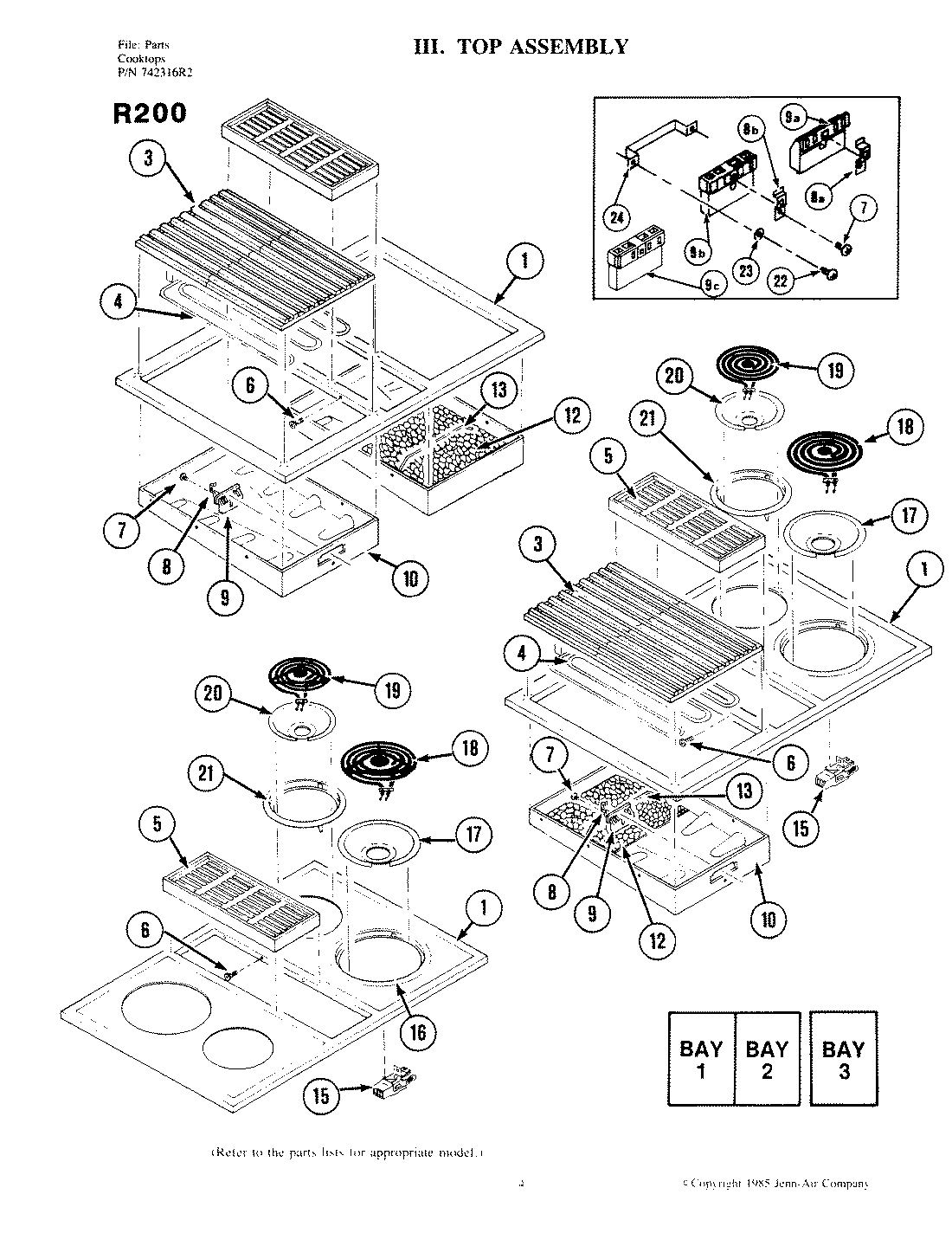

04 - TOP ASSEMBLY

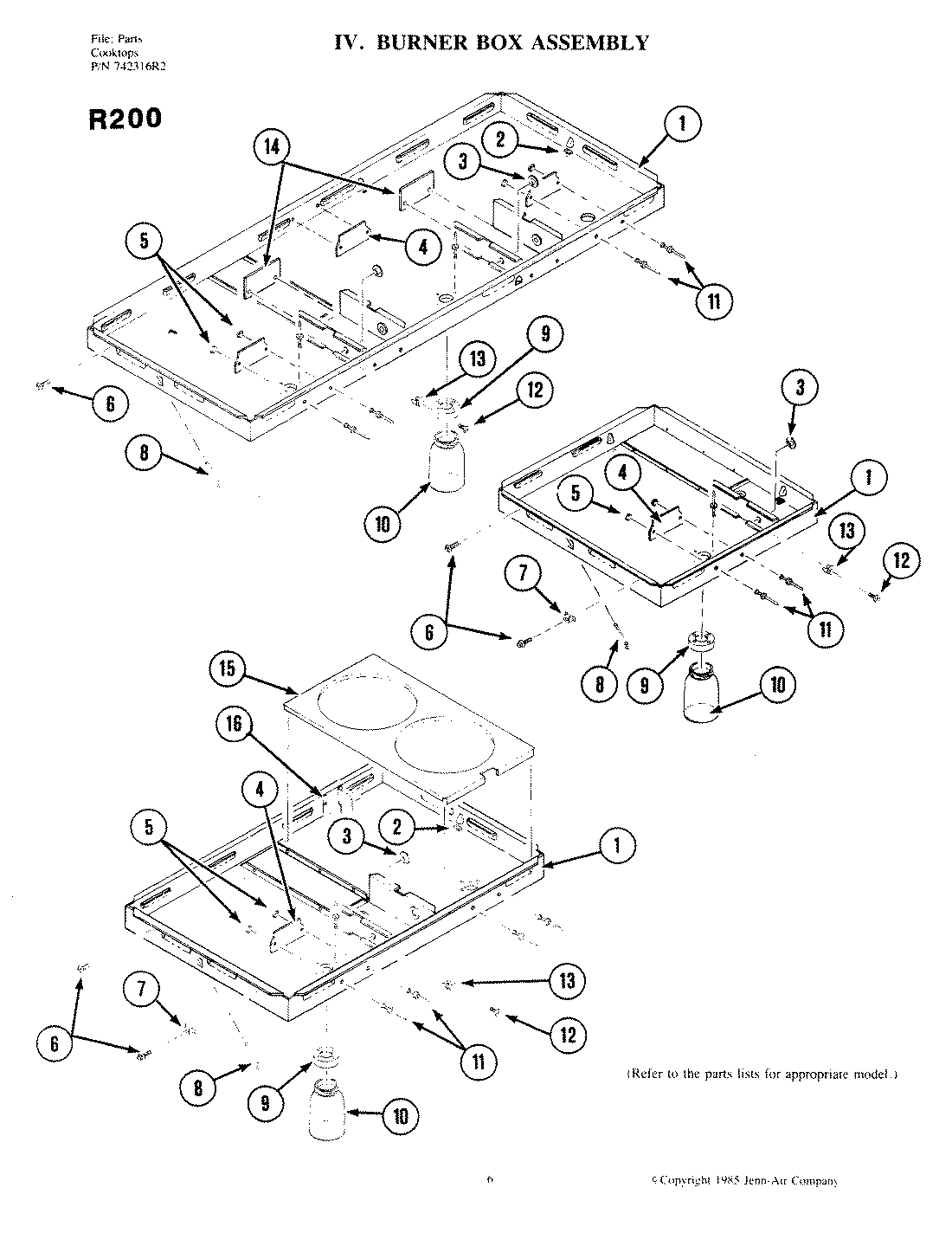

02 - BURNER BOX ASSEMBLY

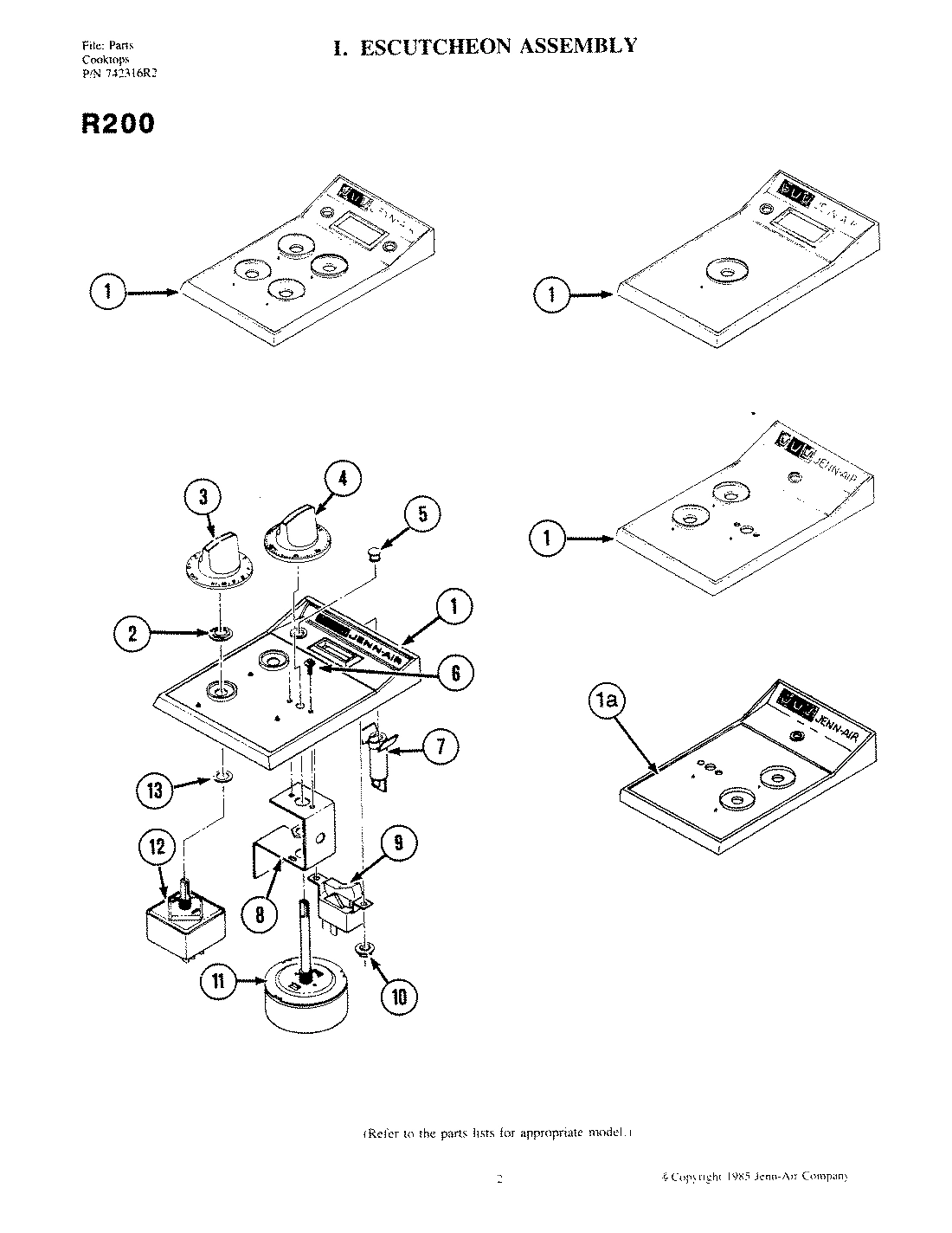

03 - ESCUTCHEON ASSEMBLY
Common parts from model Whirlpool R200 ELECTRIC COOK-TOP
1
COVER,MOTOR WPL 708863 Contact Us For Availability
1
CLAMP, CABLE WPL 715780 Contact Us For Availability
1
CLIP WPL Y707335 Contact Us For Availability
1
CONDUIT WPL Y707758 Contact Us For Availability
1
TOP ASSEMBLY WPL 701841 Contact Us For Availability
1
BURNER BOX WPL 700661 Contact Us For Availability
1
ESCUTCHEON LT-STICK ON LOGO WPL Y700664 Contact Us For Availability
1
ESCUTCHEON LT- CAST LOGO WPL Y700822 Contact Us For Availability
3
NUT WPL 707161 Contact Us For Availability
3
BUSHING WPL Y707695 Contact Us For Availability
4
SCREW WPL Y707402 Contact Us For Availability
5
GRILL, AIR WPL 700667 Contact Us For Availability
6
SCREW WPL 707407 Contact Us For Availability
7
BAND, MOTOR WPL Y707393 Contact Us For Availability
8
SCREW WPL Y707121 Contact Us For Availability
9
FOAM, URETHANE WPL Y715957 Contact Us For Availability
9
SWITCH, FAN WPL 715397 Contact Us For Availability
11
BUSHING WPL 708185 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
RING, INLET (WITH STUDS) WPL 786316 Contact Us For Availability
12
RING, INLET WPL Y702295 Contact Us For Availability
13
BLOWER SCROLL KIT WPL Y712053 Contact Us For Availability
13
WIRE KIT WPL 700024 Contact Us For Availability
13
O RING WPL Y700833 Contact Us For Availability
14
RETAINER, FILTER WPL Y707688 Contact Us For Availability
14
INSULATOR WPL 707746 Contact Us For Availability
14
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
15
PLENUM WPL Y701840 Contact Us For Availability
15
INSERT, BURNER BOX WPL Y707822 Contact Us For Availability
16
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
17
PLATE, COVER WPL Y707681 Contact Us For Availability
19
CLIP WPL Y707831 Contact Us For Availability
× ![]()
