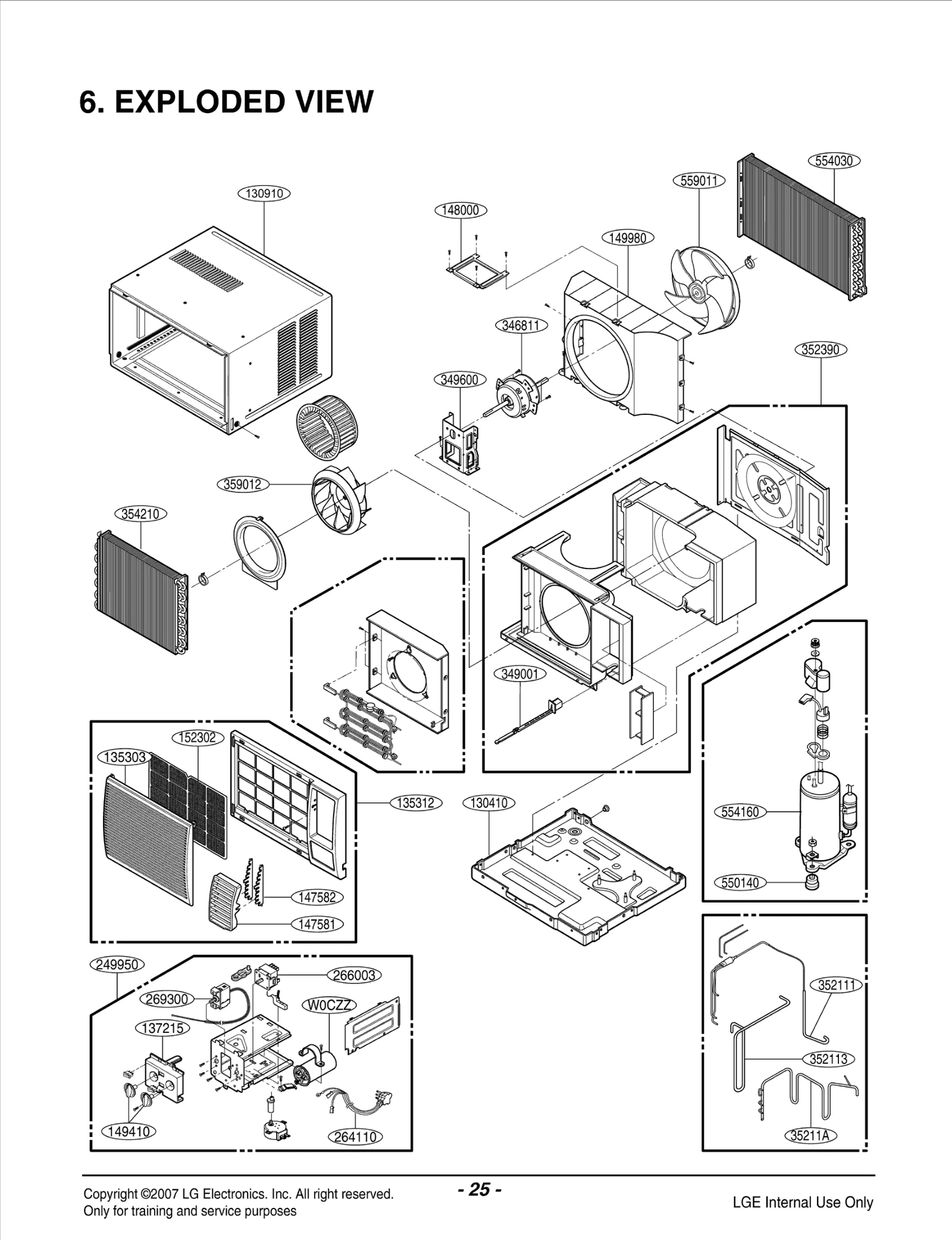

Model LG R1203H – Common Parts & Diagrams

137215
PANEL ASSY,CONTROL
PANEL ASSY,CONTROL LGE 3721A30007H Contact Us For Availability
View on Model
147581
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 5990AR6191B Contact Us For Availability
View on Model
148000
BRACE
BRACE LGE 4810AR7029A Contact Us For Availability
View on Model
149410
KNOB ASSY
KNOB ASSY LGE 4941A30005B Contact Us For Availability
View on Model
152302
Filter,Air
Filter,Air LGE 5231AR1152N Contact Us For Availability
View on Model
249950
CONTROL BOX ASSY,SINGLE
CONTROL BOX ASSY,SINGLE LGE 4995A20026M Contact Us For Availability
View on Model
269300
THERMOSTAT
THERMOSTAT LGE 2H01127B Contact Us For Availability
View on Model
346811
MOTOR ASSY,AC
MOTOR ASSY,AC LGE 4681A20009M Contact Us For Availability
View on Model
346811
Assembly, Motor
Assembly, Motor LGE 3911A30082J Contact Us For Availability
View on Model
349001
DAMPER
DAMPER LGE 4900AR7024B Contact Us For Availability
View on Model
349600
MOUNT
MOUNT LGE 4960AR6165A Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90009B Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY
EVAPORATOR ASSY LGE 5421AR6086B Contact Us For Availability
View on Model
550140
BUSH ANTI VIBRATION QJ-COMP(96
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE 5403A90035A Contact Us For Availability
View on Model
554030
CONDENSER ASSY
CONDENSER ASSY LGE 5403AR2921A Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE 2520UKPK2AA Contact Us For Availability
View on Model
559011
FAN "WC" CHASSIS LW-C1211/1011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
View on Model
W0CZZ
CAPACITOR 4 CONN
CAPACITOR 4 CONN LGE 6120AR2359D Contact Us For Availability
View on Model
