Model LG PV150G – Common Parts & Diagrams

Common parts from model LG PV150G

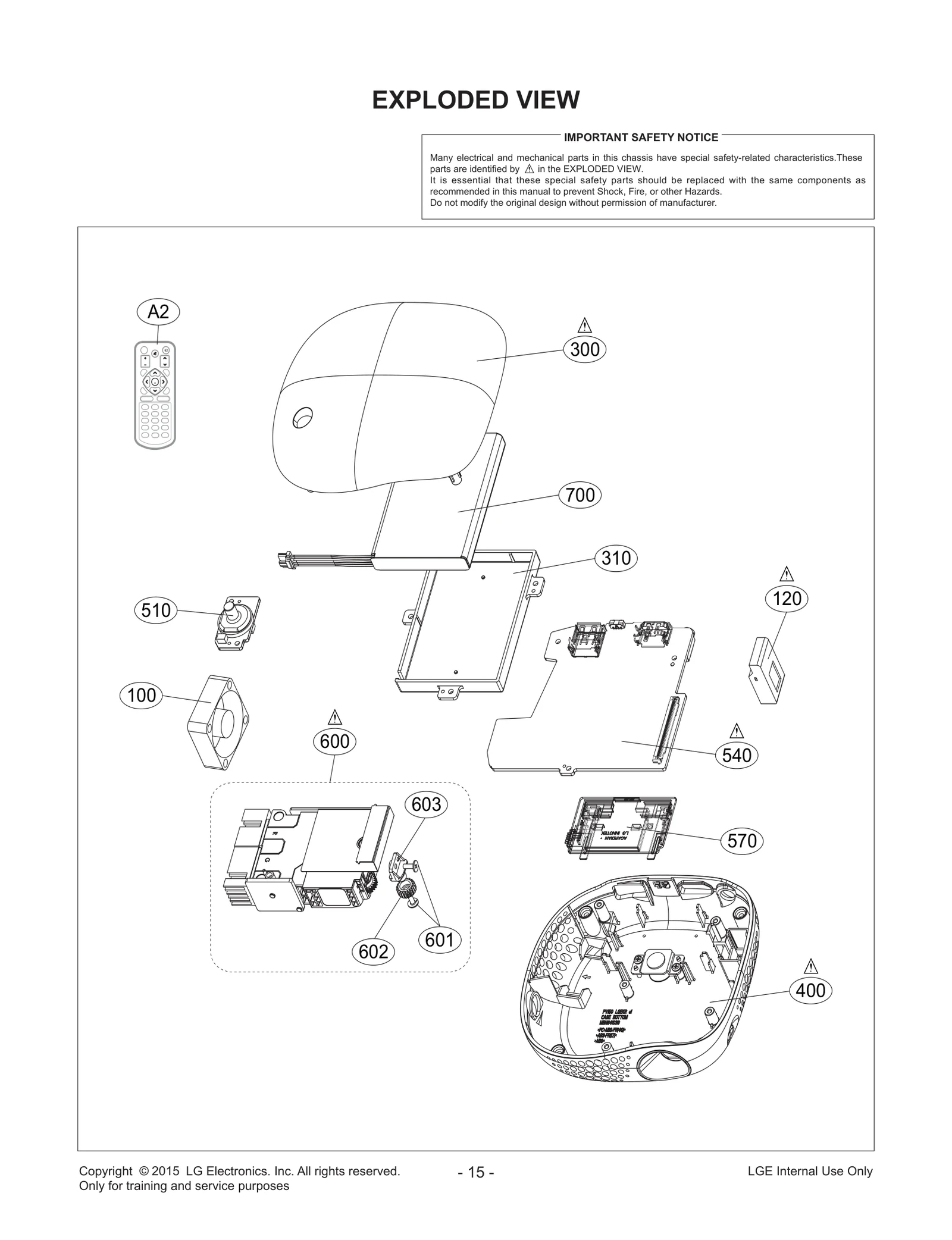

Diagram 0

Print

• This Diagram
• All Diagrams

100

Fan Module LGE EAL61381001 Contact Us For Availability

View on Model

101

Gasket LGE MDS62005712 Contact Us For Availability

View on Model

120

SPEAKER,FULL RANGE Backorder LGE EAB62689402 View Details $27.39

View on Model

300

Cover Assembly LGE ACQ88078501 Contact Us For Availability

View on Model

310

Cover Backorder LGE MCK68769201 View Details $3.79

View on Model

400

Case Assembly LGE ABQ75242201 Contact Us For Availability

View on Model

510

Chassis Assembly LGE EBT63749701 Contact Us For Availability

View on Model

540

Chassis Assembly LGE EBT63766201 Contact Us For Availability

View on Model

570

Module,WLAN LGE EAT61813801 Contact Us For Availability

View on Model

600

MODULE,ASSEMBLY Backorder LGE EAT62913601 View Details $449.00

View on Model

601

Screw,Taptite LGE FAB30016002 Contact Us For Availability

View on Model

602

Gear Backorder LGE MDT63287101 View Details $2.23

View on Model

603

Bracket LGE MAZ64886601 Contact Us For Availability

View on Model

700

Rechargeable Battery,Lithium Ion LGE EAC62979101 Contact Us For Availability

View on Model

A1

Title LGE SAC30666089 Contact Us For Availability

View on Model

A2

Remote Controller Backorder LGE MKJ50025128 View Details $31.06

View on Model

A3

Power Cord,Detach LGE EAD62149101 Contact Us For Availability

View on Model

A4

Adapters LGE EAY62648703 Contact Us For Availability

View on Model

S1

Cable,FFC LGE EAD61670717 Contact Us For Availability

View on Model

S2

Harness,Single LGE EAD58345803 Contact Us For Availability

View on Model

×
