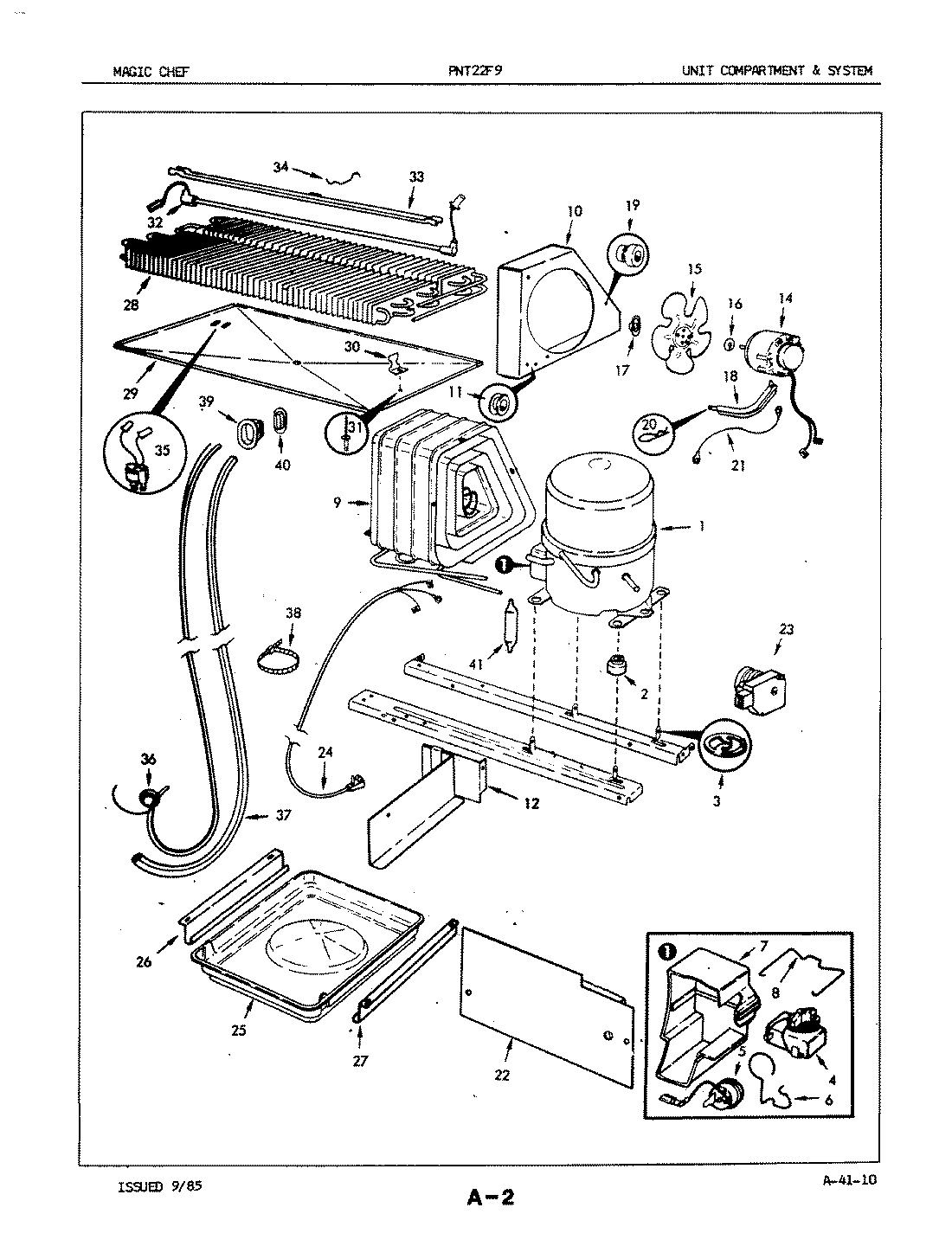

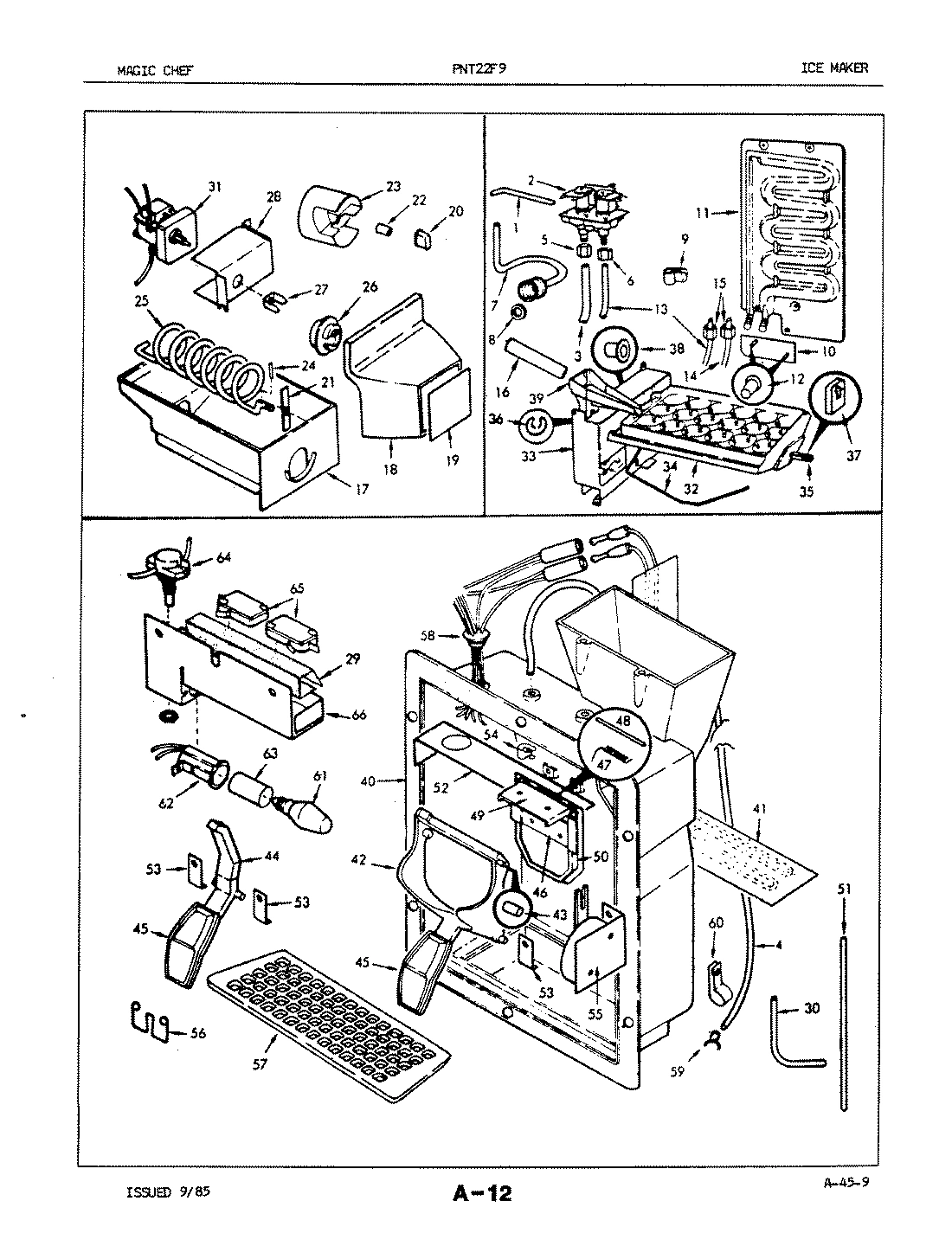

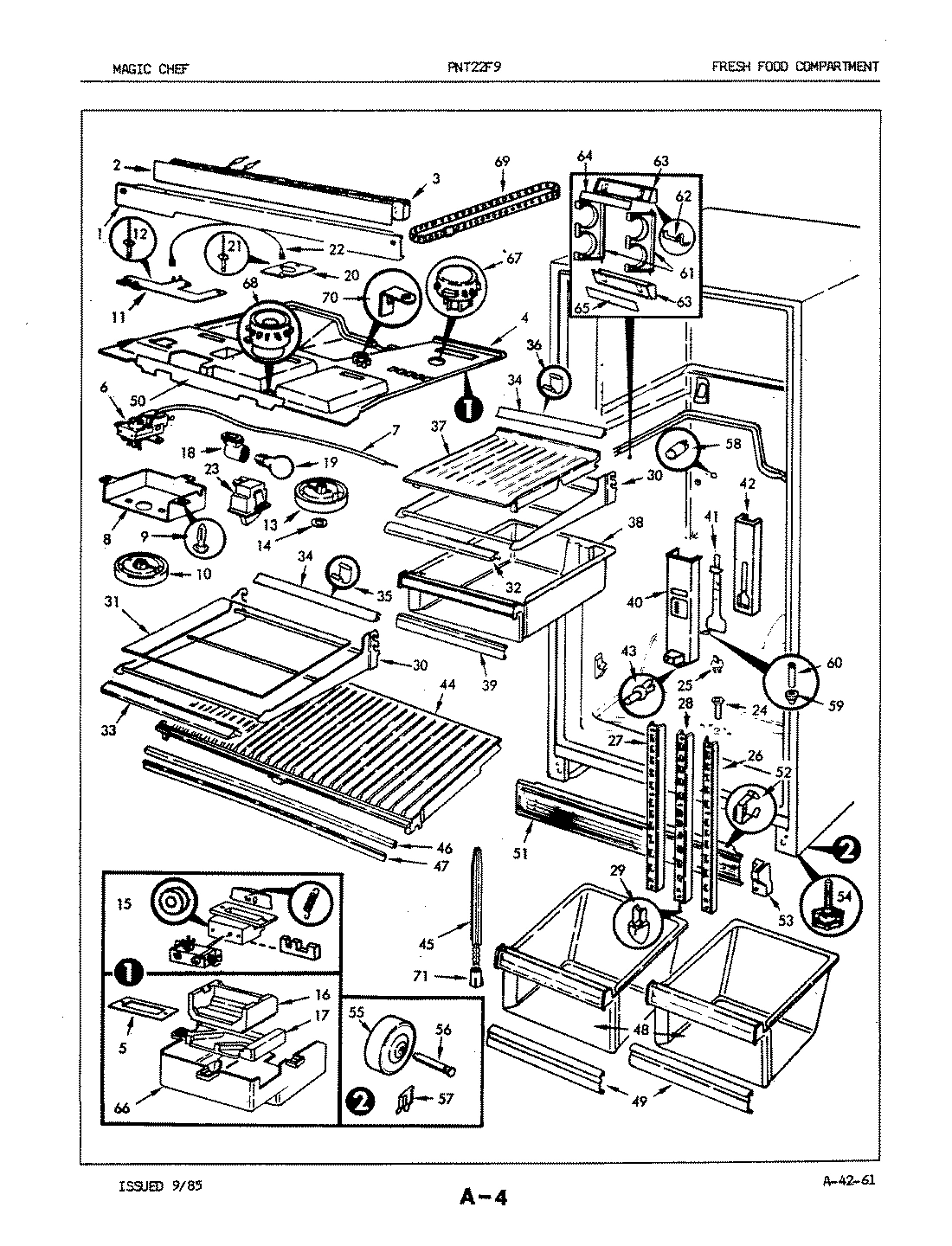

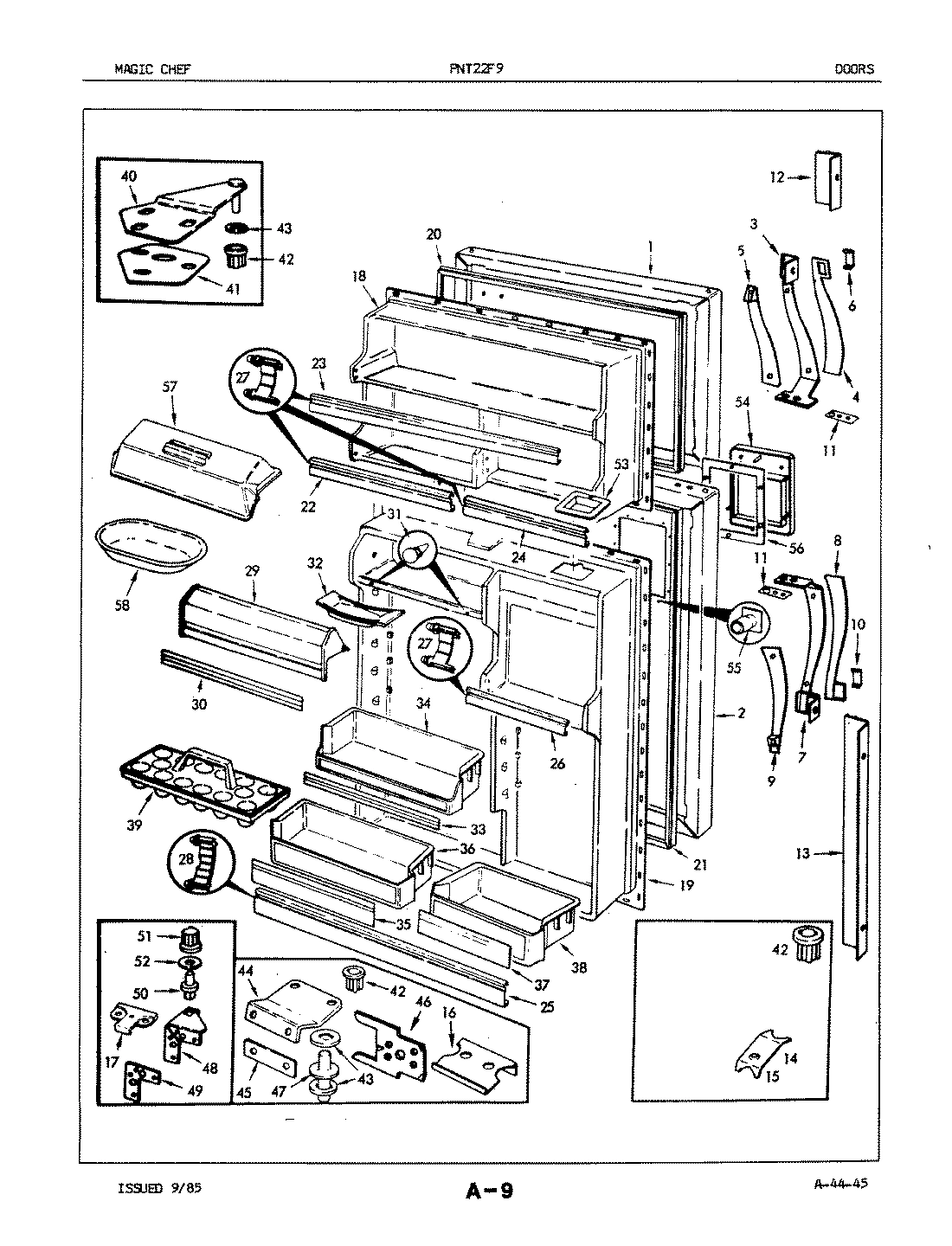

Model Whirlpool PNT22F9LA REFRIGERATOR – Common Parts &amp; Diagrams

1

FOAM TRAY WPL 657661 Contact Us For Availability

1

TUBE WPL 561252 Contact Us For Availability

1

OUTER PANEL WPL 6003330AM Contact Us For Availability

1

MULLION WPL 600209AM Contact Us For Availability

1

SCREW WPL 9986117 Contact Us For Availability

2

SEAL WPL 655184 Contact Us For Availability

2

SCREW WPL 4010181 Contact Us For Availability

2

VALVE, WATER WPL 565953 Contact Us For Availability

2

HEATER WIRE WPL 601059 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

3

GROUND WIRE WPL 2967530 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

WIRE HARNESS WPL 605651 Contact Us For Availability

3

TUBING WPL 556038 Contact Us For Availability

3

HANDLE WPL 604435 Contact Us For Availability

3

INSULATION WPL 601403 Contact Us For Availability

3

WIRE HARNESS WPL 605603 Contact Us For Availability

3

SCREW WPL 4140011 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

4

SCREW WPL 40001512 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

TUBING WPL 556023 Contact Us For Availability

4

INSERT, HANDLE WPL 606021 Contact Us For Availability

4

TOP, F.F. COMPARTMENT WPL 657651 Contact Us For Availability

4

RELAY, START WPL 632932 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability

5

SCREW WPL 9986112 Contact Us For Availability

5

SEAL WPL 656201 Contact Us For Availability

5

OVERLOAD WPL 632942 Contact Us For Availability

6

INSERT, HANDLE WPL 606031 Contact Us For Availability

6

SCREW WPL 4060131 Contact Us For Availability

6

CONTROL, TEMPERATURE WPL 5288150 Contact Us For Availability

6

CLIP WPL 632951 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

7

INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability

7

HANDLE WPL 604436 Contact Us For Availability

7

PLASTIC TUBE WPL 400812 Contact Us For Availability

7

COVER WPL 632962 Contact Us For Availability

8

TUNNEL, AIR WPL 657034 Contact Us For Availability

8

WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability

8

INSERT, HANDLE WPL 606022 Contact Us For Availability

8

SCREW WPL 4050121 Contact Us For Availability

8

COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability

8

CLIP WPL 632971 Contact Us For Availability

9

RIVET WPL 599202 Contact Us For Availability

9

CLAMP WPL 535162 Contact Us For Availability

9

INSERT WPL 604451 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604081 Contact Us For Availability

9

CONDENSER WPL RA438711 Contact Us For Availability

COVER, EVAPORATOR WPL 605578 Contact Us For Availability

COVER WPL 654971 Contact Us For Availability

INSERT WPL 606035 Contact Us For Availability

SCREW WPL 402068103 Contact Us For Availability

KNOB WPL 600617 Contact Us For Availability

CONDENSER SHROUD WPL 600212 Contact Us For Availability

BOTTOM, FRZ. WPL 604745 Contact Us For Availability

SCREW WPL 40004828 Contact Us For Availability

TANK, WATER WPL 654571 Contact Us For Availability

SHIM WPL 604561 Contact Us For Availability

BRACKET, CONTROL WPL 601471 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

FRONT WPL 605031 Contact Us For Availability

SUB 29656-2 WPL 296561 Contact Us For Availability

TRIM WPL 602365 Contact Us For Availability

AIR DIVIDER WPL 606393 Contact Us For Availability

DOOR, ICE CHUTE WPL 605023 Contact Us For Availability

SCREW WPL 652753 Contact Us For Availability

TUBING 34`` WPL 5560224 Contact Us For Availability

TRIM WPL 602364 Contact Us For Availability

KNOB WPL 600618 Contact Us For Availability

WASHER, SPRING WPL 420092900 Contact Us For Availability

HINGE PIN WPL 605051 Contact Us For Availability

TUBING WPL 5560229 Contact Us For Availability

CLIP, STOP SCREW WPL 562093 Contact Us For Availability

FAN MOTOR WPL 2805613 Contact Us For Availability

SCREW WPL 4030141 Contact Us For Availability

ICE CHUTE WPL 605041 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability

SCREW WPL 9986122 Contact Us For Availability

DAMPER CONTROL WPL 606811 Contact Us For Availability

SEALER WPL 628884 Contact Us For Availability

BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability

SHELF WPL 605141 Contact Us For Availability

TUBE, FILL WPL 584618 Contact Us For Availability

DOOR STOP WPL 600301 Contact Us For Availability

INSULATION WPL 606581 Contact Us For Availability

WASHER WPL 199134 Contact Us For Availability

TRIM WPL 6041410 Contact Us For Availability

BIN WPL 654611 Contact Us For Availability

CLIP, STOP SCREW WPL 601232 Contact Us For Availability

DOOR STOP WPL 604196 Contact Us For Availability

SCREW WPL 9986108 Contact Us For Availability

INSULATION WPL 606591 Contact Us For Availability

CLIP WPL 199140 Contact Us For Availability

DIVIDER WPL 656221 Contact Us For Availability

SCREW WPL 405022103 Contact Us For Availability

ICE DISP FRONT WPL 656251 Contact Us For Availability

LINER, DOOR WPL 603802 Contact Us For Availability

SOCKET, LIGHT WPL 605771 Contact Us For Availability

BRACKET WPL 600361 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

BRACKET, CONTROL MOUNTING WPL 606571 Contact Us For Availability

INSERT WPL 657072 Contact Us For Availability

LINER, DOOR WPL 604042 Contact Us For Availability

SCREW,DOOR LINER WPL 998612 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

PLENUM FRONT WPL 656311 Contact Us For Availability

BUSHING WPL 630231 Contact Us For Availability

GASKET, DOOR WPL 604627 Contact Us For Availability

BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability

CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability

IM ENCL FRONT WPL 656272 Contact Us For Availability

HUB, REINFORCING WPL 630841 Contact Us For Availability

GASKET, DOOR WPL 604628 Contact Us For Availability

RIVET WPL 263972 Contact Us For Availability

GROUND WIRE WPL 2967522 Contact Us For Availability

GROUND WIRE WPL 296753 Contact Us For Availability

INSERT WPL 657552 Contact Us For Availability

RETAINER WPL 630312 Contact Us For Availability

TRIM, DOOR SHELF WPL 6515145 Contact Us For Availability

GROUND WIRE WPL 2967528 Contact Us For Availability

COVER WPL 606402 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

CUP, SHELF WPL 603131 Contact Us For Availability

IMPELLER WPL 630831 Contact Us For Availability

TRIM, DOOR SHELF WPL 65151157 Contact Us For Availability

SWITCH WPL 557323 Contact Us For Availability

FOIL SWITCH, REFLECTOR WPL 601316 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER WPL 541134 Contact Us For Availability

FREEZER SHELF CUP WPL 655701 Contact Us For Availability

PIN, AUGER WPL 630711 Contact Us For Availability

TRIM, DOOR SHELF WPL 6515139 Contact Us For Availability

GROMMET WPL 545318 Contact Us For Availability

CORD, POWER WPL 528902 Contact Us For Availability

SWITCH WPL 557322 Contact Us For Availability

AUGER WPL 630992 Contact Us For Availability

TRIM WPL 6008018 Contact Us For Availability

CAP, DRAIN TUBE WPL 650391 Contact Us For Availability

PAN, DRAIN WPL 298394 Contact Us For Availability

PLENUM WPL 656211 Contact Us For Availability

RING, DRIVE WPL 630171 Contact Us For Availability

TRIM, DOOR SHELF WPL 6515115 Contact Us For Availability

RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

PLENUM BACK WPL 656391 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability

RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

WASHER WPL 420051900 Contact Us For Availability

WASHER WPL 420052900 Contact Us For Availability

PARTY ICE MOTOR WPL 657541 Contact Us For Availability

BRACKET WPL 605131 Contact Us For Availability

RETAINER WPL 652461 Contact Us For Availability

SCREW WPL 4000371 Contact Us For Availability

RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability

EVAPORATOR WPL RA4362012 Contact Us For Availability

WIRE HARNESS WPL 656761 Contact Us For Availability

BLADE, FAN WPL 656882 Contact Us For Availability

INSULATOR, SWITCH WPL 653331 Contact Us For Availability

DOOR, DAIRY WPL 636095 Contact Us For Availability

END CAP, CENTER RAIL WPL 603401 Contact Us For Availability

TRAY, DRIP WPL 601019 Contact Us For Availability

IM ENCL LATCH WPL 656301 Contact Us For Availability

WATER LINE WPL 630382 Contact Us For Availability

INSERT WPL 6057310 Contact Us For Availability

FRAME, SHELF WPL 605704 Contact Us For Availability

BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability

CONTROL BOARD WPL 656381 Contact Us For Availability

IM MOTOR WPL 641433 Contact Us For Availability

BUMPER, DOOR WPL 282726 Contact Us For Availability

GLASS SHELF WPL 655984 Contact Us For Availability

RIVET WPL 263979 Contact Us For Availability

SWITCH PL ASY WPL 657351 Contact Us For Availability

TRAY, ICE WPL 596881 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

TRIM WPL 604146 Contact Us For Availability

HEATER, DEFROST WPL 6010636 Contact Us For Availability

SCREW WPL 400018103 Contact Us For Availability

AIR DEFLECTOR WPL 606561 Contact Us For Availability

ICEMAKER MECH WPL 625777 Contact Us For Availability

INSERT WPL 605726 Contact Us For Availability

TRIM WPL 605245 Contact Us For Availability

SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability

PLATE, TEMPERATURE CONTROL WPL 120961 Contact Us For Availability

ARM, SENSOR WPL 523072 Contact Us For Availability

DOOR SHELF WPL 6003712 Contact Us For Availability

TRIM, REAR WPL 652767 Contact Us For Availability

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

CLAMP WPL 1095 Contact Us For Availability

SHAFT WPL 653192 Contact Us For Availability

INSERT WPL 605723 Contact Us For Availability

CLIP WPL 653581 Contact Us For Availability

THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability

RING, RETAINER WPL 587061 Contact Us For Availability

DOOR SHELF WPL 600379 Contact Us For Availability

CLIP WPL 653582 Contact Us For Availability

HEAT EXCHANGER WPL RA4364514 Contact Us For Availability

CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability

INSERT WPL 605724 Contact Us For Availability

COVER, MEAT PAN WPL 600756 Contact Us For Availability

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

SPACER WPL 653171 Contact Us For Availability

WIRE TIE WPL 575763 Contact Us For Availability

DOOR SHELF WPL 600378 Contact Us For Availability

PAN, MEAT WPL 60466226 Contact Us For Availability

SCREW WPL 405009103 Contact Us For Availability

SPOUT, FILL WPL 537481 Contact Us For Availability

TRAY, EGG WPL 600663 Contact Us For Availability

HANDLE WPL 6013211 Contact Us For Availability

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

SCREW WPL 4050221 Contact Us For Availability

DISPENSER, WATER WPL 630003 Contact Us For Availability

DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability

MT KPR TUNNEL WPL 606621 Contact Us For Availability

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

HEATER WPL 605081 Contact Us For Availability

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability

COVER WPL 600673 Contact Us For Availability

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability

WIRE HARNESS WPL 604813 Contact Us For Availability

42

ARM,ICE WPL 630073 Contact Us For Availability

42

BUSHING WPL 557811 Contact Us For Availability

42

INSULATION WPL 606601 Contact Us For Availability

W10772617 Whirlpool Outer Tub Backorder WPL W10772617 $365.40

TUBING, ARM PINS WPL 5560221 Contact Us For Availability

WASHER WPL 521851 Contact Us For Availability

SCREW WPL 998687 Contact Us For Availability

44

ARM, WATER WPL 630083 Contact Us For Availability

44

DOOR HINGE, CENTER WPL 600312 Contact Us For Availability

44

SHELF, CRISPER WPL 600198 Contact Us For Availability

45

PAD, ARM WPL 630661 Contact Us For Availability

45

SPACER, CENTER HINGE WPL 600341 Contact Us For Availability

45

SHELF SUPPORT WPL 658161 Contact Us For Availability

DOOR ASSY., ICE WPL RA438251 Contact Us For Availability

TAPPING PLATE WPL 606221 Contact Us For Availability

SCREW WPL 9986107 Contact Us For Availability

TRIM WPL 604543 Contact Us For Availability

47

SPRING, ICE DOOR WPL 634281 Contact Us For Availability

47

PIN, CENTER HINGE WPL 600354 Contact Us For Availability

47

SEAL WPL 601486 Contact Us For Availability

PIN, ICE DOOR WPL 630531 Contact Us For Availability

SCREW WPL 4030625 Contact Us For Availability

HINGE WPL 606303 Contact Us For Availability

PAN, CRISPER WPL 60457256 Contact Us For Availability

49

BRACKET, ICE DOOR WPL 630141 Contact Us For Availability

49

SHIM, LOWER HINGE WPL 606261 Contact Us For Availability

49

HANDLE WPL 601323 Contact Us For Availability

DOOR, ICE CHUTE WPL 630191 Contact Us For Availability

INSULATION WPL 630892 Contact Us For Availability

PIN WPL 654181 Contact Us For Availability

INSERT WPL 6057128 Contact Us For Availability

51

TUBING, WATER LINE WPL 6500215 Contact Us For Availability

51

BUSHING WPL 606271 Contact Us For Availability

51

KICKPLATE WPL 6013812 Contact Us For Availability

52

FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability

52

SPACER WPL 542334 Contact Us For Availability

52

CLIP, KICKPLATE WPL 601001 Contact Us For Availability

CLIP WPL 630352 Contact Us For Availability

SCREW WPL 4020381 Contact Us For Availability

COLLAR WPL 630201 Contact Us For Availability

SCREW WPL 4020394 Contact Us For Availability

END CAP WPL 603811 Contact Us For Availability

54

CLAMP, SPRING WPL 603331 Contact Us For Availability

54

ESCUTCHEON WPL 6048220 Contact Us For Availability

54

LEG, LEVELING WPL 60128 Contact Us For Availability

SCREW, ICE DOOR WPL 402015103 Contact Us For Availability

MOTOR, INERTIA WPL 652121 Contact Us For Availability

CLIP WPL 655171 Contact Us For Availability

RETAINER, ESCUTCHEON WPL 652112 Contact Us For Availability

WHEEL WPL 298342 Contact Us For Availability

56

SPRING WPL 633061 Contact Us For Availability

56

SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability

56

PIN, WHEEL WPL 298352 Contact Us For Availability

57

GRILL WPL 630252 Contact Us For Availability

57

COVER WPL 603823 Contact Us For Availability

57

CLIP WPL 602161 Contact Us For Availability

CLAMP, SPRING WPL 603332 Contact Us For Availability

WIRE HARNESS WPL 605231 Contact Us For Availability

WIRE HARNESS WPL 606231 Contact Us For Availability

SPACER WPL 620284 Contact Us For Availability

DISH, MICROWAVE WPL 654161 Contact Us For Availability

NYLON NUT WPL 1953036 Contact Us For Availability

59

CLAMP, TUBING WPL 96029 Contact Us For Availability

59

GROMMET WPL 555121 Contact Us For Availability

60

CLAMP WPL 535169 Contact Us For Availability

60

TUBE WPL 555133 Contact Us For Availability

61

BULB, LIGHT WPL 631791 Contact Us For Availability

61

RACK, WINE WPL 565194 Contact Us For Availability

62

SOCKET, LIGHT WPL 630391 Contact Us For Availability

62

SPRING, WINE RACK WPL 580571 Contact Us For Availability

63

SCREW WPL 4010111 Contact Us For Availability

63

SEAL WPL 630561 Contact Us For Availability

63

SUPPORT, WINE RACK WPL 656891 Contact Us For Availability

64

SWITCH, LIGHT WPL 630401 Contact Us For Availability

64

INSERT WPL 657533 Contact Us For Availability

65

SCREW WPL 4050711 Contact Us For Availability

65

SWITCH, ICE & WATER WPL 554402 Contact Us For Availability

65

INSERT WPL 6575314 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

SCREW WPL 4000221 Contact Us For Availability

UNION, TUBING (1/4``-1/4``) WPL 592051 Contact Us For Availability

WIRE H WPL 606241 Contact Us For Availability

WPL 630132 WPL 630132 Contact Us For Availability

WPL 634592 WPL 634592 Contact Us For Availability

DAMPER HOUSING WPL 606611 Contact Us For Availability

67

DAMPER SPROCKET WPL 606651 Contact Us For Availability

68

KNOB SPROCKET WPL 606641 Contact Us For Availability

69

BELT WPL 606791 Contact Us For Availability

70

SCREW WPL 4000161 Contact Us For Availability

70

BELT RETAINER WPL 606801 Contact Us For Availability

71

NUT WPL 658181 Contact Us For Availability
