Model Electrolux PLCF489ACB RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

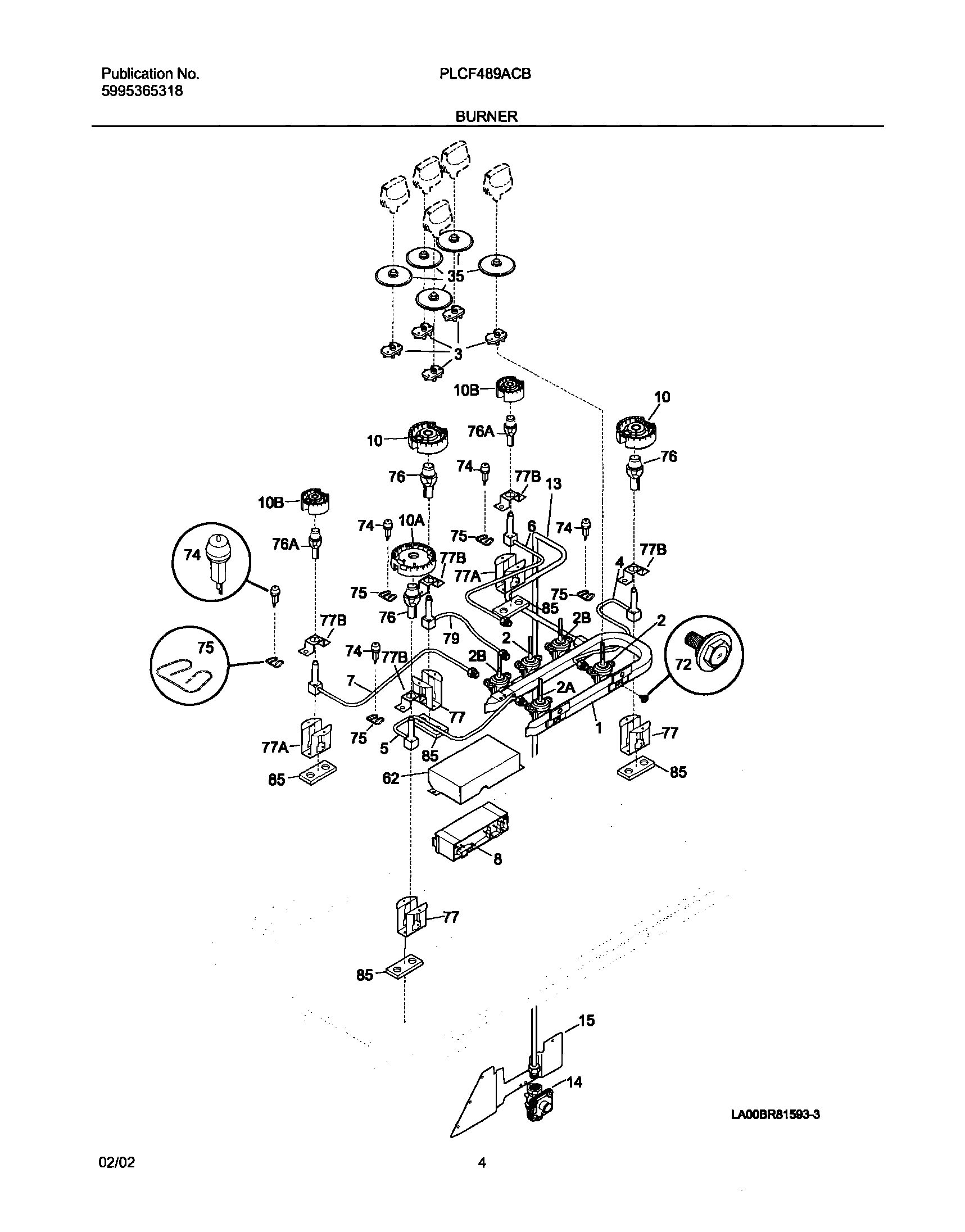

05 - BURNER

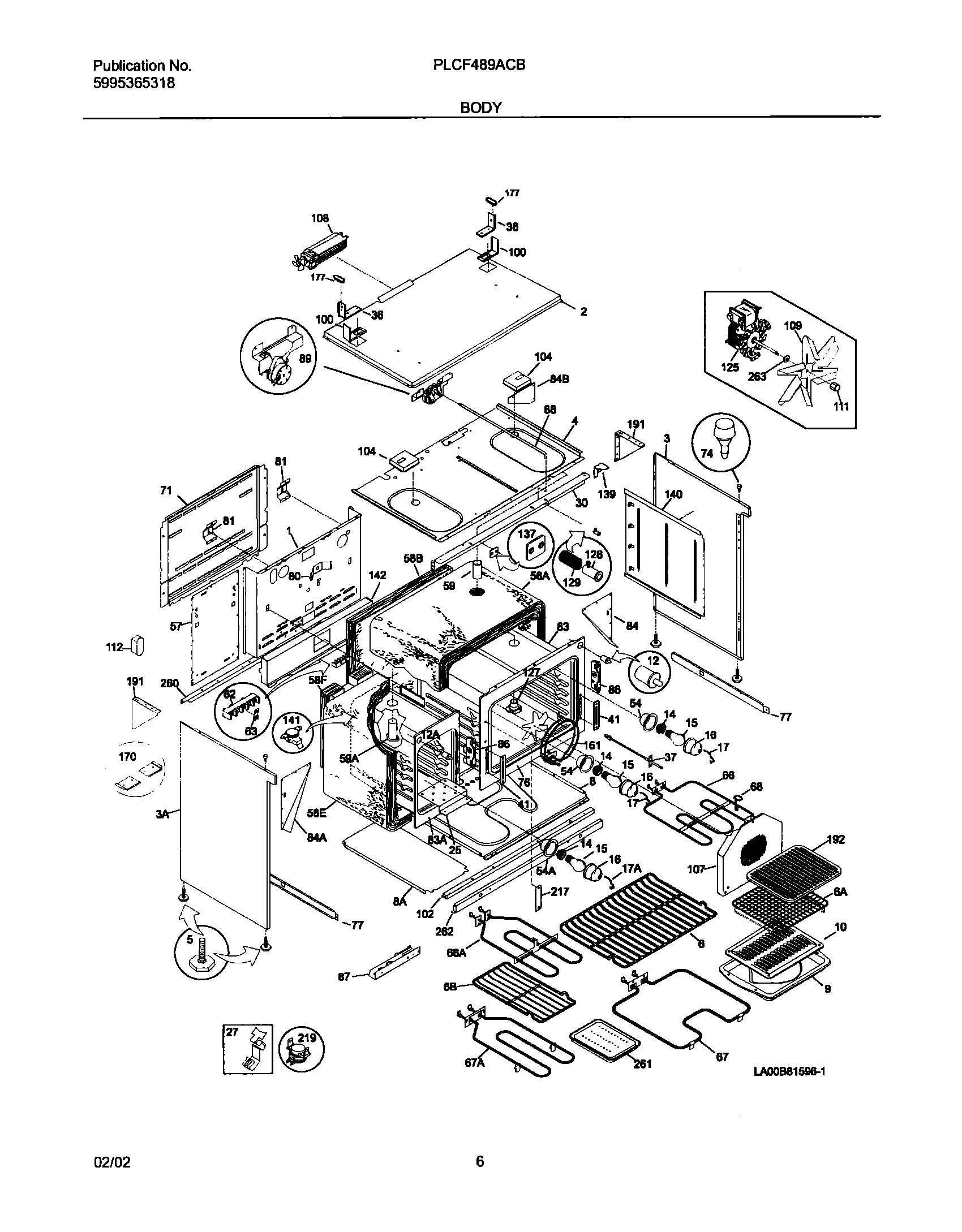

07 - BODY

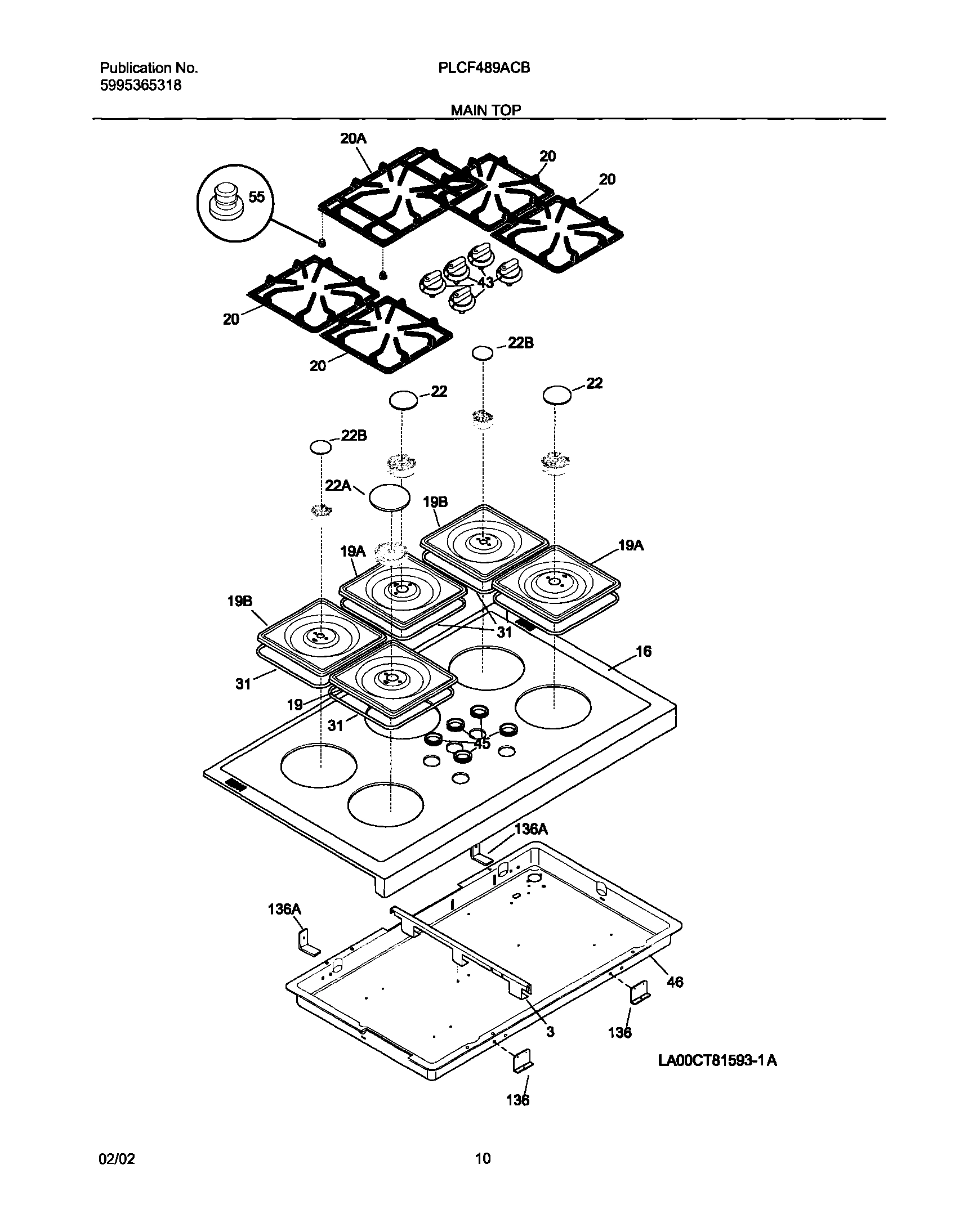

09 - MAINTOP

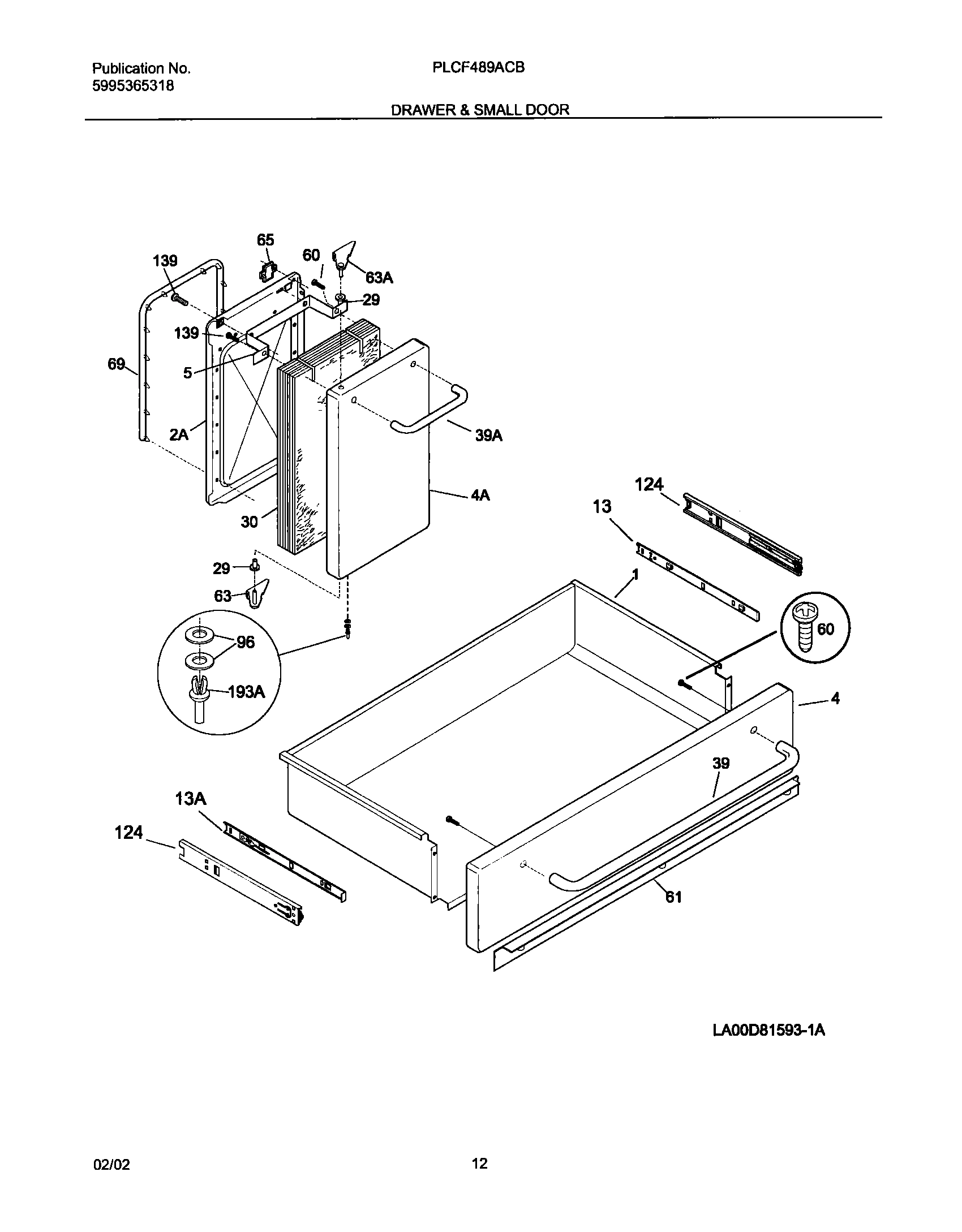

11 - DRAWRE/SMALL DOOR

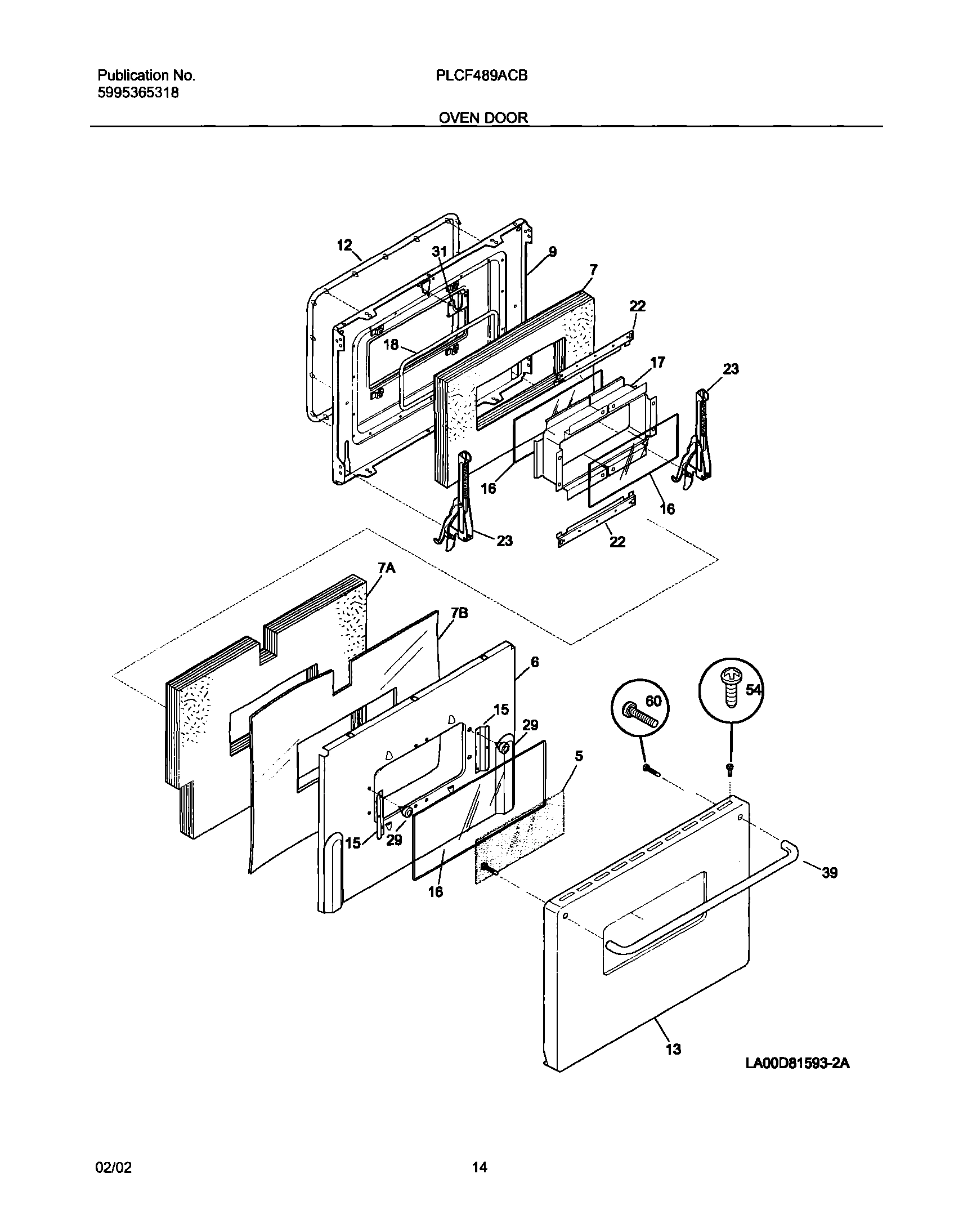

13 - DOOR

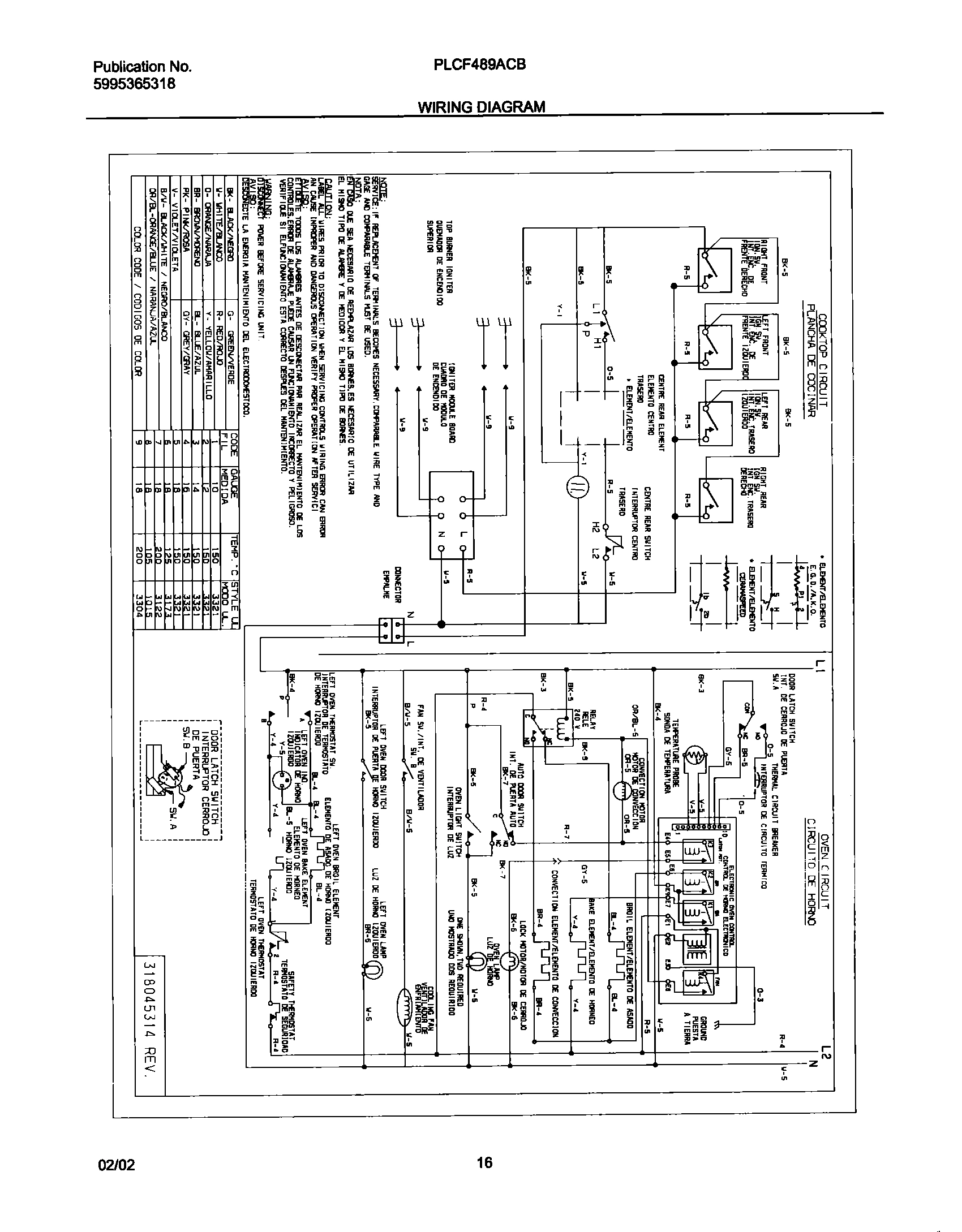

14 - WIRING DIAGRAM
Common parts from model Electrolux PLCF489ACB RANGE
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
2
WCI 5303935042 WCI 5303935042 Contact Us For Availability
2A
WCI 318087001 WCI 318087001 Contact Us For Availability
2A
WCI 318048211 WCI 318048211 Contact Us For Availability
2B
WCI 318087040 WCI 318087040 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
3
Support WCI 318171400 Contact Us For Availability
4
WCI 318167715 WCI 318167715 Contact Us For Availability
4
WCI 318158220 WCI 318158220 Contact Us For Availability
4A
WCI 318009311 WCI 318009311 Contact Us For Availability
5
WCI 318175503 WCI 318175503 Contact Us For Availability
5
WCI 318167716 WCI 318167716 Contact Us For Availability
5
WCI 318014510 WCI 318014510 Contact Us For Availability
5
WCI 318197300 WCI 318197300 Contact Us For Availability
6
WCI 318167706 WCI 318167706 Contact Us For Availability
6
WCI 318057000 WCI 318057000 Contact Us For Availability
7
WCI 318167713 WCI 318167713 Contact Us For Availability
7
WCI 318133706 WCI 318133706 Contact Us For Availability
7A
WCI 318133753 WCI 318133753 Contact Us For Availability
7B
WCI 5304400472 WCI 5304400472 Contact Us For Availability
9
WCI 5303320621 WCI 5303320621 Contact Us For Availability
10
WCI 318148001 WCI 318148001 Contact Us For Availability
10A
WCI 318148002 WCI 318148002 Contact Us For Availability
10B
WCI 318148000 WCI 318148000 Contact Us For Availability
12A
Switch,oven light ,sm door frame WCI 5301314211 Contact Us For Availability
13
WCI 318054507 WCI 318054507 Contact Us For Availability
13
WCI 318009110 WCI 318009110 Contact Us For Availability
14
WCI 318122700 WCI 318122700 Contact Us For Availability
16
WCI 5303310533 WCI 5303310533 Contact Us For Availability
16
WCI 318159601 WCI 318159601 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
WCI 318139000 WCI 318139000 Contact Us For Availability
18
WCI 5303310531 WCI 5303310531 Contact Us For Availability
19A
WCI 318168124 WCI 318168124 Contact Us For Availability
19B
WCI 318168104 No Longer Available
20
Grate,burner ,black WCI 318120303 Contact Us For Availability
20A
WCI 318188710 WCI 318188710 Contact Us For Availability
22
WCI 5303310511 WCI 5303310511 Contact Us For Availability
22A
WCI 318076420 WCI 318076420 Contact Us For Availability
22B
WCI 318076400 WCI 318076400 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
28A
Shaft,push button ,black ,clock/timer/EOC WCI 316080600 No Longer Available
29
WCI 318017800 WCI 318017800 Contact Us For Availability
29
WCI 318141800 WCI 318141800 Contact Us For Availability
29
WCI 318147410 WCI 318147410 Contact Us For Availability
30
WCI 318133722 WCI 318133722 Contact Us For Availability
31
WCI 5303310536 WCI 5303310536 Contact Us For Availability
39
WCI 318039801 WCI 318039801 Contact Us For Availability
39A
WCI 318039802 WCI 318039802 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
WCI 318146210 WCI 318146210 Contact Us For Availability
46
WCI 318077002 WCI 318077002 Contact Us For Availability
55
WCI 318096700 WCI 318096700 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
63
WCI 318024508 WCI 318024508 Contact Us For Availability
63A
WCI 318024509 WCI 318024509 Contact Us For Availability
65
WCI 318090220 WCI 318090220 Contact Us For Availability
69
WCI 318053300 WCI 318053300 Contact Us For Availability
71
WCI 5303310515 WCI 5303310515 Contact Us For Availability
74
WCI 318147420 WCI 318147420 Contact Us For Availability
76
WCI 318056004 WCI 318056004 Contact Us For Availability
76A
WCI 318167800 WCI 318167800 Contact Us For Availability
77
WCI 318112010 WCI 318112010 Contact Us For Availability
79
WCI 318167712 WCI 318167712 Contact Us For Availability
80
WCI 5303320846 WCI 5303320846 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
83
WCI 318089610 WCI 318089610 Contact Us For Availability
83A
WCI 318089200 WCI 318089200 Contact Us For Availability
84
WCI 5303326184 WCI 5303326184 Contact Us For Availability
84A
WCI 5303326185 WCI 5303326185 Contact Us For Availability
84B
WCI 318055901 WCI 318055901 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
87
WCI 318111800 WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
100
WCI 318182010 WCI 318182010 Contact Us For Availability
102
WCI 318111901 WCI 318111901 Contact Us For Availability
104
WCI 318182210 WCI 318182210 Contact Us For Availability
107
WCI 5303318711 WCI 5303318711 Contact Us For Availability
108
WCI 318073002 WCI 318073002 Contact Us For Availability
109
WCI 5303311203 WCI 5303311203 Contact Us For Availability
112
WCI 5303324861 WCI 5303324861 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
136
WCI 318180300 WCI 318180300 Contact Us For Availability
136
WCI 318181100 WCI 318181100 Contact Us For Availability
139
WCI 318042900 WCI 318042900 Contact Us For Availability
140
WCI 318071300 WCI 318071300 Contact Us For Availability
141
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170
WCI 5304405241 WCI 5304405241 Contact Us For Availability
177
WCI 5303324040 WCI 5303324040 Contact Us For Availability
191
WCI 5303304030 WCI 5303304030 Contact Us For Availability
193
WCI 5303321106 WCI 5303321106 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
219
WCI 318003600 WCI 318003600 Contact Us For Availability
260
WCI 318055500 WCI 318055500 Contact Us For Availability
261
WCI 08014183 WCI 08014183 Contact Us For Availability
262
Channel,oven support ,front WCI 08011954 Contact Us For Availability
NI
WCI 318120711 WCI 318120711 Contact Us For Availability
NI
WCI 318186800 WCI 318186800 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
NI
WCI 5303311207 WCI 5303311207 Contact Us For Availability
NI
WCI 218490900 WCI 218490900 Contact Us For Availability
× ![]()
