Model LG PJ3 Portable_Speaker – Common Parts & Diagrams

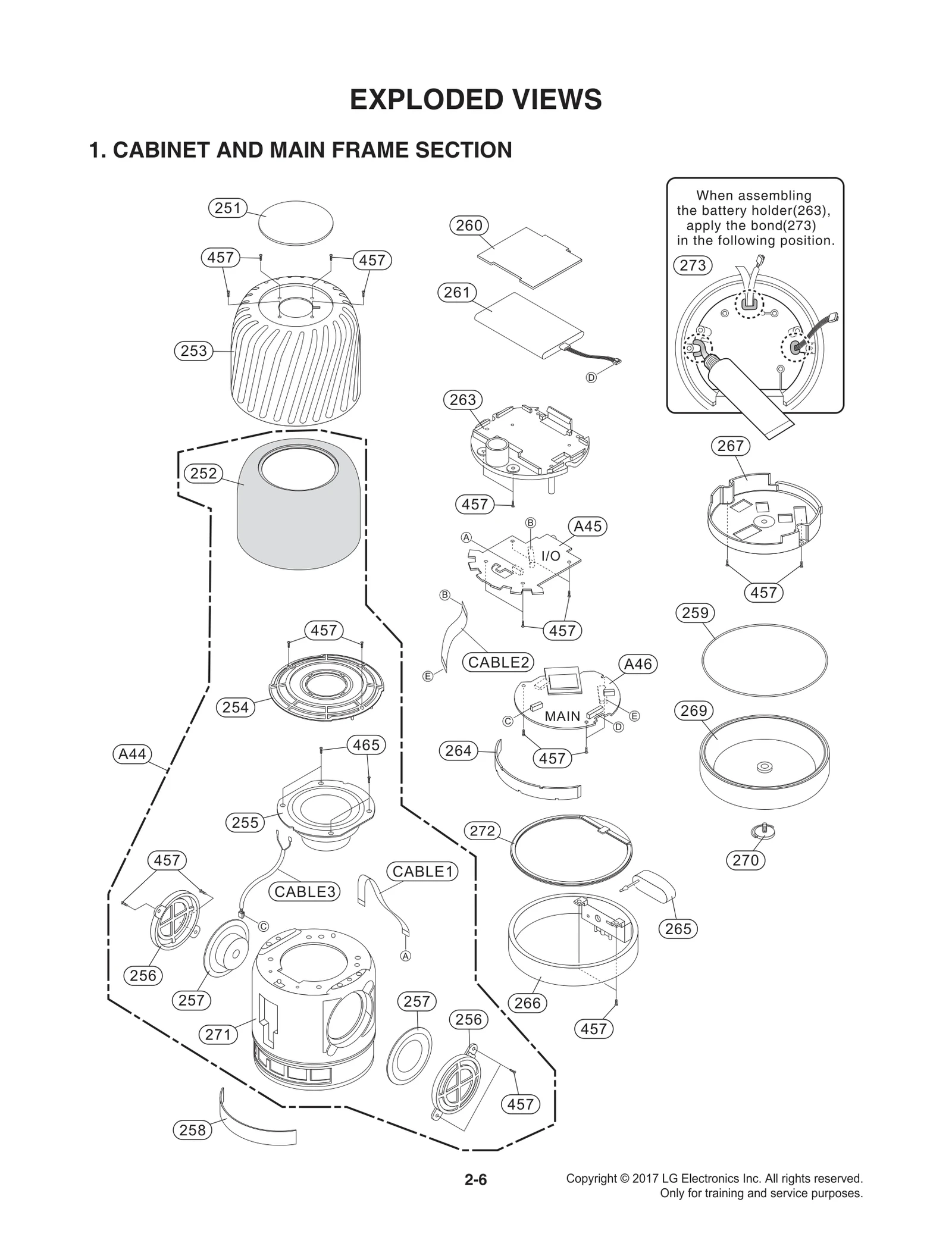

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG PJ3 Portable_Speaker
251
Decor LGE MCR66689201 Contact Us For Availability
252
Grille LGE MDX64252701 Contact Us For Availability
253
Housing Assembly LGE AEN74651401 Contact Us For Availability
254
Cover LGE MCK69456601 Contact Us For Availability
255
Speaker,Woofer LGE EAB64468701 Contact Us For Availability
256
Cover LGE MCK69525601 Contact Us For Availability
257
Speaker,Passive Radiator LGE EAB64468801 Contact Us For Availability
258
Button LGE MBG66304801 Contact Us For Availability
259
Ring LGE MGZ64387001 Contact Us For Availability
260
Cover Assembly LGE ACQ90013601 Contact Us For Availability
261
Rechargeable Battery,Lithium Polymer LGE EAC63558701 Contact Us For Availability
263
Holder Assembly LGE AEJ75339401 Contact Us For Availability
264
Button LGE MBG66304701 Contact Us For Availability
265
Cover LGE MCK69456901 Contact Us For Availability
266
Button LGE MBG66304504 Contact Us For Availability
267
Plate Assembly LGE AGU76168001 Contact Us For Availability
269
Case LGE MBN64685506 Contact Us For Availability
270
Shaft LGE MHJ64515303 Contact Us For Availability
271
Panel,Front LGE MGC64641401 Contact Us For Availability
272
Ring LGE MGZ64467101 Contact Us For Availability
273
Adhesive LGE RAC34817301 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77733507 Contact Us For Availability
802
Box,Master LGE MAY67947613 Contact Us For Availability
802A
Box LGE MAY65499497 Contact Us For Availability
803
Packing LGE MFZ65491601 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002E Contact Us For Availability
820
Cable,Assembly LGE EAD62651505 Contact Us For Availability
A44
Board Assembly LGE AAX75628102 Contact Us For Availability
A45
PCB Assembly LGE EBR85172201 Contact Us For Availability
A46
PCB Assembly LGE EBR85137401 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C110
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C116
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C130
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C133
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C136
Capacitor,Ceramic,Chip LGE 0CC105CH5BA Contact Us For Availability
C148
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C149
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C151
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C154
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C156
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C158
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C168
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C173
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C177
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C207
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
CABLE1
Microphone,Condenser LGE EAB62830402 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63970504 Contact Us For Availability
CABLE3
Harness,Single LGE EAD63429303 Contact Us For Availability
CN100
Connector,FFC/FPC/PIC LGE EAG61090203 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE EAG61090207 Contact Us For Availability
CN105
Connector,Wafer LGE EAG58732906 Contact Us For Availability
CN109
Connector,I/O LGE EAG64934902 Contact Us For Availability
CN200
Connector,I/O LGE EAG63149901 Contact Us For Availability
CN201
Connector,FFC/FPC/PIC LGE EAG38938702 Contact Us For Availability
CN202
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
D200
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D202
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D204
Diode,TVS LGE EAH63274601 Contact Us For Availability
F200
Fuse,Non Time Delay LGE EAF61670101 Contact Us For Availability
IC100A
S/W,System Program LGE SAA39113501 Contact Us For Availability
IC101
Module,Bluetooth LGE EAT63553901 Contact Us For Availability
IC102
IC,Audio Amplifier LGE EAN64260801 Contact Us For Availability
IC103
IC,DC,DC Converter LGE EAN64049301 Contact Us For Availability
IC104
IC,DC,DC Converter LGE EAN64049401 Contact Us For Availability
IC105A
S/W,System Program LGE SAA39113401 Contact Us For Availability
IC106
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
JK200
Jack,Phone LGE EAG63270602 Contact Us For Availability
L102
Filter,Bead LGE EAM60887203 Contact Us For Availability
L104
Inductor,Wire Wound,Chip LGE EAP62586002 Contact Us For Availability
L105
Filter,Bead LGE EAM62151101 Contact Us For Availability
L106
Inductor,Wire Wound,Chip,Metal LGE 0LCTD00058A Contact Us For Availability
L108
Filter,Bead LGE EAM62091201 Contact Us For Availability
LD200
LED,Chip LGE EAV61312301 Contact Us For Availability
LD203
LED,Chip LGE EAV63352201 Contact Us For Availability
Q102
TR,Bipolar LGE 0TR102009AC Contact Us For Availability
Q105
FET LGE EBK61913702 Contact Us For Availability
Q201
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
R1A6
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R134
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R167
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R175
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R182
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RH5100C422 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R208
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R209
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R217
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R219
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
SW201
Switch,Tact LGE EBF61254501 Contact Us For Availability
× ![]()
