Model Whirlpool PINT22F9H REFRIGERATOR – Common Parts &amp; Diagrams

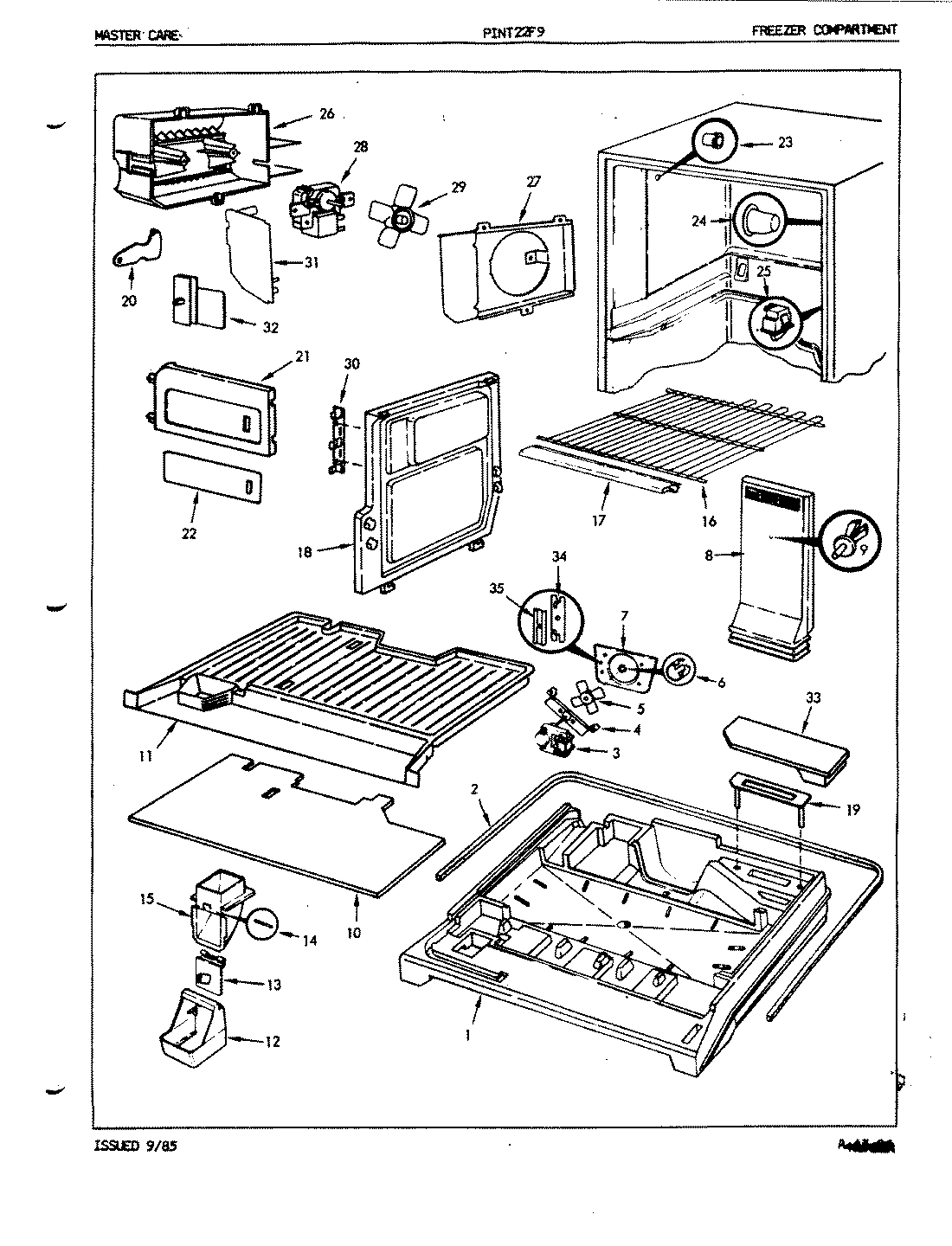

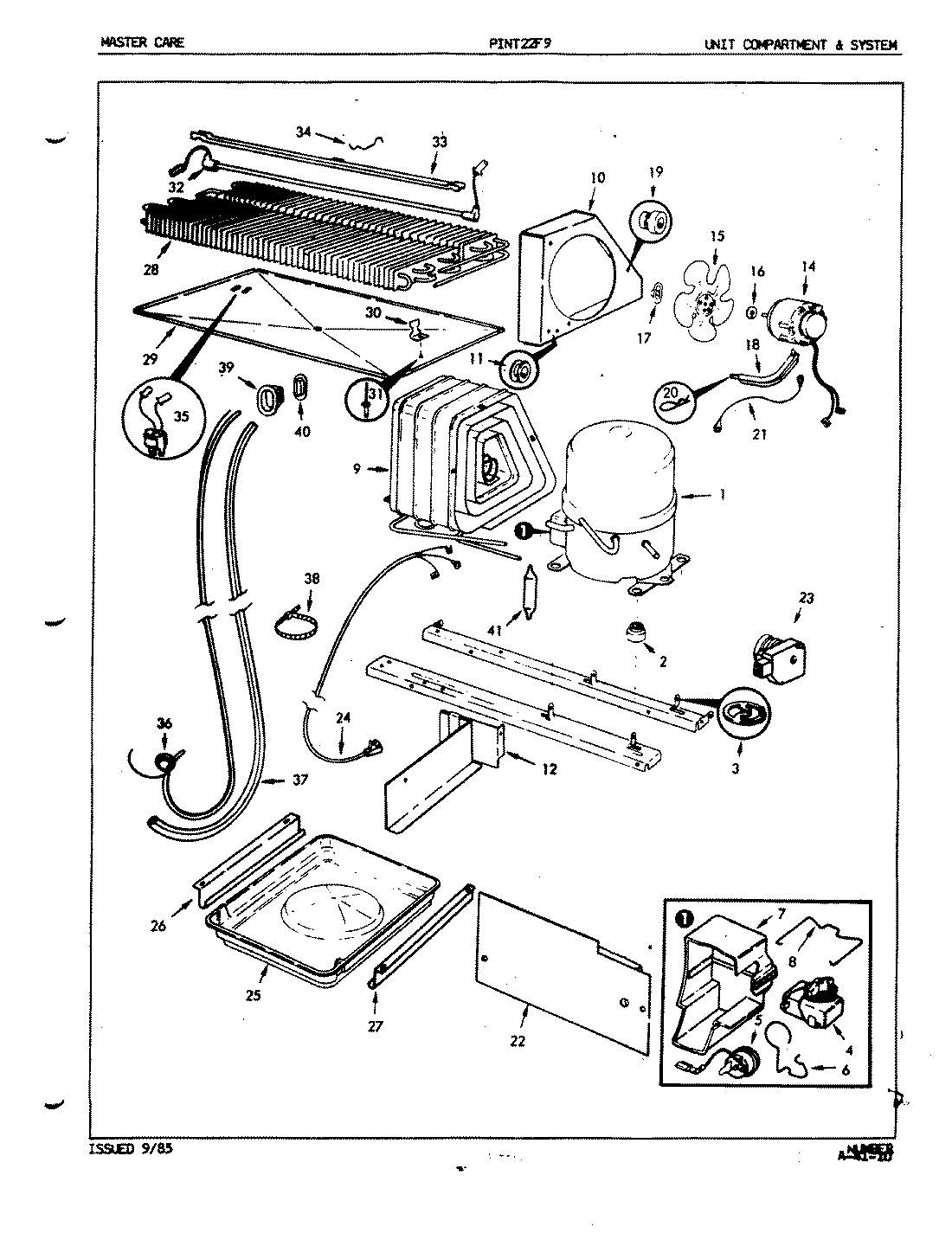

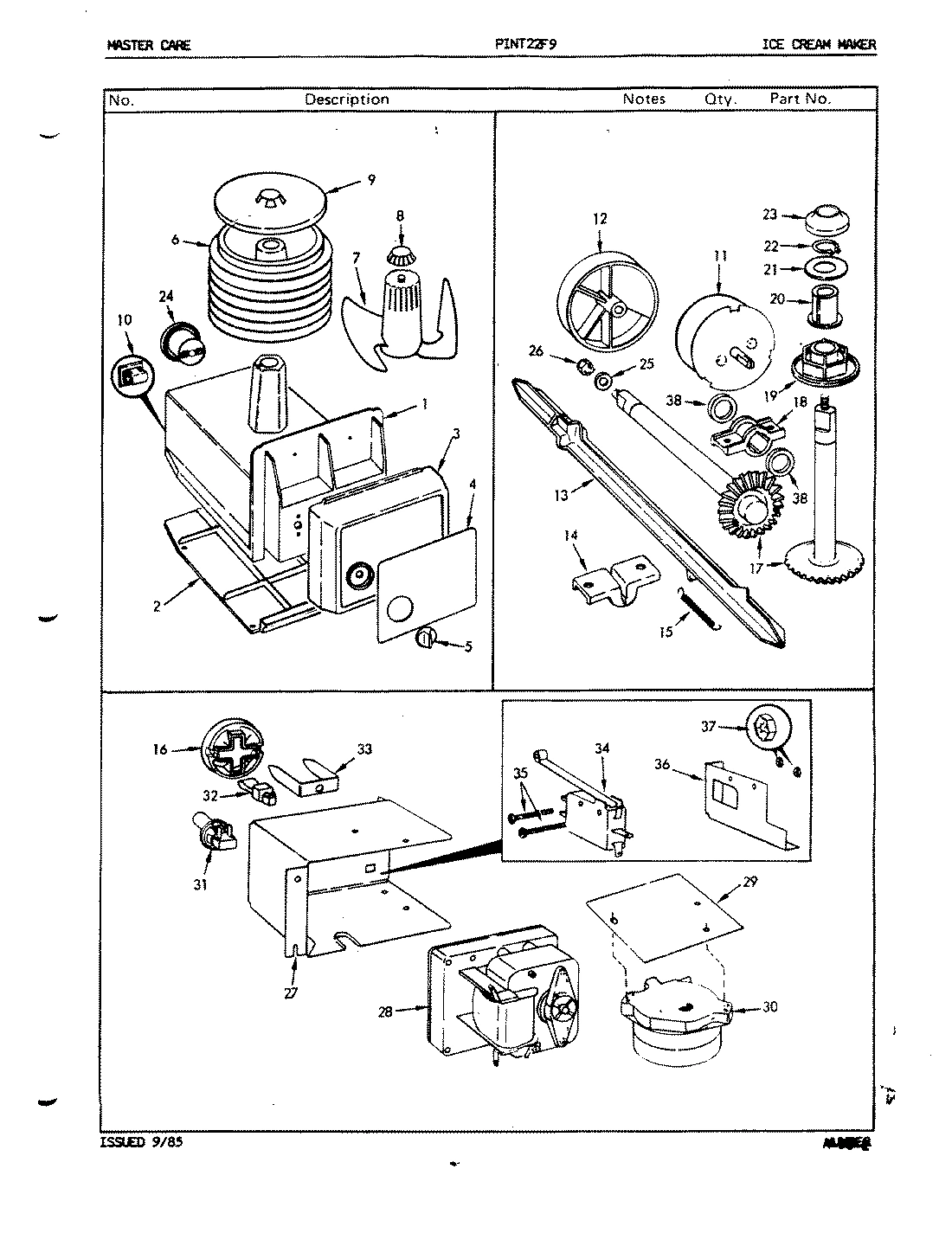

1

FOAM TRAY WPL 657661 Contact Us For Availability

1

SCREW WPL 4000171 Contact Us For Availability

1

BASE WPL 651241 Contact Us For Availability

1

TUBE WPL 561252 Contact Us For Availability

2

SEAL WPL 655184 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

SCREW WPL 402017001 Contact Us For Availability

2

BASE BOTTOM WPL 651251 Contact Us For Availability

2

SCREW WPL 4010181 Contact Us For Availability

2

VALVE, WATER WPL 565953 Contact Us For Availability

3

GROUND WIRE WPL 2967530 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

WIRE HARNESS WPL 605651 Contact Us For Availability

3

SCREW WPL 4140011 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

3

SCREW WPL 4000011 Contact Us For Availability

3

BASE FRONT WPL 651261 Contact Us For Availability

3

TUBING WPL 556038 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

RELAY, START WPL 632932 Contact Us For Availability

4

INSERT WPL 6528213 Contact Us For Availability

4

TUBING WPL 556023 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

OVERLOAD WPL 632942 Contact Us For Availability

5

TIMER KNOB WPL 651282 Contact Us For Availability

5

NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability

6

WASHER, SPRING WPL 420092900 Contact Us For Availability

6

CLIP WPL 632951 Contact Us For Availability

6

CANNISTER WPL 651221 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

7

COVER WPL 632962 Contact Us For Availability

7

STIRRER WPL 651271 Contact Us For Availability

7

INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability

8

TUNNEL, AIR WPL 600847 Contact Us For Availability

8

AIR TUNNEL DUCT WPL 651501 Contact Us For Availability

8

CLIP WPL 632971 Contact Us For Availability

8

STIRRER KNOB WPL 651442 Contact Us For Availability

8

WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability

9

RIVET WPL 599202 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604081 Contact Us For Availability

9

CONDENSER WPL RA438711 Contact Us For Availability

9

CANNISTER LID WPL 651151 Contact Us For Availability

9

CLAMP WPL 535162 Contact Us For Availability

COVER, EVAPORATOR WPL 605577 Contact Us For Availability

CONDENSER SHROUD WPL 600212 Contact Us For Availability

LATCH WPL 651842 Contact Us For Availability

COVER WPL 654971 Contact Us For Availability

BOTTOM, FRZ. WPL 604746 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

SCREW WPL 4060361 Contact Us For Availability

TIMER, MECHANICAL WPL 653411 Contact Us For Availability

SCREW, TANK CLAMP WPL 400048028 Contact Us For Availability

TANK, WATER WPL 654571 Contact Us For Availability

FRONT WPL 605031 Contact Us For Availability

AIR DIVIDER WPL 606393 Contact Us For Availability

TIMER CAM WPL 651041 Contact Us For Availability

RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability

DOOR, ICE CHUTE WPL 605023 Contact Us For Availability

SCREW WPL 652753 Contact Us For Availability

PLUNGER WPL 651081 Contact Us For Availability

TUBING 34`` WPL 5560224 Contact Us For Availability

HINGE PIN WPL 605051 Contact Us For Availability

FAN MOTOR WPL 2805613 Contact Us For Availability

SCREW WPL 4030141 Contact Us For Availability

BRACKET WPL 651161 Contact Us For Availability

TUBING WPL 5560229 Contact Us For Availability

ICE CHUTE WPL 605041 Contact Us For Availability

BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability

SPRING WPL 651421 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability

SHELF WPL 605141 Contact Us For Availability

WASHER WPL 199134 Contact Us For Availability

BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability

TUBE, FILL WPL 584618 Contact Us For Availability

TRIM WPL 6041410 Contact Us For Availability

CLIP WPL 199140 Contact Us For Availability

GEAR & SHAFT ASSEMBLY WPL 651022 Contact Us For Availability

BIN WPL 654611 Contact Us For Availability

SCREW WPL 40001512 Contact Us For Availability

DIVIDER WPL 656221 Contact Us For Availability

BRACKET WPL 600361 Contact Us For Availability

BEARING HORIZONTAL WPL 651091 Contact Us For Availability

SCREW WPL 405022103 Contact Us For Availability

ICE DISP FRONT WPL 656251 Contact Us For Availability

BRACKET, CONTROL MOUNTING WPL 606571 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

BEARING, LOWER VERTICAL WPL 651071 Contact Us For Availability

INSERT WPL 657072 Contact Us For Availability

PLENUM FRONT WPL 656311 Contact Us For Availability

CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability

BEARING, UPPER VERTICAL WPL 651131 Contact Us For Availability

BUSHING WPL 630231 Contact Us For Availability

IM ENCL FRONT WPL 656272 Contact Us For Availability

GROUND WIRE WPL 296753 Contact Us For Availability

WASHER WPL 420097103 Contact Us For Availability

HUB, REINFORCING WPL 630841 Contact Us For Availability

INSERT WPL 657552 Contact Us For Availability

COVER WPL 606402 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

RETAINER WPL 651001 Contact Us For Availability

RETAINER WPL 630312 Contact Us For Availability

CUP, SHELF WPL 603131 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER WPL 541134 Contact Us For Availability

SEAL WPL 652331 Contact Us For Availability

IMPELLER WPL 630831 Contact Us For Availability

FREEZER SHELF CUP WPL 655701 Contact Us For Availability

CORD, POWER WPL 528902 Contact Us For Availability

DRIVE RING WPL 651711 Contact Us For Availability

PIN, AUGER WPL 630711 Contact Us For Availability

SWITCH WPL 557322 Contact Us For Availability

PAN, DRAIN WPL 298394 Contact Us For Availability

WASHER WPL 420066103 Contact Us For Availability

AUGER WPL 630992 Contact Us For Availability

PLENUM WPL 656211 Contact Us For Availability

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

LOCKNUT WPL 430087103 Contact Us For Availability

RING, DRIVE WPL 630171 Contact Us For Availability

27

PLENUM BACK WPL 656391 Contact Us For Availability

27

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

27

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

WASHER WPL 420051900 Contact Us For Availability

WASHER WPL 420052900 Contact Us For Availability

PARTY ICE MOTOR WPL 657541 Contact Us For Availability

EVAPORATOR WPL RA4362012 Contact Us For Availability

BRACKET WPL 605591 Contact Us For Availability

WIRE HARNESS WPL 656761 Contact Us For Availability

BLADE, FAN WPL 656882 Contact Us For Availability

TRAY, DRIP WPL 601019 Contact Us For Availability

INSULATOR WPL 657981 Contact Us For Availability

INSULATOR, SWITCH WPL 653331 Contact Us For Availability

IM ENCL LATCH WPL 656301 Contact Us For Availability

BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability

SCREW WPL 4050721 Contact Us For Availability

CONTROL, AUGER MOTOR WPL 651321 Contact Us For Availability

WATER LINE WPL 630382 Contact Us For Availability

CONTROL BOARD WPL 656381 Contact Us For Availability

RIVET WPL 263979 Contact Us For Availability

MOTOR, AUGER WPL 651861 Contact Us For Availability

SWITCH, AUGER SHUT OFF WPL 651771 Contact Us For Availability

SWITCH, PLENUM WPL 657161 Contact Us For Availability

HEATER, DEFROST WPL 6010636 Contact Us For Availability

STRIKE, AUGER BOX WPL 651851 Contact Us For Availability

TRAY, ICE WPL 596881 Contact Us For Availability

SCREW WPL 400018103 Contact Us For Availability

AIR DEFLECTOR WPL 606561 Contact Us For Availability

SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability

ICEMAKER MECH WPL 625777 Contact Us For Availability

PLATE, TEMPERATURE CONTROL WPL 120961 Contact Us For Availability

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

SWITCH, 2 CIRCUIT WPL 652851 Contact Us For Availability

ARM, SENSOR WPL 523072 Contact Us For Availability

CLAMP WPL 1095 Contact Us For Availability

THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability

SCREW WPL 4060431 Contact Us For Availability

SHAFT WPL 653192 Contact Us For Availability

36

HEAT EXCHANGER WPL RA4364514 Contact Us For Availability

36

BRACKET WPL 652862 Contact Us For Availability

36

RING, RETAINER WPL 587061 Contact Us For Availability

37

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

37

NUT WPL 4300021 Contact Us For Availability

37

CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability

38

SPACER WPL 542333 Contact Us For Availability

38

SPACER WPL 653171 Contact Us For Availability

39

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

39

SCREW WPL 405009103 Contact Us For Availability

39

SPOUT, FILL WPL 537481 Contact Us For Availability

40

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

40

SCREW WPL 4050221 Contact Us For Availability

40

DISPENSER, WATER WPL 630003 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

COVER WPL 600673 Contact Us For Availability

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability

SCREW WPL 652757 Contact Us For Availability

HEATER WPL 605081 Contact Us For Availability

42

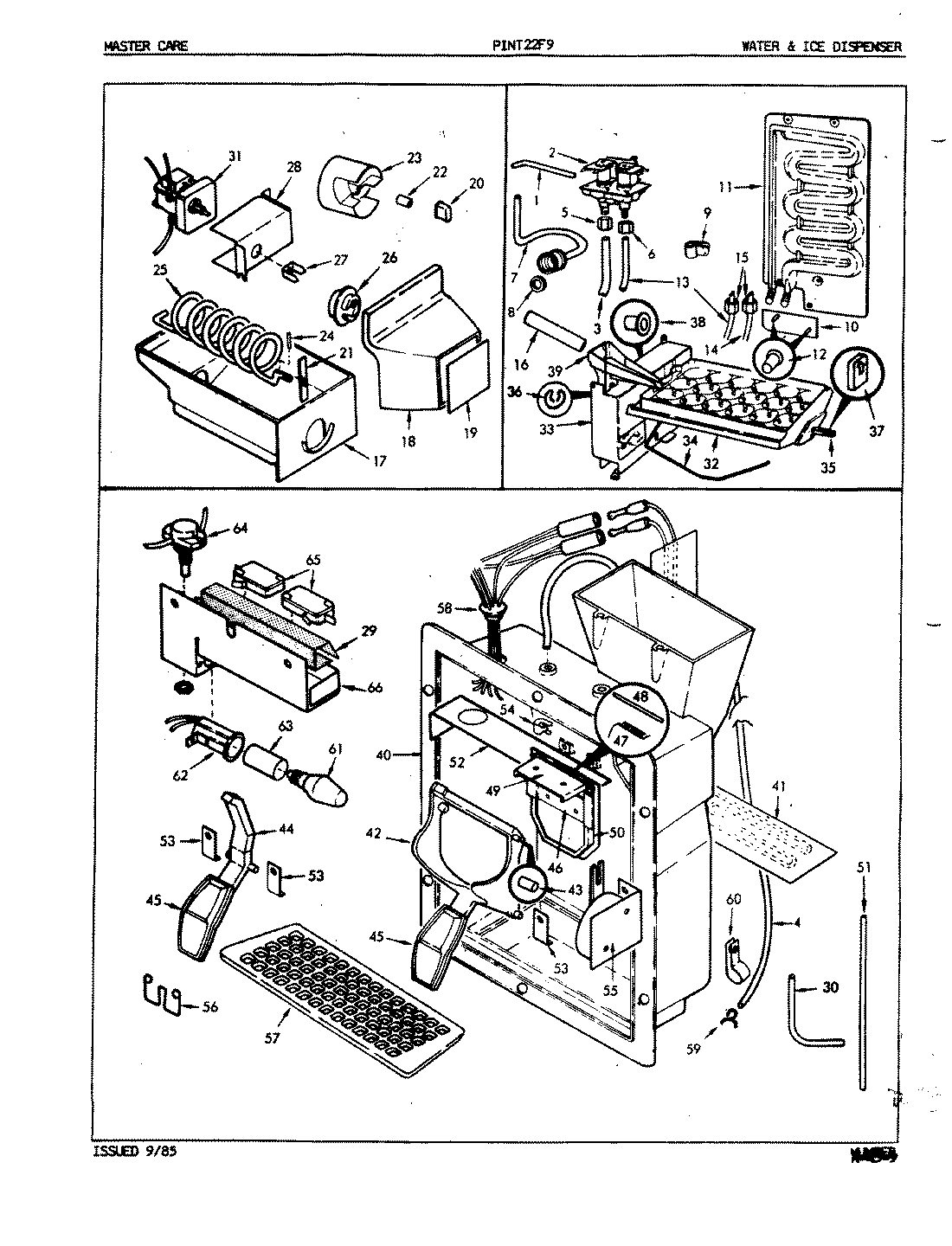

ARM,ICE WPL 630073 Contact Us For Availability

43

TUBING, ARM PINS WPL 5560221 Contact Us For Availability

44

ARM, WATER WPL 630083 Contact Us For Availability

45

PAD, ARM WPL 630661 Contact Us For Availability

46

DOOR ASSY., ICE WPL RA438251 Contact Us For Availability

47

SPRING, ICE DOOR WPL 634281 Contact Us For Availability

48

PIN, ICE DOOR WPL 630531 Contact Us For Availability

49

BRACKET, ICE DOOR WPL 630141 Contact Us For Availability

50

DOOR, ICE CHUTE WPL 630191 Contact Us For Availability

50

INSULATION WPL 630892 Contact Us For Availability

51

TUBING, WATER LINE WPL 6500215 Contact Us For Availability

52

FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability

53

CLIP WPL 630352 Contact Us For Availability

54

CLAMP, SPRING WPL 603331 Contact Us For Availability

55

SCREW, ICE DOOR WPL 402015103 Contact Us For Availability

55

MOTOR, INERTIA WPL 652121 Contact Us For Availability

55

CLIP WPL 655171 Contact Us For Availability

56

SPRING WPL 633061 Contact Us For Availability

57

GRILL WPL 630252 Contact Us For Availability

WIRE HARNESS WPL 652923 Contact Us For Availability

CLAMP, SPRING WPL 603332 Contact Us For Availability

WIRE HARNESS WPL 606231 Contact Us For Availability

SPACER WPL 620284 Contact Us For Availability

59

CLAMP, TUBING WPL 96029 Contact Us For Availability

60

CLAMP WPL 535169 Contact Us For Availability

61

BULB, LIGHT WPL 631791 Contact Us For Availability

62

SOCKET, LIGHT WPL 630391 Contact Us For Availability

63

SCREW WPL 4010111 Contact Us For Availability

63

SEAL WPL 630561 Contact Us For Availability

64

SWITCH, LIGHT WPL 630401 Contact Us For Availability

65

SCREW WPL 4050711 Contact Us For Availability

65

SWITCH, ICE & WATER WPL 554402 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

WIRE TIE WPL 575763 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

UNION, TUB WPL 592051 Contact Us For Availability

WPL 606241 WPL 606241 Contact Us For Availability

WPL 630132 WPL 630132 Contact Us For Availability

WPL 634592 WPL 634592 Contact Us For Availability
