Model Whirlpool PINS24F9-A REFRIGERATOR – Common Parts & Diagrams

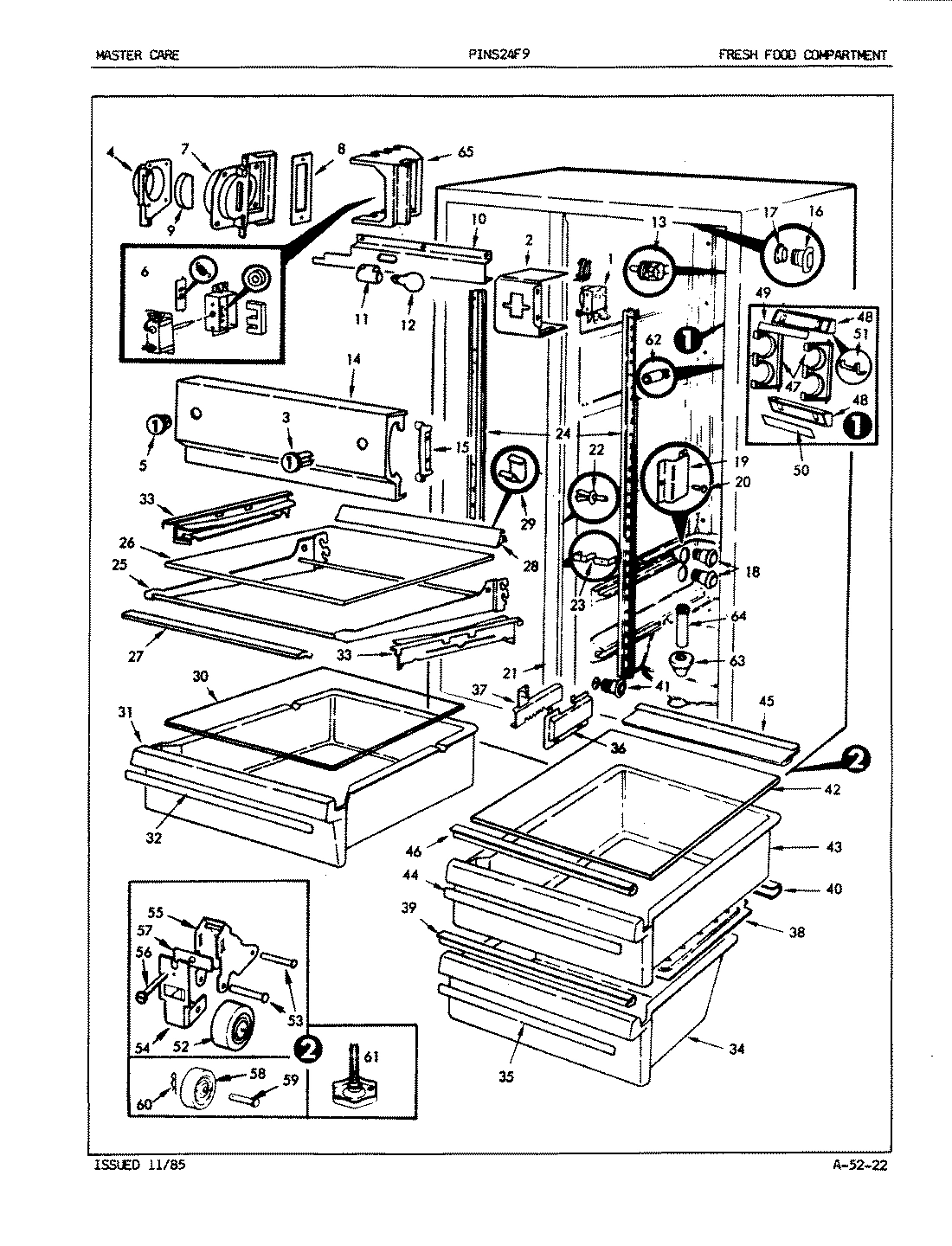

01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool PINS24F9-A REFRIGERATOR
1
CLAMP WPL 1095 Contact Us For Availability
1
PLATE, TEMPERATURE CONTROL WPL 120961 Contact Us For Availability
1
SCREW WPL 400015103 Contact Us For Availability
1
PLASTIC SLEEVE WPL 4008 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288151 Contact Us For Availability
2
CONTROL HOUSING WPL 5368211 Contact Us For Availability
3
KNOB WPL 656581 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
SCREW WPL 402005103 Contact Us For Availability
5
KNOB WPL 656582 Contact Us For Availability
6
DAMPER WPL 656811 Contact Us For Availability
7
ADAPTER WPL 656611 Contact Us For Availability
8
SEAL WPL 656201 Contact Us For Availability
9
SEAL WPL 656191 Contact Us For Availability
9
INSULATION WPL 656711 Contact Us For Availability
10
HOUSING WPL 597405 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
13
SWITCH WPL 564322 Contact Us For Availability
13
SPACER WPL 655121 Contact Us For Availability
14
SHIELD, LIGHT WPL 656691 Contact Us For Availability
15
SUPPORT WPL 536862 Contact Us For Availability
16
TUNNEL WPL 574101 Contact Us For Availability
17
RETAINER WPL 574111 Contact Us For Availability
18
AIR TUNNEL WPL 537261 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
23
CLIP WPL 530604 Contact Us For Availability
24
SCREW WPL 40003728 Contact Us For Availability
24
SUPPORT WPL 583811 Contact Us For Availability
25
FRAME, SHELF WPL 656182 Contact Us For Availability
26
GLASS SHELF WPL 655984 Contact Us For Availability
27
TRIM WPL 6500514 Contact Us For Availability
28
TRIM WPL 6527614 Contact Us For Availability
29
CLIP WPL 641511 Contact Us For Availability
30
GLASS SHELF WPL 6559816 Contact Us For Availability
31
PAN, DELI WPL 655762 Contact Us For Availability
32
INSERT WPL 655836 Contact Us For Availability
33
RAIL, SLIDE WPL 656041 Contact Us For Availability
34
PAN, MEAT WPL 655752 Contact Us For Availability
35
INSERT WPL 655834 Contact Us For Availability
36
CONTROL HOUSING WPL 657371 Contact Us For Availability
37
CLIP WPL 566864 Contact Us For Availability
37
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
38
COVER, MEAT PAN WPL 656082 Contact Us For Availability
39
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
40
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
41
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
42
SHELF, CRISPER WPL 656872 Contact Us For Availability
43
PAN, CRISPER WPL 655742 Contact Us For Availability
44
INSERT WPL 655832 Contact Us For Availability
45
SEAL WPL 655932 Contact Us For Availability
46
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
47
RACK, WINE WPL 565194 Contact Us For Availability
48
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
49
INSERT WPL 657531 Contact Us For Availability
50
INSERT WPL 657532 Contact Us For Availability
51
SPRING, WINE RACK WPL 580571 Contact Us For Availability
53
PIN, WHEEL WPL 649651 Contact Us For Availability
54
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
55
BRACKET, WHEEL WPL 627941 Contact Us For Availability
56
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
57
SCREW WPL 4000171 Contact Us For Availability
57
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
58
WHEEL WPL 298342 Contact Us For Availability
59
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
60
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
61
LEG, LEVELING WPL 60128 Contact Us For Availability
62
NYLON NUT WPL 195302 Contact Us For Availability
63
GROMMET WPL 555121 Contact Us For Availability
64
TUBE WPL 555131 Contact Us For Availability
64
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
64
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
64
WIRE HARNESS WPL 652872 Contact Us For Availability
65
INSULATION WPL 657081 Contact Us For Availability
× ![]()
