Model LG PH300 – Common Parts & Diagrams

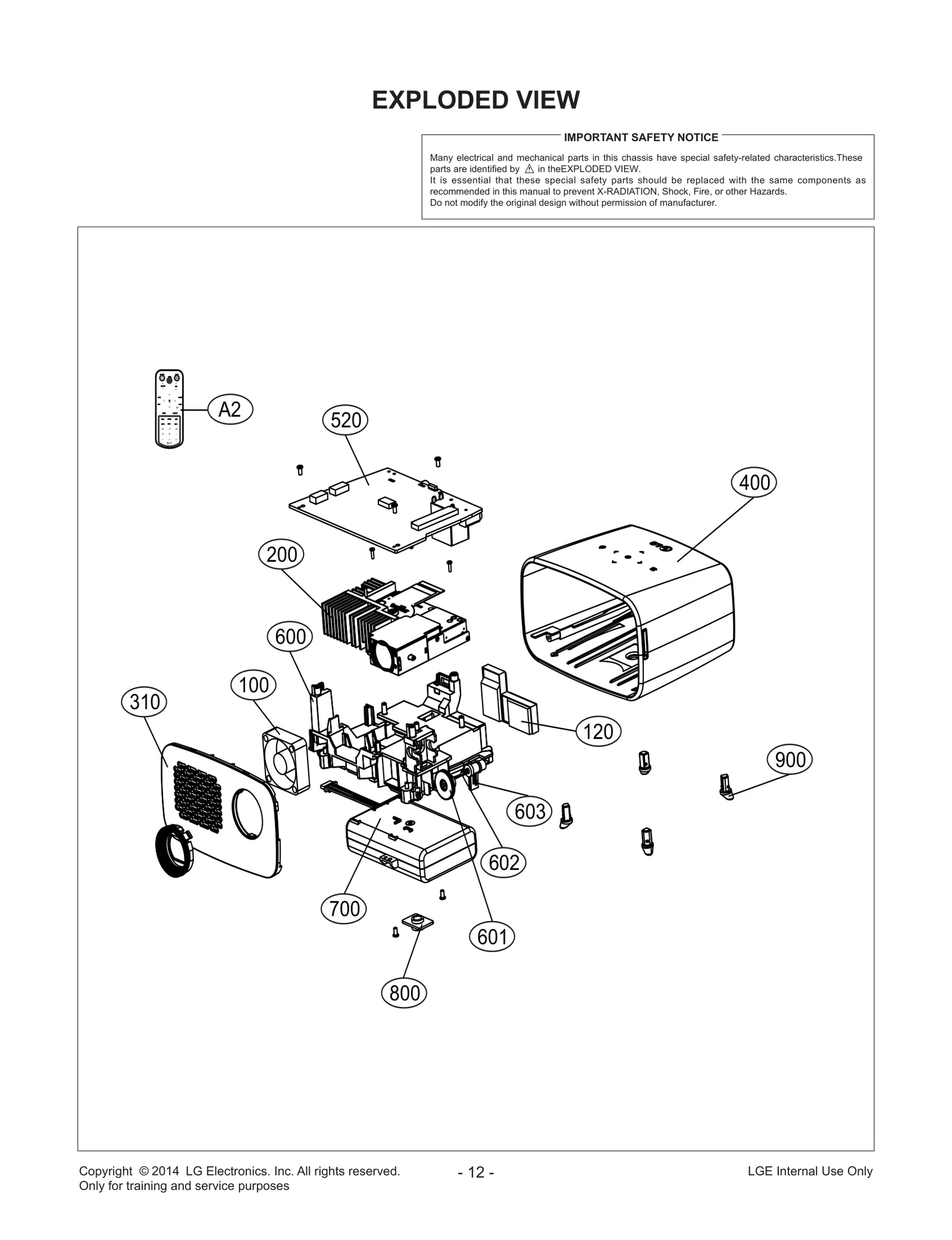

Diagram 0
Diagram 1
Common parts from model LG PH300
100
Bracket Assembly LGE ABA75048403 Contact Us For Availability
100
Fan Module LGE EAL61560901 Contact Us For Availability
101
Gasket LGE MDS62005712 Contact Us For Availability
120
Speaker,Full Range LGE EAB62689401 Contact Us For Availability
200
Module,Assembly,Optical Engine LGE EAT62533202 Contact Us For Availability
310
Cover Assembly LGE ACQ87130201 Contact Us For Availability
400
LGE ABQ74600303 LGE ABQ74600303 Contact Us For Availability
400
Case Assembly LGE ABQ74600302 Contact Us For Availability
400
LGE ABQ74600304 LGE ABQ74600304 Contact Us For Availability
520
Chassis Assembly LGE EBT63516101 Contact Us For Availability
600
Parts Assembly LGE AGM74469001 Contact Us For Availability
601
Gear LGE MDT62867101 Contact Us For Availability
602
Shaft LGE MHJ63395301 Contact Us For Availability
603
Guide LGE MEA63590501 Contact Us For Availability
800
Supporter LGE MJH63413401 Contact Us For Availability
900
Leg LGE MFA62822902 Contact Us For Availability
A1
Title LGE SAC30666079 Contact Us For Availability
A2
Remote Controller LGE MKJ50025114 Contact Us For Availability
A3
Power Cord,Detach LGE EAD62149101 Contact Us For Availability
A31
Adapters LGE EAY62850505 Contact Us For Availability
AR401
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C110
Capacitor,Ceramic,Chip LGE EAE62282601 Contact Us For Availability
C156
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C212
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C262
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C267
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C306
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C308
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C328
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C331
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C333
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C343
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C358
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C362
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C439
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C442
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C455
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C466
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C800
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C809
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C816
Capacitor,Ceramic,Ch LGE 0CK563CK56A Contact Us For Availability
C1301
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
D100
Diode,Switching LGE EAH41961301 Contact Us For Availability
D301
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D504
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
D600
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D601
Diode,TVS LGE EAH62135001 Contact Us For Availability
D605
Diode,Switching LGE EAH61112501 Contact Us For Availability
IC100
IC,Acceleration Sensor LGE EAN62527101 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62887201 Contact Us For Availability
IC102
S/W,Firmware LGE SAA37597601 Contact Us For Availability
IC104
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC201
IC,Audio Amplifier LGE EAN62886101 Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN62653501 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC304
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC305
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC307
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC401
IC,Microprocessors LGE EAN63390501 Contact Us For Availability
IC403
IC,PMIC LGE EAN63509301 Contact Us For Availability
IC506
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC507
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
IC508
IC,LED Driver LGE EAN62344901 Contact Us For Availability
IC509
IC,CMOS LGE EAN61846601 Contact Us For Availability
IC602
Receiver Module LGE EAV61832001 Contact Us For Availability
IC800
IC,Charger LGE EAN63167801 Contact Us For Availability
IC5601
IC,OP Amplifier LGE 0IPRPKE009A Contact Us For Availability
IC5603
IC,LDO Voltage Regulator LGE EAN62869101 Contact Us For Availability
JK200
Jack,Phone LGE EAG61030009 Contact Us For Availability
L202
INDUCTOR,CHIP LGE 0LCML00020C Contact Us For Availability
L306
Filter,Bead LGE EAM62091201 Contact Us For Availability
L310
Inductor,Wire Wound,Chip LGE EAP62506408 Contact Us For Availability
L406
Inductor,Wire Wound,Chip LGE EAP62185901 Contact Us For Availability
L408
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L602
Filter,Bead LGE EAM38769505 Contact Us For Availability
L800
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
LD1
LED LGE 0DL233309AC Contact Us For Availability
M602
Plate LGE 4814V00112J Contact Us For Availability
M604
Gasket LGE MDS62110213 Contact Us For Availability
M605
Gasket LGE MDS62110212 Contact Us For Availability
P101
Connector,BtoB LGE EAG63014603 Contact Us For Availability
P201
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P401
Connector,FFC/FPC/PIC LGE EAG61090202 Contact Us For Availability
P403
Connector,FFC/FPC/PIC LGE EAG34150301 Contact Us For Availability
P502
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q505
FET LGE EBK61311401 Contact Us For Availability
Q801
FET LGE EBK61492001 Contact Us For Availability
Q803
FET LGE EBK61313101 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R131
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R141
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R231
Resistor,Chip LGE EBC00796902 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R339
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R464
RESISTOR,METAL GLAZE LGE 0RJ3000C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R533
Resistor,Chip LGE EBC37118601 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R627
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R646
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R658
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R800
RESISTOR,METAL GLAZE LGE 0RJ0201D677 Contact Us For Availability
R808
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R815
Resistor,Chip LGE EBC37118602 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R819
Resistor,Chip LGE ERHY0000124 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R890
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R905
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
S1
Cable,Assembly LGE EAD00926114 Contact Us For Availability
S2
Harness,Single LGE EAD56480808 Contact Us For Availability
SW802
Switch,Slide LGE 6600Q000026 Contact Us For Availability
TU901
Tuner,Analog/Digital LGE EBL61440001 Contact Us For Availability
X101
Crystal LGE EAW61645501 Contact Us For Availability
ZD304
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
