Model Whirlpool PGT193UB GAS COOK-TOP – Common Parts & Diagrams
01 - BURNER BOX SECTION

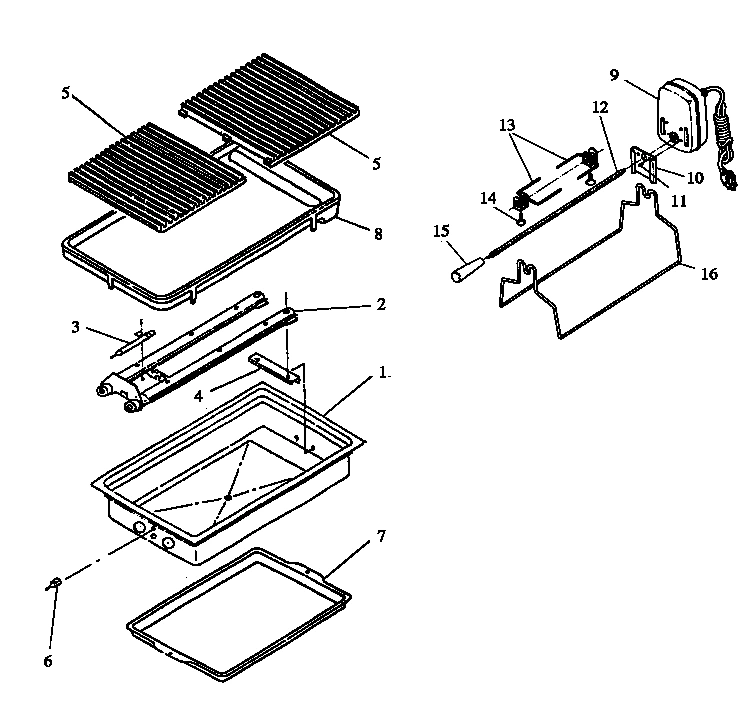

03 - GRILLE/ROTISSERIE ASSY

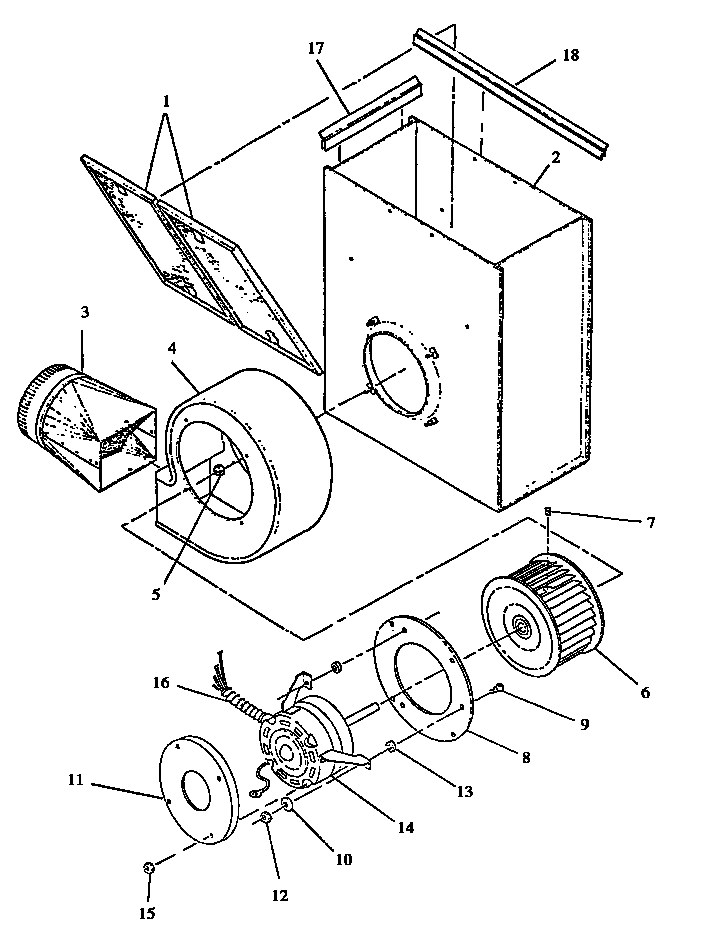

05 - VENTILATION SECTION

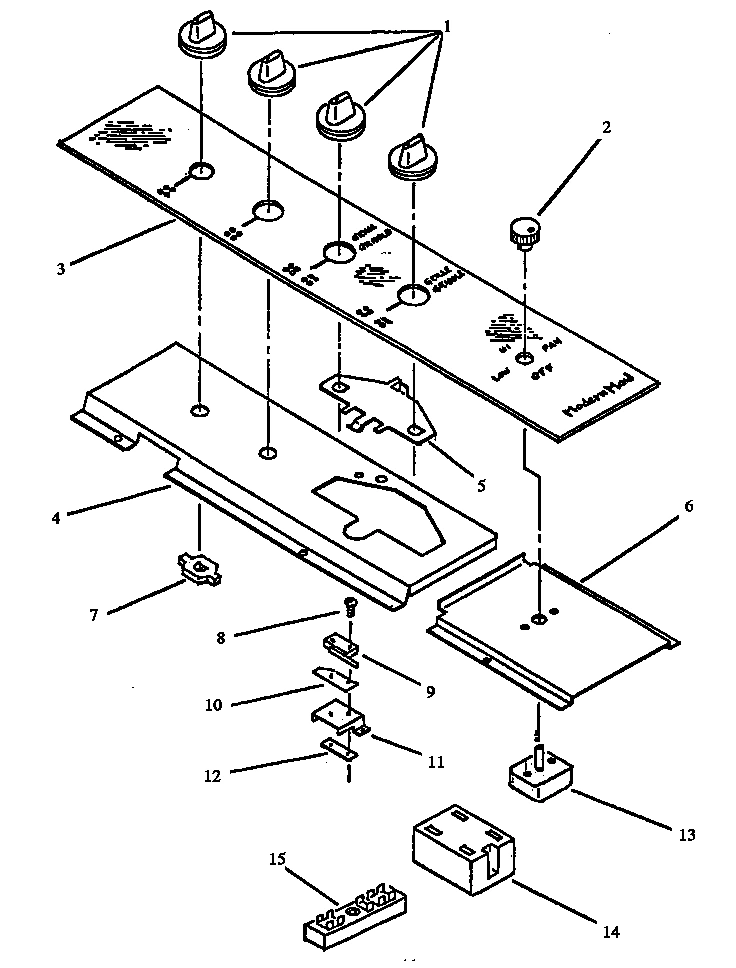

02 - CONTROL PANEL SECTION

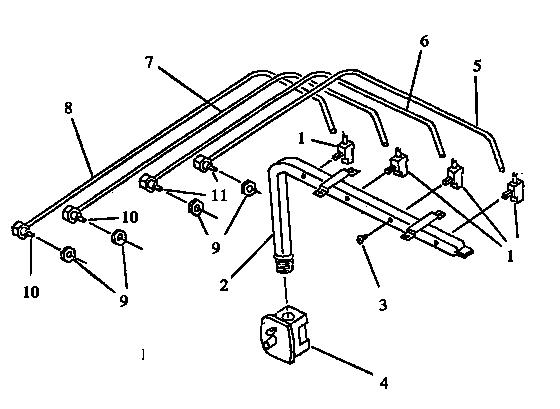

04 - MANIFOLD AND TUBING ASSY
Common parts from model Whirlpool PGT193UB GAS COOK-TOP
1
MAIN TOP, BLACK ENAMEL WPL 300987B Contact Us For Availability
1
GRILLE PAN W/STRIKE WPL 300746B Contact Us For Availability
1
FILTER EXHAUST KET595 WPL Y0042024 Contact Us For Availability
1
KNOB, GAS VALVE WPL 0058752 Contact Us For Availability
1
VALVE, SURFACE BURNER WPL 0301425 Contact Us For Availability
1
VALVE-SURFACE KGT591 WPL Y0042333 Contact Us For Availability
2
BURNER BOX WA GT593 WPL Y0040485 Contact Us For Availability
2
BURNER, GRILLE WPL 0046387 Contact Us For Availability
2
PLENUM WPL 0059560 Contact Us For Availability
2
KNOB, FAN WPL 0058681 Contact Us For Availability
2
MANIFOLD PIPE KGT591 WPL 0042374 Contact Us For Availability
3
SWITCH SHIELD ET-590 595 WPL Y0040821 Contact Us For Availability
3
GRILLE, ELECTRODE WPL Y0042217 Contact Us For Availability
3
TRANSITION WPL Y0059493 Contact Us For Availability
3
GLASS, CONTROL PANEL WPL 0058754 Contact Us For Availability
3
SURFACE VALVE BOLT& GASKET WPL Y0061441 Contact Us For Availability
4
HEAT SHIELD KGT591 WPL 0040837 Contact Us For Availability
4
GRILLE BURNER REAR SUPPORT WPL Y0041041 Contact Us For Availability
4
BLOWER HOUSING, FLAT BLACK WPL 302681G Contact Us For Availability
4
VALVE SHIELD WPL 0059489 Contact Us For Availability
4
REGULATOR WPL 0042303 Contact Us For Availability
5
BOTTOM BAFFLE KGT591 WPL Y0040836 Contact Us For Availability
5
GRATE, SPLIT GRILLE-GAS (BL) WPL 307786G Contact Us For Availability
5
GRATE, SPLIT GRILLE-GAS (BL) WPL Y0058965 Contact Us For Availability
5
LOCK-NUT NYLON KET595 WPL 0041862 Contact Us For Availability
5
SWITCH ACTUATOR GT593 WPL Y0041046 Contact Us For Availability
5
TUBE ORIFICE ASSY RF GT591 WPL Y0042329 Contact Us For Availability
6
HEAT SHIELD FRONT GT593 WPL Y0040846 Contact Us For Availability
6
GROUND PIN XST311 KGT591 WPL Y0041898 Contact Us For Availability
6
FAN WHEEL KET595 WPL Y0042752 Contact Us For Availability
6
BRACKET, SWITCH MTG. WPL 0300179 Contact Us For Availability
6
TUBE ORIFICE ASSY RR GT591 WPL Y0042330 Contact Us For Availability
7
SIGHT SHIELD WPL Y040838CG Contact Us For Availability
7
PAN, GREASE KGT591 WPL Y0042724 Contact Us For Availability
7
HARPER SPARK SWITCH WPL Y0301326 Contact Us For Availability
7
ASSY,TUBE-L.F. WPL Y0052038 Contact Us For Availability
8
ACCESS COVER KGT591 WPL Y0040839 Contact Us For Availability
8
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
8
PLATE, MOTOR MTG WPL 0059470 Contact Us For Availability
8
TUBE ASSY. L.R. WPL Y0052037 Contact Us For Availability
9
MANIFOLD SUPPORT BRKT. 591 593 WPL Y0040996 Contact Us For Availability
9
BOLT, SHOULDER WPL 0098549 Contact Us For Availability
9
SWITCH, INTERLOCK (S.P.D.T.) WPL Y0308371 Contact Us For Availability
9
PAL NUT ORIFICE FITTINGS WPL Y0041852 Contact Us For Availability
10
ORIFICE MTG. BRKT. KGT591 WPL Y0040982 Contact Us For Availability
10
INSULATION, ESM WPL Y0091523 Contact Us For Availability
10
WASHER K WPL 0041933 Contact Us For Availability
11
BRKT, PLUG BLOCK MTG WPL Y0040983 Contact Us For Availability
11
MOTOR COVER WPL 0059471 Contact Us For Availability
11
BRKT, MICRO SWITCH MTG WPL Y0040988 Contact Us For Availability
12
PLUG BLOCK ASSY, LT. WPL Y0052674 Contact Us For Availability
12
PLUG BLOCK ASSY, RT. WPL Y0052675 Contact Us For Availability
12
SPEED NUT (TWIN TYPE) WPL 0041902 Contact Us For Availability
13
PLATE, SWITCH MTG WPL 0040989 Contact Us For Availability
13
RUBBER GROMMET WPL 0041981 Contact Us For Availability
13
SELECTOR SWITCH WPL Y0063503 Contact Us For Availability
14
SWITCH, MODULE WPL Y0308372 Contact Us For Availability
14
MOTOR, FAN 115V 60HZ WPL Y0058327 Contact Us For Availability
14
SPARK MODULE WPL Y0306035 Contact Us For Availability
15
TERMINAL BLOCK WPL Y0042222 Contact Us For Availability
16
CONDUIT (3/8 X 18) WPL 0042115 Contact Us For Availability
17
SCREW, NO. 8A X 1/4 WPL Y0041799 Contact Us For Availability
17
SEAL, END WPL 0041121 Contact Us For Availability
18
SCREW, No.8-32 X 3/8 HEX WSH HD WPL Y0041825 Contact Us For Availability
18
PLENUM SEAL WPL 0041122 Contact Us For Availability
19
SCREW WPL Y0041810 Contact Us For Availability
20
TINNERMAN CLIP PYRO TH WPL 0041896 Contact Us For Availability
21
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
22
NUT 1/4-20 SQ. ET590 595 WPL 0041861 Contact Us For Availability
23
VENT COVER WPL Y0058942 Contact Us For Availability
NI
SUPPLY CORD KGT591-593 WPL Y0042030 Contact Us For Availability
NI
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
NI
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
NI
INTERNAL LOCK WASHER No.10 WPL Y0041947 Contact Us For Availability
NI
SPACER, MOTOR COVER WPL 0059120 Contact Us For Availability
NI
GASKET, MOTOR MTG WPL 0059569 Contact Us For Availability
NI
CONNECTOR, 3/8`` WPL Y0058971 Contact Us For Availability
NI
ORIFICE ASSY. WPL Y0059562 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
× ![]()
