Model GE PFSS6PKXASS Refrigerator – Common Parts & Diagrams
FREEZER DOOR

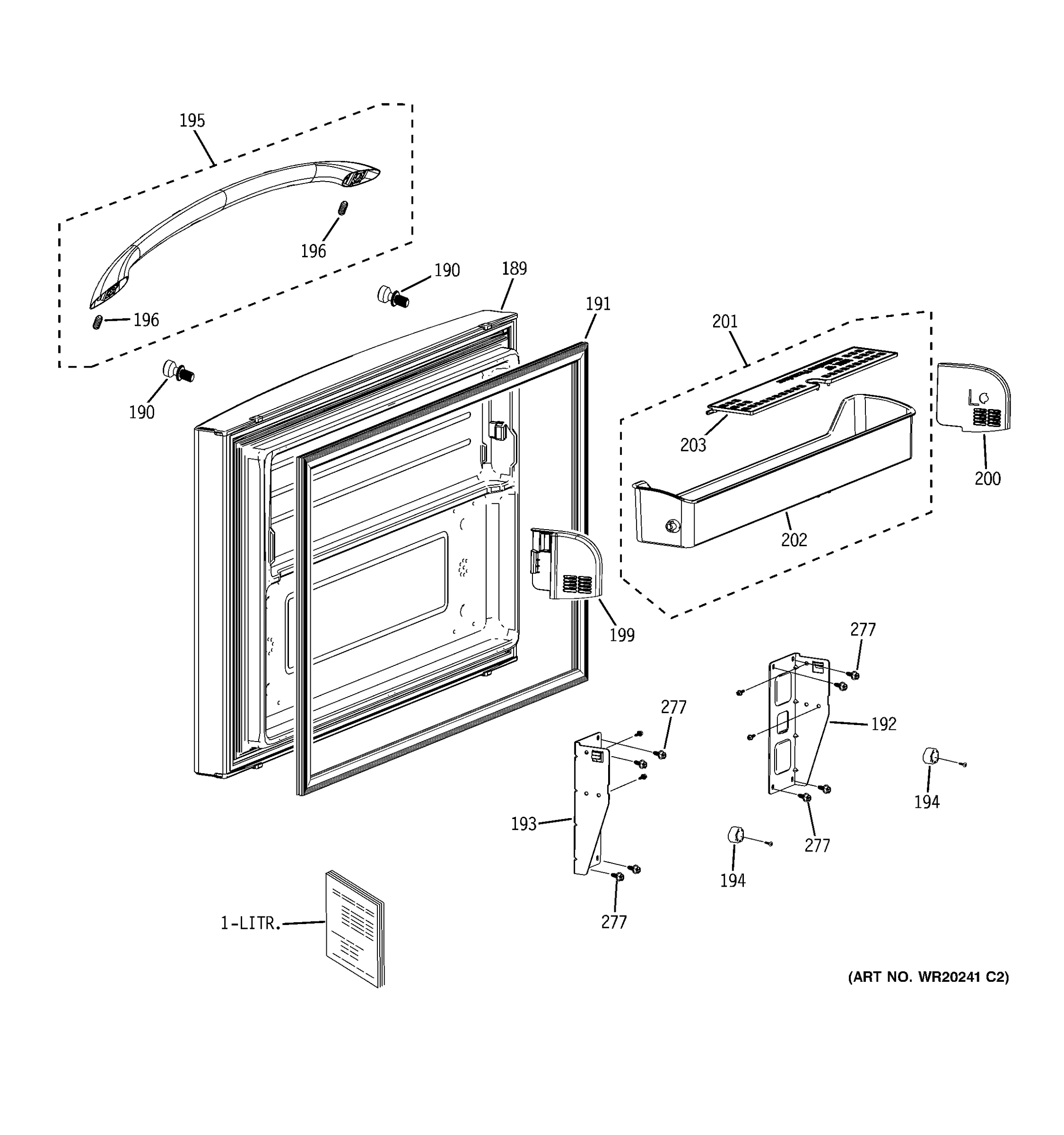

FRESH FOOD DOORS
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE PFSS6PKXASS Refrigerator
2
HOLDER TRAY UPP FZ GEN WR02X12615 Contact Us For Availability
3
ASM TRAY UPPER GEN WR32X10658 Contact Us For Availability
4
COVER TRAY UPPER GEN WR32X10659 Contact Us For Availability
11
ASM RAIL SLIDE UPP R GEN WR72X10263 Contact Us For Availability
12
HOLDER RAIL UPP RIGHT GEN WR72X10264 Contact Us For Availability
14
ASM RAIL SLIDE LOW L GEN WR72X10265 Contact Us For Availability
16
ASM GEAR L GEN WR02X12742 Contact Us For Availability
19
ASM RAIL SLIDE LOW R GEN WR72X10266 Contact Us For Availability
20
ASM GEAR R GEN WR02X12743 Contact Us For Availability
22
ASM TRAY DRAWER BOX GEN WR14X10245 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
27
EVAP FZ GEN WR85X10096 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
39
EVAP FAN BLADE GEN WR60X10249 Contact Us For Availability
42
EVAP BLADE BACKWARD GEN WR60X10264 Contact Us For Availability
44
EVAP MOTOR FZ LEFT GEN WR60X10255 Contact Us For Availability
46
ASM HEATER DUCT FZ GEN WR51X10106 Contact Us For Availability
47
EVAP COVER FZ GEN WR17X12388 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
52
UPPER SHELF GLASS GEN WR71X10791 Contact Us For Availability
53
ASM SHELF FOLDING GEN WR71X10838 Contact Us For Availability
54
ASM SHELF QUICK SPACE GEN WR71X10839 Contact Us For Availability
64
VEG PAN ROLLER GEN WR02X12640 Contact Us For Availability
65
ASM RAIL VEG LEFT GEN WR72X10267 Contact Us For Availability
66
RAIL VEG LEFT GEN WR72X10268 Contact Us For Availability
67
ASM RAIL VEG RIGHT GEN WR72X10269 Contact Us For Availability
68
RAIL VEG RIGHT GEN WR72X10270 Contact Us For Availability
69
ASM CASE VEG PAN GEN WR32X10663 Contact Us For Availability
73
ASM SHELF PANTRY GEN WR71X10786 Contact Us For Availability
75
FLIP PANEL WINDOW GEN WR32X10667 Contact Us For Availability
76
FLIP PANEL COVER GEN WR32X10668 No Longer Available
78
ASM COVER PANTRY LEFT GEN WR72X10271 Contact Us For Availability
80
ASM ROLLER PANTRY GEN WR02X12660 Contact Us For Availability
81
ASM COVER PANTRY RIGHT GEN WR72X10272 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
86
PANTRY PAN ROLLER GEN WR02X12659 Contact Us For Availability
90
ASM EVAPORATOR FF GEN WR85X10097 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
94
DEFROST HEATER GEN WR02X12603 Contact Us For Availability
95
SENSOR CLAMP GEN WR02X12620 Contact Us For Availability
96
DRAIN TRAY EVAP GEN WR13X10512 Contact Us For Availability
98
EVAP COVER GEN WR17X12389 Contact Us For Availability
104
SENSOR TEMP GEN WR23X10578 Contact Us For Availability
111
WATER TANK HEATER GEN WR13X10500 Contact Us For Availability
112
COVER TANK HEATER GEN WR51X10107 Contact Us For Availability
113
DOOR GUIDE GEN WR02X12746 Contact Us For Availability
116
COVER WATER FILTER GEN WR13X10495 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
121
DAMPER COVER FF GEN WR13X10484 Contact Us For Availability
124
IM HARNESS COVER GEN WR13X10574 Contact Us For Availability
125
ASM AUGER MOTOR GEN WR60X10265 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
129
AUGUER MOTOR SOLENOID GEN WR29X10077 Contact Us For Availability
132
ASM CONTROL PANEL COVER GEN WR13X10549 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
137
SPRING AUTO CLOASE GEN WR02X12619 Contact Us For Availability
140
ASM HINGE UPPER RIGHT SS GEN WR13X10547 Contact Us For Availability
141
GROMMET HINGLE MIDDLE GEN WR02X12747 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT FRONT GEN WR02X12606 Contact Us For Availability
150
TUBE CONNECTOR GEN WR02X12111 Contact Us For Availability
151
ASM WATER LINE GEN WR02X12750 Contact Us For Availability
152
WATER LINE HOLDER GEN WR02X12607 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
156
LED LIGHT BOARD GEN WR55X10765 Contact Us For Availability
158
SENSOR TEMP GEN WR23X10579 Contact Us For Availability
161
WHEEL AXLE GEN WR02X12605 Contact Us For Availability
165
TRAY DRAIN WATER GEN WR87X10179 Contact Us For Availability
168
ASM CONDENSER FAN GEN WR60X10256 Contact Us For Availability
169
CONDENSER GEN WR84X10085 Contact Us For Availability
170
CONDENSER FAN BLADE GEN WR60X10266 Contact Us For Availability
173
ELECTRICALS FOR COMPRESS GEN WR87X10164 Contact Us For Availability
174
PTCR GEN WR07X10107 Contact Us For Availability
176
OVERLOAD GEN WR08X10096 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
186
MACHINE TOP CPVER GEN WR13X10525 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
192
HANGER RAIL FRONT R GEN WR13X10503 Contact Us For Availability
193
HANGER RAIL FRONT L GEN WR13X10502 Contact Us For Availability
196
SCREW SET GEN WR01X10775 Contact Us For Availability
199
SUPPORT GUARD FRE L GEN WR02X12617 Contact Us For Availability
202
GUARD FRE GEN WR02X12630 Contact Us For Availability
204
ASM DOOR FOAM REF L GEN WR78X12320 Contact Us For Availability
206
CAM AUTO CLOSE L SS GEN WR02X12666 Contact Us For Availability
209
SCREW SET GEN WR01X10774 Contact Us For Availability
212
TRAY DISPENSER SS GEN WR13X10545 Contact Us For Availability
216
HINGE FRENCH GEN WR13X10516 Contact Us For Availability
217
CASE FRENCH GEN WR02X12616 Contact Us For Availability
218
INSULATION FRENCH GEN WR82X10114 Contact Us For Availability
219
COVER HEATER FRENCH GEN WR13X10491 Contact Us For Availability
220
GASKET FRENCH SS GEN WR24X10196 Contact Us For Availability
221
CAP CASE FRENCH GEN WR02X12643 Contact Us For Availability
222
CAP CASE FRENCH MID GEN WR02X12645 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
225
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
226
ASM GUARD REF DISP GEN WR02X12662 Contact Us For Availability
228
ASM CAP CHUTE ICE GEN WR02X12661 No Longer Available
229
CAP CHUTE ICE GEN WR02X12646 Contact Us For Availability
232
ASM CASE ICE ROUTE GEN WR13X10550 Contact Us For Availability
233
ASM DOOR FOAM REF R GEN WR78X12323 Contact Us For Availability
235
ASM GUARD DAIRY GEN WR02X12663 Contact Us For Availability
237
COVER GUARD DAIRY GEN WR13X10496 Contact Us For Availability
238
MASCOT GEN WR02X12636 Contact Us For Availability
242
SWITCH DOOR GEN WR23X10593 No Longer Available
729
SHELF-WINE GEN WR17X11738 Contact Us For Availability
913
ASM SHELF-SLIDE GEN WR71X10842 Contact Us For Availability
× ![]()
