Model GE PFS22SBSCSS Refrigerator – Common Parts & Diagrams

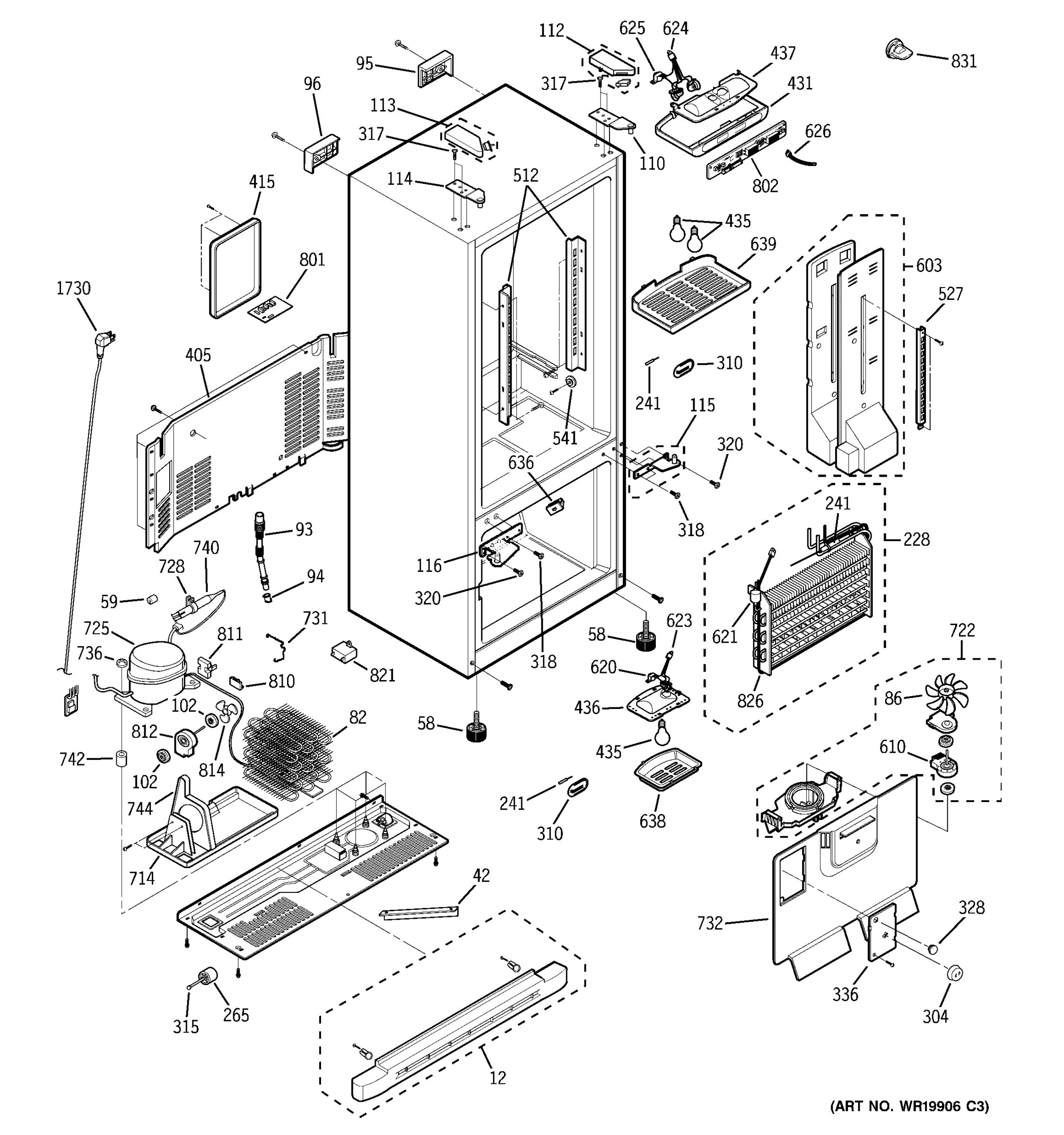

CABINET
DOORS

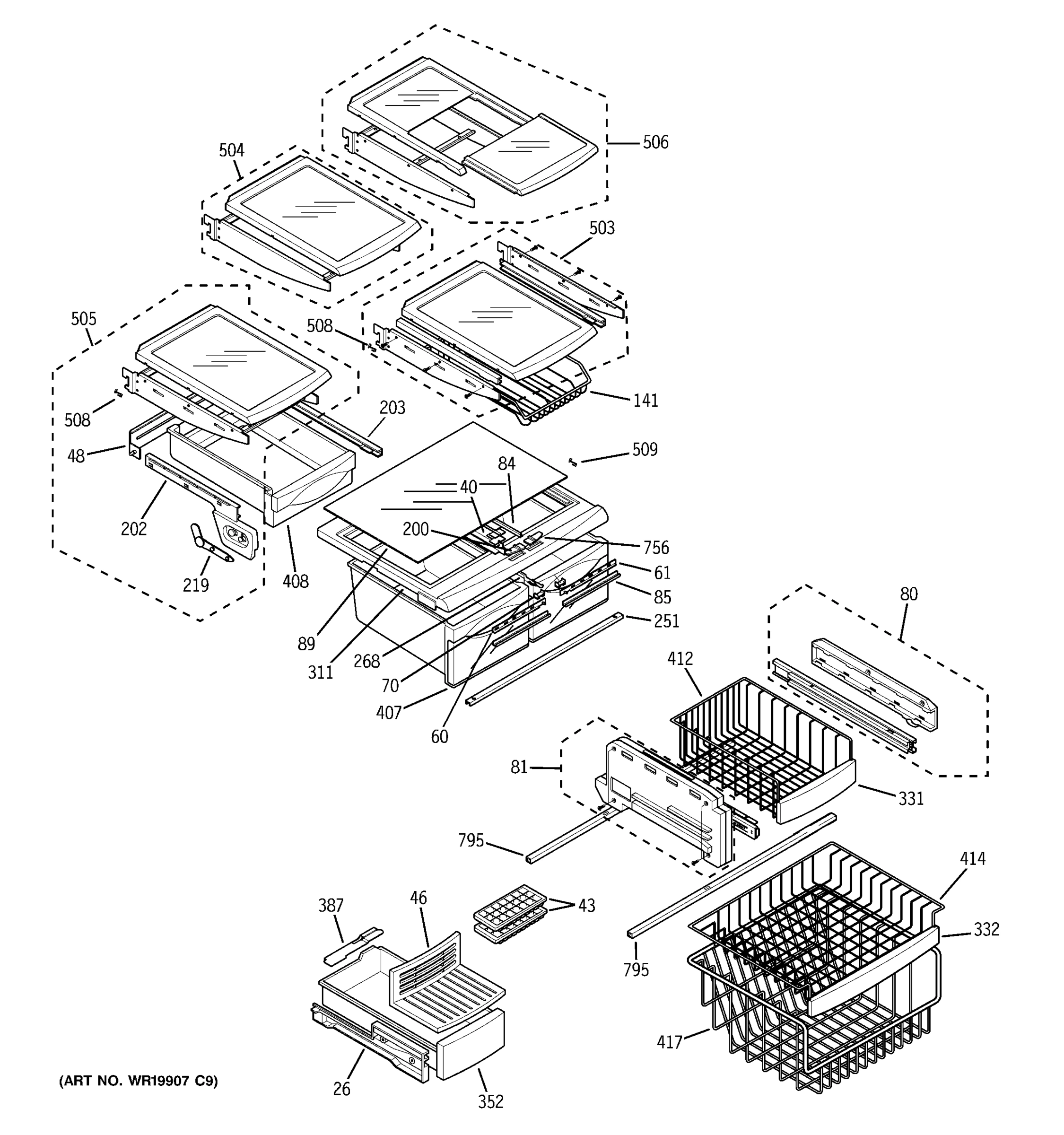

SHELVES

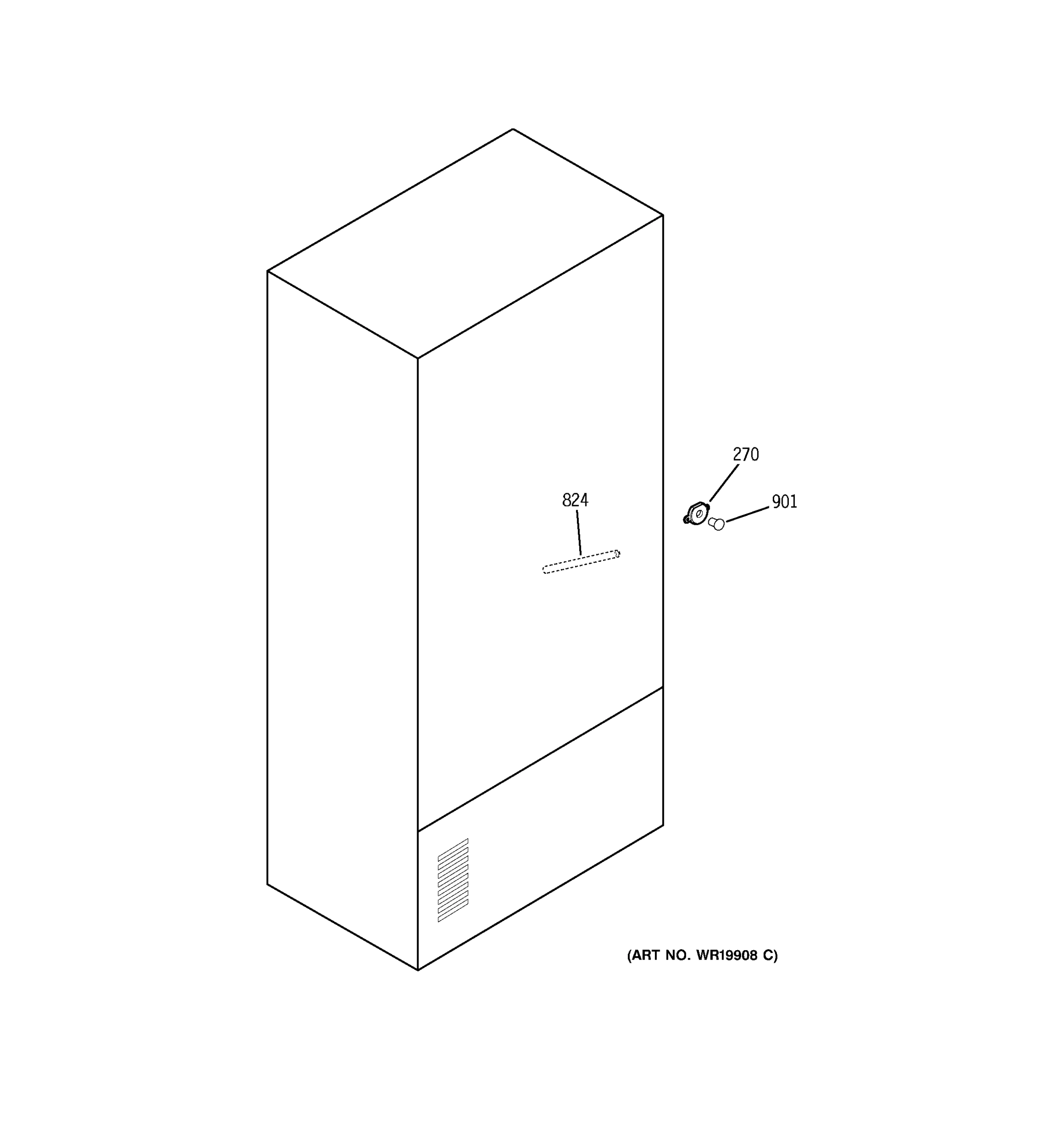

WATER SYSTEM
Common parts from model GE PFS22SBSCSS Refrigerator
12
COVER ASM LOWER GEN WR74X10203 Contact Us For Availability
14
GASKET ASM FZ BK GEN WR14X10177 Contact Us For Availability
15
GEN WR17X11989 GEN WR17X11989 Contact Us For Availability
16
GEN WR17X11990 GEN WR17X11990 Contact Us For Availability
23
HOLDER GASKET GEN WR02X12136 Contact Us For Availability
24
GASKET ASM DOOR FF BK GEN WR24X10173 Contact Us For Availability
40
GEN WR02X11684 GEN WR02X11684 Contact Us For Availability
43
TRAY ICE GEN WR30X10049 Contact Us For Availability
46
GEN WR30X10050 GEN WR30X10050 Contact Us For Availability
70
RAIL SLIDE CENTER GEN WR02X11701 Contact Us For Availability
80
RAIL SLIDE ASM (RH-FZ) GEN WR17X12421 Contact Us For Availability
81
RAIL SLIDE ASM (LH-FZ) GEN WR17X12422 Contact Us For Availability
84
GEN WR14X10176 GEN WR14X10176 Contact Us For Availability
85
GEN WR14X10175 GEN WR14X10175 Contact Us For Availability
86
EVAP FAN BLADE GEN WR60X10147 Contact Us For Availability
89
GEN WR32X10465 GEN WR32X10465 Contact Us For Availability
93
GEN WR02X11697 GEN WR02X11697 Contact Us For Availability
96
GEN WR02X12074 GEN WR02X12074 Contact Us For Availability
102
GEN WR02X11694 GEN WR02X11694 Contact Us For Availability
105
GEN WR01X10485 GEN WR01X10485 Contact Us For Availability
106
GEN WR02X11706 GEN WR02X11706 Contact Us For Availability
109
GEN WR71X10549 GEN WR71X10549 Contact Us For Availability
114
GEN WR78X11409 GEN WR78X11409 Contact Us For Availability
115
GEN WR13X10373 GEN WR13X10373 Contact Us For Availability
118
GEN WR02X12072 GEN WR02X12072 Contact Us For Availability
121
STOPPER DOOR BK GEN WR02X11675 Contact Us For Availability
128
GEN WR02X11680 GEN WR02X11680 Contact Us For Availability
144
GEN WR02X11687 GEN WR02X11687 Contact Us For Availability
200
GEN WR02X11689 GEN WR02X11689 Contact Us For Availability
202
GEN WR72X10148 GEN WR72X10148 Contact Us For Availability
203
GEN WR02X11685 GEN WR02X11685 Contact Us For Availability
228
GEN WR85X10057 GEN WR85X10057 Contact Us For Availability
265
GEN WR02X11698 GEN WR02X11698 Contact Us For Availability
268
GEN WR02X11671 GEN WR02X11671 Contact Us For Availability
310
COVER THERMISTOR GEN WR02X11664 Contact Us For Availability
311
GEN WR02X11666 GEN WR02X11666 Contact Us For Availability
336
GEN WR02X11669 GEN WR02X11669 Contact Us For Availability
352
GEN WR30X10052 GEN WR30X10052 Contact Us For Availability
407
GEN WR32X10463 GEN WR32X10463 Contact Us For Availability
408
SNACK PAN GEN WR32X10464 Contact Us For Availability
417
FZR BSKT LOWER GEN WR21X10078 Contact Us For Availability
505
SHELF ASM GEN WR71X10564 Contact Us For Availability
506
SHELF ASM FOLDING GEN WR71X10565 Contact Us For Availability
509
GEN WR02X12054 GEN WR02X12054 Contact Us For Availability
522
GEN WR02X11682 GEN WR02X11682 Contact Us For Availability
524
GEN WR02X11681 GEN WR02X11681 Contact Us For Availability
526
GEN WR17X12414 GEN WR17X12414 Contact Us For Availability
541
GEN WR02X11683 GEN WR02X11683 Contact Us For Availability
603
GEN WR09X10114 GEN WR09X10114 Contact Us For Availability
619
GEN WR17X12411 GEN WR17X12411 Contact Us For Availability
620
GEN WR50X10044 GEN WR50X10044 Contact Us For Availability
621
GEN WR50X10047 GEN WR50X10047 Contact Us For Availability
622
GEN WR17X12412 GEN WR17X12412 Contact Us For Availability
625
GEN WR50X10050 GEN WR50X10050 Contact Us For Availability
714
GEN WR30X10048 GEN WR30X10048 Contact Us For Availability
722
GEN WR60X10146 GEN WR60X10146 Contact Us For Availability
732
GEN WR17X11594 GEN WR17X11594 Contact Us For Availability
756
GEN WR02X11688 GEN WR02X11688 Contact Us For Availability
807
GEN WR17X11606 GEN WR17X11606 Contact Us For Availability
811
OVERLOAD GEN WR08X10061 Contact Us For Availability
814
CONDENSER FAN BLADE GEN WR60X10148 Contact Us For Availability
826
GEN WR50X10042 GEN WR50X10042 Contact Us For Availability
× ![]()
