Model LG PF85U – Common Parts & Diagrams

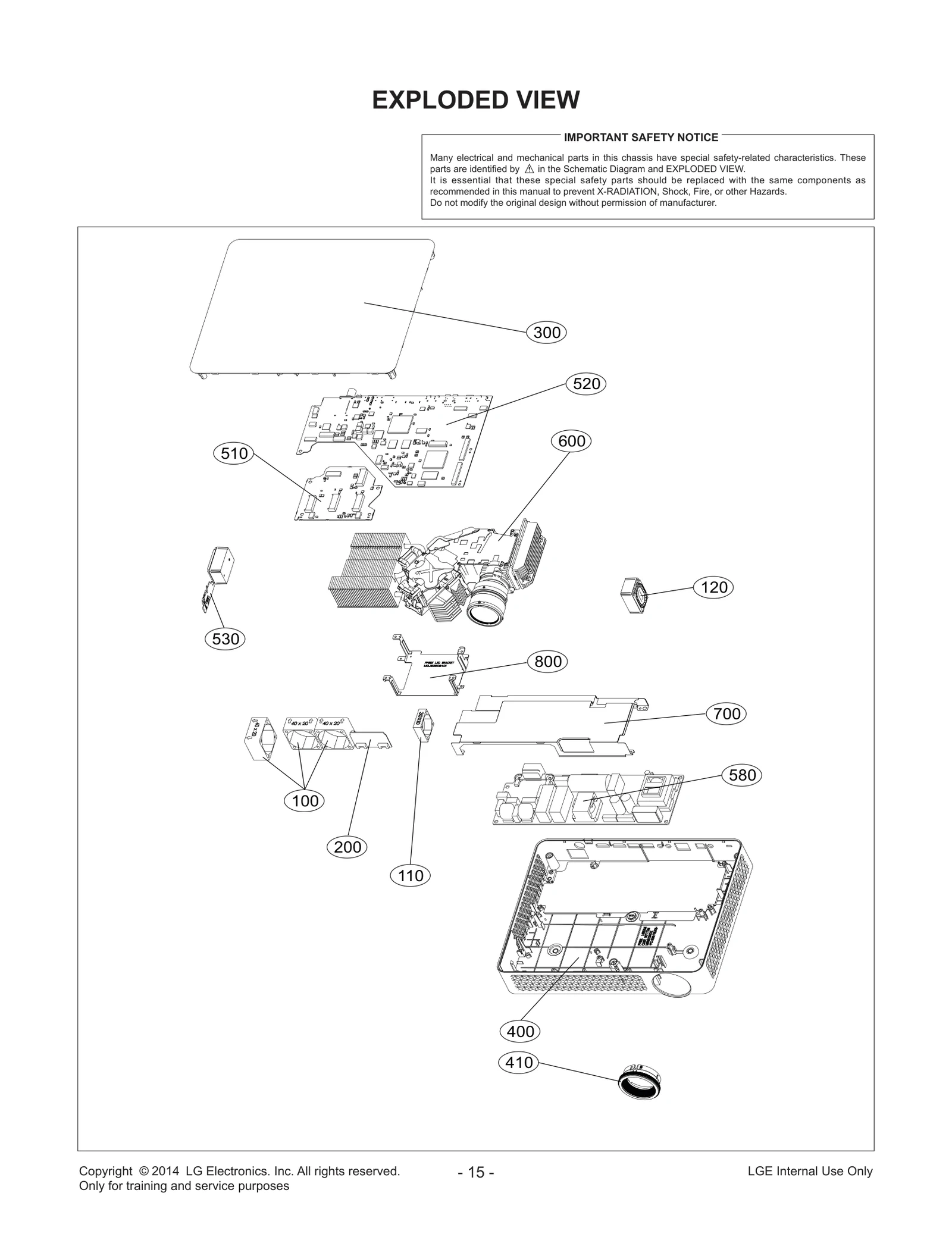

Diagram 0
Diagram 1
Common parts from model LG PF85U
110
Fan Module LGE EAL61101001 Contact Us For Availability
120
Speaker,Full Range LGE EAB62970402 Contact Us For Availability
200
Module,WLAN LGE EAT61813801 Contact Us For Availability
300
Cover Assembly LGE ACQ86693201 Contact Us For Availability
410
Cover Assembly LGE ACQ86482403 Contact Us For Availability
510
Hand Insert PCB Assembly,Sub LGE EBR76272701 Contact Us For Availability
520
Chassis Assembly LGE EBT62713201 Contact Us For Availability
580
Power Supply Assembly LGE EAY63068701 Contact Us For Availability
600
Chassis Assembly LGE EBT62570001 Contact Us For Availability
700
Plate Assembly LGE AGU74208501 Contact Us For Availability
800
Plate LGE MGJ63608402 Contact Us For Availability
A1
Title LGE SAC30666066 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73616415 Contact Us For Availability
A8
Cable,Assembly LGE EAD61273123 Contact Us For Availability
A22
Remote Controller Assembly LGE AKB73856202 Contact Us For Availability
IC3000
S/W,Firmware LGE SAA36485725 Contact Us For Availability
S2
Harness,Single LGE EAD61216803 Contact Us For Availability
S3
Cable,FFC LGE EAD37058304 Contact Us For Availability
S4
Harness,Single LGE EAD62496702 Contact Us For Availability
S8
Harness,Single LGE EAD62496801 Contact Us For Availability
S10
Harness,Single LGE EAD61653807 Contact Us For Availability
S11
Cable,FFC LGE EAD36774207 Contact Us For Availability
S12
Harness,Single LGE EAD62496704 Contact Us For Availability
S12
Harness,Single LGE EAD62496701 Contact Us For Availability
× ![]()
