Model LG PF80A – Common Parts & Diagrams

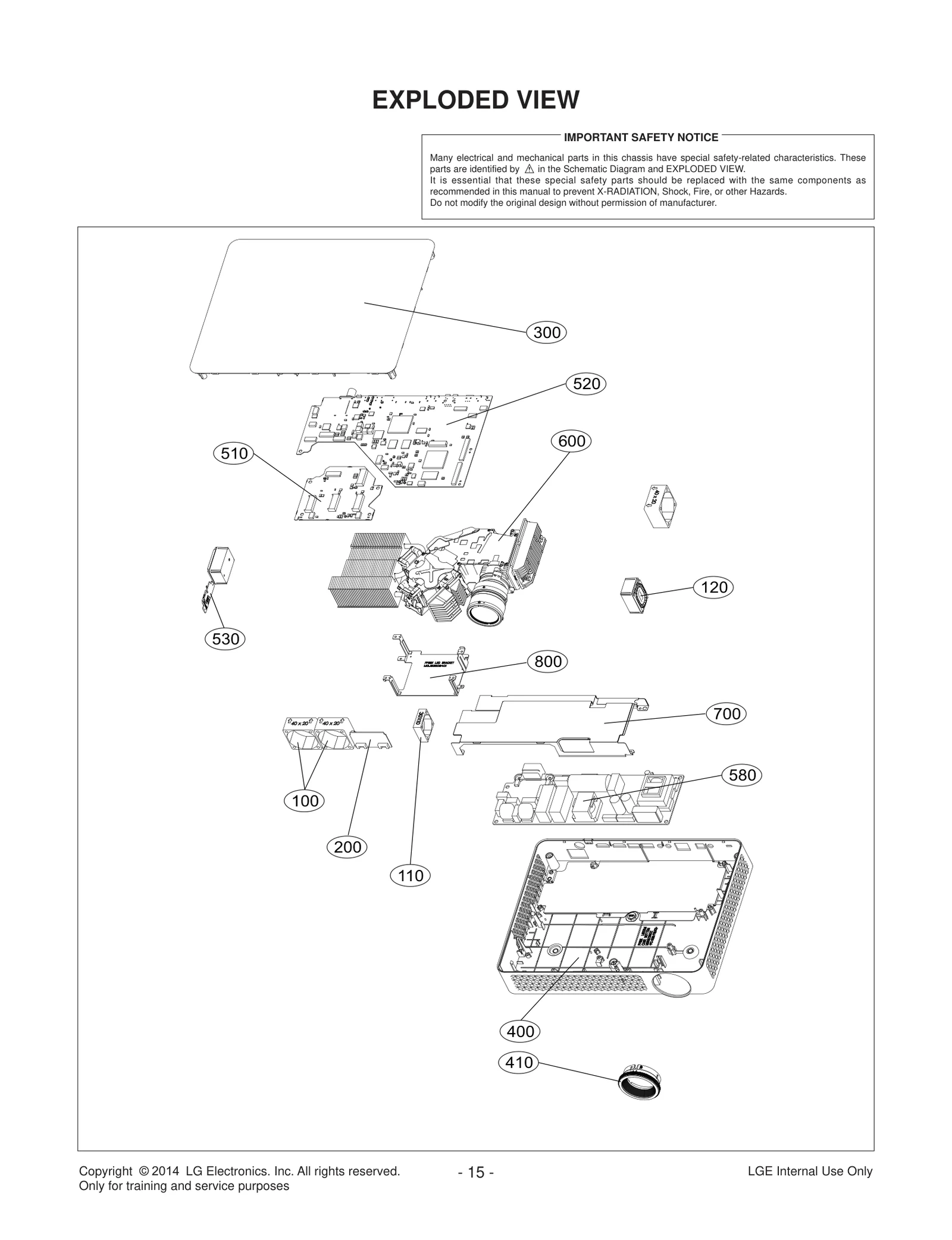

Diagram 0
Diagram 1
Common parts from model LG PF80A
110
Fan Module LGE EAL61101001 Contact Us For Availability
120
Speaker,Full Range LGE EAB62970402 Contact Us For Availability
200
Chassis Assembly LGE EBT62564601 Contact Us For Availability
300
Cover Assembly LGE ACQ86693203 Contact Us For Availability
410
Cover Assembly LGE ACQ86482403 Contact Us For Availability
510
Hand Insert PCB Assembly,Sub LGE EBR76272701 Contact Us For Availability
580
Power Supply Assembly LGE EAY63068701 Contact Us For Availability
600
Chassis Assembly LGE EBT62570001 Contact Us For Availability
700
Plate Assembly LGE AGU74208501 Contact Us For Availability
800
Plate LGE MGJ63608402 Contact Us For Availability
A1
Title LGE SAC30666074 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73616416 Contact Us For Availability
A8
Cable,Assembly LGE EAD61273123 Contact Us For Availability
AR4100
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR8102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE EAE62746601 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C138
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C201
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C217
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C329
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C339
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C360
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C377
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C379
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C509
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C528
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C1421
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3003
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C3316
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5406
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5430
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5434
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5439
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6104
Capacitor,Ceramic,Chip LGE 0CC181CK41A Contact Us For Availability
C6107
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C6554
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
D100
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D101
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D102
DIODE,RECTIFIERS LGE 0DRON00088A Contact Us For Availability
D302
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
D400
Diode,TVS LGE EAH61253501 Contact Us For Availability
D509
Diode,TVS LGE EAH62134701 Contact Us For Availability
D510
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D3304
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3314
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3319
Diode,TVS LGE EAH61515001 Contact Us For Availability
D3322
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D3801
Varistor LGE EAF61530101 Contact Us For Availability
D4500
Diode,TVS LGE EAH61515101 Contact Us For Availability
D5000
Varistor LGE EAF61530201 Contact Us For Availability
IC100
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC102
Socket,IC LGE EAG63391301 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62651401 Contact Us For Availability
IC107
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC201
Photo,Coupler LGE 0ILNRHP003B Contact Us For Availability
IC203
IC,OP Amplifier LGE 0IPRPKE009A Contact Us For Availability
IC206
IC,LED Driver LGE EAN62344901 Contact Us For Availability
IC301
IC,CMOS LGE EAN61846601 Contact Us For Availability
IC305
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
IC308
IC,Bridge Driver LGE EAN52292301 Contact Us For Availability
IC402
IC,Acceleration Sensor LGE EAN62527101 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN62653501 Contact Us For Availability
IC504
IC,DC,DC Converter LGE EAN62731201 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC508
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC509
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC511
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC701
IC,DDR3 SDRAM LGE EAN62571101 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN60390201 Contact Us For Availability
IC1000
IC,Microprocessors LGE EAN62636701 Contact Us For Availability
IC1300
IC,CMOS LGE 0ISTL00021A Contact Us For Availability
IC1301
S/W,Firmware LGE SAA37354802 Contact Us For Availability
IC1302
IC,EEPROM LGE EAN61961901 Contact Us For Availability
IC1310
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC1401
IC,USB LGE EAN62237301 Contact Us For Availability
IC1402
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC1470
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC3000
S/W,Firmware LGE SAA36485719 Contact Us For Availability
IC3100
Receiver Module LGE EAV61832001 Contact Us For Availability
IC3301
IC,Analog Switch LGE EAN62573101 Contact Us For Availability
IC3302
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC3304
IC,Receiver LGE EAN62458601 Contact Us For Availability
IC4306
IC,Analog Switch LGE EAN62649001 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62653101 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC6400
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
JK1405
Jack,Modular LGE EAG38015702 Contact Us For Availability
JK3300
Connector,HDMI LGE EAG63371601 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK3700
Jack,Phone LGE EAG61030009 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030012 Contact Us For Availability
JK4500
Connector,USB LGE EAG61008201 Contact Us For Availability
L101
COIL,ENERGY RECOVERY LGE 6140VR0007A Contact Us For Availability
L300
Inductor,Wire Wound,Chip LGE EAP62186001 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L551
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L561
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L1200
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1409
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5404
Inductor,Wire Wound,Chip LGE EAP62326601 Contact Us For Availability
P102
Connector,FFC/FPC/PIC LGE EAG61008601 Contact Us For Availability
P303
Connector,Wafer LGE 6630VK19610 Contact Us For Availability
P400
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1200
Connector,FFC/FPC/PIC LGE 6630XA02430 Contact Us For Availability
P1408
Connector,FFC/FPC/PI LGE 6630X60128A Contact Us For Availability
P3100
Connector,FFC/FPC/PI LGE 6630VA01714 Contact Us For Availability
Q103
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q104
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q204
FET LGE EBK61933401 Contact Us For Availability
Q302
FET LGE 0TFRH80001A Contact Us For Availability
Q501
FET LGE EBK61913601 Contact Us For Availability
Q502
FET LGE EBK60752501 Contact Us For Availability
Q510
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q3302
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q3314
FET LGE EBK62091801 Contact Us For Availability
R102
Resistor,Chip LGE 0RH3603D622 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R105
Resistor,Chip LGE EBC42745401 Contact Us For Availability
R106
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ7502D677 Contact Us For Availability
R108
Resistor,Chip LGE EBC00711606 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R138
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R152
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R195
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R213
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R305
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R306
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R308
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R317
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ0561C678 Contact Us For Availability
R331
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R333
Resistor,Chip LGE EBC37118601 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R347
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R354
Resistor,Chip LGE 0RJ0822C478 Contact Us For Availability
R362
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R369
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R385
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R517
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R538
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R709
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1274
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1304
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1324
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1359
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1414
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R3021
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R3051
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R3053
RESISTOR,METAL GLAZE LGE 0RJ1803D677 Contact Us For Availability
R3055
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R3056
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R3059
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3371
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R3379
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R3380
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R3387
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3389
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R3700
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R5414
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5417
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6105
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R8121
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R8220
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
S1
Cable,FFC LGE EAD37058304 Contact Us For Availability
S2
Cable,FFC LGE EAD36774207 Contact Us For Availability
S3
Harness,Single LGE EAD62496801 Contact Us For Availability
S4
Harness,Single LGE EAD62496702 Contact Us For Availability
S6
Wire,Flat LGE EAD62469503 Contact Us For Availability
S7
Wire,Flat LGE EAD62469502 Contact Us For Availability
S7
Harness,Single LGE EAD61653807 Contact Us For Availability
S9
Harness,Single LGE EAD61216803 Contact Us For Availability
S12
Harness,Single LGE EAD62496701 Contact Us For Availability
S12
Harness,Single LGE EAD62496704 Contact Us For Availability
VA1405
Varistor LGE EAF61530301 Contact Us For Availability
VA3311
Varistor LGE EAF61630101 Contact Us For Availability
X100
Crystal LGE EAW61645503 Contact Us For Availability
X1300
Crystal LGE EAW61363401 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD101
Diode,Zener LGE EAH62318401 Contact Us For Availability
ZD102
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
× ![]()
Login and Registration Form
