Model LG PF610P – Common Parts & Diagrams

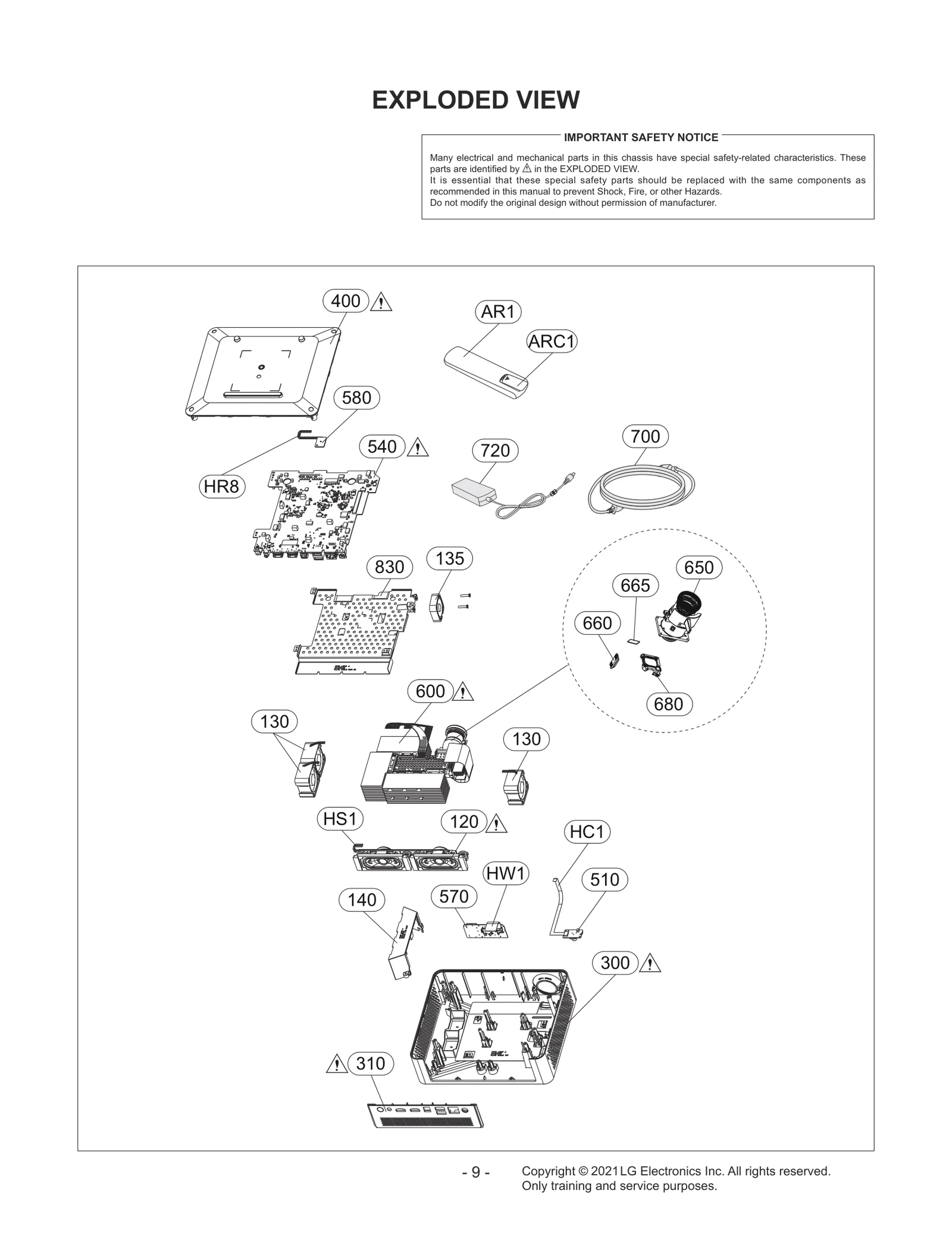

Diagram 0
Common parts from model LG PF610P
120
Speaker,Full Range LGE EAB35995526 Contact Us For Availability
130
Bracket Assembly LGE ABA74349604 Contact Us For Availability
135
Bracket Assembly LGE ABA75048410 Contact Us For Availability
140
Cover LGE MCK71554302 Contact Us For Availability
300
Case Assembly,Top LGE ABQ30083402 Contact Us For Availability
310
Case Assembly LGE ABQ30083802 Contact Us For Availability
400
Case Assembly LGE ABQ30083602 Contact Us For Availability
540
Chassis Assembly LGE EBT66844201 Contact Us For Availability
580
Chassis Assembly LGE EBT66764101 Contact Us For Availability
600
Chassis Assembly LGE EBT66727001 Contact Us For Availability
650
Lens LGE MFB65482701 Contact Us For Availability
660
IC,ASIC LGE EAN65007202 Contact Us For Availability
665
Damper LGE MCQ70861803 Contact Us For Availability
680
Filter LGE MDJ66336901 Contact Us For Availability
700
Power Cord,Detach LGE EAD63785902 Contact Us For Availability
720
Adapters,Desktop LGE EAY63032208 Contact Us For Availability
830
Plate LGE MGJ67243502 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095390 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
HC1
Cable,FFC LGE EAD61670728 Contact Us For Availability
HR8
Harness,Single LGE EAD60732911 Contact Us For Availability
HS1
Harness,Multi LGE EAD64548120 Contact Us For Availability
HW1
Cable,FFC LGE EAD65825844 Contact Us For Availability
× ![]()
