Model LG PF1000UA – Common Parts & Diagrams

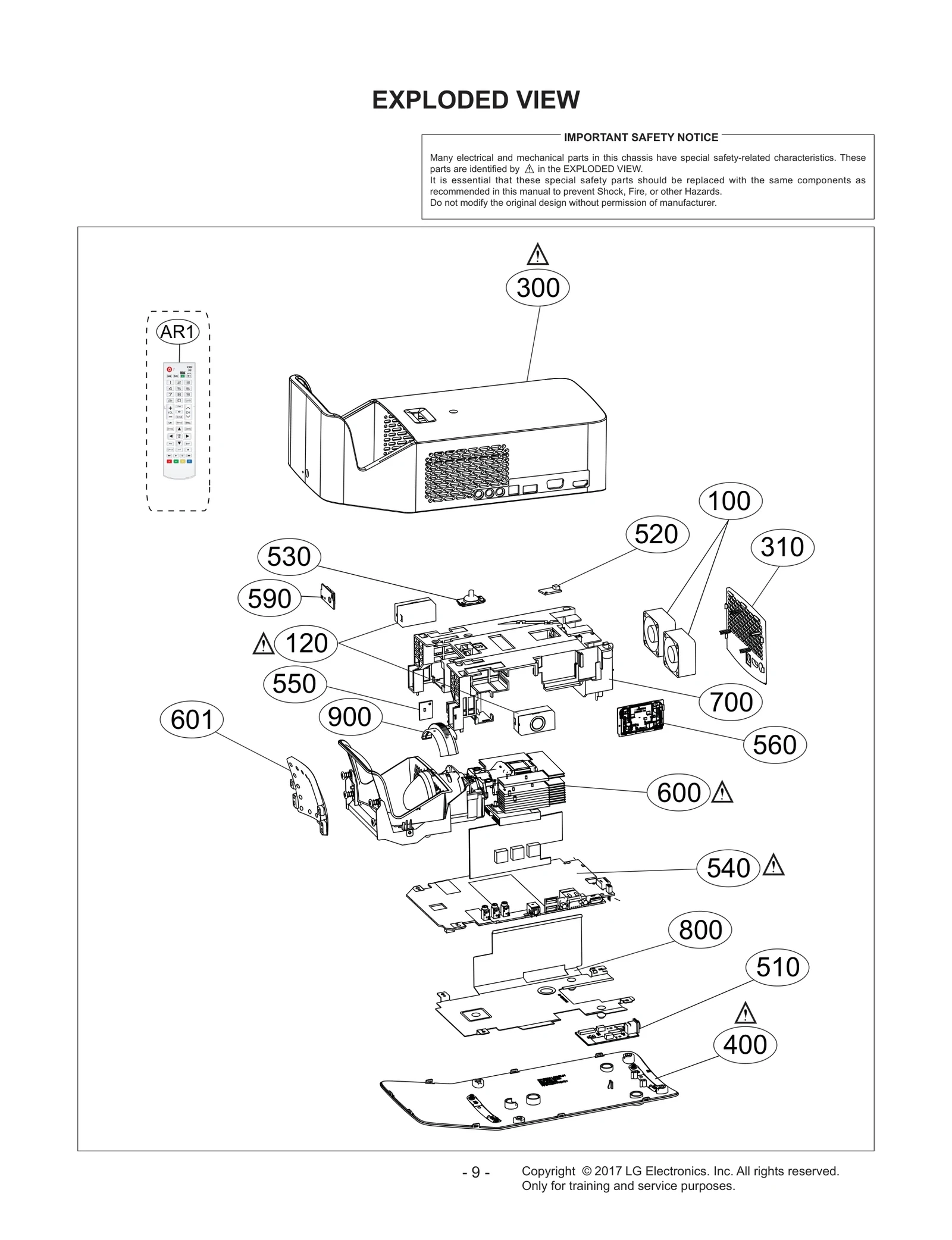

Diagram 0
Diagram 1
Common parts from model LG PF1000UA
100
Fan Module LGE EAL61800801 Contact Us For Availability
300
Cover Assembly LGE ACQ88385708 Contact Us For Availability
310
Cover Assembly,Rear LGE ACQ87825414 Contact Us For Availability
400
Case Assembly LGE ABQ75521505 Contact Us For Availability
510
Chassis Assembly LGE EBT63521901 Contact Us For Availability
540
Chassis Assembly LGE EBT64693701 Contact Us For Availability
550
Chassis Assembly LGE EBT63522101 Contact Us For Availability
560
Module,Wifi Bluetooth Module LGE EAT62093304 Contact Us For Availability
590
Chassis Assembly LGE EBT63999401 Contact Us For Availability
600
IC,ASIC LGE EAN63567902 Contact Us For Availability
600
Chassis Assembly LGE EBT64000904 Contact Us For Availability
700
Frame LGE MDQ64197802 Contact Us For Availability
800
Plate,Shield LGE MGJ64501902 Contact Us For Availability
900
Decor LGE MCR66107805 Contact Us For Availability
A3
Power Cord,Detach LGE EAD63785902 Contact Us For Availability
A4
Adapters LGE EAY63032203 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB74915393 Contact Us For Availability
S1
Cable,Assembly LGE EAD61273123 Contact Us For Availability
S2
Wire,Flat LGE EAD62291102 Contact Us For Availability
S3
Harness,Single LGE EAD60678819 Contact Us For Availability
S4
Harness,Single LGE EAD58345803 Contact Us For Availability
S5
Harness,Single LGE EAD60732912 Contact Us For Availability
S6
Harness,Single LGE EAD62123306 Contact Us For Availability
S7
Cable,FFC LGE EAD61670715 Contact Us For Availability
S8
Harness,Single LGE EAD64166002 Contact Us For Availability
S9
Harness,Single LGE EAD60732930 Contact Us For Availability
× ![]()
