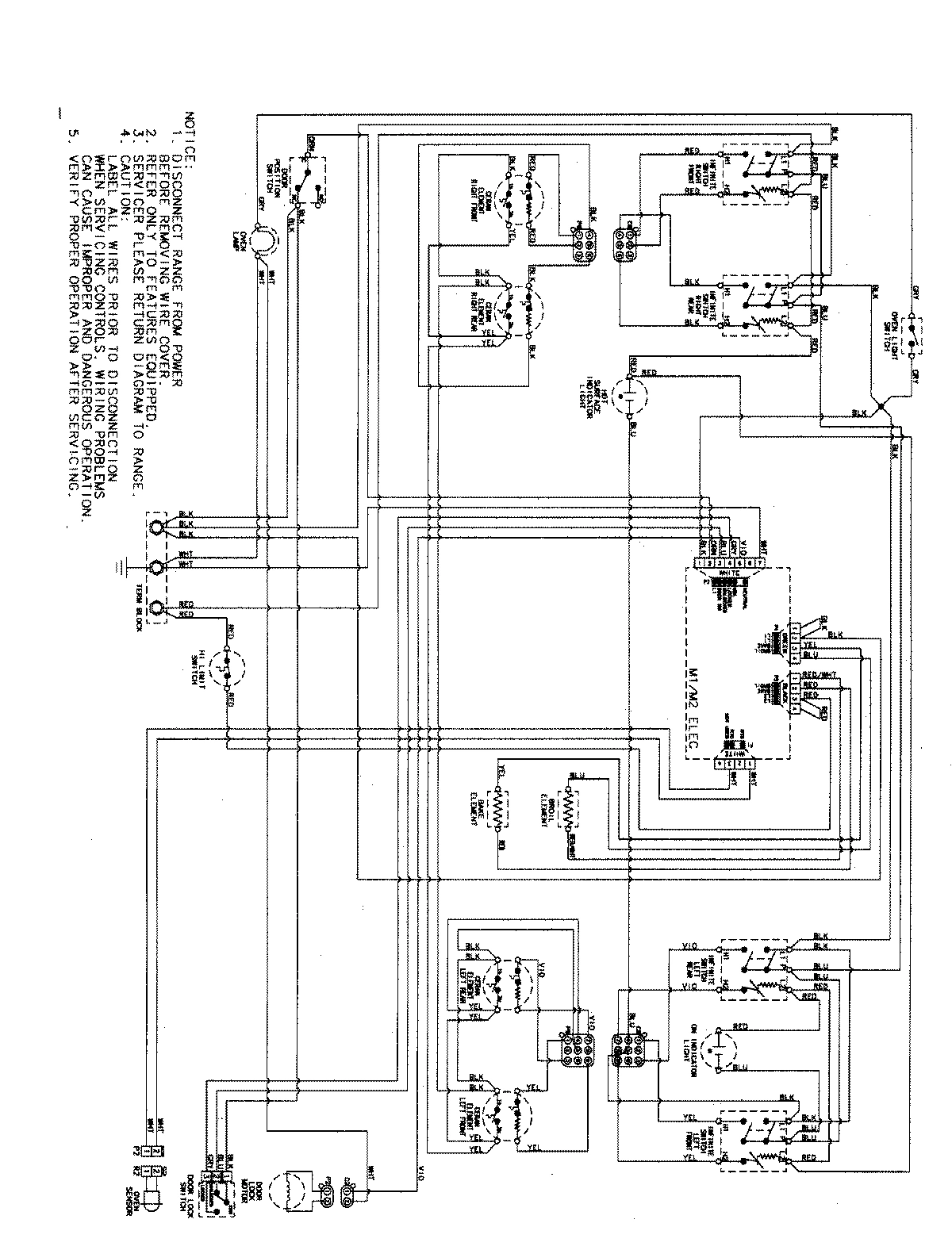

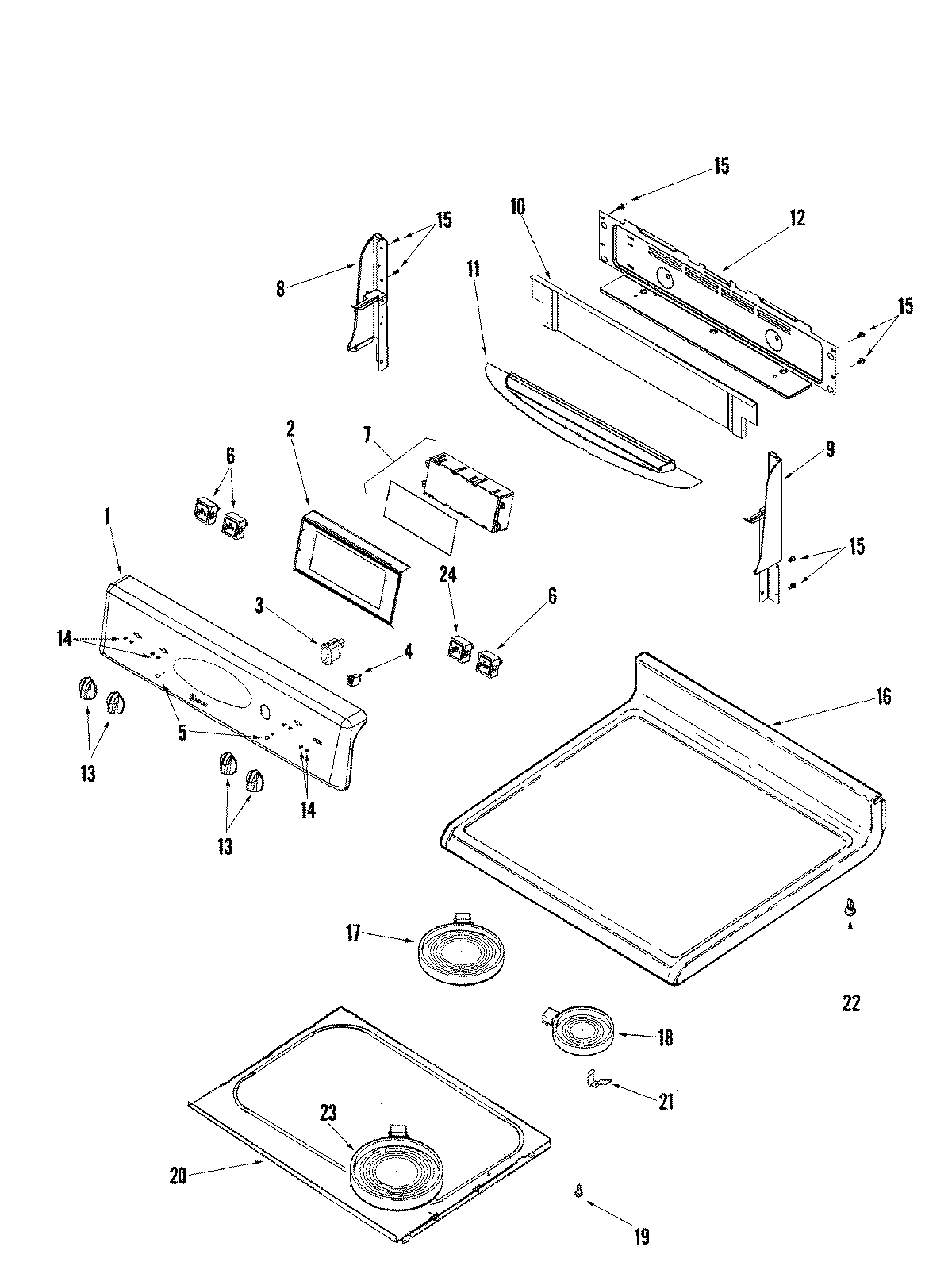

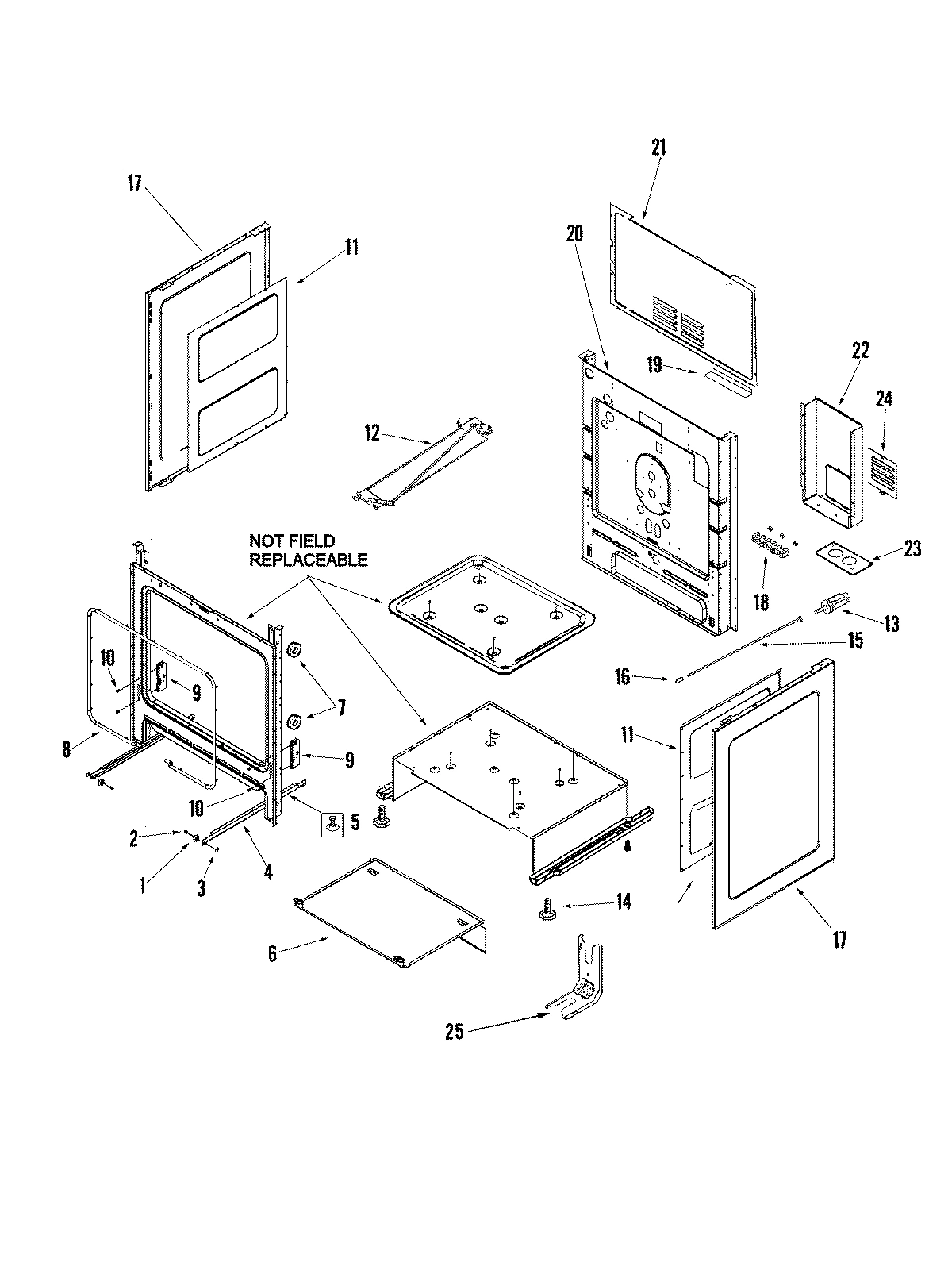

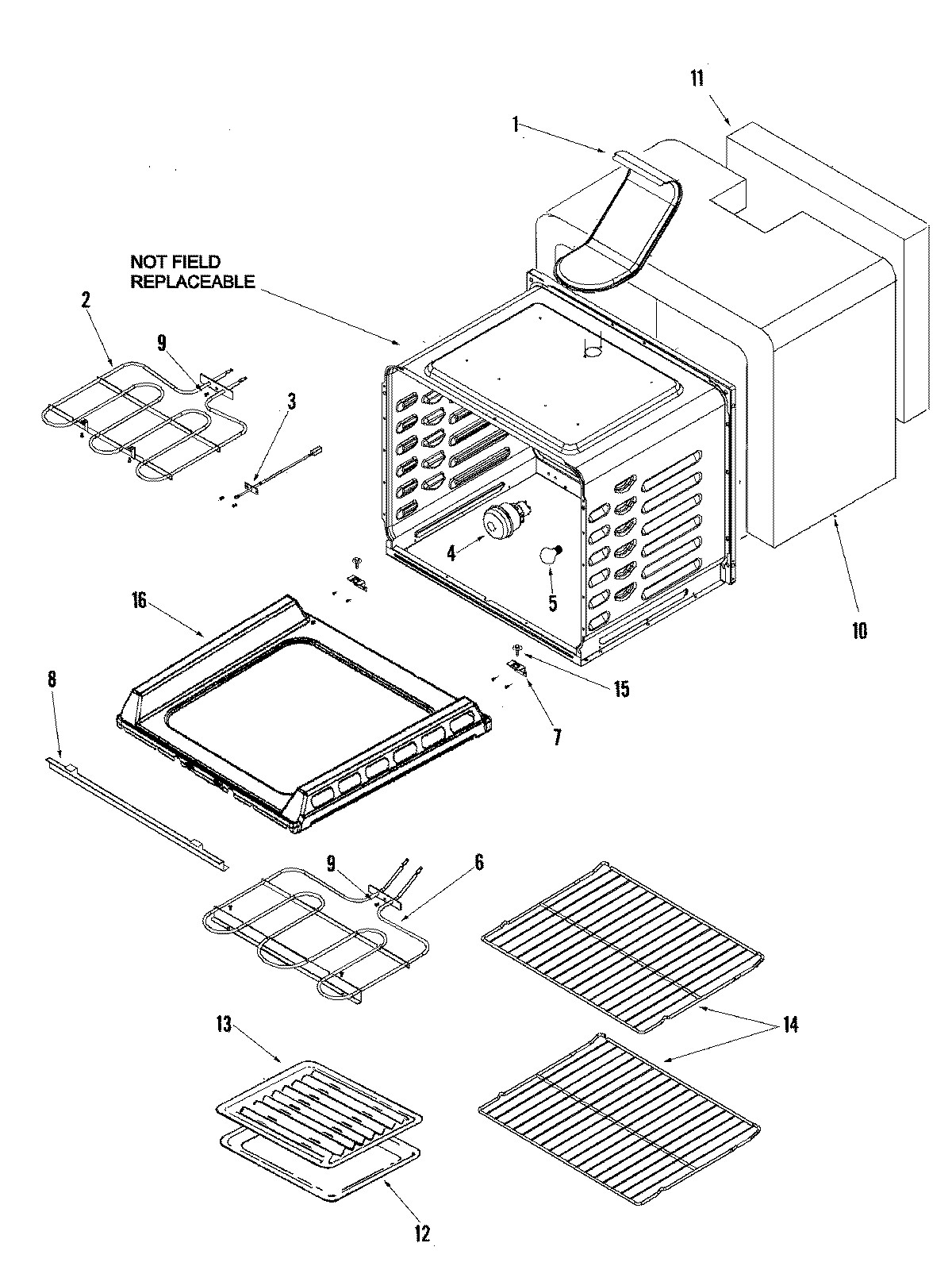

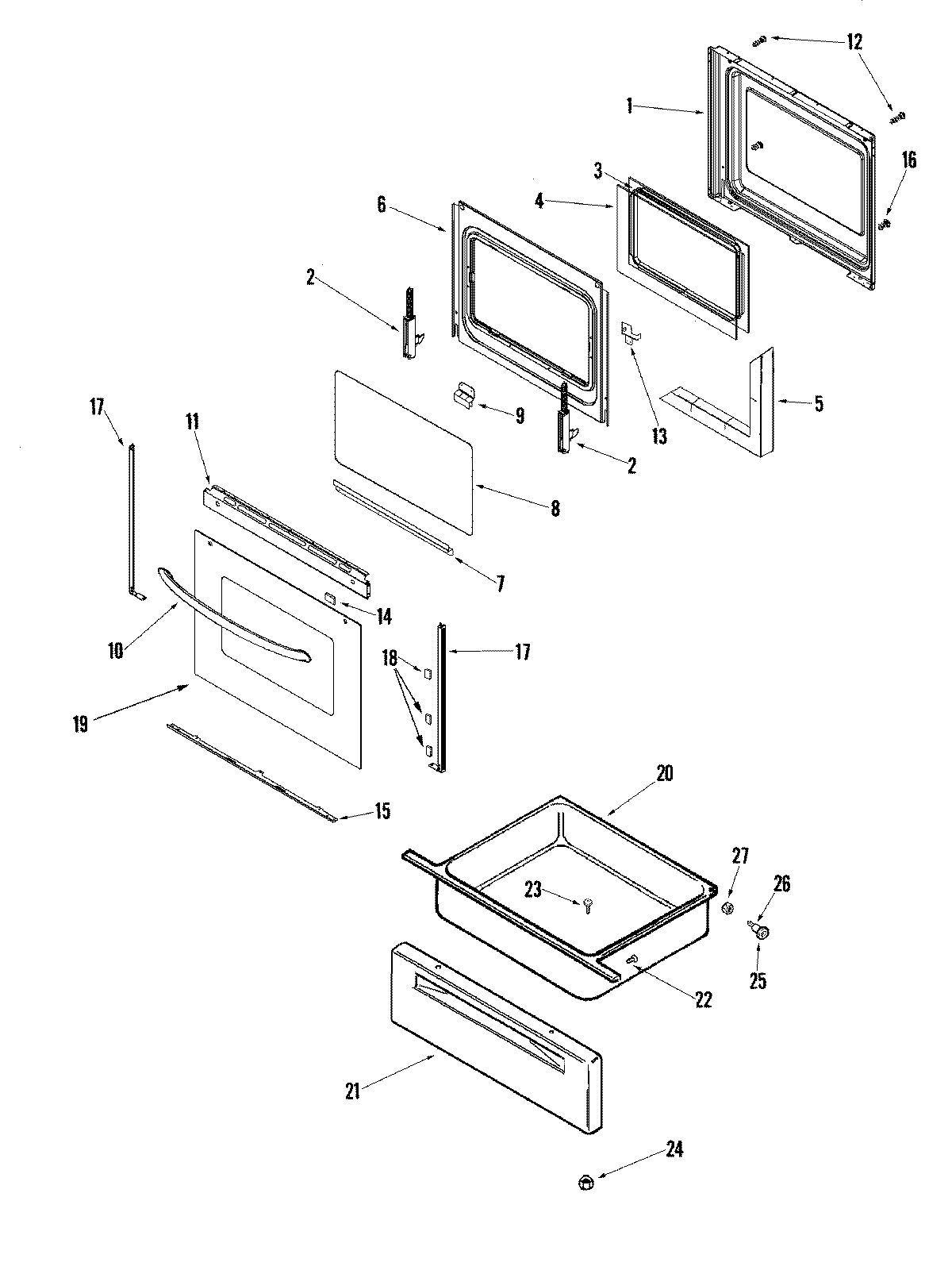

Model Whirlpool PER5750LAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

MANUAL, USE & CARE WPL 8113P39560 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P58360 Contact Us For Availability

1

VENT, OVEN WPL 74008691 Contact Us For Availability

1

PANEL, BACKGUARD (WHT) WPL 74010565 Contact Us For Availability

2

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $61.70

2

WP74008692 Whirlpool Bake Element In Stock WPL WP74008692 $133.16

2

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

2

HARNESS (SWITCH/TOP-LT) WPL 74009030 Contact Us For Availability

2

NOT REQUIRED PART OR SEE NOTE NOT REQUIRED-BR WPL W10124350 Contact Us For Availability

2

BRACKET, CLOCK WPL 74009052 Contact Us For Availability

3

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

3

WP74010226 Whirlpool RO Switch Backorder WPL WP74010226 $70.94

3

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

3

HARNESS (SWITCH/TOP-RT) WPL 74009031 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

4

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

4

WP74011278 Whirlpool Light Backorder WPL WP74011278 $78.30

4

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

4

HARNESS, MAIN WPL 74009930 Contact Us For Availability

4

RUNNER, SERVICE DRAWER WPL 74008687 Contact Us For Availability

5

HARNESS, BURNER BOX WPL 74009081 Contact Us For Availability

5

BULB-OVEN WPL 7407P10360 Contact Us For Availability

5

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

5

STOP, DRAWER WPL 74008688 Contact Us For Availability

6

WPW10276482 Whirlpool Bake Element In Stock WPL WPW10276482 $125.13

6

COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

6

SHIELD, HEAT WPL 74008689 Contact Us For Availability

7

74008690 Whirlpool Range Spacer Backorder WPL 74008690 $13.22

7

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.61

7

SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability

7

SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability

7

CLOCK/OVERLAY (WHI-ELEC) WPL 74010557 Contact Us For Availability

8

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $38.53

8

GLASS, DOOR WPL 74003649 Contact Us For Availability

8

TECH SHT, RANGE, ELECT WPL 16023540 Contact Us For Availability

8

SVC MAN, RANGE, ELECT WPL 16025644 Contact Us For Availability

8

SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability

8

END CAP (RT-WHT) WPL 74009077 Contact Us For Availability

9

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

9

WP74010551 Whirlpool Receiver In Stock WPL WP74010551 $7.90

9

RETAINER, DOOR GLASS (UPR) WPL 74008746 Contact Us For Availability

9

END CAP (LT-WHT) WPL 74009079 Contact Us For Availability

WP74011675 Whirlpool Door Handle In Stock WPL WP74011675 $103.39

INSULATION, WRAPPER WPL 74008700 Contact Us For Availability

SHIELD, VENT (WHT) WPL 74009206 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

TRIM, TOP (WHT) WPL 74008932 Contact Us For Availability

INSULATION, BACK WPL 74008698 Contact Us For Availability

SHIELD, HEAT VISOR (WHT) WPL 74009203 Contact Us For Availability

RETAINER, SIDE WPL 74008701 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability

COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability

LATCH ASSEMBLY WPL 74008702 Contact Us For Availability

BRACKET, HANDLE (LT) WPL 74008749 Contact Us For Availability

BRACKET, HANDLE (RT) WPL 74008750 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

KNOB (WHT) WPL 74009188 Contact Us For Availability

SWITCH, DOOR WPL 74008703 Contact Us For Availability

INSULATOR, SHIELD WPL 74008704 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $7.22

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

WP74008763 Whirlpool Range Rack Backorder WPL WP74008763 $136.35

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

SCREW WPL 7101P30960 Contact Us For Availability

15

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

15

SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability

15

ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $259.60

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

SPACER, MTG. ADAPTER (BLK) WPL 74001394 Contact Us For Availability

TOP, MAIN (WHT) WPL 74010572 Contact Us For Availability

BUMPER WPL 74008707 Contact Us For Availability

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $113.71

TRIM, SIDE (WHT) WPL 74010561 Contact Us For Availability

SCREW WPL 74004208 Contact Us For Availability

PANEL, SIDE (WHT) WPL 74008709 Contact Us For Availability

18

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

18

TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability

18

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

19

GLASS, DOOR (WHT) WPL 74008681 Contact Us For Availability

19

SCREW (ZINC) WPL 7101P04160 Contact Us For Availability

19

BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability

20

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

20

BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability

20

BACK, MAIN (ELEC) WPL 74009675 Contact Us For Availability

21

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 $7.72

21

PANEL, DRAWER (WHT) WPL 74008755 Contact Us For Availability

21

COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability

22

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.46

22

COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability

23

SCREW WPL 7101P07260 Contact Us For Availability

23

ELEMENT (12``) WPL 74009082 Contact Us For Availability

23

PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability

24

WP74008940 Whirlpool Infinite Switch In Stock WPL WP74008940 $135.64

24

NUT, LOCK WPL 7103P13960 Contact Us For Availability

24

PANEL, ACCESS WPL 74008340 Contact Us For Availability

25

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

25

SCREW WPL 7101P35260 Contact Us For Availability

27

NUT WPL 7103P08260 Contact Us For Availability
