Model LG PC12 – Common Parts & Diagrams
Diagram 0

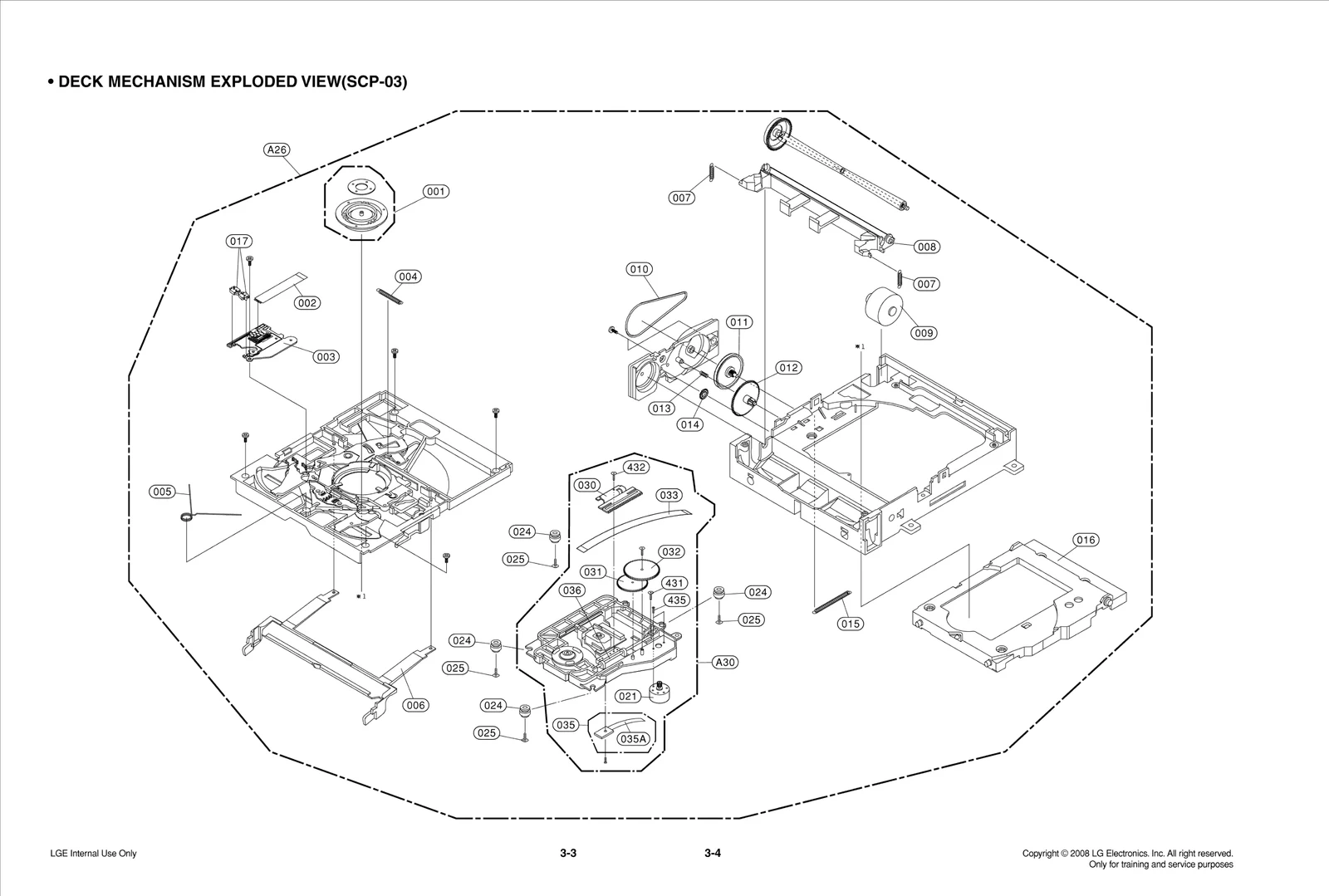

Diagram 1

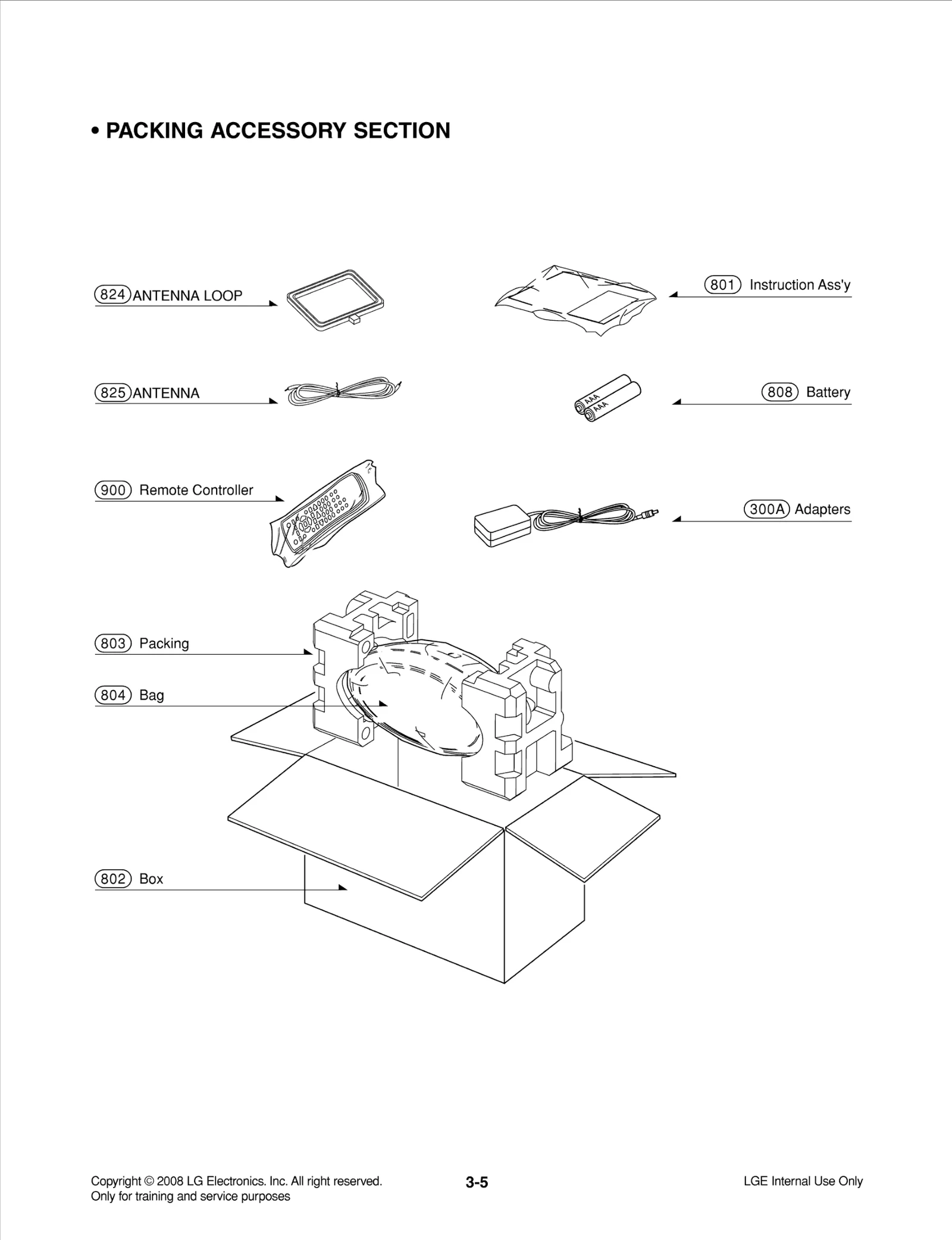

Diagram 2
Diagram 3
Common parts from model LG PC12
001
Clamp LGE MBU34816901 Contact Us For Availability
002
Lever LGE MFC35715801 Contact Us For Availability
003
Bracket LGE MAZ34974101 Contact Us For Availability
004
Spring LGE MHY34825001 Contact Us For Availability
005
Spring LGE MHY34825201 Contact Us For Availability
006
Guide LGE MEA34817601 Contact Us For Availability
007
Spring LGE MHY34825101 Contact Us For Availability
008
Arm LGE MAC34818401 Contact Us For Availability
009
Lever LGE MFC35716001 Contact Us For Availability
010
Belt LGE MAS34822001 Contact Us For Availability
011
Gear LGE MDT34821901 Contact Us For Availability
012
Gear LGE MDT34821801 Contact Us For Availability
013
Spring LGE MHY34822101 Contact Us For Availability
014
Gear LGE MDT34821701 Contact Us For Availability
015
Spring LGE MHY34824801 Contact Us For Availability
016
Base LGE MAM34818201 Contact Us For Availability
017
Lever LGE MFC35715901 Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009B Contact Us For Availability
024
RUBBER LGE 5040R-0110A Contact Us For Availability
025
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
031
GEAR LGE 4470R-0178A Contact Us For Availability
032
GEAR LGE 4470R-0179A Contact Us For Availability
033
Cable,FFC LGE EAD42342202 Contact Us For Availability
035
Board Assembly LGE AAX34980001 Contact Us For Availability
035A
Cable,FFC LGE EAD42342602 Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
Case LGE MBN39971002 Contact Us For Availability
251
Plate LGE 3300R-D040D Contact Us For Availability
252
Sheet LGE MHK40335105 Contact Us For Availability
253
Decor LGE MCR39971302 Contact Us For Availability
254
Lens LGE MFB39971201 Contact Us For Availability
255
Case LGE MBN39972605 Contact Us For Availability
256
Foot LGE MDP30320001 Contact Us For Availability
257
Door LGE MCV39973002 Contact Us For Availability
258
Spring LGE MHY39974102 Contact Us For Availability
259
Holder LGE MEG39973201 Contact Us For Availability
261
Plate LGE MGJ40153001 Contact Us For Availability
261A
Damper LGE MCQ42086801 Contact Us For Availability
261B
Damper LGE MCQ42120901 Contact Us For Availability
262
Speaker,Full Range LGE EAB42432501 Contact Us For Availability
263
Harness,Multi LGE EAD42355101 Contact Us For Availability
264
Harness,Multi LGE EAD42355102 Contact Us For Availability
265
Decor LGE MCR39971602 Contact Us For Availability
266
Button LGE MBG39972103 Contact Us For Availability
267
Button LGE MBG39972402 Contact Us For Availability
268
Chassis LGE MBS39973601 Contact Us For Availability
269
Sheet LGE MHK40364701 Contact Us For Availability
269A
Damper LGE MCQ42114401 Contact Us For Availability
270
Sheet LGE MHK40323001 Contact Us For Availability
271
Decor LGE MCR39972202 Contact Us For Availability
271A
Damper LGE MCQ42118201 Contact Us For Availability
272
Door LGE MCV39973102 Contact Us For Availability
273
Holder LGE MEG39973402 Contact Us For Availability
274
Spring LGE MHY39974001 Contact Us For Availability
289
Holder LGE MEG42489801 Contact Us For Availability
300
Power Cord LGE 6410RGHV01A Contact Us For Availability
300A
Adapters LGE EAY43494101 Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
484
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
801
Manual Assembly,Owners LGE AFN35026412 Contact Us For Availability
802
Box,Master LGE MAY51169013 Contact Us For Availability
803
Packing LGE MFZ34189172 Contact Us For Availability
804
Bag LGE MAF37454602 Contact Us For Availability
808
Battery,Manganese LGE EAC42053701 Contact Us For Availability
824
Antenna,Loop LGE EAA42424401 Contact Us For Availability
825
Antenna,T LGE EAA50709502 Contact Us For Availability
900
Remote Controller Assembly LGE AKB35809602 Contact Us For Availability
A26
Damper LGE MCQ54165301 Contact Us For Availability
A26
Mechanism Assembly LGE AFP36458101 Contact Us For Availability
A30
Base Assembly LGE AAN36458301 Contact Us For Availability
A43
Panel Assembly,Audio LGE AGL35072703 Contact Us For Availability
A44
Panel Assembly,Audio LGE AGL35072906 Contact Us For Availability
A46
PCB Assembly LGE EBR42413501 Contact Us For Availability
A47
PCB Assembly LGE EBR43535801 Contact Us For Availability
A50
PCB Assembly LGE EBR42414701 Contact Us For Availability
A51
PCB Assembly LGE EBR42415401 Contact Us For Availability
A52L
PCB Assembly LGE EBR42415501 Contact Us For Availability
A52R
PCB Assembly LGE EBR42416501 Contact Us For Availability
A53
PCB Assembly LGE EBR42417501 Contact Us For Availability
A54
PCB Assembly LGE EBR42414501 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE 0CH1122K562 Contact Us For Availability
C117
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C136
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C202
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
C205
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C225
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C229
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C256
Capacitor,Ceramic,Chip LGE 0CH1103K512 Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C317
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C409
CAPACITOR,CHIP[AL. E LGE 0CH8335K611 Contact Us For Availability
C410
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE 0CH1272K562 Contact Us For Availability
C426
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C431
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C436
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C501
Capacitor,AL,Radial LGE 0CE2276D638 Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C710
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
C747
Capacitor,Film,DIP LGE 0CQ2731N409 Contact Us For Availability
C756
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C780
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C804
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C904
CAPACITOR,FIXED ELEC LGE 0CE2282F611 Contact Us For Availability
C906
Capacitor,AL,Radial LGE 0CE108EF610 Contact Us For Availability
C911
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
CABLE1
Harness,Single LGE EAD42354501 Contact Us For Availability
CABLE2
Harness,Single LGE EAD42364601 Contact Us For Availability
CABLE3
Harness,Single LGE EAD42362901 Contact Us For Availability
CABLE4
Harness,Single LGE 562-050Q Contact Us For Availability
CABLE5
Harness,Single LGE 563-648D Contact Us For Availability
CF701
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
CN201
Connector,Wafer LGE 6630R3S006D Contact Us For Availability
CN202
CONNECTOR(CIRC),DRAW LGE 6630R3S006H Contact Us For Availability
CN203
Connector,Wafer LGE 6630R3S006M Contact Us For Availability
CN204
Connector,Wafer LGE 6630R3S006E Contact Us For Availability
CN205
CONNECTOR(CIRC),DRAW LGE 6630R3S006L Contact Us For Availability
CN207
CONNECTOR(CIRC),DRAW LGE 6630R3S006G Contact Us For Availability
CN401
Connector,FFC/FPC/PIC LGE EAG38938701 Contact Us For Availability
CN401
Harness,Single LGE EAD42362602 Contact Us For Availability
CN402
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN403
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
CN501
Harness,Single LGE EAD42004402 Contact Us For Availability
CN502
Connector,Wafer LGE 6602T25008S Contact Us For Availability
CN503
Connector,Wafer LGE 6602T25008Q Contact Us For Availability
CN601
Harness,Single LGE EAD42360601 Contact Us For Availability
CN701
Harness,Single LGE EAD42364501 Contact Us For Availability
CN703
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
CN801
Harness,Single LGE EAD42361001 Contact Us For Availability
CN802
Harness,Single LGE EAD42364701 Contact Us For Availability
CN902
Connector,FFC/FPC/PIC LGE 6630R-FB05E Contact Us For Availability
CN903
CONNECTOR (CIRC),WAF LGE 561-712B Contact Us For Availability
D101
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D335
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D401
Diode,Switching LGE 0DD226009AA Contact Us For Availability
D901
Diode,Rectifier LGE 0DR154020BA Contact Us For Availability
D911
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
F901
Fuse,Time Delay LGE 0FS4001B51D Contact Us For Availability
FB402
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
FB402
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
FB404
Inductor,Wire Wound,Chip LGE 635-009N Contact Us For Availability
FB405
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
FB701
Filter,Bead LGE 636-004C Contact Us For Availability
FB804
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
IC101
IC,Digital Signal Processors LGE EAN40345701 Contact Us For Availability
IC103A
S/W,System Program LGE SAA31652203 Contact Us For Availability
IC104
IC,PHILIPS LGE 0IPH744094A Contact Us For Availability
IC106
IC,LDO Voltage Regul LGE EAN37068001 Contact Us For Availability
IC107
IC,Voltage Detector LGE 0IKE702900F Contact Us For Availability
IC201
IC,A/D Converter LGE EAN40076401 Contact Us For Availability
IC202
IC,CMOS LGE 0ISTLPH020A Contact Us For Availability
IC204
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC206
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC208
IC,LDO Voltage Regulator LGE EAN40228201 Contact Us For Availability
IC302
IC,LED Driver LGE EAN40482601 Contact Us For Availability
IC401
IC,Motor Driver LGE EAN40199101 Contact Us For Availability
IC402
IC,RF Amplifier LGE EAN40169301 Contact Us For Availability
IC702
IC,Power Amplifier LGE EAN38813701 Contact Us For Availability
IC901
IC,LDO Voltage Regulator LGE EAN32888001 Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMGKE047B Contact Us For Availability
IC903
IC,LDO Voltage Regulator LGE 0IPMG78358B Contact Us For Availability
J801
Drawing,Assembly LGE EAD42366601 Contact Us For Availability
J802
Drawing,Assembly LGE EAD42366401 Contact Us For Availability
JK401
Connector,USB LGE 6630S70048A Contact Us For Availability
JK402
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK701
Connector,I/O LGE EAG42342401 Contact Us For Availability
JK702
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
JK801
JACK 3.5 LGE 571-112Z Contact Us For Availability
JK802
JACK,AC/DC POWER LGE 572-045C Contact Us For Availability
JK803
Connector,Wafer LGE 6630JB8005K Contact Us For Availability
JK804
Connector,RF LGE EAG38233601 Contact Us For Availability
L706
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L901
COIL,RF LGE 6140RCC003H Contact Us For Availability
L902
COIL,RF LGE 6140RCC009A Contact Us For Availability
LD302
LED Display Module LGE EAV40319101 Contact Us For Availability
LD654
LED,Chip LGE EAV34144001 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q209
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q210
TR,Bipolar LGE 0TR102009AC Contact Us For Availability
Q223
TR,Bipolar LGE 0TR150509AD Contact Us For Availability
Q401
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q402
TR,Bipolar LGE 0TR166608AA Contact Us For Availability
Q403
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q701
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
R126
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R151
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R154
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R178
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R190
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R193
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R216
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
R222
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R232
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R243
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R246
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R250
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R269
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R277
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R287
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R298
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R322
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R329
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R391
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R404
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R420
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R434
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R441
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R445
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R446
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R450
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R453
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R459
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R602
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R622
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R624
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R625
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R626
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R627
Resistor,Carbon Film LGE 0RD0822F609 Contact Us For Availability
R705
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R707
Resistor,Metal Oxide Film LGE 0RS0562K619 Contact Us For Availability
R707
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R709
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R710
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R711
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R715
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R802
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
RMC301
REMOTE CONTROLLER RE LGE 6712R1238GA Contact Us For Availability
SW607
Switch,Tact LGE EBF32615602 Contact Us For Availability
TU501
Tuner,Digital LGE EBL40272101 Contact Us For Availability
X101
Crystal LGE 6212AB2120G Contact Us For Availability
X401
Crystal LGE 6212AB2884A Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD301
DIODE,ZENERS LGE 0DZRM00338A Contact Us For Availability
ZD701
Diode,Zener LGE 0DZPH00069A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
× ![]()
Login and Registration Form
