Model LG PA75U – Common Parts & Diagrams

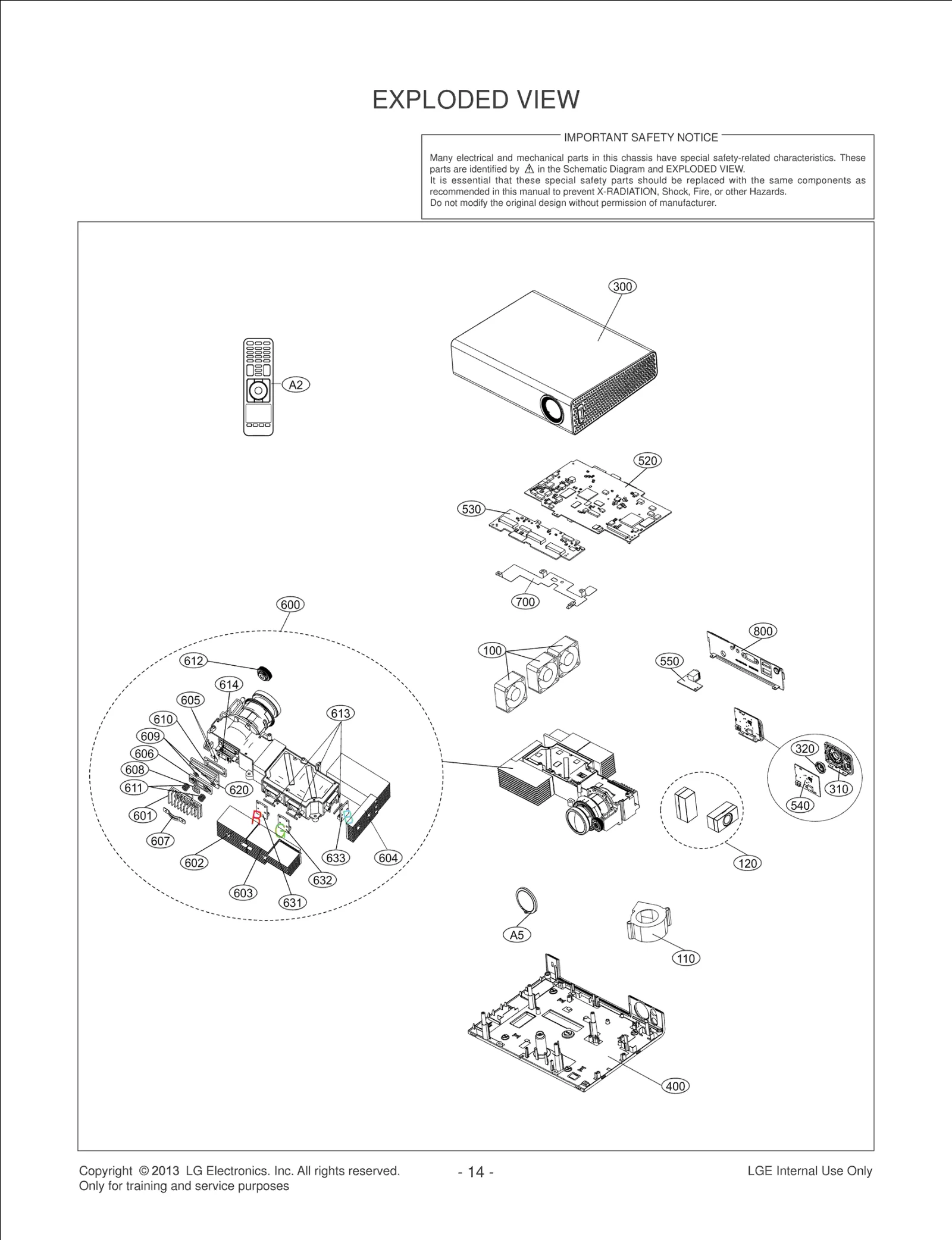

Diagram 0
Diagram 1
Common parts from model LG PA75U
110
Bracket Assembly LGE ABA74349401 Contact Us For Availability
300
Cover Assembly LGE ACQ85839402 Contact Us For Availability
310
Button LGE MBG64526902 Contact Us For Availability
320
Button LGE MBG64526801 Contact Us For Availability
400
Case Assembly LGE ABQ73901601 Contact Us For Availability
520
Chassis Assembly LGE EBT62533201 Contact Us For Availability
530
Chassis Assembly LGE EBT62031501 Contact Us For Availability
540
Chassis Assembly LGE EBT62086101 Contact Us For Availability
550
Chassis Assembly LGE EBT62083201 Contact Us For Availability
600
Chassis Assembly LGE EBT62123404 Contact Us For Availability
600
Chassis Assembly LGE EBT62123401 Contact Us For Availability
601
Heat Sink LGE MED62610901 Contact Us For Availability
602
Heat Sink LGE MED62553501 Contact Us For Availability
603
Heat Sink LGE MED62553601 Contact Us For Availability
604
Heat Sink Assembly LGE AEF73666801 Contact Us For Availability
605
Supporter LGE MJH62339601 Contact Us For Availability
606
Supporter LGE MJH62760501 Contact Us For Availability
607
Supporter LGE MJH62758101 Contact Us For Availability
608
Gasket LGE MDS63941901 Contact Us For Availability
609
Gasket LGE MDS64070701 Contact Us For Availability
611
Spring LGE 4970V00015S Contact Us For Availability
612
Gear LGE MDT62467202 Contact Us For Availability
613
Insulator LGE 3858V00005V Contact Us For Availability
614
IC,ASIC LGE EAN62047701 Contact Us For Availability
620
Chassis Assembly LGE EBT62055901 Contact Us For Availability
631
LED Assembly LGE EAV61917701 Contact Us For Availability
632
LED Assembly LGE EAV61917801 Contact Us For Availability
700
Plate LGE MGJ63442602 Contact Us For Availability
A1
Title LGE SAC30666053 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73616405 Contact Us For Availability
A3
Power Cord,Detach LGE EAD62149101 Contact Us For Availability
A4
Adapters LGE EAY62791201 Contact Us For Availability
A5
Cap LGE MBL65220301 Contact Us For Availability
A8
Cable,Assembly LGE EAD61273105 Contact Us For Availability
A22
Remote Controller Assembly LGE AKB73875402 Contact Us For Availability
AR101
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR1002
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1104
Resistor,Array LGE 0RR0822B621 Contact Us For Availability
AR1201
Resistor,Array LGE EBC32260601 Contact Us For Availability
C2
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C117
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C244
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C250
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C305
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C339
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C510
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C522
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C526
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C538
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C554
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C561
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C805
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C828
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C846
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1105
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1111
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C1118
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1124
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C1141
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C1210
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1217
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1238
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C1239
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1252
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C2133
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C2135
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
D11
Diode,TVS LGE EAH39491701 Contact Us For Availability
D302
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
D502
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D1210
Diode,Switching LGE EAH61714301 Contact Us For Availability
D1211
Diode,TVS LGE EAH61232601 Contact Us For Availability
D1217
Varistor LGE EAF61530301 Contact Us For Availability
IC101
IC,EEPROM LGE EAN61925802 Contact Us For Availability
IC102
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC107
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC200
IC,CMOS LGE EAN61846601 Contact Us For Availability
IC205
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
IC206
IC,LED Driver LGE EAN62344901 Contact Us For Availability
IC303
IC,OP Amplifier LGE 0IPRPKE009A Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC508
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC510
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC511
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC512
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC601
S/W,Firmware LGE SAA36300305 Contact Us For Availability
IC603
IC,Acceleration Sensor LGE EAN62527101 Contact Us For Availability
IC701
IC,Tx/Rx LGE EAN60390201 Contact Us For Availability
IC801
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC802
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC1001
S/W,Firmware LGE SAA36478302 Contact Us For Availability
IC1101
Display SOC,Projector LGE EAN62110401 Contact Us For Availability
IC1102
S/W,Firmware LGE SAA36532902 Contact Us For Availability
IC1104
IC,EEPROM LGE EAN61961901 Contact Us For Availability
IC1105
IC,CMOS LGE 0ISTL00021A Contact Us For Availability
IC1107
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC1202
IC,USB LGE EAN62237301 Contact Us For Availability
IC1203
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1207
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC1210
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC1211
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC1212
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
JK1
Jack,DC Power LGE EAG63254501 Contact Us For Availability
JK1203
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK1204
Jack,Phone LGE EAG61030002 Contact Us For Availability
L100
Inductor,Wire Wound,Chip LGE EAP62186001 Contact Us For Availability
L205
Filter,Bead LGE EAM54407902 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L506
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L701
Filter,Bead LGE EAM38769505 Contact Us For Availability
L804
Inductor,Wire Wound,Chip LGE EAP62185901 Contact Us For Availability
L1107
COIL,ENERGY RECOVERY LGE 6140VR0007A Contact Us For Availability
LD12
LED,Chip LGE EAV59915401 Contact Us For Availability
M107
Gasket LGE MDS62110213 Contact Us For Availability
P10
Connector,FFC/FPC/PIC LGE EAG61090202 Contact Us For Availability
P100
Connector,Wafer LGE EAG61452501 Contact Us For Availability
P101
Socket,IC LGE EAG63011201 Contact Us For Availability
P1103
Connector,FFC/FPC/PI LGE 6630VA00730 Contact Us For Availability
P1201
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P1204
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1208
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P1212
Connector,FFC/FPC/PIC LGE EAG60669201 Contact Us For Availability
Q2
FET LGE EBK61313101 Contact Us For Availability
Q10
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q103
FET LGE EBK52732001 Contact Us For Availability
Q505
FET LGE EBK60752501 Contact Us For Availability
Q902
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q1204
FET LGE EBK60752601 Contact Us For Availability
Q1212
TR,Bipolar LGE 0TRAU80028A Contact Us For Availability
R2
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R19
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R20
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R23
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R127
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R132
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R198
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R317
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R332
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R333
Resistor,Chip LGE EBC37118601 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R420
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R517
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R529
Resistor,Chip LGE EBC32176601 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R548
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R551
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R606
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R627
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R1129
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1160
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R1162
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1165
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R1169
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1216
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1243
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1251
Resistor,Chip LGE 0RJ0561C678 Contact Us For Availability
R1273
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R1275
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R2108
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R2109
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R2116
Resistor,Chip LGE 0RJ3603E472 Contact Us For Availability
R2117
Resistor,Chip LGE 0RJ6803D677 Contact Us For Availability
R2130
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2140
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R2150
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
S1
Harness,Single LGE EAD58345815 Contact Us For Availability
S2
Harness,Single LGE EAD60678822 Contact Us For Availability
S3
Cable,Assembly LGE EAD57734003 Contact Us For Availability
S5
Harness,Single LGE EAD62206403 Contact Us For Availability
S6
Wire,Flat LGE EAD62206701 Contact Us For Availability
S7
Harness,Single LGE EAD62206402 Contact Us For Availability
S10
Harness,Single LGE EAD62094406 Contact Us For Availability
SW15
Switch,Tact LGE 6600R00004D Contact Us For Availability
TH602
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
X101
Crystal LGE EAW58812603 Contact Us For Availability
X601
Crystal LGE EAW58239602 Contact Us For Availability
X1101
Crystal LGE EAW61703901 Contact Us For Availability
ZD1101
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
× ![]()
Login and Registration Form
