Model LG P50W38P – Common Parts & Diagrams

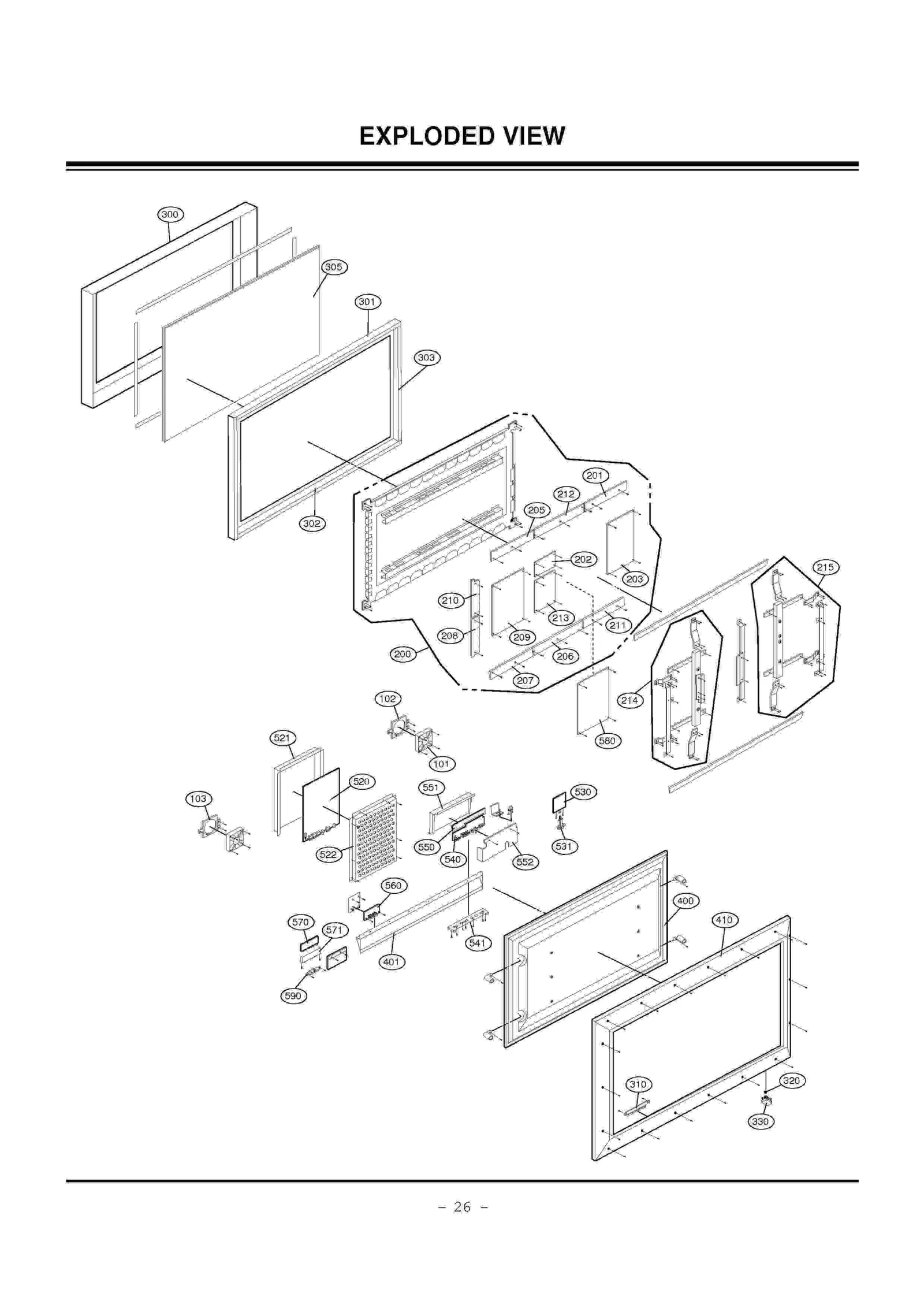

Diagram 0
Diagram 1
Common parts from model LG P50W38P
101
FAN,DC LGE 5900V12001A Contact Us For Availability
102
LGE 4980V00781A LGE 4980V00781A Contact Us For Availability
103
LGE 4980V00782A LGE 4980V00782A Contact Us For Availability
200
PDP NO FILTER LGE 6348Q-C033S Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871QRH035B Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QZH031A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QLH032B Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871QXH021B Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871QLH033B Contact Us For Availability
208
PWB(PCB) ASSEMBLY,DI LGE 6871QDH049A Contact Us For Availability
209
PWB(PCB) ASSEMBLY,DI LGE 6871QYH028A Contact Us For Availability
210
PWB(PCB) ASSEMBLY,DI LGE 6871QDH048A Contact Us For Availability
211
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871QRH036B Contact Us For Availability
212
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871QXH020B Contact Us For Availability
214
LGE 4980V00416F LGE 4980V00416F Contact Us For Availability
215
LGE 4980V00416E LGE 4980V00416E Contact Us For Availability
301
LGE 4980V00361A LGE 4980V00361A Contact Us For Availability
302
LGE 4980V00362A LGE 4980V00362A Contact Us For Availability
303
SUPPORTER LGE 4980V00363A Contact Us For Availability
305
FILTER(MECH) LGE 3790V00683C Contact Us For Availability
310
BUTTON LGE 5020V00688A Contact Us For Availability
320
LGE 320-062H LGE 320-062H Contact Us For Availability
330
LGE 5020V00645A LGE 5020V00645A Contact Us For Availability
400
LGE 3809V00292A LGE 3809V00292A Contact Us For Availability
401
LGE 3301V00016J LGE 3301V00016J Contact Us For Availability
410
LGE 3809V00293G LGE 3809V00293G Contact Us For Availability
521
LGE 4814V00323B LGE 4814V00323B Contact Us For Availability
522
LGE 4814V00387A LGE 4814V00387A Contact Us For Availability
530
LGE 6871VSMV26A LGE 6871VSMV26A Contact Us For Availability
531
BUTTON LGE 5020V00648A Contact Us For Availability
540
PWB(PCB) ASSEMBLY,SU LGE 6871VSMV31A Contact Us For Availability
541
LGE 4980V00729F LGE 4980V00729F Contact Us For Availability
550
LGE 6871VSMV30A LGE 6871VSMV30A Contact Us For Availability
551
LGE 4980V00936A LGE 4980V00936A Contact Us For Availability
552
LGE 4814V00388B LGE 4814V00388B Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMV28A Contact Us For Availability
570
PWB(PCB) ASSEMBLY,SU LGE 6871VSMD08A Contact Us For Availability
571
BUTTON LGE 5020V00647A Contact Us For Availability
580
BOARD ASSEMBLY LGE 3501V00084D Contact Us For Availability
590
LGE 6871VSMD07A LGE 6871VSMD07A Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0410B Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00092Q Contact Us For Availability
A3
POWER CORD LGE 6410VUH005A Contact Us For Availability
A4
JACK,DRAWING LGE 6612VMV002B Contact Us For Availability
A5
CABLE,DVI LGE 6850J00002A Contact Us For Availability
A6
SIGNAL CABLE LGE 6866VA9001B Contact Us For Availability
AR472
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
AR553
Resistor,Array LGE 0RRZVTA001C Contact Us For Availability
C019
Capacitor,AL,Chip LGE 0CE474SK6DC Contact Us For Availability
C020
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C035
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C044
CAPACITOR 100UF STD 25V M FL T LGE 0CE107DH618 Contact Us For Availability
C046
LGE 0CQ6821N509 LGE 0CQ6821N509 Contact Us For Availability
C057
LGE 0CQ1041N509 LGE 0CQ1041N509 Contact Us For Availability
C204
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C441
Capacitor,Ceramic,Chip LGE 0CN105EJ56A Contact Us For Availability
C491
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C505
CAPACITOR,FIXED CERAMIC(High d LGE 0CK224DF56A Contact Us For Availability
C672
LGE 0CE477DK618 LGE 0CE477DK618 Contact Us For Availability
C675
LGE 181-120K LGE 181-120K Contact Us For Availability
C765
LGE 0CE477VF6DC LGE 0CE477VF6DC Contact Us For Availability
C879
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C968
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
D001
LED LGE 0DL200000CA Contact Us For Availability
D882
LED LGE 0DL233309AC Contact Us For Availability
D1101
LGE 0DD100009AC LGE 0DD100009AC Contact Us For Availability
DA105
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
F601
FILTER(CIRC),EMI LGE 6200VJS001A Contact Us For Availability
F602
FILTER(CIRC),EMC LGE 6200VJS001B Contact Us For Availability
IC001
IC,SONY LGE 0ISO208900A Contact Us For Availability
IC002
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC102
IC,EEPROM LGE 0IAL242110A Contact Us For Availability
IC103
LGE 0IMCRTI003A LGE 0IMCRTI003A Contact Us For Availability
IC104
IC,Buffer LGE 0IPRPBB005A Contact Us For Availability
IC202
IC,MICRO CONTROLLER LGE 0IMCRS5003A Contact Us For Availability
IC204
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
IC301
LGE 0IMCRAD003A LGE 0IMCRAD003A Contact Us For Availability
IC402
LGE 0ISA715100D LGE 0ISA715100D Contact Us For Availability
IC407
IC,MEMORIES LGE 0IMMRHY033A Contact Us For Availability
IC410
IC,Video Processors LGE 0IMMRNE002A Contact Us For Availability
IC412
FILTER(CIRC),BAND PA LGE 6200C000010 Contact Us For Availability
IC413
FILTER(CIRC),BAND PA LGE 6200C000009 Contact Us For Availability
IC501
IC,Video Processors LGE 0IMCROT001A Contact Us For Availability
IC601
LGE 0IS5160000A LGE 0IS5160000A Contact Us For Availability
IC701
IC,Microcontrollers LGE 0IMCRRS001A Contact Us For Availability
IC702
IC,Async SRAM LGE 0IMMRSS064A Contact Us For Availability
IC703
IC,NOR Flash Memory LGE 0IMMRMR006B Contact Us For Availability
IC704
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC740
LGE 0IMCRPH017A LGE 0IMCRPH017A Contact Us For Availability
IC742
IC,MICRO CONTROLLER LGE 0IMCRFA013A Contact Us For Availability
IC743
LGE 0ITI745740M LGE 0ITI745740M Contact Us For Availability
IC745
IC,TTL LGE 0IFA741230A Contact Us For Availability
IC747
LGE 0IMCRPH016A LGE 0IMCRPH016A Contact Us For Availability
IC748
IC,TTL LGE 0IMCRPH014A Contact Us For Availability
IC750
IC,DALLAS SEMICONDUCTOR LGE 0IDS232000A Contact Us For Availability
IC751
LGE 0IPH858400A LGE 0IPH858400A Contact Us For Availability
IC802
IC SANYO LA4282(AUDIO-AMP) LGE 0ISA428200A Contact Us For Availability
IC850
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC851
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC857
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC901
IC,MICRO CONTROLLER LGE 0IMCRMN014A Contact Us For Availability
IC902
IC,Voltage Regulator LGE 0IKE780800J Contact Us For Availability
IC917
IC,Multiplexer LGE 0IFA742530B Contact Us For Availability
IC1101
IC,Comparator LGE 0IDS162100B Contact Us For Availability
IC1102
IC,Gate LGE 0IMCRPH015A Contact Us For Availability
IC1104
IC,SHARP LGE 0ISH092100B Contact Us For Availability
IC1105
IC,SHARP LGE 0ISH122100B Contact Us For Availability
IC1204
LGE 0IMCRTI021A LGE 0IMCRTI021A Contact Us For Availability
IC1401
IC,ITT LGE 0IIT323000E Contact Us For Availability
IC1405
LGE 0IMCRGN001B LGE 0IMCRGN001B Contact Us For Availability
L009
Filter,Bead LGE 6210VC0006A Contact Us For Availability
L100
Filter,Bead LGE 6210VC0005A Contact Us For Availability
P001
REMOTE CONTROLLER RE LGE 6726VV0006K Contact Us For Availability
P102
JACK,PHONE LGE 380-068E Contact Us For Availability
P102
JACK,RCA LGE 6612J00010A Contact Us For Availability
P103
JACK,DIN LGE 6612BBBHN6A Contact Us For Availability
P103
JACK,DIN LGE 380-363K Contact Us For Availability
P104
CONNECTOR (CIRC),D-SUB LGE 6630VGA001C Contact Us For Availability
P104
JACK,DRAWING LGE 6612VMV002A Contact Us For Availability
P105
JACK,RCA LGE 6612JH003CA Contact Us For Availability
P741
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
Q476
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R020
LGE 0RS2701K607 LGE 0RS2701K607 Contact Us For Availability
R032
LGE 0RS0221H609 LGE 0RS0221H609 Contact Us For Availability
R655
RESISTOR FIXED CARBON FILM KKN LGE 0RD4700H609 Contact Us For Availability
R922
FILTER(CIRC),EMC LGE 6200JB8013L Contact Us For Availability
R1111
LGE 0RD0152H609 LGE 0RD0152H609 Contact Us For Availability
SW006
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW102
SWITCH,PUSH LGE 140-275A Contact Us For Availability
SW741
SWITCH TACT LGE 140-313B Contact Us For Availability
SW800
SWITCH,PUSH LGE 6600VM2006A Contact Us For Availability
X410
Crystal LGE 6212AB2015B Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202VDT002J Contact Us For Availability
X601
CRYSTAL LGE 156-A02M Contact Us For Availability
X720
Crystal LGE 6212AB2015C Contact Us For Availability
X830
LGE 6204B47985D LGE 6204B47985D Contact Us For Availability
X1470
CRYSTAL,STANDARD LGE 6202VDT002E Contact Us For Availability
× ![]()
