Model LG P40V24 – Common Parts & Diagrams

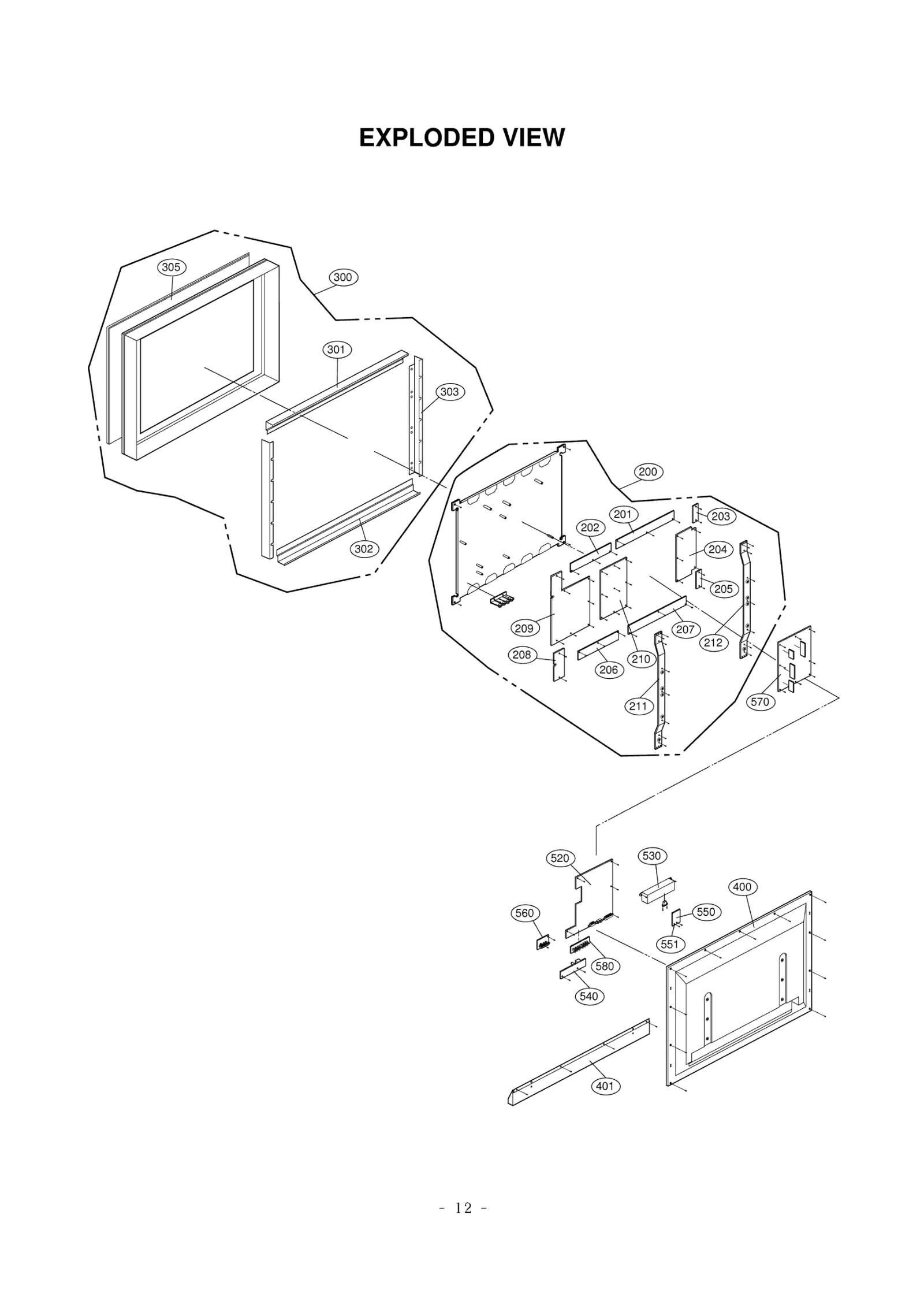

Diagram 0
Diagram 1
Common parts from model LG P40V24
200
PLASMA DISPLAY PANEL NO FILTER LGE 6348Q-A032D Contact Us For Availability
201
X RIGHT TOP B/D ASSY LGE 6871VSN168A Contact Us For Availability
202
X LEFT TOP B/D ASSY LGE 6871VSN168B Contact Us For Availability
203
LGE 6871VSN168C LGE 6871VSN168C Contact Us For Availability
204
ZSUS B/D ASSEMBLY LGE 6871VSN168D Contact Us For Availability
205
LGE 6871VSN168E LGE 6871VSN168E Contact Us For Availability
206
X LEFT BOTTOM B/D ASSEMBLY LGE 6871VSN168F Contact Us For Availability
207
X RIGHT BOTTOM B/D ASSEMBLY LGE 6871VSN168G Contact Us For Availability
208
YDRV B/D ASSEMBLY LGE 6871VSN168H Contact Us For Availability
209
YSUS B/D ASSEMBLY LGE 6871VSN168J Contact Us For Availability
210
CTRL B/D ASSEMBLY LGE 6871VSN168K Contact Us For Availability
211
VERTICAL SUPPORTER LGE 4980V00164B Contact Us For Availability
212
VERTICAL SUPPORTER LGE 4980V00164C Contact Us For Availability
300
LGE 3091V00288B LGE 3091V00288B Contact Us For Availability
301
SUPPORTER (FILTER ASSY - TOP) LGE 4980V00183A Contact Us For Availability
302
SUPPORTER(FILTER ASSY-BOTTOM) LGE 4980V00180A Contact Us For Availability
303
SUPPORTER (FILTER ASSY - LEFT) LGE 4980V00181A Contact Us For Availability
400
LGE 3809V00278J LGE 3809V00278J Contact Us For Availability
401
LGE 3301V00005K LGE 3301V00005K Contact Us For Availability
520
MAIN PCB ASSEMBLY LGE 6871VMMC09A Contact Us For Availability
530
BOARD ASSY (POWER LINE FILTER) LGE 3501V00028A Contact Us For Availability
540
PCB ASSY (MNT CONT) LGE 6871VSMD83A Contact Us For Availability
550
PCB ASSY - SUB PSW LGE 6871VSMD82A Contact Us For Availability
551
BUTTON,POWER LGE 5020V00445A Contact Us For Availability
560
BOARD ASSY (MNT SPK) LGE 6871VSM910A Contact Us For Availability
570
BOARD ASSY (PDP POWER) LGE 3501V00027E Contact Us For Availability
580
PWB(PCB) ASSEMBLY,SU LGE 6871VSMD81A Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0355C Contact Us For Availability
A3
POWER CORD LGE 6410VUH005A Contact Us For Availability
A4
SIGNAL CABLE LGE 6866VA9001B Contact Us For Availability
AR415
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
AR708
RESISTOR,ARRAY LGE 0RRZVTA001A Contact Us For Availability
C001
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C002
CAPACITOR 47UF STD 10V M FL TP LGE 0CE476DD618 Contact Us For Availability
C212
CAPACITOR,FIXED CERAMIC(High d LGE 0CK224DF56A Contact Us For Availability
C316
Capacitor,AL,Radial LGE 0CE105CK636 Contact Us For Availability
C612
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C644
Capacitor,AL,Chip LGE 0CE474SK6DC Contact Us For Availability
C652
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C654
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C655
CAPACITOR 100UF STD 25V M FL T LGE 0CE107DH618 Contact Us For Availability
C660
LGE 0CQ6821N509 LGE 0CQ6821N509 Contact Us For Availability
C662
LGE 0CQ1041N509 LGE 0CQ1041N509 Contact Us For Availability
C672
LGE 0CE477DK618 LGE 0CE477DK618 Contact Us For Availability
C675
LGE 181-120K LGE 181-120K Contact Us For Availability
C731
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C805
LGE 0CE477VF6DC LGE 0CE477VF6DC Contact Us For Availability
C808
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
C867
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
D105
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D804
LED LGE 0DL233309AC Contact Us For Availability
D807
DIODE EU1ZV, TP (52MM), SANKE LGE 0DD100009AM Contact Us For Availability
F602
FILTER(CIRC),EMI LGE 6200VJS001A Contact Us For Availability
IC101
IC,EEPROM LGE 0IAL242110A Contact Us For Availability
IC104
IC,TTL LGE 0IFA741230A Contact Us For Availability
IC105
IC,DALLAS SEMICONDUCTOR LGE 0IDS232000A Contact Us For Availability
IC105
IC SANYO LA4282(AUDIO-AMP) LGE 0ISA428200A Contact Us For Availability
IC201
LGE 0IIT323000C LGE 0IIT323000C Contact Us For Availability
IC203
IC,SONY LGE 0ISO210100B Contact Us For Availability
IC301
IC,Video Processors LGE 0IMMRNE002A Contact Us For Availability
IC302
LGE 0ISA715100D LGE 0ISA715100D Contact Us For Availability
IC303
LGE 0IMCRAT003A LGE 0IMCRAT003A Contact Us For Availability
IC403
IC,Video Processors LGE 0IMCRG2001A Contact Us For Availability
IC404
LGE 0IMCRG2002A LGE 0IMCRG2002A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRG2004B Contact Us For Availability
IC502
LGE 0ISS464323A LGE 0ISS464323A Contact Us For Availability
IC601
LGE 0IMCRMN002A LGE 0IMCRMN002A Contact Us For Availability
IC605
LGE 0IKE780800A LGE 0IKE780800A Contact Us For Availability
IC700
LGE 0ICTMMI038A LGE 0ICTMMI038A Contact Us For Availability
IC701
LGE 0IMMRMR009A LGE 0IMMRMR009A Contact Us For Availability
IC703
LGE 0IPH743200A LGE 0IPH743200A Contact Us For Availability
IC704
LGE 0IPH740400G LGE 0IPH740400G Contact Us For Availability
IC705
LGE 0IAL241610A LGE 0IAL241610A Contact Us For Availability
IC752
IC,Multiplexer LGE 0IMCRTI001A Contact Us For Availability
IC802
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC803
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC854
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC904
LGE 0IPH745410A LGE 0IPH745410A Contact Us For Availability
IC1101
LGE 0IPH740800M LGE 0IPH740800M Contact Us For Availability
L001
INDUCTOR AXIAL LEAD KCN20A82G LGE 0LA0102K119 Contact Us For Availability
L502
Filter,Bead LGE 6210VC0006A Contact Us For Availability
LD001
LED LGE 0DL200000CA Contact Us For Availability
LT301
FILTER(CIRC),BAND PA LGE 6200C000010 Contact Us For Availability
LT302
FILTER(CIRC),BAND PA LGE 6200C000009 Contact Us For Availability
P007B
CONNECTOR ASSY LGE 387-A04H Contact Us For Availability
P101
CONNECTOR (CIRC),D-SUB LGE 6630VGA001C Contact Us For Availability
P101
JACK,RCA LGE 6612J00010B Contact Us For Availability
P102
JACK,RCA LGE 6612J00010A Contact Us For Availability
P102
CONNECTOR (CIRC),D-S LGE 6630GL00181 Contact Us For Availability
P103
JACK,DIN LGE 380-363K Contact Us For Availability
P120
JACK LGE 380-068B Contact Us For Availability
P121
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
P122
SWITCH,PUSH LGE 140-275A Contact Us For Availability
P800
LGE 387-A15B LGE 387-A15B Contact Us For Availability
P801
CONNECTOR ASSY LGE 387-A07B Contact Us For Availability
PA001
PRE-AMP LGE 6726VH0001A Contact Us For Availability
Q002
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q300
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q601
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R006
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R133
Filter,Bead LGE 6210VC0005A Contact Us For Availability
R623
LGE 0RS0221H609 LGE 0RS0221H609 Contact Us For Availability
R628
LGE 0RS2701K607 LGE 0RS2701K607 Contact Us For Availability
R655
RESISTOR FIXED CARBON FILM KKN LGE 0RD4700H609 Contact Us For Availability
SW003
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW800
SWITCH,PUSH LGE 6600VM2006A Contact Us For Availability
X201
CRYSTAL,STANDARD LGE 6202VDT002E Contact Us For Availability
X300
LGE 156-A02Z LGE 156-A02Z Contact Us For Availability
X301
LGE 6204B47985A LGE 6204B47985A Contact Us For Availability
X501
LGE 6204B47985E LGE 6204B47985E Contact Us For Availability
X601
CRYSTAL LGE 156-A02M Contact Us For Availability
X701
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
× ![]()
