Model Fisher & Paykel OS24SDTDB1-82254-A Built In Oven – Common Parts & Diagrams

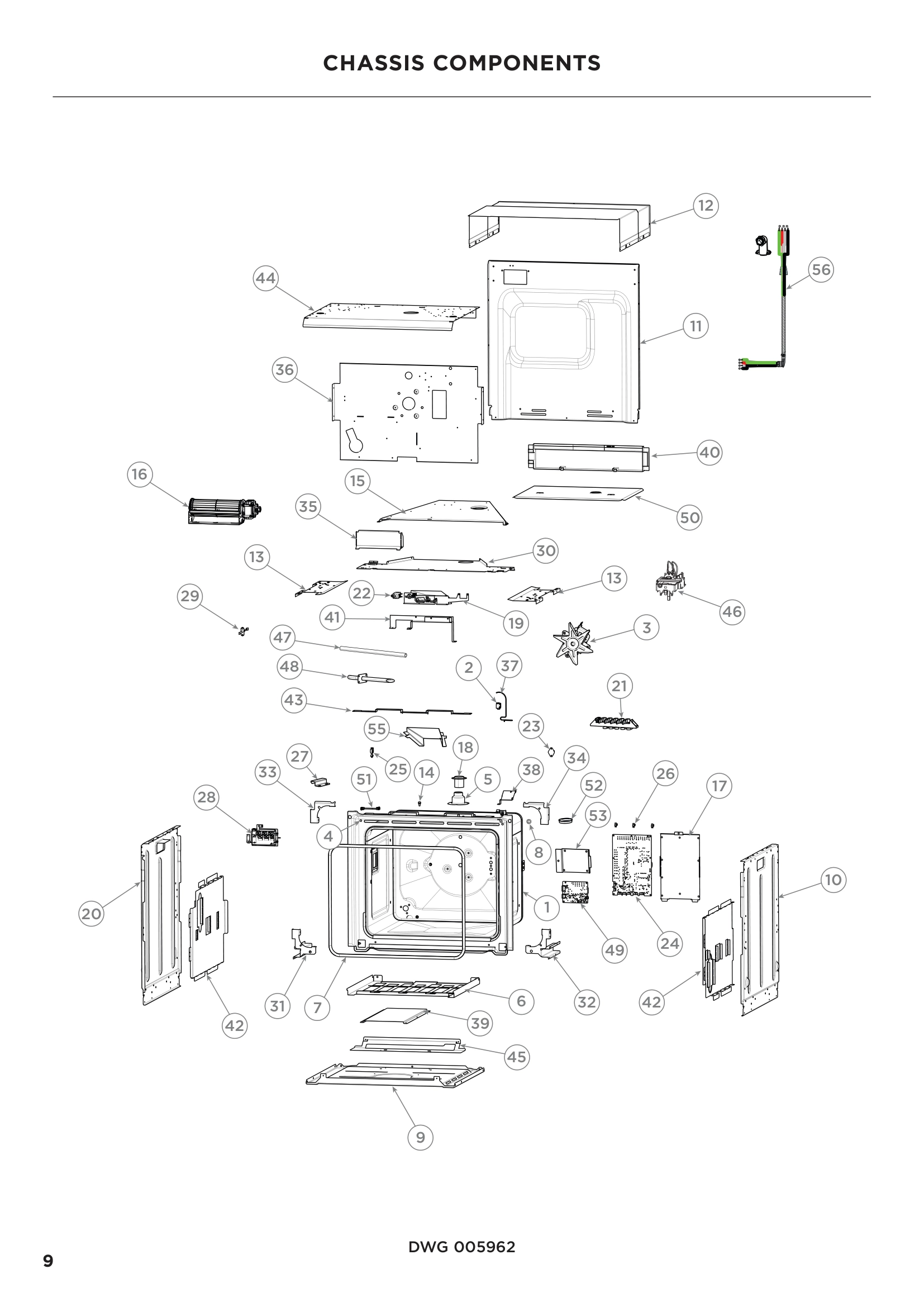

CHASSIS COMPONENTS
CHASSIS COMPONENTS
CHASSIS COMPONENTS

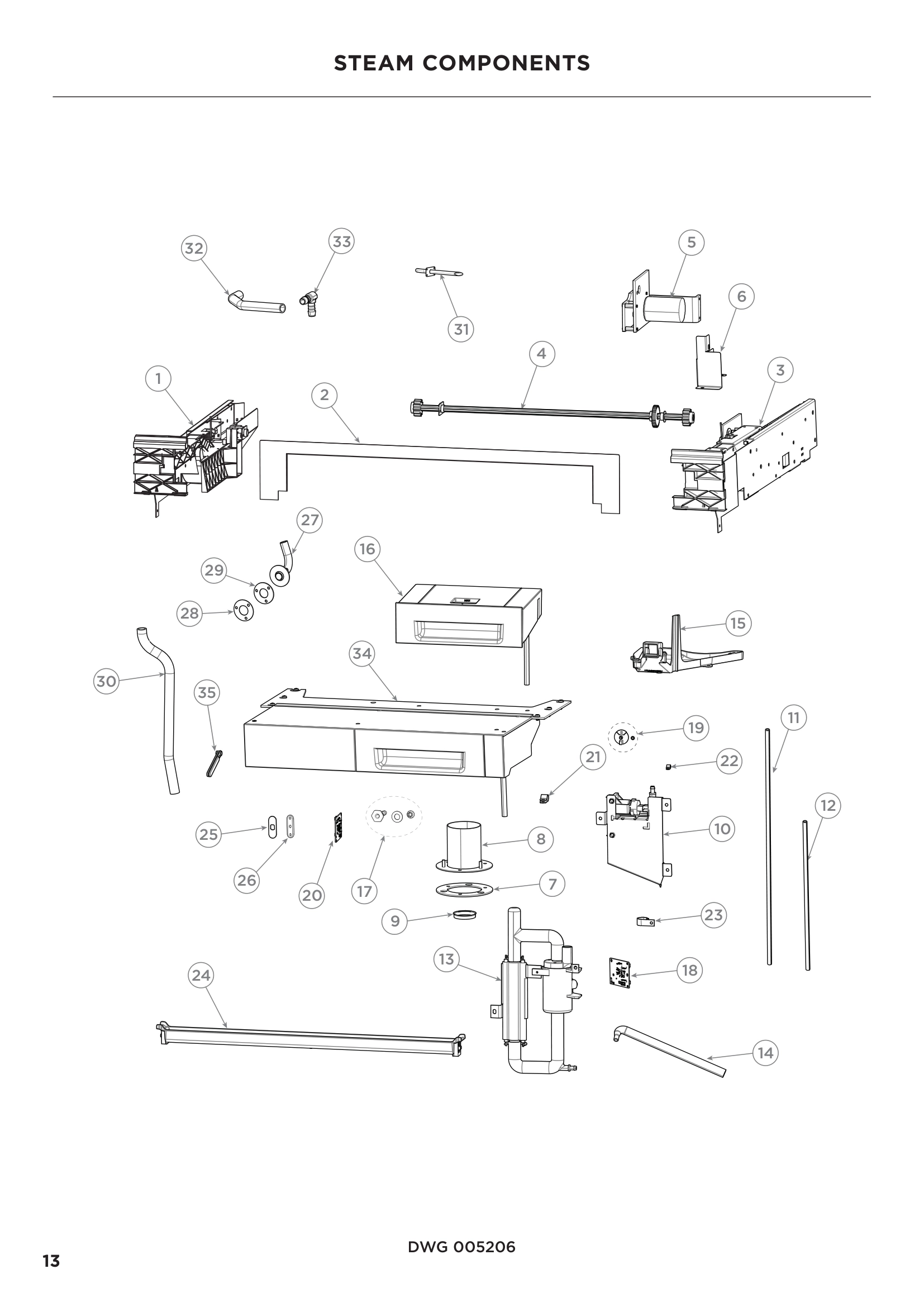

STEAM COMPONENTS

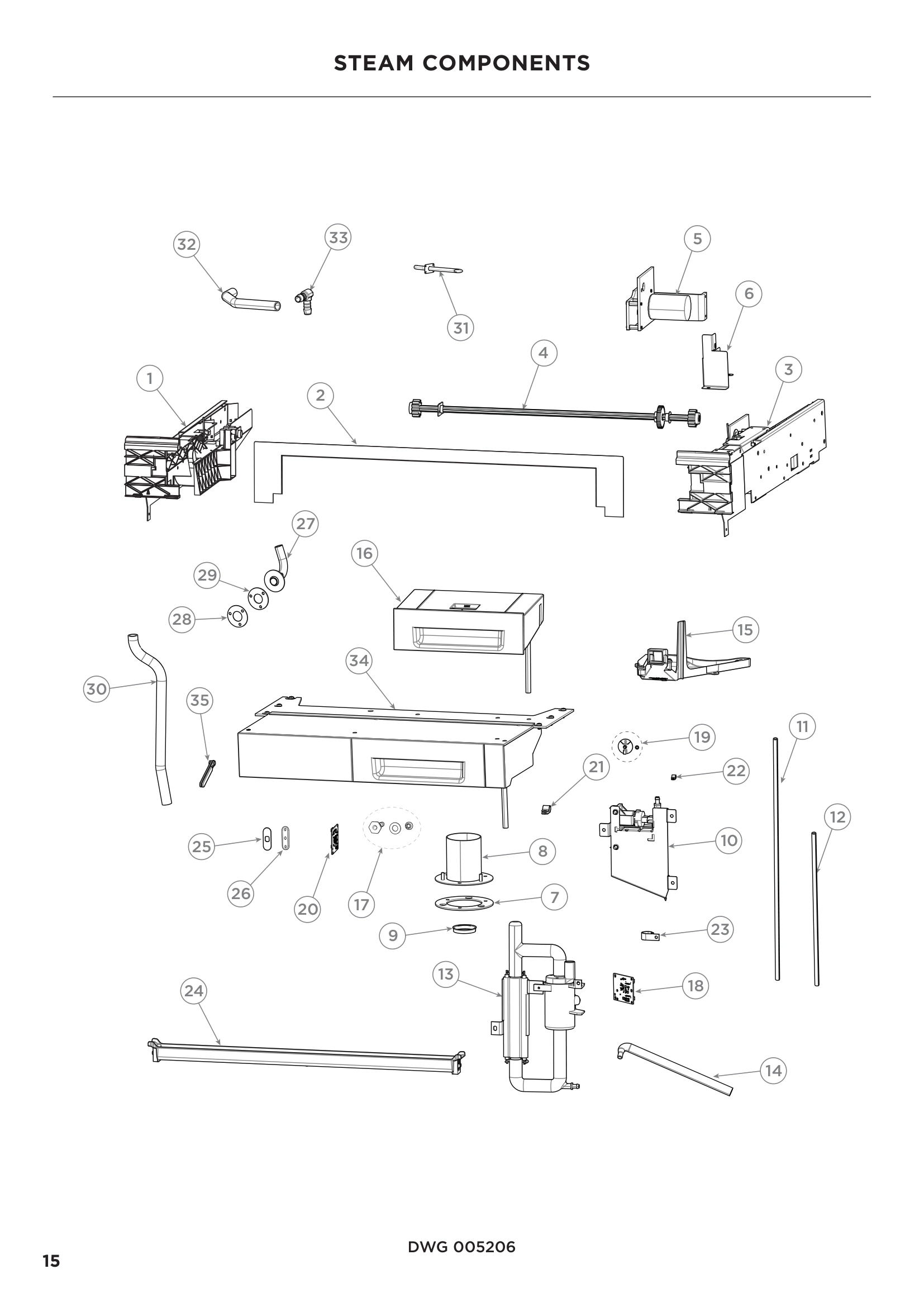

STEAM COMPONENTS

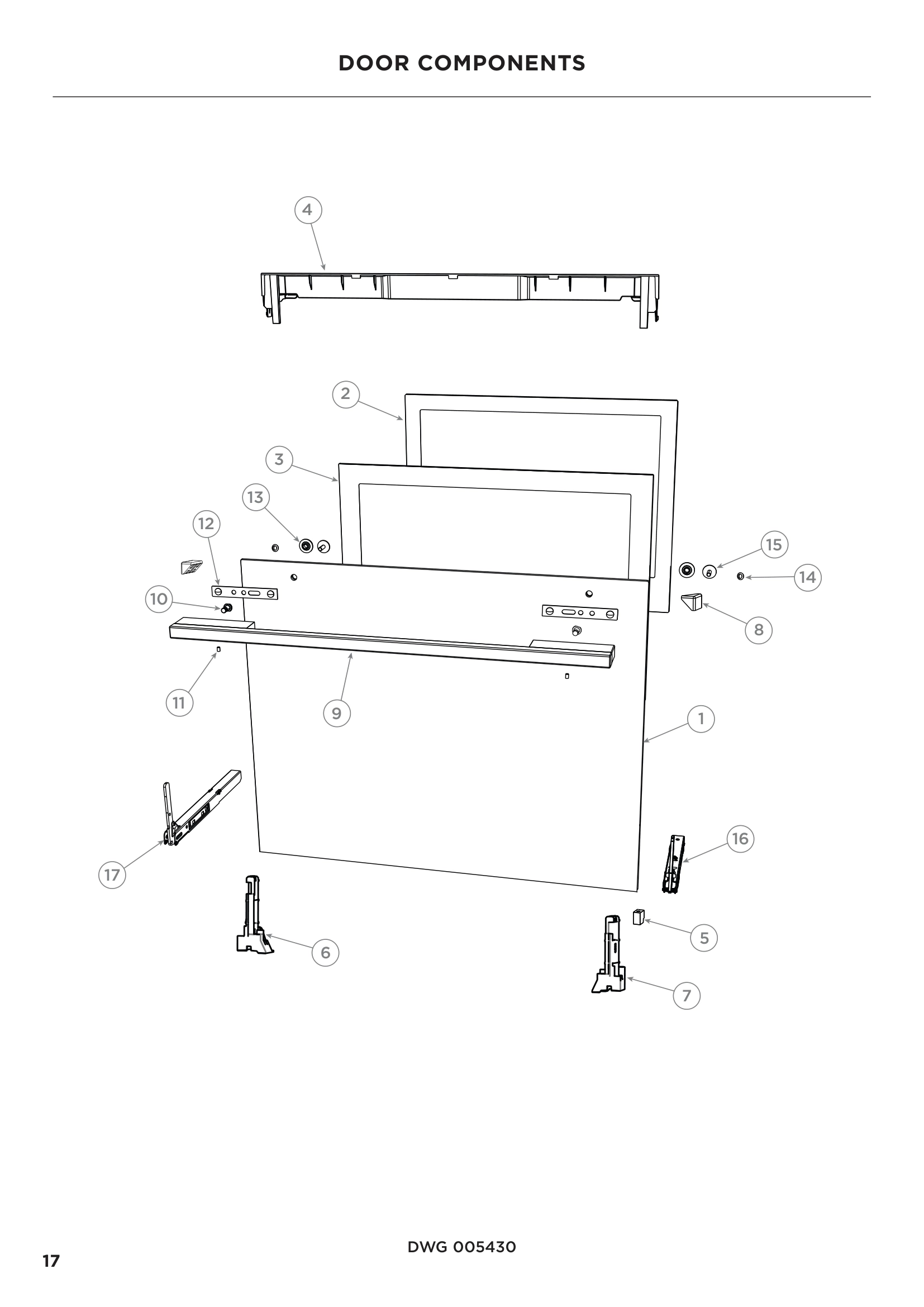

DOOR COMPONENTS

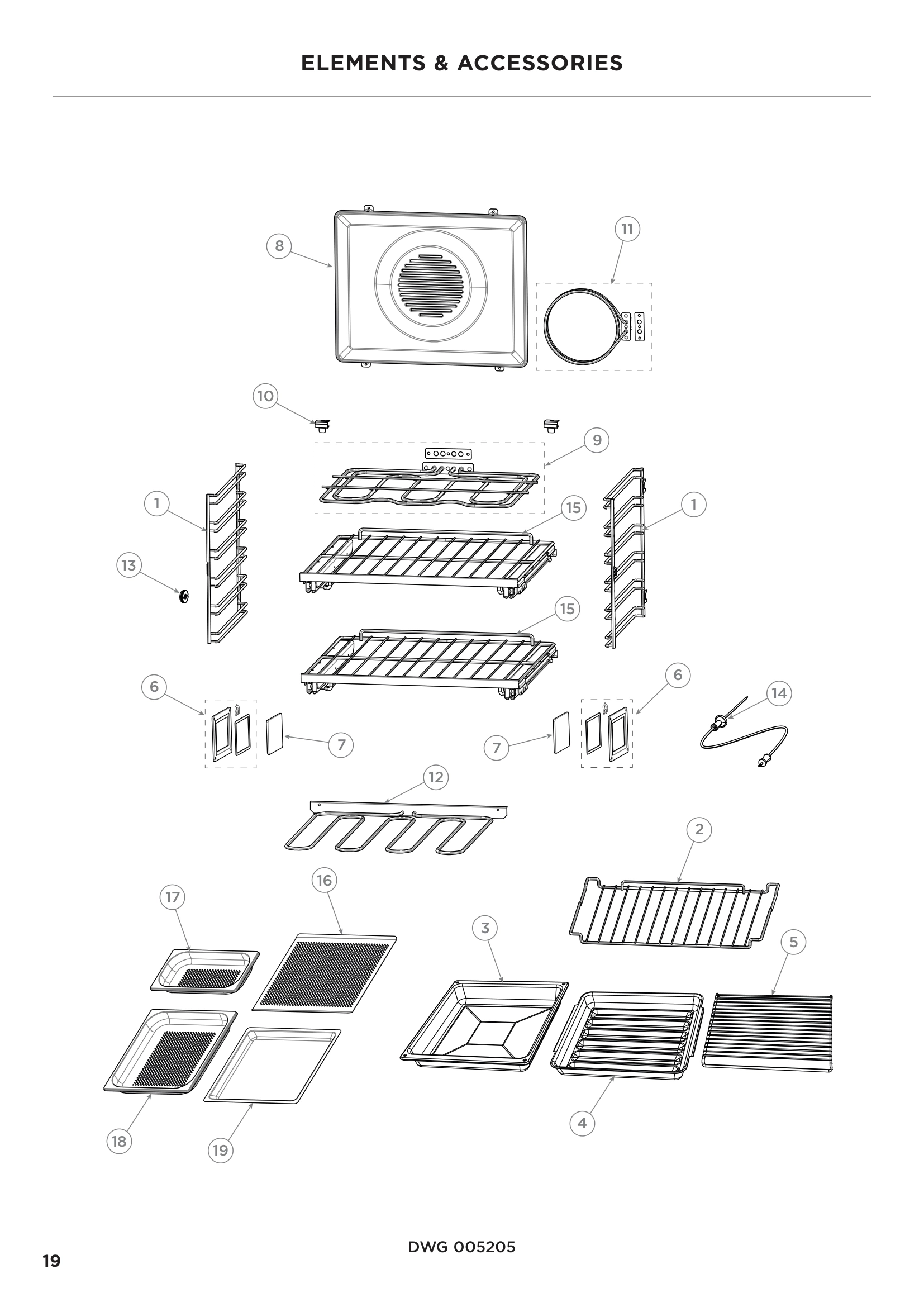

ELEMENTS & ACCESSORIES
Common parts from model Fisher & Paykel OS24SDTDB1-82254-A Built In Oven
1
KIT DOOR GLASS BKT BLACK FPA 563679 Contact Us For Availability
2
GLASS MULTII OB60C SC (SP) FPA 563342P Contact Us For Availability
2
SHELF DROPDOWN FPA 561609 Contact Us For Availability
3
GLASS DOOR MID OB24C (SP) FPA 565084P Contact Us For Availability
3
DISH DEEP COATED OB2 FPA 550933 Contact Us For Availability
4
TRIM TOP DOOR OB24C FPA 565126 Contact Us For Availability
4
GRID GRILL COATED OB2 FPA 550934 Contact Us For Availability
5
BUFFER GLASS MID LOWER FPA 562595 Contact Us For Availability
5
RACK GRILL OB2 FPA 550572 Contact Us For Availability
6
BRACKET G2 HINGE FG DOOR LH FPA 565169 Contact Us For Availability
6
BULB SPARE KIT OB60C STEAM 120 FPA 551631P Contact Us For Availability
7
BRACKET G2 HINGE FG DOOR RH FPA 565170 Contact Us For Availability
7
GLASS SPARE KIT STEAM LIGHT FPA 551534P Contact Us For Availability
8
RETAINER DOOR GLASS MID FPA 565142 Contact Us For Availability
8
SHROUD FAN OB60C ENAM PYRO FPA 562047 Contact Us For Availability
9
ELEMENT GRILL FIXED INCOLOY SP FPA 551526P Contact Us For Availability
10
CLIP ELEMENT SH FPA 562869 Contact Us For Availability
11
FAN ELEMENT SINGLE INCOLOY SP FPA 551527P Contact Us For Availability
12
ELEMENT BAKE FPA 561914 Contact Us For Availability
15
RAY WATER HOSE ASSY FPA 563754P
T Contact Us For Availability
16
ANK WATER ASSY SP FPA 580427P
T Contact Us For Availability
16
HINGE G2 3P FG UNDAMPED 20K FPA 565188 Contact Us For Availability
16
TRAY BAKING OB STEAM FPA 580826 Contact Us For Availability
17
ITTING STEAM INLET ASSY SP FPA 551592P
F Contact Us For Availability
17
HINGE G2 3P FG DAMPED 20K FPA 565187 Contact Us For Availability
17
TRAY STEAM GN1/3 FPA 580811 Contact Us For Availability
18
KIT CAPACITOR LEVEL SENSOR FPA 551805 Contact Us For Availability
18
TRAY STEAM GN2/3 FPA 580812 Contact Us For Availability
19
DUCT CAV VALVE OUTLET ASSY STEAM FPA 580849 Contact Us For Availability
19
KIT WATER CONNECTION FPA 551902 Contact Us For Availability
19
TRAY 20MM GN2-3 FPA 580746 Contact Us For Availability
20
PANEL SIDE LH FPA 565200 Contact Us For Availability
20
MOD MAGNETIC ENCODER OBC TFT FPA 580384 Contact Us For Availability
21
TERMINAL BLOCK NO LINKS 6POS FPA 580869 Contact Us For Availability
22
ACTUATOR ELTEK 10033142 FPA 550547 Contact Us For Availability
22
P-CLIP 7.9MM PKT 10 FPA 580856P Contact Us For Availability
23
P-CLIP CLAMP 12.7MM PKT 10 FPA 516688P Contact Us For Availability
24
TRAP DRIP DOOR FPA 580840 Contact Us For Availability
25
ASSY THERMISTOR BRKT FPA 551555 Contact Us For Availability
26
SPACER SUPPORT PCB 14MM FPA 551595 Contact Us For Availability
26
THERMISTER SEALING FPA 551557 Contact Us For Availability
27
FITTING EXHAUST CAVITY FPA 551543 Contact Us For Availability
28
PLATE CAVITY EXHAUST SPREADER FPA 551565 Contact Us For Availability
29
GASKET EXHAUST OBC STEAM FPA 516978 Contact Us For Availability
30
DUCT COOLING INLET STEAM FPA 516477 Contact Us For Availability
30
HOSE EXHAUST REAR FPA 551599 Contact Us For Availability
31
FITTING EXHAUST DUCT FPA 551597 Contact Us For Availability
32
BRKT HINGE ASM RH FPA 551653 Contact Us For Availability
32
HOSE EXHAUST TOP FPA 551752 Contact Us For Availability
33
BRKT MOUNT TOP LH FPA 563345 Contact Us For Availability
33
CONNECTOR EXHAUST 90DEG FPA 551751 Contact Us For Availability
34
BRKET MOUNT TOP RH FPA 565245 Contact Us For Availability
34
CARRIAGE ASSEMBLY SP FPA 580579P Contact Us For Availability
35
BRACKET ACCESS UL STEAM FPA 580839 Contact Us For Availability
35
FLOAT PIVOT MAGNET ASSY FPA 580482 Contact Us For Availability
36
REAR RETAINER SA TFT FPA 580362 Contact Us For Availability
37
SPRING WIRE FPA 561869 Contact Us For Availability
38
BRKT DOOR LOCK STEAM ASSIST FPA 580675 Contact Us For Availability
39
BRACE BASE FPA 565364 Contact Us For Availability
40
PANEL BACK MCP FPA 580394 Contact Us For Availability
41
BRKT VENTING HARNESS FPA 580536 Contact Us For Availability
42
RETAINER INSUL SIDE FPA 565368 Contact Us For Availability
43
SPACER AIR OUTLET DUCT PC FPA 580753 Contact Us For Availability
44
RETAINER TOP STEAM PC FPA 516596 Contact Us For Availability
45
PANEL COVER BASE SLOTS FPA 565039 Contact Us For Availability
46
SWITCH DOOR ELTEK 10073985 FPA 561925 Contact Us For Availability
50
PLATE REFLECTOR STEAM FPA 516583 Contact Us For Availability
51
MOD PRODUCT EXT COMMS PORT FPA 580823 Contact Us For Availability
52
SEAL FLAP FPA 551514 Contact Us For Availability
53
DAUGHTER BOARD PANEL FPA 580498 Contact Us For Availability
55
DUCT OBC TFT STEAM VENTING FPA 580421 Contact Us For Availability
56
CONDUIT OB24C UL FPA 565150 Contact Us For Availability
NI
INSUL WRAP STEAM FPA 516947 Contact Us For Availability
NI
INSULATION REAR OBC STEAM FPA 551591 Contact Us For Availability
NI
SCREW M4 X 25 TC (10PK) FPA 550925P Contact Us For Availability
NI
SCREW M4X9 TAPT WAFER PH (PKT10) FPA 570116P Contact Us For Availability
NI
SCREW SD 3.9X13 PAN PN NP PK10 FPA 562839P Contact Us For Availability
NI
SCREW ST 8X10 TAB MTS BK PKT10 FPA 556620P Contact Us For Availability
NI
HARNESSOB24CELECTFTSTEAMMAINS FPA 551625 Contact Us For Availability
NI
HARNESS STEAM ASSIST OB24C E TFT LV FPA 551642 Contact Us For Availability
NI
MS 6-32 X 5/8 PH PAN (PKT10) FPA 211271P Contact Us For Availability
NI
SCREW ST 7X6.5 TAB FLTPH (PKT 10) FPA 550961P Contact Us For Availability
NI
KIT CAVITY FAN SEAL FPA 551812 Contact Us For Availability
NI
IT HARNESS TEMP SENSOR STEAM FPA 551806
K Contact Us For Availability
NI
IT TEMP STEAM FASTENERS FPA 552218
K Contact Us For Availability
NI
CREW ST #8X3/8 TAB MSH PH NP FPA 556009P
S Contact Us For Availability
NI
CLIP HOSE EXHAUST FPA 551793 Contact Us For Availability
NI
HARNESS 12C H20 SENSE CARRIAGE FPA 580940 Contact Us For Availability
NI
NUT KEPS M4 SS PKT10 FPA 551724P Contact Us For Availability
NI
KIT MEAT PROBE HARNESS&SOCKET FPA 565302 Contact Us For Availability
NI
BK UG OS24 STEAM EN FPA 591958 Contact Us For Availability
NI
BK UG OS24 STEAM FR FPA 592248 Contact Us For Availability
NI
BK IG OS24 STEAM FR FPA 592249 Contact Us For Availability
NI
BK IG OS24 STEAM EN FPA 591962 Contact Us For Availability
NI
KIT SCREWS INSTALL (2PK) FPA 562192 Contact Us For Availability
NI
SCREW SPARE KIT STEAM LIGHT FPA 551607P Contact Us For Availability
× ![]()
