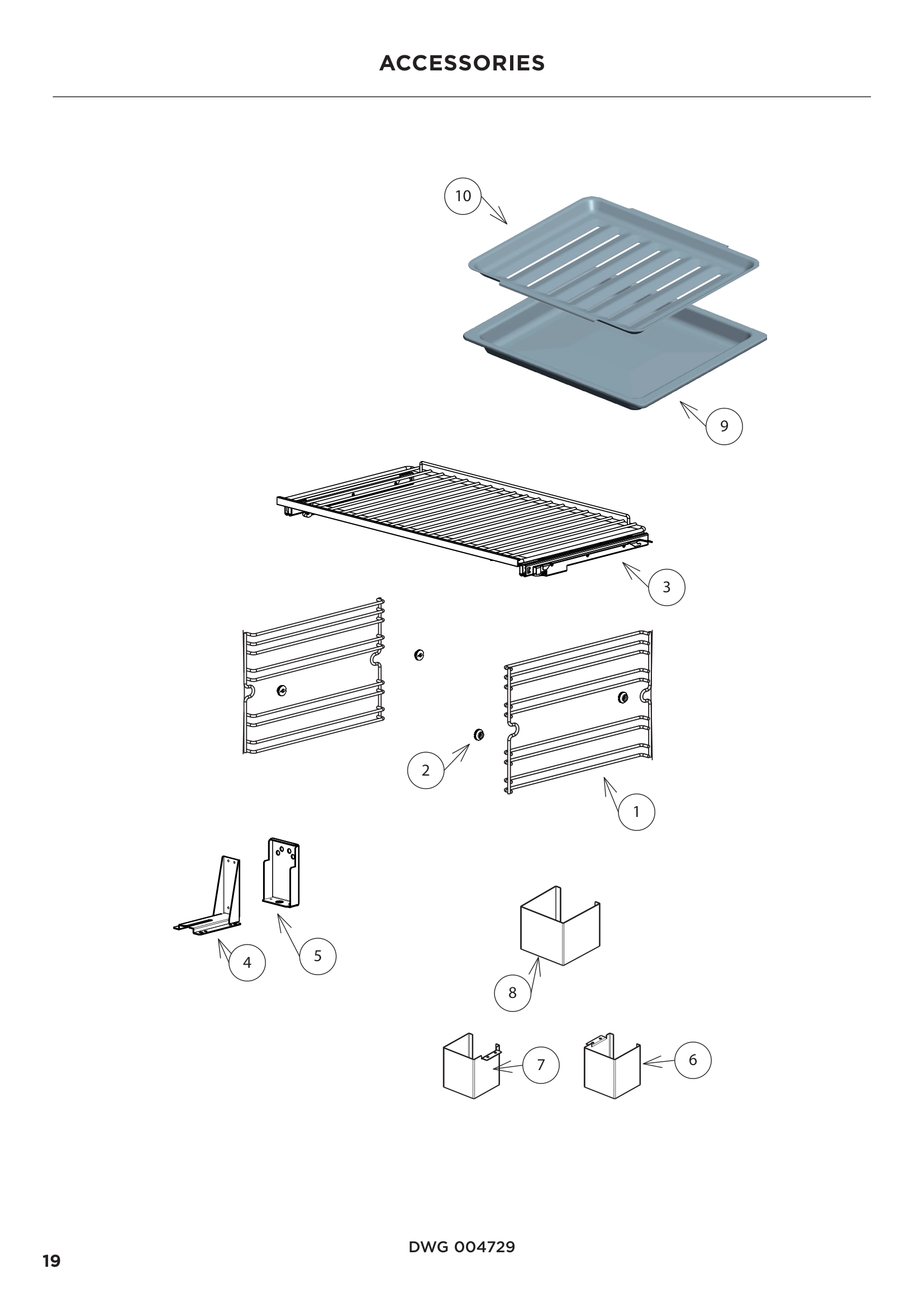

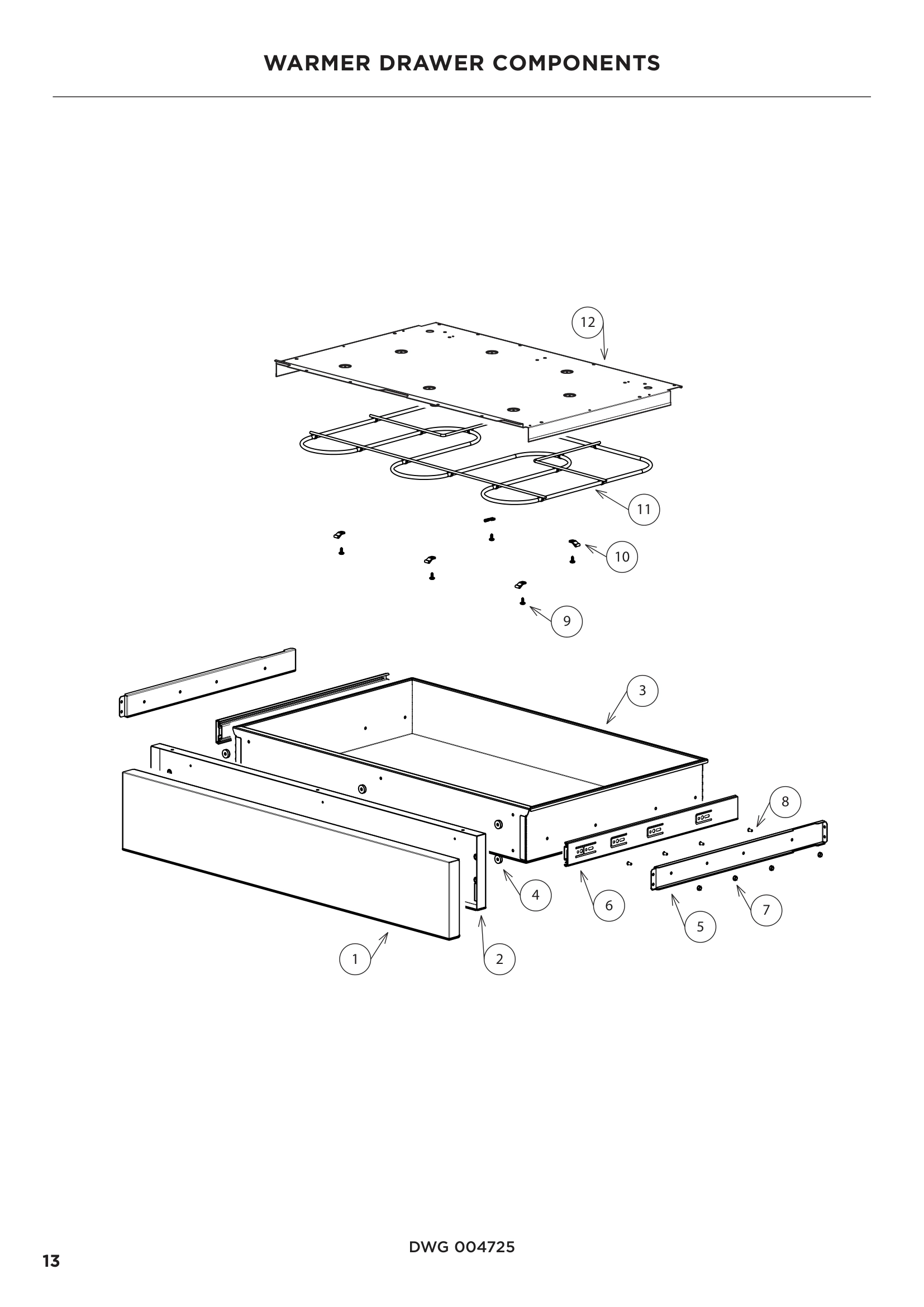

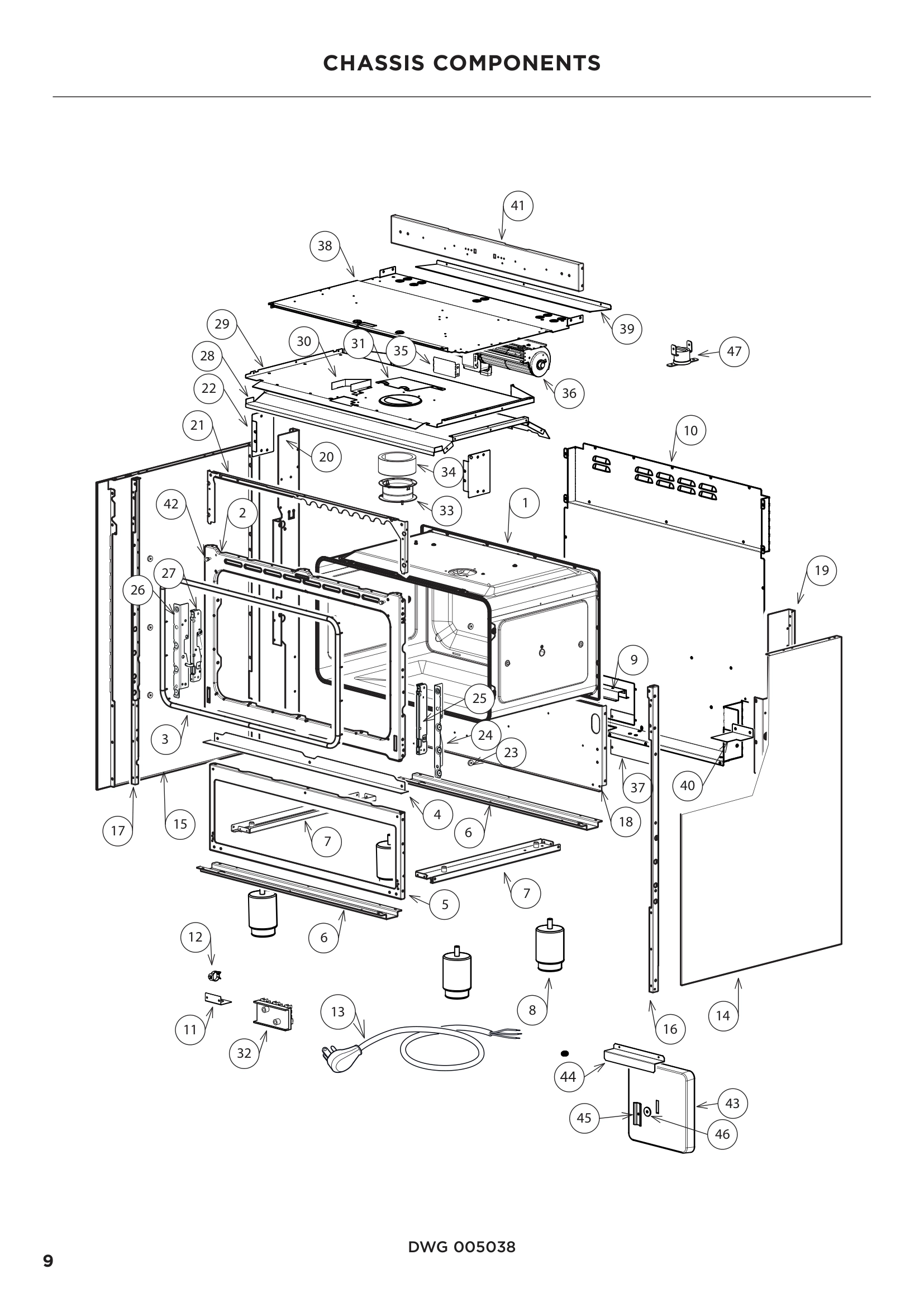

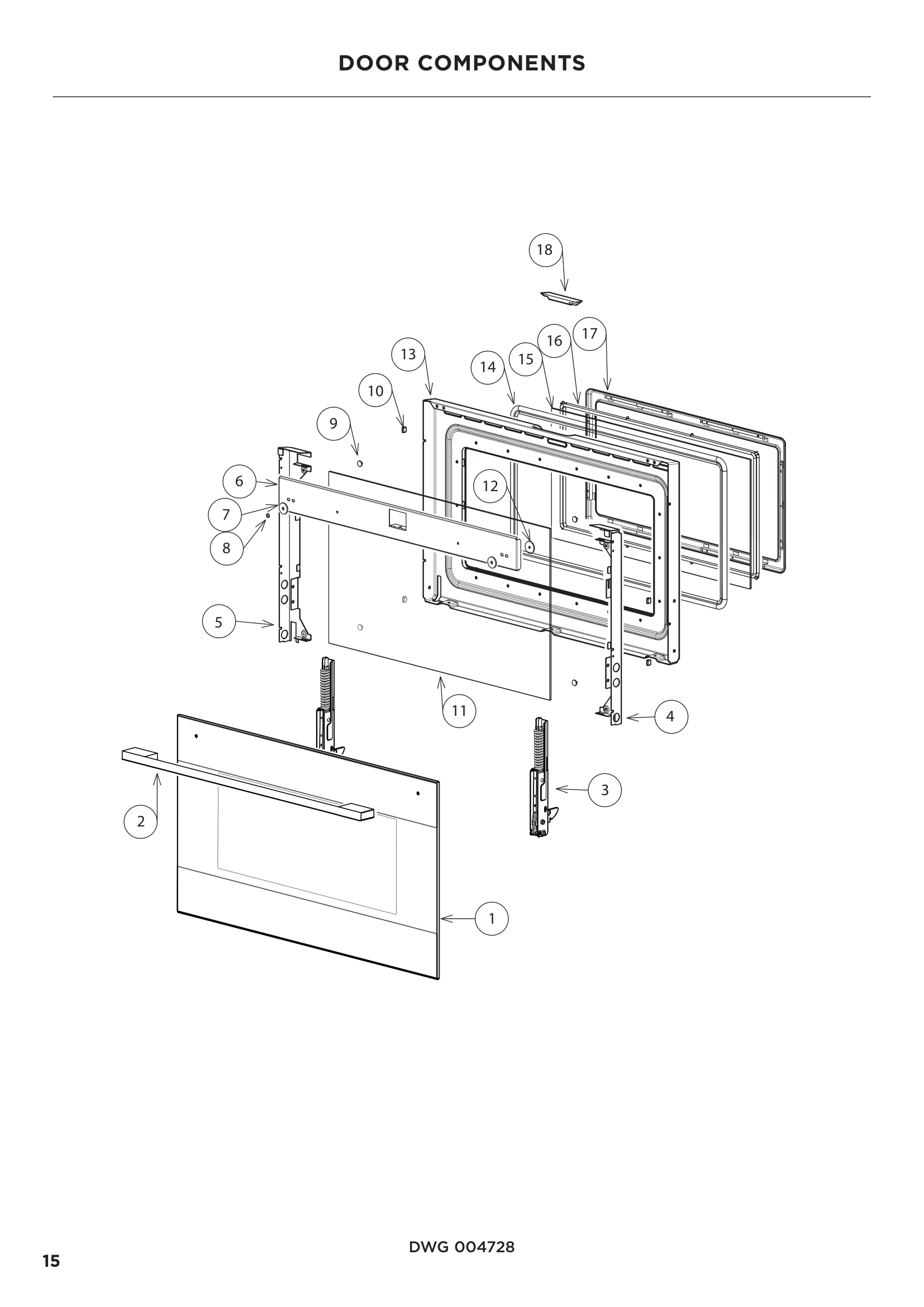

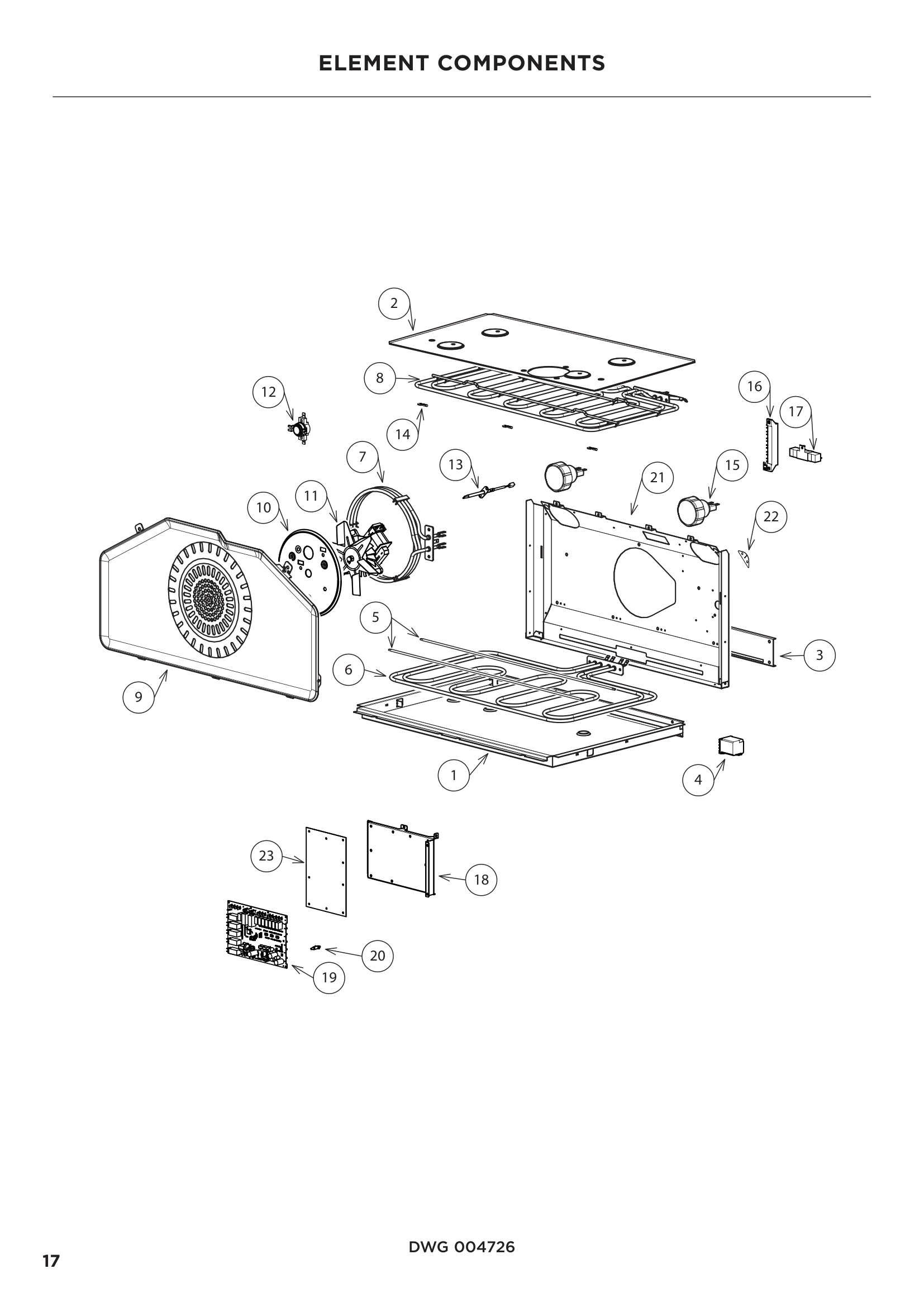

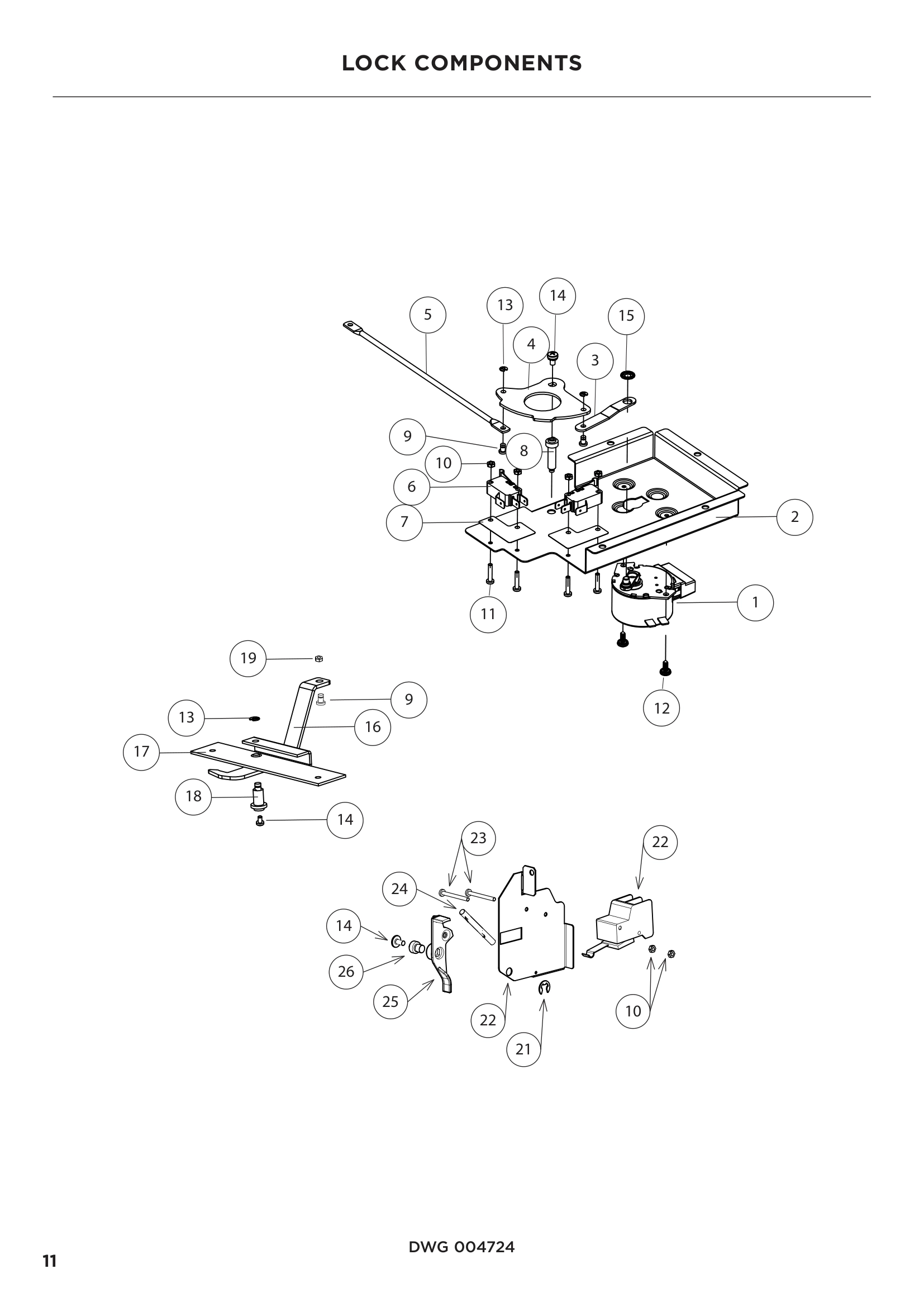

Model Fisher &amp; Paykel OR30SDE6X1-81721-A Freestanding Range – Common Parts &amp; Diagrams

1

577391 Fisher & Paykel Range Ladder Assembly Backorder FPA 577391 $218.14

1

578761P Fisher & Paykel Range Door Assembly 3 Backorder FPA 578761P $295.74

1

578772P Fisher & Paykel Range Stainless Steel Backorder FPA 578772P $139.64

1

578894 Fisher & Paykel Range Motor Lock Backorder FPA 578894 $45.04

1

581339P Fisher & Paykel Cooking Glass Hob Ass Backorder FPA 581339P $538.50

2

577094 Fisher & Paykel Range Handle Assembly Backorder FPA 577094 $168.36

2

578773 Fisher & Paykel Range Drawer Slide Pan Backorder FPA 578773 $61.18

2

578891P Fisher & Paykel Range Side Runner Nut Backorder FPA 578891P $50.64

2

578923P Fisher & Paykel Range Backguard OR30 In Stock FPA 578923P $96.36

2

MOUNTING LOCK PYRO FPA 575828 Contact Us For Availability

2

REFLECTOR GRILL FPA 575918 Contact Us For Availability

3

LINKAGE LOCK ACTUATOR Backorder FPA 546620 $6.78

3

578774 Fisher & Paykel Range Drawer 30 Backorder FPA 578774 $249.06

3

578776 Fisher & Paykel Range Sliding Shelf As Backorder FPA 578776 $223.90

3

578834 Fisher & Paykel Range Soft Close Pyro In Stock FPA 578834 $47.96

3

PANEL SUPPORT OB90 PYRO FPA 574996 Contact Us For Availability

4

574458 Fisher & Paykel Range Pyro Relay OR30/ In Stock FPA 574458 $200.04

4

ROCKER LOCK Backorder FPA 574743 $16.44

4

579682P Fisher & Paykel Kit Anti-Tip 30/36 Backorder FPA 579682P $62.68

4

SPACER CNTP FPA 578747 Contact Us For Availability

4

BRACKET GLASS INNER RH FPA 578769 Contact Us For Availability

5

ROD ACTUATOR Backorder FPA 575872 $14.90

5

578775 Fisher & Paykel Range Drawer Slide Bra Backorder FPA 578775 $32.34

5

BRACKET GLASS INNER LH FPA 578770 Contact Us For Availability

5

ELEMENT SUPPORT FPA 574989 Contact Us For Availability

6

551169 Fisher & Paykel Range Cherry Switch D4 Backorder FPA 551169 $29.14

6

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $107.40

6

578938 Fisher & Paykel Range Bake Element Backorder FPA 578938 $55.08

6

BRACKET HANDLE FPA 577162 Contact Us For Availability

6

COVER OUTER 30 R US FPA 578216 Contact Us For Availability

7

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.84

7

562423 Fisher & Paykel Cooking Neon Adapter D Backorder FPA 562423 $6.90

7

575025 Fisher & Paykel Range Insulation Micro Backorder FPA 575025 $6.90

7

577088 Fisher & Paykel Range Fan Element 30 In Stock FPA 577088 $39.44

7

WASHER INNER DOOR (PKT 2) FPA 573580P Contact Us For Availability

7

COVER OUTER 30 L US FPA 578215 Contact Us For Availability

8

PIN PIVOT LOCK OB90 Backorder FPA 574807 $6.78

8

574874P Fisher & Paykel Cooking Handle Spacer Backorder FPA 574874P $8.06

8

577087 Fisher & Paykel Range Element Backorder FPA 577087 $118.24

8

SCREW ST 7X3/8 TAB MSH (PKT10) FPA 556637P Contact Us For Availability

8

COVER INNER FPA 578207 Contact Us For Availability

9

544453 Fisher & Paykel Range Shroud Fan Assem Backorder FPA 544453 $75.02

9

578257P-includeCORE Fisher & Paykel 578257P R Backorder FPA 578257P-includeCORE $217.03

9

PIN BRACKET MTG FPA 578895 Contact Us For Availability

9

SPACER RUBBER PKT7 FPA 574185P Contact Us For Availability

9

DISH DEEP OB60C COATED FPA 562359 Contact Us For Availability

10

GROMMET DOOR BRACKET PKT10 FPA 574480P Contact Us For Availability

10

MOTOR SUPPORT ASSY FPA 574979 Contact Us For Availability

10

GRID GRILL OB60C COATED FPA 562360 Contact Us For Availability

533185 Fisher & Paykel Neon Bezel Backorder FPA 533185 $6.78

574724P Fisher & Paykel Cooking Glass Door Mi Backorder FPA 574724P $220.98

575875P Fisher & Paykel Screw M3X15 (Pack of Backorder FPA 575875P $7.44

577020 Fisher & Paykel Fan Bake Backorder FPA 577020 $103.52

577315 Fisher & Paykel Range Warmer Element In Stock FPA 577315 $80.20

544250 Fisher & Paykel Range Thermodisc 60°F Backorder FPA 544250 $39.60

573965P Fisher & Paykel Range Hobtop Screw Sp Backorder FPA 573965P $29.40

PANEL WARMER FPA 577129 Contact Us For Availability

WASHER (PKT 2) FPA 578768P Contact Us For Availability

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 $53.09

574457 Fisher & Paykel Range Neon Pyro Unit Backorder FPA 574457 $6.90

578937 Fisher & Paykel Range Door Panel 30" P Backorder FPA 578937 $192.98

RETAINING RING E2-3 PKT 10 FPA 545544P Contact Us For Availability

556640P Fisher & Paykel Range M4 x 6.5 Pan Sc Backorder FPA 556640P $13.28

574281 Fisher & Paykel Cooking Grill Element Backorder FPA 574281 $6.78

577009 Fisher & Paykel Range Door Seal Backorder FPA 577009 $146.48

578755 Fisher & Paykel Range Button Stem Asse Backorder FPA 578755 $16.22

578801 Fisher & Paykel Range Side Panel Right Backorder FPA 578801 $247.56

577068P Fisher & Paykel Range Inner Door Glas In Stock FPA 577068P $142.94

578225P Fisher & Paykel Cooking Tft Dial Enco Backorder FPA 578225P $7.66

578784 Fisher & Paykel Range Lamp Holder Backorder FPA 578784 $20.32

578794 Fisher & Paykel Range Left Side Panel Backorder FPA 578794 $247.56

WASHER STARLOCK 11.5 X 5 (PKT10) FPA 546628P Contact Us For Availability

573935 Fisher & Paykel Range Terminal Block 4 Backorder FPA 573935 $30.02

577008 Fisher & Paykel Glass Seal Backorder FPA 577008 $81.54

578232 Fisher & Paykel Range Encoder Adapter In Stock FPA 578232 $6.90

578798 Fisher & Paykel Range Front Right Trim Backorder FPA 578798 $40.86

HOOK FPA 578933 Contact Us For Availability

574788 Fisher & Paykel Mounting Hook Bracket Backorder FPA 574788 $9.52

577118 Fisher & Paykel Door Panel Frame Backorder FPA 577118 $241.66

578795 Fisher & Paykel Range Front Left Trim Backorder FPA 578795 $40.86

578908 Fisher & Paykel Range Cooling Fan Resi Backorder FPA 578908 $77.86

18

BLOCK DOOR LOCK Backorder FPA 577070 $49.28

18

PIN PIVOT HOOK FPA 574789 Contact Us For Availability

18

BRACKET POWER BOARD FPA 578939 Contact Us For Availability

19

565139-includeCORE Fisher & Paykel 565139 Mod Backorder FPA 565139-includeCORE $273.71

19

NUT SELF LOCKING (PKT 10) FPA 578868P Contact Us For Availability

20

575661 Fisher & Paykel Range Standoff Backorder FPA 575661 $7.02

20

BRACKET LOCK FPA 578934 Contact Us For Availability

21

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.90

21

581276 Fisher & Paykel Range 240V Energy Regu In Stock FPA 581276 $46.32

21

PANEL INNER REAR FPA 574998 Contact Us For Availability

22

574210 Fisher & Paykel Cooking Spacer, Plasti Backorder FPA 574210 $6.90

22

578935 Fisher & Paykel Range Door Lock Switch In Stock FPA 578935 $22.42

22

PLUG HOLE SENSOR FPA 577311 Contact Us For Availability

23

SCREW M3X30 TC CROSS (PKT 10) FPA 579397P Contact Us For Availability

23

INSULATION SHEET FPA 578889 Contact Us For Availability

24

574815 Fisher & Paykel Range Spring Trigger E Backorder FPA 574815 $6.78

25

574749 Fisher & Paykel Range Door Sensor Trig Backorder FPA 574749 $6.78

25

578683 Fisher & Paykel Range Female Hinge Backorder FPA 578683 $6.78

26

575870 Fisher & Paykel Range Door Switch Pin Backorder FPA 575870 $7.72

27

578815 Fisher & Paykel Range Left Soft Close Backorder FPA 578815 $112.54

28

SHELTER LOWER Backorder FPA 575857 $61.16

29

PANEL MIDDLE FPA 578926 Contact Us For Availability

30

BRACKET LOCK SURROUND Backorder FPA 575825 $14.78

31

BRACKET DUCT OR 30 FPA 577032 Contact Us For Availability

32

578907 Fisher & Paykel Range Terminal Block E Backorder FPA 578907 $22.32

33

574317 Fisher & Paykel Catalytic Converter As Backorder FPA 574317 $92.88

34

INSUL CAT CONVERT PYRO ECOTEX FPA 574266 Contact Us For Availability

35

544248 Fisher & Paykel Cooking Fan Bracket Backorder FPA 544248 $6.78

36

Backorder FPA 578911P-includeCORE $285.68

37

PLATE TERM BLOCK Backorder FPA 575298 $6.78

38

PANEL UPPER SHELTER FPA 578928 Contact Us For Availability

39

PANEL TRIM FPA 578929 Contact Us For Availability

40

BRACKET FPA 578961 Contact Us For Availability

41

REAR TRIM FPA 578930 Contact Us For Availability

42

GROMMET TRIM FRONT FPA 574597 Contact Us For Availability

43

BALANCE WEIGHT FPA 578962 Contact Us For Availability

44

BRACKET BALANCE WEIGHT FPA 578963 Contact Us For Availability

45

BRACKET COUNTERWEIGHT FPA 575175 Contact Us For Availability

46

574292P Fisher & Paykel Cooking Washer M6-24 Backorder FPA 574292P $6.58

47

574339 Fisher & Paykel Cooking Limiter 55°C In Stock FPA 574339 $12.98

544238 Fisher & Paykel Insulation Wrap Backorder FPA 544238 $333.06

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $22.00

563195 Fisher & Paykel Range Ui Interconnect Backorder FPA 563195 $6.96

INSULATION RELAY Backorder FPA 575024 $6.78

575862P Fisher & Paykel Range Nut M3 Pack Backorder FPA 575862P $10.14

577166 Fisher & Paykel Hob Wiring Or90 Backorder FPA 577166 $102.10

578373 Fisher & Paykel Range Harness OR30 Pyr Backorder FPA 578373 $41.40

578374 Fisher & Paykel Range Power Harness OR Backorder FPA 578374 $15.90

578968 Fisher & Paykel Range Wiring Assembly Backorder FPA 578968 $204.84

COVER ROTISSERIE HOLE FPA 574350 Contact Us For Availability

KIT EARTH WIRE/CUPPED WASHER FPA 579057 Contact Us For Availability

SPRING REAR INSUL SUPPORT (SIDES) FPA 574169 Contact Us For Availability

INSULATION REAR FPA 577004 Contact Us For Availability

WIRE FPA 579124 Contact Us For Availability

HARNESS OR30 WARMER DRAWER FPA 578495 Contact Us For Availability

HARNESS WARMER FPA 578853 Contact Us For Availability

HARNESS OR30 PYRO MAINS IND FPA 578562 Contact Us For Availability

SCREW M5X6 TC CROSS NERA FPA 578882P Contact Us For Availability

SPACER REAR 7.5MM FPA 579150 Contact Us For Availability

SCREW ST 7X13 TAB CSKW PKT 10 FPA 556632P Contact Us For Availability

TRIM TKOR306X1 (ACCESSORY ONLY) FPA 81809 Contact Us For Availability

TRIM KICKOR30X1 (ACCESSORY ONLY) FPA 81813 Contact Us For Availability

BKSET OR30S6 CERAMIC FP FPA 591879 Contact Us For Availability
