Model LG OM7560 – Common Parts & Diagrams
Diagram 0

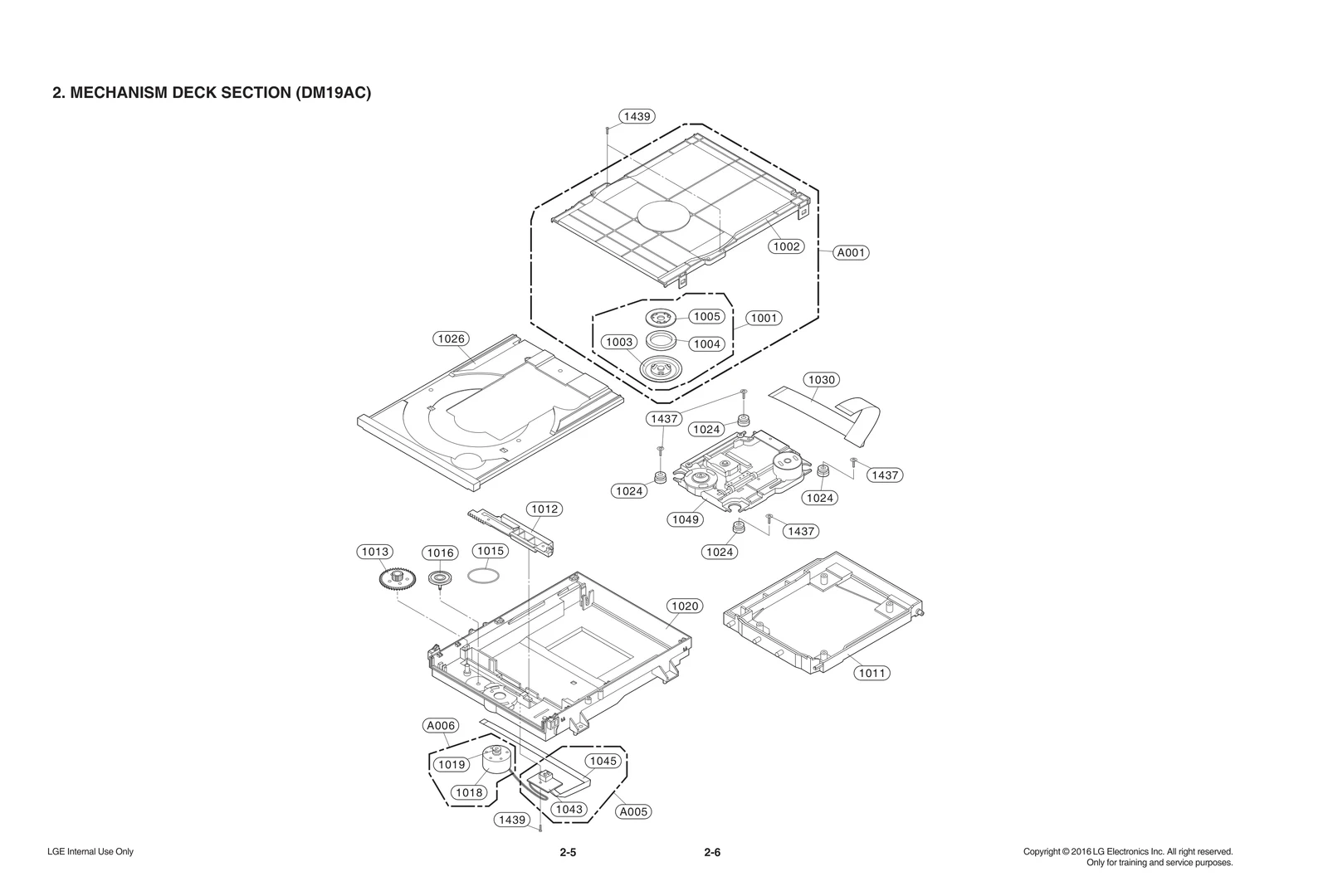

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG OM7560
251
Belt LGE MAS62463901 Contact Us For Availability
252
SHAFT LGE 4370R-0082B Contact Us For Availability
253
Holder LGE MEG64721801 Contact Us For Availability
254
Holder LGE MEG64721701 Contact Us For Availability
255
Spring LGE MHY64283801 Contact Us For Availability
256
Knob LGE MEY63894601 Contact Us For Availability
257
Knob LGE MEY63894501 Contact Us For Availability
258
Knob LGE MEY63894301 Contact Us For Availability
259
Knob LGE MEY63894401 Contact Us For Availability
260L
Cover LGE MCK69094103 Contact Us For Availability
260R
Cover LGE MCK69094203 Contact Us For Availability
262
Panel,Rear LGE MGC64421304 Contact Us For Availability
263
Bracket LGE MAZ65190501 Contact Us For Availability
264
Bracket LGE MAZ65190401 Contact Us For Availability
265
Bracket LGE MAZ65190301 Contact Us For Availability
267
Holder LGE MEG64838901 Contact Us For Availability
269
Fan Module LGE EAL60700914 Contact Us For Availability
270
Plate LGE 3300RCH001A Contact Us For Availability
271
Lens LGE MFB64173401 Contact Us For Availability
272
Holder LGE MEG64798801 Contact Us For Availability
273
Holder LGE MEG64798901 Contact Us For Availability
274
Spring LGE MHY64283901 Contact Us For Availability
275
Holder LGE MEG63540501 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
475
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
476
Screw,Customized LGE 353M025Z Contact Us For Availability
521
Screw,Customized LGE 353-100AAAD Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77393544 Contact Us For Availability
802
Box,Master LGE MAY67288886 Contact Us For Availability
803
Packing LGE MFZ65193101 Contact Us For Availability
804
Bag LGE MAF61906437 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
826A
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955301 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK67310501 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM63924301 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM63944701 Contact Us For Availability
1024
Damper LGE MCQ68386801 Contact Us For Availability
1026
Tray LGE MJS62532202 Contact Us For Availability
1026
Tray LGE MJS62532201 Contact Us For Availability
1030
Cable,FFC LGE EAD62056611 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD62056810 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ88061301 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR82255101 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A41
Auto SMT PCB Assembly LGE EBR82525401 Contact Us For Availability
A42
PCB Assembly LGE EBR82215501 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL75554103 Contact Us For Availability
A44
Frame Assembly LGE ADV75909202 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR82486501 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR82652901 Contact Us For Availability
A50
PCB Assembly LGE EBR81885502 Contact Us For Availability
A51
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A60
Speaker System Total LGE TCG36548205 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C3L04
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5A2
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C108
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C169
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C223
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C255
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C288
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
C293
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
C299
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C411
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C412
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C427
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C502
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C562
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C567
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C607
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C614
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C634
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C640
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C641
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CC223BK5BA Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C713
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
C722
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C732
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C743
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C748
Capacitor,AL,Radial LGE EAE60777001 Contact Us For Availability
C759
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C767
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C769
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C779
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C801
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C806
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C808
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C810
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C812
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
C821
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C827
Capacitor,Ceramic,Axial LGE 0CN4730K949 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CE337RRK10 Contact Us For Availability
C906
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C911
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C912
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C912
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C920
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE477NH638 Contact Us For Availability
C951
CAPACITOR LGE 624-087D Contact Us For Availability
C954
Capacitor,AL,Radial LGE EAE61381801 Contact Us For Availability
CA302
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
CA313
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
CA320
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
CA323
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
CA329
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
CA331
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
CA333
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62037907 Contact Us For Availability
CABLE2
Harness,Single LGE EAD63925601 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62130037 Contact Us For Availability
CABLE4
Harness,Single LGE EAD63925701 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE61103302 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN201
Connector,Wafer LGE EAG41647505 Contact Us For Availability
CN202
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
CN400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN502
Connector,Wafer LGE EAG41647504 Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN505
Connector,Wafer LGE EAG63270201 Contact Us For Availability
CN602
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN604
Connector,Wafer LGE EAG62569901 Contact Us For Availability
CN701
Connector,Wafer LGE 6602V39002B Contact Us For Availability
CN704
Connector,Wafer LGE 6602V39002C Contact Us For Availability
CN801
Connector,USB LGE EAG43125201 Contact Us For Availability
CN803
Harness,Single LGE EAD63925801 Contact Us For Availability
CN804
Connector,FFC/FPC/PIC LGE 6630XF00433 Contact Us For Availability
CNA301
Harness,Single LGE EAD63706302 Contact Us For Availability
CY900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
CY901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
CY901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
D502
Diode,TVS LGE EAH62735601 Contact Us For Availability
D701
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D804
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D911
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D933
Diode,Schottky LGE EAH62232801 Contact Us For Availability
D951
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB902
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
FH902
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL500
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA38442301 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
IC103
IC,LED Driver LGE EAN64170801 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC202
IC,DC,DC Converter LGE EAN63530002 Contact Us For Availability
IC203
IC,DC,DC Converter LGE EAN64170401 Contact Us For Availability
IC205
IC,DC,DC Converter LGE EAN64048801 Contact Us For Availability
IC207
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC400
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC401
IC,RF Amplifier LGE EAN63446501 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC502
IC,SDRAM LGE EAN62746202 Contact Us For Availability
IC503A
S/W,System Program LGE SAA38404902 Contact Us For Availability
IC504A
S/W,System Program LGE SAA38422501 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN61836402 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC911
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
ICA301
IC,Line Driver LGE EAN62579201 Contact Us For Availability
JK200
Jack,RCA LGE 6612J00015N Contact Us For Availability
JKA301
Jack,Phone LGE 6612F00091B Contact Us For Availability
JKA303
Jack,Phone LGE 6612F00022H Contact Us For Availability
L3T15
Filter,Bead LGE EAM62151001 Contact Us For Availability
L103
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L103
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L211
Filter,Bead LGE EAM62151101 Contact Us For Availability
L214
Filter,Bead LGE EAM38769505 Contact Us For Availability
L215
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L215
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L705
Coil,Choke LGE EAP62127101 Contact Us For Availability
L931
COIL,RF LGE 6140RCC003H Contact Us For Availability
LA307
Filter,Bead LGE EAM42641607 Contact Us For Availability
LED3L1
LED,Chip LGE EAV63492601 Contact Us For Availability
LED3L2
LED,Chip LGE EAV63492701 Contact Us For Availability
LED3L3
LED,Chip LGE EAV63492901 Contact Us For Availability
LED3L4
LED,Chip LGE EAV63492801 Contact Us For Availability
LED810
LED,DIP LGE EAV35747602 Contact Us For Availability
LED810
LED,DIP LGE EAV62074401 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61010401 Contact Us For Availability
PC903
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q205
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q209
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q612
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q705
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q708
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q709
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q802
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q901
FET LGE EBK61572501 Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q911
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q950
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R3L07
RESISTOR,METAL GLAZE LGE 0RH2000C622 Contact Us For Availability
R3T12
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R5A9
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R5B6
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R5C5
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R5D4
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R5D6
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
R5E2
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R5E6
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R5G9
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R127
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R205
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R234
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R239
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R244
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ8203C478 Contact Us For Availability
R261
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R401
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R418
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R422
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R514
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R521
Resistor,Chip LGE 0RH2202C422 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R560
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R658
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R664
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R665
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R703
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R712A
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R726
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R727
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R732
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R735
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R748
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R759
Resistor,Chip LGE 0RZZ000068A Contact Us For Availability
R761
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R765
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R802
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R811
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R812
RESISTOR FIXED CARBON FILM SKN LGE 0RD3302F609 Contact Us For Availability
R813
RESISTOR FIXED CARBON FILM SKN LGE 0RD6802F609 Contact Us For Availability
R849
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R860
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R866
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R872
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R873
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R911
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R917
Resistor,Wire Wound LGE EBC30416602 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD2203F609 Contact Us For Availability
R922
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R923
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R924
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R925
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R941
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R943
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R946
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R953
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R961
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R964
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
RA104
Resistor,Array LGE EBC32260601 Contact Us For Availability
RA301
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
RA305
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
RA314
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
RA319
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
RA321
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
RCM301
Receiver Module LGE EAV62055001 Contact Us For Availability
SW801
Switch,Slide LGE EBF62234401 Contact Us For Availability
SW824
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ62670102 Contact Us For Availability
T904
Transformer,Switching LGE EBJ61490401 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TU500
Tuner,Analog LGE EBL60740003 Contact Us For Availability
VFD801
VFD LGE EAJ60868414 Contact Us For Availability
VR801
Switch,Encoder LGE EBF61954401 Contact Us For Availability
VR802
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE EAW62583502 Contact Us For Availability
X501
Crystal LGE EAW30067102 Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD400
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD703
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD802
Diode,Zener LGE 0DZ390009AC Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD901
Diode,Zener LGE EAH62753301 Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD913
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD914
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD914
Diode,Zener LGE EAH60702201 Contact Us For Availability
ZD932
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
× ![]()
Login and Registration Form
