Model LG OM5541 – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

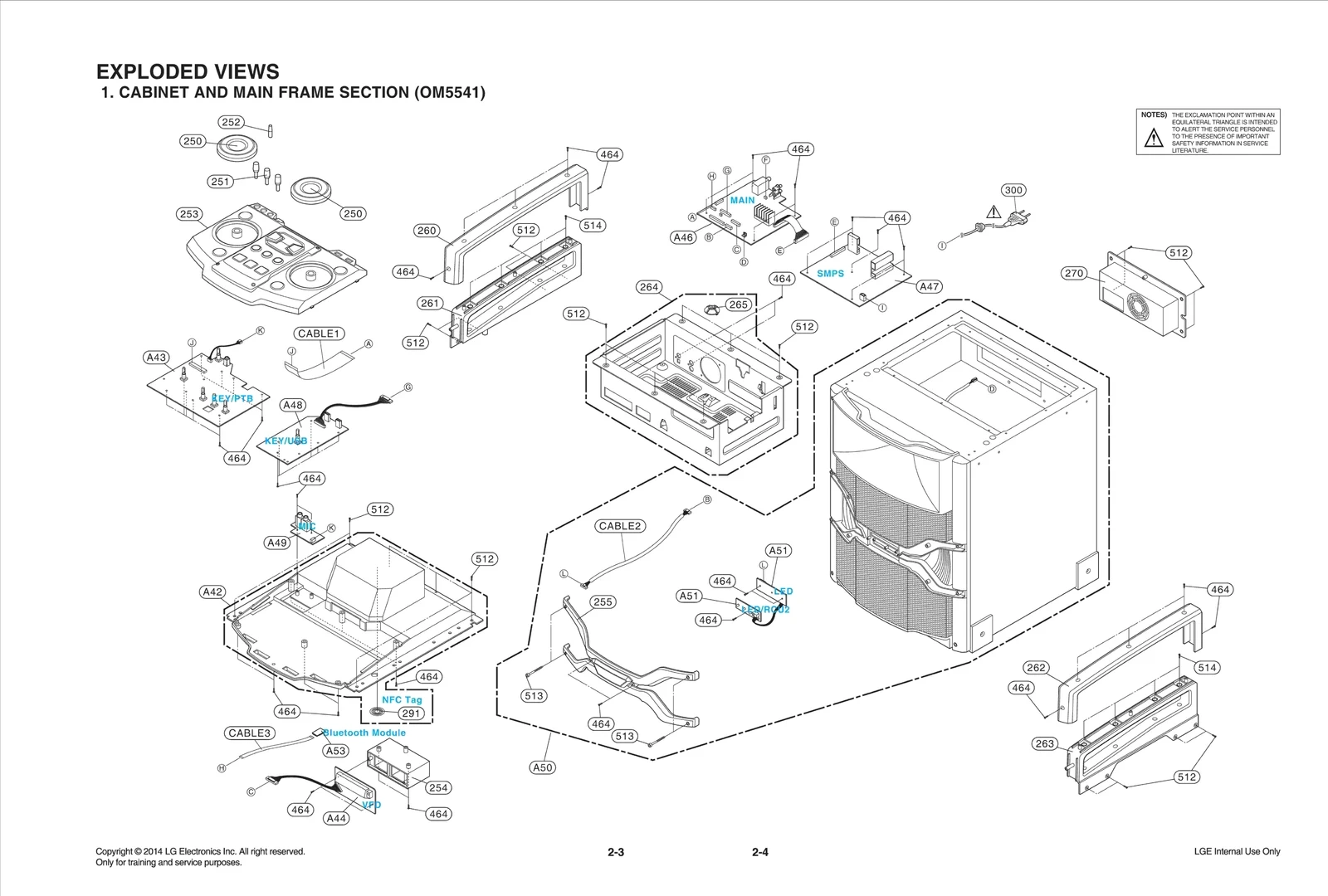

Common parts from model LG OM5541
250
Knob LGE MEY63074201 Contact Us For Availability
251
Knob LGE MEY63074101 Contact Us For Availability
252
Knob LGE MEY63093901 Contact Us For Availability
253
Decor Assembly LGE ACW74337314 Contact Us For Availability
254
Holder LGE MEG63680201 Contact Us For Availability
255
Cover LGE MCK67971502 Contact Us For Availability
260
Handle LGE MEB63134601 Contact Us For Availability
261
Handle Assembly LGE AED73992901 Contact Us For Availability
262
Handle LGE MEB63134701 Contact Us For Availability
263
Handle Assembly LGE AED73972901 Contact Us For Availability
264
Frame Assembly LGE ADV74805906 Contact Us For Availability
265
Holder LGE MEG63540501 Contact Us For Availability
270
Cover LGE MCK67971603 Contact Us For Availability
291
Module,Assembly LGE EAT61873301 Contact Us For Availability
300
Power Cord LGE EAD60816731 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
512
Screw,Customized LGE 353M025Z Contact Us For Availability
513
Screw,Wood LGE FAB31821302 Contact Us For Availability
514
Screw,Customized LGE FAB30093403 Contact Us For Availability

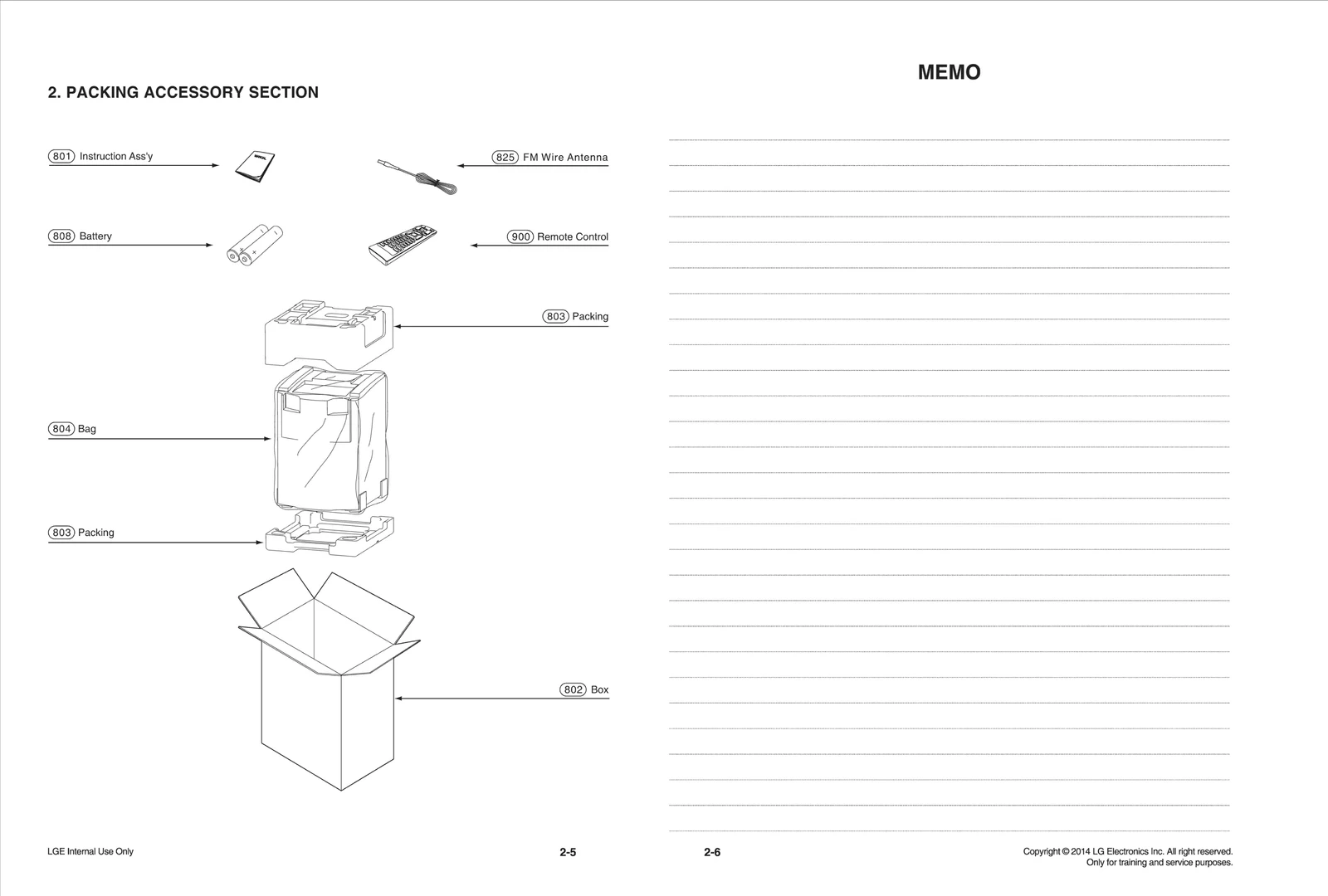

801
Manual Assembly,Owners LGE AFN76613142 Contact Us For Availability
802
Box,Master LGE MAY65869261 Contact Us For Availability
803
Packing LGE MFZ63331472 Contact Us For Availability
804
Bag LGE MAF61903703 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655761 Contact Us For Availability
A42
Case Assembly LGE ABQ74501406 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR79228101 Contact Us For Availability
A44
Auto SMT PCB Assembly LGE EBR79209901 Contact Us For Availability
A46
Option Code Assembly LGE EBR78549020 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR79852203 Contact Us For Availability
A48
Auto SMT PCB Assembly LGE EBR79249601 Contact Us For Availability
A49
Auto SMT PCB Assembly LGE EBR79190001 Contact Us For Availability
A50
Board Assembly LGE AAX74588104 Contact Us For Availability
A51
Different Kind Array PCB Assembly LGE EBR78642101 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C5B2
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C118
Capacitor,Ceramic,Ch LGE 0CK100BKMDA Contact Us For Availability
C133
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C210
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CH1122K562 Contact Us For Availability
C218
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C226
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C426
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C429
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C430
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C439
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CH4561K416 Contact Us For Availability
C460
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C463
Capacitor,Ceramic,Ch LGE 0CK104DKG6A Contact Us For Availability
C501
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
C508
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C581
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C593
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C604
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CH4330K442 Contact Us For Availability
C608
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C643
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C706
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
C710
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C714
Capacitor,AL,Radial LGE EAE60777002 Contact Us For Availability
C716
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C722
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C724
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C742
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE337RRK10 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C912
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C916
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C917
Capacitor,Ceramic,Axial LGE 0CN8210K519 Contact Us For Availability
C918
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C920
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C931
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C951
CAPACITOR LGE 624-087D Contact Us For Availability
C954
Capacitor,AL,Radial LGE EAE63162001 Contact Us For Availability
C956
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD42742305 Contact Us For Availability
CABLE2
Harness,Single LGE EAD42004416 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62130017 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN400
Harness,Single LGE EAD42004417 Contact Us For Availability
CN420
Connector,FFC/FPC/PI LGE 561-7073 Contact Us For Availability
CN421
Harness,Single LGE EAD42004418 Contact Us For Availability
CN422
Harness,Single LGE EAD35829015 Contact Us For Availability
CN423
CONNECTOR FH-R20R UG3 LGE 561-711D Contact Us For Availability
CN462
Connector,USB LGE EAG43134801 Contact Us For Availability
CN482
Harness,Single LGE EAD35829016 Contact Us For Availability
CN501
Harness,Single LGE EAD42218229 Contact Us For Availability
CN502
Connector,FFC/FPC/PI LGE 6630XF00429 Contact Us For Availability
CN503
Connector,Wafer LGE EAG56285902 Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN507
Connector,Wafer LGE 6602T20008F Contact Us For Availability
CN700
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
CN901
Connector,Wafer LGE 6602T25008P Contact Us For Availability
CY902
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
D505
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D506
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D507
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D509
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D510
Diode,TVS LGE EAH56919501 Contact Us For Availability
D700
Diode,Zener LGE EAH39305801 Contact Us For Availability
D904
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D904
Diode,Rectifier LGE EAH62334001 Contact Us For Availability
D911
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D934
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D935
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D935
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D951
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
DIG400
VFD LGE EAJ60868405 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB903
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB903
Filter,Bead LGE 636-004C Contact Us For Availability
FL500
Filter,Common Mode LGE EAM62151601 Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
HS901
Heat Sink Assembly LGE AEF74064702 Contact Us For Availability
HS952
Heat Sink Assembly LGE AEF73984601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36938801 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC202
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC203
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC400
IC,Display Driver LGE EAN62790501 Contact Us For Availability
IC420
IC,PRE Amplifier LGE EAN57059401 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36858702 Contact Us For Availability
IC501B
S/W,System Program LGE SAA36938902 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB004H Contact Us For Availability
IC503
IC,Serial Flash Memory LGE EAN62459301 Contact Us For Availability
IC504
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC506
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC507
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC508
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC510
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN61836402 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC911
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK420
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK421
Jack,Phone LGE 6612F00105C Contact Us For Availability
L420
Filter,Bead LGE EAM62151001 Contact Us For Availability
L422
Filter,Bead LGE EAM62155402 Contact Us For Availability
L518
Filter,Bead LGE EAM38769502 Contact Us For Availability
L535
Filter,Bead LGE EAM62151101 Contact Us For Availability
L703
Coil,Choke LGE EAP62127101 Contact Us For Availability
L931
COIL,CHOKE LGE 633-088G Contact Us For Availability
L931
Coil,Choke LGE EAP60792101 Contact Us For Availability
LD480
LED,DIP LGE EAV42876002 Contact Us For Availability
LD486
LED,DIP LGE EAV62074401 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61010401 Contact Us For Availability
LF901
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q481
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q481
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q502
TR,Bipolar LGE 0TRKE80051A Contact Us For Availability
Q503
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q700
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q701
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q721
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q911
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q911
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
R5A9
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R50C
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R50D
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R51F
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R53D
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R54B
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R54E
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R210
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R401
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R404
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R409
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R421
Resistor,Chip LGE 0RH5603D622 Contact Us For Availability
R422
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R423
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R427
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R429
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R440
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R445
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R460
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R463
RESISTOR CHIP 24K 1/10W 5 TA LGE 0RH2402D622 Contact Us For Availability
R464
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R481
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R490
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R496
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R508
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R563
Resistor,Chip LGE 0RJ4704C678 Contact Us For Availability
R564
Resistor,Chip LGE 0RJ3303C478 Contact Us For Availability
R572
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R581
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R586
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R705
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R706
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R712
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R729
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R911
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0822F609 Contact Us For Availability
R916
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD2203F609 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R922
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R925
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R931
Resistor,Carbon Film LGE 0RD0331F609 Contact Us For Availability
R932
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R935
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R941
Resistor,Metal Film LGE 0RN3901F409 Contact Us For Availability
R942
Resistor,Metal Film LGE 0RN3001F409 Contact Us For Availability
R945
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2702F409 Contact Us For Availability
R952
Resistor,Metal Film LGE 0RN6801F409 Contact Us For Availability
R953
R METAL FILM LGE 0RN1201F409 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R956
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R961
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R962
Resistor,Carbon Film LGE 0RD1200F609 Contact Us For Availability
RC400
Receiver Module LGE EAV41920401 Contact Us For Availability
SW423
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770101 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TU500
Tuner,Analog LGE EBL60740103 Contact Us For Availability
VR423
Switch,Encoder LGE EBF61954401 Contact Us For Availability
VR460
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X500
Crystal LGE 6212AB2240C Contact Us For Availability
X501
Crystal LGE 6212AB2327X Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD904
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD913
Diode,Zener LGE 0DZGD00064B Contact Us For Availability
ZD913
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD914
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD914
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD931
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
ZD932
DIODE,ZENERS LGE 0DZGD00073A Contact Us For Availability
ZD932
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
× ![]()
Login and Registration Form
