Model LG OM4560 – Common Parts & Diagrams
Diagram 0

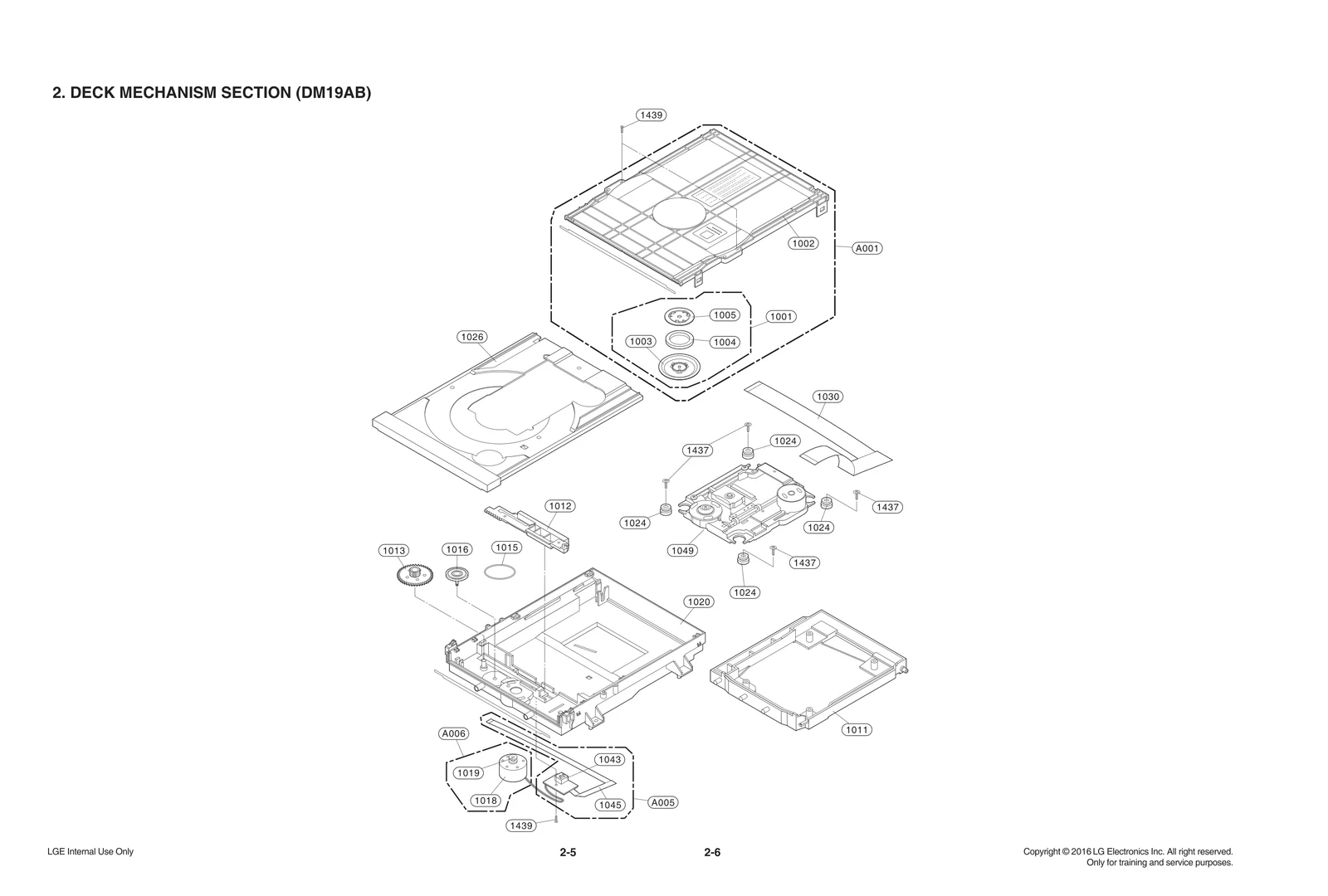

Diagram 1

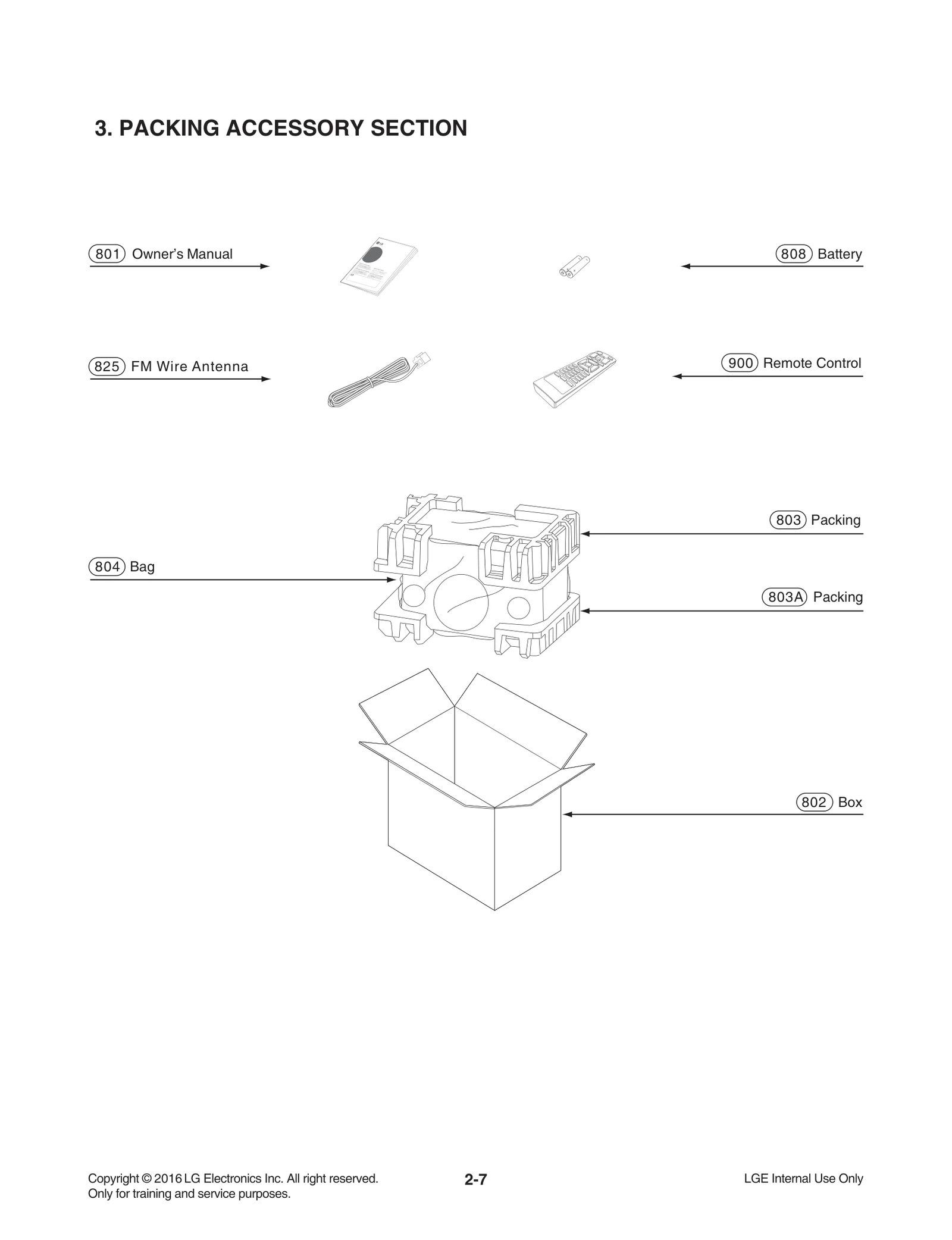

Diagram 2
Diagram 3
Common parts from model LG OM4560
250
Cover LGE MCK69005403 Contact Us For Availability
260
Chassis LGE MBS63525401 Contact Us For Availability
262
Holder LGE MEG64680201 Contact Us For Availability
266
Cover LGE MCK69045203 Contact Us For Availability
300
Power Cord,Attach LGE EAD62501542 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
521
Screw,Customized LGE 353-100AAAD Contact Us For Availability
522
Screw,Customized LGE 353M050N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77313340 Contact Us For Availability
802
Box,Master LGE MAY67288856 Contact Us For Availability
803
Packing LGE MFZ64733122 Contact Us For Availability
803A
Packing LGE MFZ64733121 Contact Us For Availability
804
Bag LGE MAF61903709 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
825
Antenna,T LGE EAA56671906 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655791 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK67310501 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM63924301 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM63944701 Contact Us For Availability
1024
Damper LGE MCQ68386801 Contact Us For Availability
1026
Tray LGE MJS62532201 Contact Us For Availability
1026
Tray LGE MJS62532202 Contact Us For Availability
1030
Cable,FFC LGE EAD62056613 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD62056813 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ88061301 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR81958401 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR82143901 Contact Us For Availability
A46
Option Code Assembly LGE EBR81659016 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR80926801 Contact Us For Availability
A48
Auto SMT PCB Assembly LGE EBR82089501 Contact Us For Availability
A49
Auto SMT PCB Assembly LGE EBR82144001 Contact Us For Availability
A50
Speaker System Total LGE TCG36408304 Contact Us For Availability
A53
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
AR200
Resistor,Array LGE EBC32260601 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CK2R7BK0DA Contact Us For Availability
C213
Capacitor,Ceramic,Chip LGE 0CK223BF5FA Contact Us For Availability
C215
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C235
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C240
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C244
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C245
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C255
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C323
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C404
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C411
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C412
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C427
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C438
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C512
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CK100BKMDA Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C554
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C593
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C603
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C608
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C619
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C621
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C645
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C651
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C653
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C702
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C705
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C738
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C812
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C836
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,AL,Radial LGE EAE63203311 Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C904
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C906
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C927
CAPACITOR LGE 624-087B Contact Us For Availability
C940
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C956
Capacitor,Ceramic,Axial LGE 0CN1050K949 Contact Us For Availability
CABLE1
Harness,Single LGE EAD63325202 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130034 Contact Us For Availability
CABLE3
Harness,Single LGE EAD63729501 Contact Us For Availability
CABLE4
Harness,Single LGE EAD63729401 Contact Us For Availability
CABLE5
Harness,Single LGE EAD63729601 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN500
Connector,Wafer LGE 6630R3S006E Contact Us For Availability
CN501
Connector,Wafer LGE 6630V90141B Contact Us For Availability
CN501
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN503
Connector,Wafer LGE EAG58732901 Contact Us For Availability
CN504
Connector,Wafer LGE EAG58732905 Contact Us For Availability
CN600
Connector,Wafer LGE EAG41647503 Contact Us For Availability
CN701
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
CN801
Connector,Wafer LGE 6630V90141D Contact Us For Availability
CN802
Connector,USB LGE EAG43134801 Contact Us For Availability
CN901
Conector,Wafer LGE 6602T25008G Contact Us For Availability
D200
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D503
Diode,TVS LGE EAH62735601 Contact Us For Availability
D504
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D601
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D705
Diode,Zener LGE EAH39305801 Contact Us For Availability
D803
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D807
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D901
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D930
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D951
Diode,Schottky LGE EAH62232901 Contact Us For Availability
DIG800
VFD LGE EAJ60868414 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FH901
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL500
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL503
Filter,EMI/Power LGE SFEY0008901 Contact Us For Availability
FL901
Filter,Line Noise LGE EAM62712401 Contact Us For Availability
FL903
Filter,EMI/Power LGE EAM63110001 Contact Us For Availability
G3
Harness,Single LGE EAD60771805 Contact Us For Availability
HS901
Heat Sink LGE MED62751601 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC200
IC,Tuner LGE EAN64007901 Contact Us For Availability
IC202
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC300
IC,Line Driver LGE EAN62579201 Contact Us For Availability
IC400
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC401
IC,RF Amplifier LGE EAN63446501 Contact Us For Availability
IC500A
S/W,System Program LGE SAA38224001 Contact Us For Availability
IC501
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC503A
S/W,System Program LGE SAA38223903 Contact Us For Availability
IC504
IC,SDRAM LGE 0IMMREB008F Contact Us For Availability
IC504
IC,SDRAM LGE EAN62355002 Contact Us For Availability
IC600
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC601
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
IC700
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK200
Connector,BtoB LGE EAG64749901 Contact Us For Availability
JK201
Jack,RCA LGE 6612J00015N Contact Us For Availability
JK300
Jack,Phone LGE 6612F00105C Contact Us For Availability
L5E1
Filter,Bead LGE EAM62151001 Contact Us For Availability
L205
Inductor,Wire Wound,Chip LGE EAP43563902 Contact Us For Availability
L205
Inductor,Wire Wound,Chip LGE EAP62046301 Contact Us For Availability
L610
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L611
Filter,Bead LGE EAM42641607 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L618
Filter,Bead LGE EAM62151101 Contact Us For Availability
L706
Coil,Choke LGE EAP62127101 Contact Us For Availability
LDS01
LED,Chip LGE EAV63032801 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q400
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q602
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q603
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q700
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q701
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q901
FET LGE EBK62911801 Contact Us For Availability
Q920
TRANSISTOR,BIPOLARS LGE 0TRAU90005A Contact Us For Availability
Q951
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R5A1
Resistor,Chip LGE 0RJ4704C678 Contact Us For Availability
R5A2
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R214
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R250
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R282
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R290
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R310
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R313
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R316
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R320
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R323
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0152E672 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R413
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ3601C677 Contact Us For Availability
R418
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R553
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R569
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R580
Resistor,Chip LGE 0RH1003B622 Contact Us For Availability
R581
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R606
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R610
Resistor,Chip LGE 0RH2003C622 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R619
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R631
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R633
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R717
Resistor,Chip LGE 0RH8200C422 Contact Us For Availability
R744
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R745
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R746
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R747
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R754
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R762
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R765
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R802
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R803
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R804
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R816
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R905
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R909
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R910
Resistor,Carbon Film LGE 0RD2702F609 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R913
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R930
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R932
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
Resistor,Carbon Film LGE 0RD1202F609 Contact Us For Availability
R953
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R955
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R956
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R962
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R963
Resistor,Carbon Film LGE 0RD2203F609 Contact Us For Availability
RC800
Receiver Module LGE EAV41920402 Contact Us For Availability
RS02
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
SW302
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770154 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE EAW62583502 Contact Us For Availability
X501
Crystal LGE EAW30067102 Contact Us For Availability
X701
Crystal LGE EAW32919901 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD901
Diode,Zener LGE EAH60702201 Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AH Contact Us For Availability
ZD910
Diode,Zener LGE 0DZ180009AE Contact Us For Availability
ZD930
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD940
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD940
Diode,Zener LGE 0DZGD00064B Contact Us For Availability
× ![]()
Login and Registration Form
