Model LG OLED97G4WUA – Common Parts & Diagrams
Diagram 0

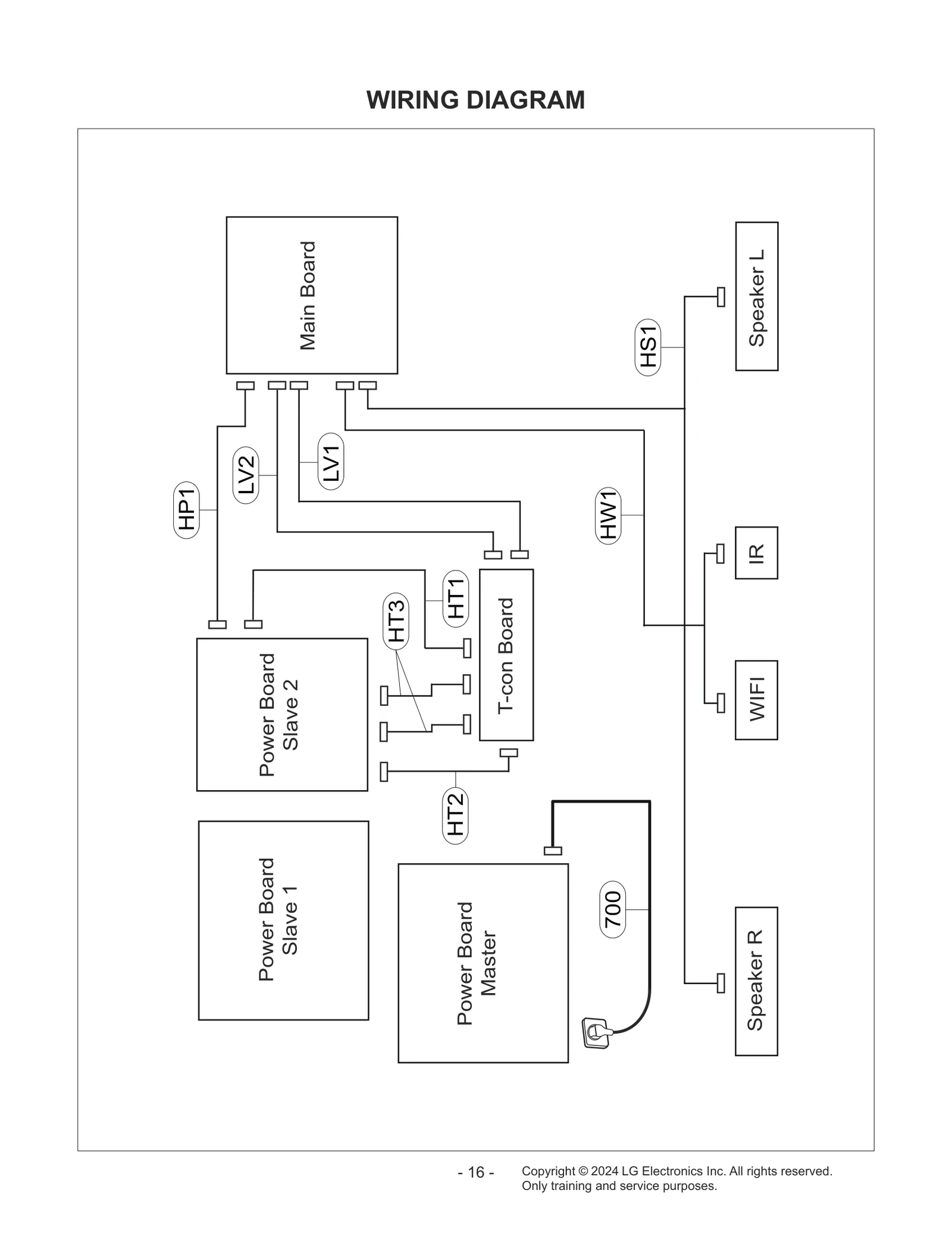

Diagram 1
Common parts from model LG OLED97G4WUA
121
Speaker Assembly LGE EAB65827102 Contact Us For Availability
200
OLED,Module-AM LGE EAJ65882901 Contact Us For Availability
200
OLED,Module-AM LGE EAJ65755501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30470112 Contact Us For Availability
420
Cover Assembly,Rear LGE ACQ30470201 Contact Us For Availability
521
Bracket LGE MAZ67574505 Contact Us For Availability
522
Bracket LGE MAZ67574615 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU67645099 Contact Us For Availability
700
Power Cord,Attach LGE EAD65949017 Contact Us For Availability
800
Plate LGE MGJ67374101 Contact Us For Availability
822
Plate Assembly LGE AGU30063501 Contact Us For Availability
840
Holder LGE MEG66681301 Contact Us For Availability
860
Bracket LGE MAZ67599901 Contact Us For Availability
AAH1
Hanger LGE MEC63568104 Contact Us For Availability
AH2
Holder LGE MEG66680801 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW2
Screw,Machine LGE FAB32838809 Contact Us For Availability
HP1
Harness,Single LGE EAD65834513 Contact Us For Availability
HS1
Harness,Multi LGE EAD65894914 Contact Us For Availability
HT1
Harness,Single LGE EAD63026116 Contact Us For Availability
HT2
Harness,Single LGE EAD63046219 Contact Us For Availability
HW1
Harness,Multi LGE EAD66028703 Contact Us For Availability
LV2
Cable,FFC LGE EAD66039007 Contact Us For Availability
× ![]()
