Model LG OLED83C5PUA – Common Parts & Diagrams
Diagram 0

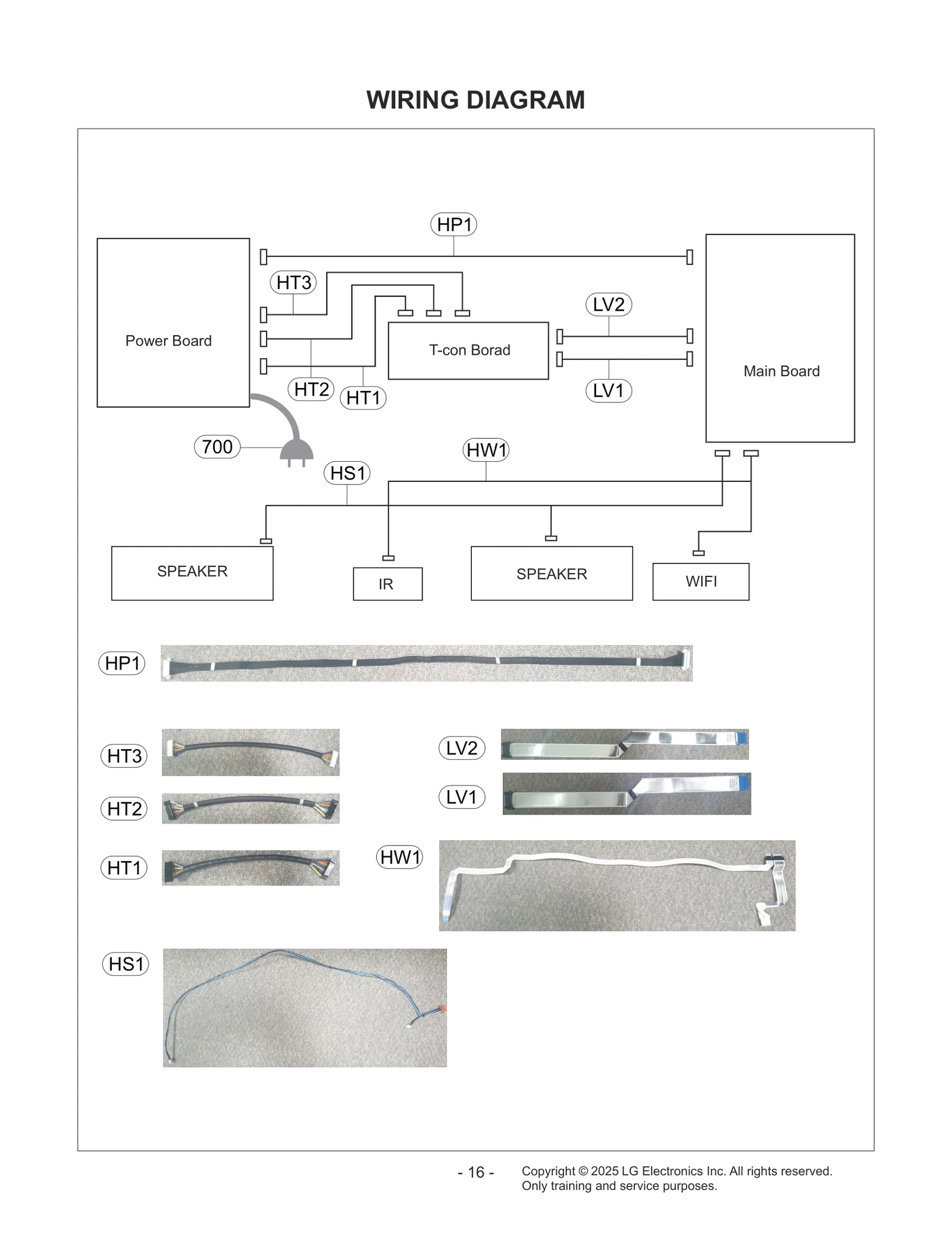

Diagram 1
Common parts from model LG OLED83C5PUA
200
OLED Module Assembly LGE EAJ65971309 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30746503 Contact Us For Availability
411
Bracket LGE MAZ67883103 Contact Us For Availability
521
Bracket Assembly LGE ABA30105550 Contact Us For Availability
530
PCB Assembly,Power package LGE EBR44469401 Contact Us For Availability
540
Mainboard,ORP Total Assembly,SVC LGE EBU30167008 Contact Us For Availability
571
Bracket LGE MAZ67455507 Contact Us For Availability
700
Power Cord,Attach LGE EAD66026902 Contact Us For Availability
810
Plate Assembly LGE AGU30128302 Contact Us For Availability
900
Base Assembly LGE AAN30161202 Contact Us For Availability
910
Bracket Assembly,Stand LGE ABA30135302 Contact Us For Availability
920
Cover,Accessory LGE MCK71971002 Contact Us For Availability
AH8
Holder LGE MEG66743401 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HP1
Harness,Single LGE EAD65305522 Contact Us For Availability
HS1
Harness,Multi LGE EAD65705225 Contact Us For Availability
HT1
Harness,Single LGE EAD63026141 Contact Us For Availability
HT2
Harness,Single LGE EAD63046204 Contact Us For Availability
HT3
Harness,Single LGE EAD63046230 Contact Us For Availability
HW1
Cable,FFC LGE EAD65940114 Contact Us For Availability
LV1
Cable,FFC LGE EAD66037717 Contact Us For Availability
LV2
Cable,FFC LGE EAD66039017 Contact Us For Availability
× ![]()
