Model LG OLED83B5PUA – Common Parts & Diagrams

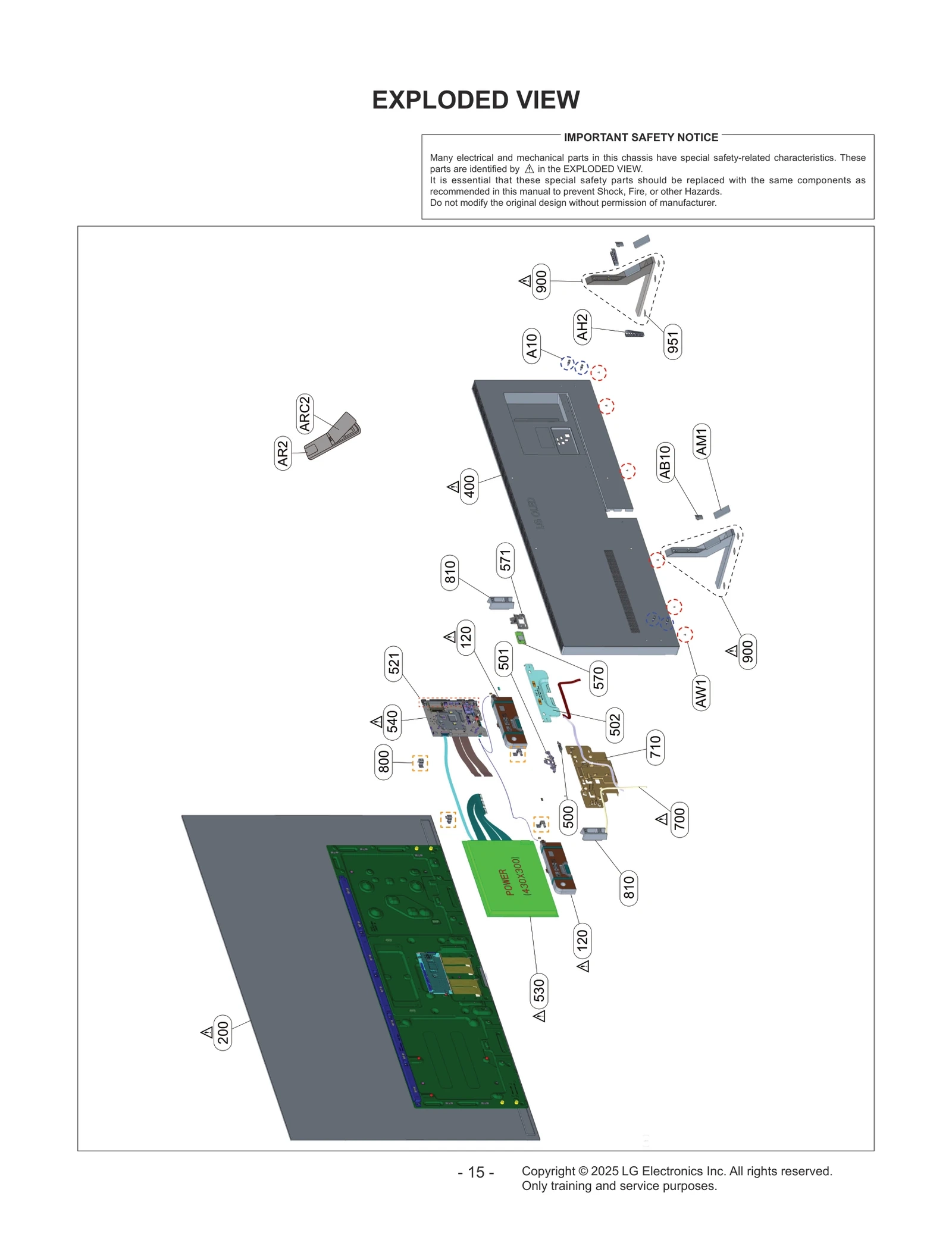

Diagram 0
Diagram 1
Common parts from model LG OLED83B5PUA
120
Speaker Assembly LGE EAB65829504 Contact Us For Availability
200
OLED Module Assembly LGE EAJ30027003 Contact Us For Availability
400
Cover Assembly LGE ACQ30745908 Contact Us For Availability
501
Bracket LGE MAZ67571208 Contact Us For Availability
502
Plate Assembly LGE AGU30128702 Contact Us For Availability
521
Bracket LGE MAZ67571024 Contact Us For Availability
530
PCB Assembly,Power package LGE EBR44469401 Contact Us For Availability
571
Bracket LGE MAZ67455526 Contact Us For Availability
700
Power Cord,Attach LGE EAD66026902 Contact Us For Availability
710
Bracket LGE MAZ67883104 Contact Us For Availability
810
Bracket LGE MAZ67885302 Contact Us For Availability
900
Base Assembly LGE AAN30160302 Contact Us For Availability
951
Damper LGE MCQ68894012 Contact Us For Availability
A10
Screw Assembly LGE FAB35012902 Contact Us For Availability
AB10
Bracket LGE MAZ67817302 Contact Us For Availability
AH2
Holder LGE MEG66730904 Contact Us For Availability
AM1
Cover,Stand LGE MCK71846406 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HP1
Harness,Single LGE EAD65305514 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727386 Contact Us For Availability
HT1
Harness,Single LGE EAD63026141 Contact Us For Availability
HT2
Harness,Single LGE EAD63046230 Contact Us For Availability
HT3
Harness,Single LGE EAD63046204 Contact Us For Availability
HW1
Cable,FFC LGE EAD65940115 Contact Us For Availability
LV1
Cable,FFC LGE EAD66039020 Contact Us For Availability
LV2
Cable,FFC LGE EAD66037723 Contact Us For Availability
× ![]()
