Model LG OLED77W7P – Common Parts & Diagrams

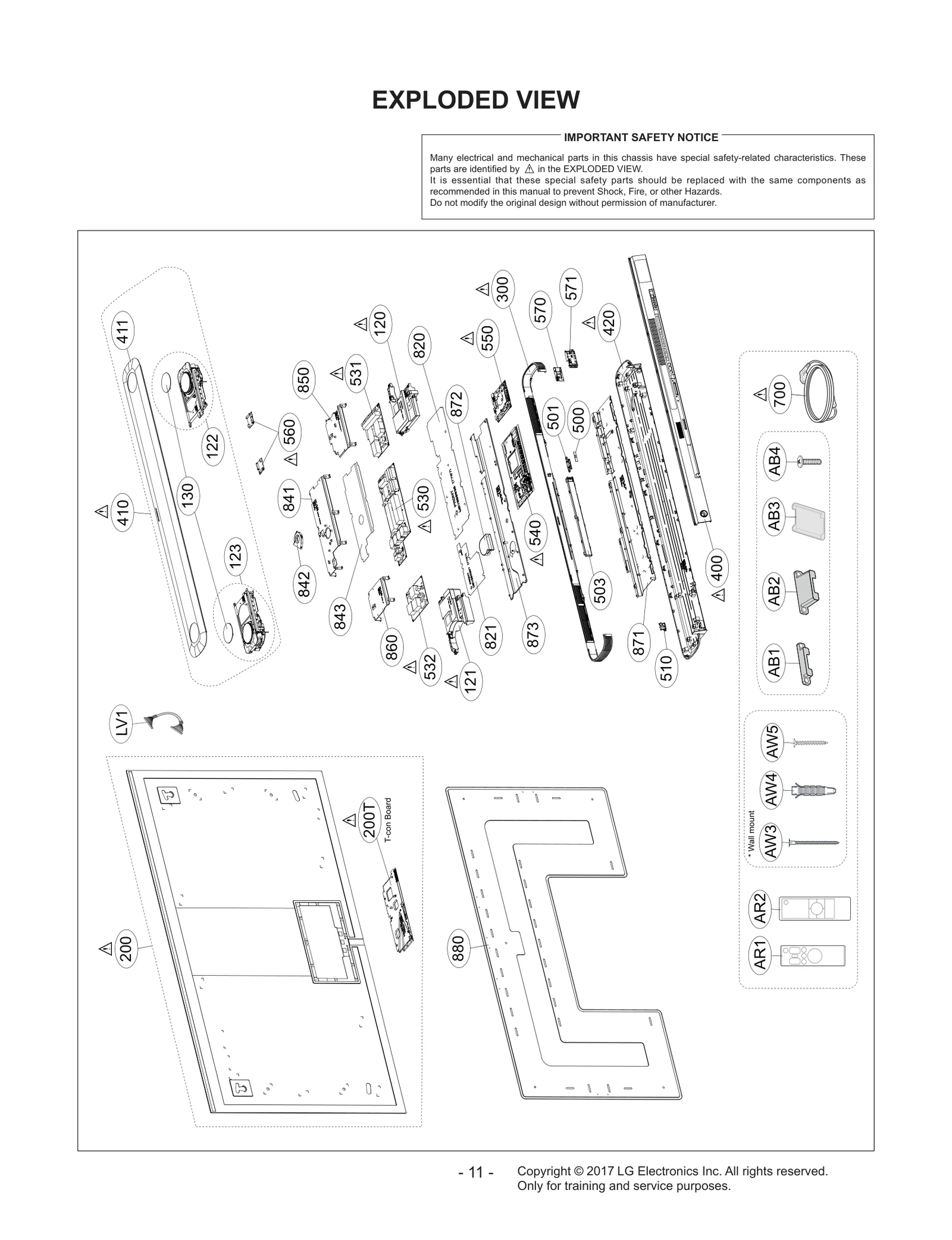

Diagram 0
Diagram 1
Common parts from model LG OLED77W7P
122
Chassis Assembly LGE EBT64575001 Contact Us For Availability
123
Chassis Assembly LGE EBT64575002 Contact Us For Availability
130
Cover LGE MCK69312501 Contact Us For Availability
200
OLED,Module-AM LGE EAJ63950001 Contact Us For Availability
200T
Time Control LGE EAT63655601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75527301 Contact Us For Availability
400
Cover Assembly LGE ACQ89386911 Contact Us For Availability
411
Cover LGE MCK69331101 Contact Us For Availability
420
Cover LGE MCK69313301 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR83590501 Contact Us For Availability
501
Indicator LGE MES63898601 Contact Us For Availability
503
PCB Assembly,IR Key LGE EBR83842801 Contact Us For Availability
510
PCB Assembly,IR Key LGE EBR83590701 Contact Us For Availability
531
Power Supply Assembly LGE EAY64450203 Contact Us For Availability
532
Power Supply Assembly LGE EAY64450201 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU64032901 Contact Us For Availability
550
BPR Total Assembly LGE EBU64074601 Contact Us For Availability
560
BPR Total Assembly LGE EBU64052801 Contact Us For Availability
571
Bracket LGE MAZ65405102 Contact Us For Availability
700
Power Cord,Attach LGE EAD64007302 Contact Us For Availability
820
Insulator LGE MEV65993601 Contact Us For Availability
821
Insulator LGE MEV66230701 Contact Us For Availability
841
Plate,Shield LGE MGJ65219801 Contact Us For Availability
842
Fan Module LGE EAL61800806 Contact Us For Availability
843
Insulator LGE MEV65971401 Contact Us For Availability
850
Plate Assembly LGE AGU75770601 Contact Us For Availability
860
Plate Assembly LGE AGU75770701 Contact Us For Availability
871
Base LGE MAM64388001 Contact Us For Availability
872
Fan Module LGE EAL61800803 Contact Us For Availability
880
Bracket Assembly LGE ABA76148203 Contact Us For Availability
AB2
Bracket LGE MAZ65446603 Contact Us For Availability
AB3
Bracket LGE MAZ65424501 Contact Us For Availability
AB4
Screw,Taptite LGE FAB32938601 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75056102 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB75056002 Contact Us For Availability
AW3
Screw,Tapping LGE FAB31878702 Contact Us For Availability
AW4
Bracket LGE MAZ63843201 Contact Us For Availability
AW5
Screw,Tapping LGE FAB31878706 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572219 Contact Us For Availability
S3
Harness,Single LGE EAD63970902 Contact Us For Availability
S4
Harness,Multi LGE EAD64065302 Contact Us For Availability
S5
Harness,Multi LGE EAD63970704 Contact Us For Availability
S6
Harness,Multi LGE EAD63970703 Contact Us For Availability
S7
Cable,FFC LGE EAD63285710 Contact Us For Availability
S8
Harness,Multi LGE EAD63810604 Contact Us For Availability
S9
Cable,FFC LGE EAD63285609 Contact Us For Availability
S11
Harness,Single LGE EAD62825414 Contact Us For Availability
S12
Harness,Single LGE EAD62825415 Contact Us For Availability
S13
Harness,Single LGE EAD63026116 Contact Us For Availability
× ![]()
