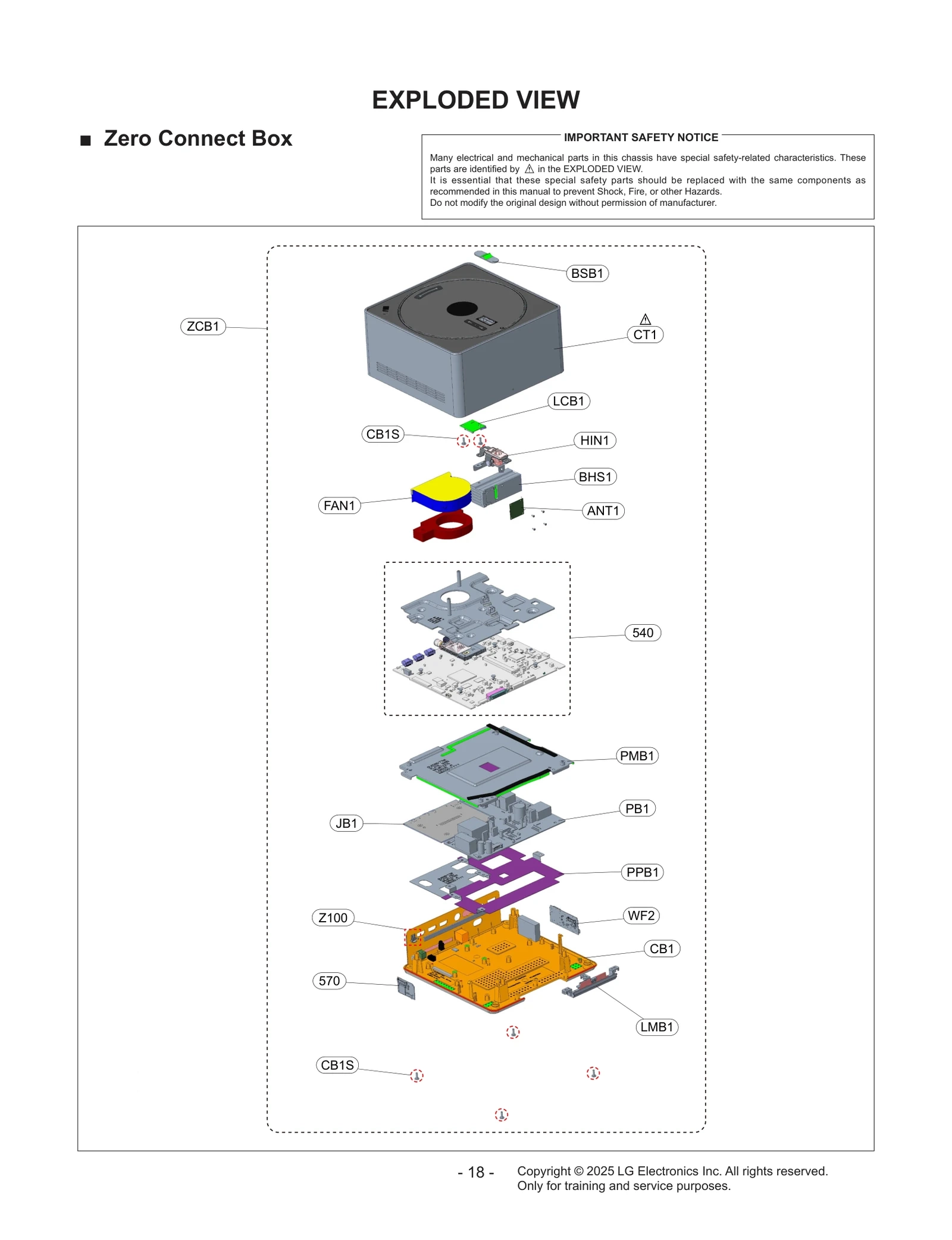

Model LG OLED77M5PUA – Common Parts & Diagrams

200
OLED Module Assembly
OLED Module Assembly LGE EAJ30028303 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30572324 Contact Us For Availability
View on Model
411
Cover Assembly,Bottom
Cover Assembly,Bottom LGE ACQ30573802 Contact Us For Availability
View on Model
500
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR23769801 Contact Us For Availability
View on Model
530
PCB Assembly,Power package
PCB Assembly,Power package LGE EBR44420901 Contact Us For Availability
View on Model
540
Chassis Assembly
Chassis Assembly LGE EBT30129101 Contact Us For Availability
View on Model
570
Module,Bluetooth
Module,Bluetooth LGE EAT65179503 Contact Us For Availability
View on Model
710
Bracket
Bracket LGE MAZ67589104 Contact Us For Availability
View on Model
AAH1
Hanger
Hanger LGE MEC63567343 Contact Us For Availability
View on Model
AMPB1
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU30040601 Contact Us For Availability
View on Model
ANT1
Antenna Assembly
Antenna Assembly LGE EAA65977801 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
View on Model
ARC2
Part
Part LGE EBZ30385903 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model
BHS1
Heat Sink
Heat Sink LGE MED65480002 Contact Us For Availability
View on Model
BSB1
Bracket
Bracket LGE MAZ67705304 Contact Us For Availability
View on Model
CB1
Cover Assembly
Cover Assembly LGE ACQ30371961 Contact Us For Availability
View on Model
CB1S
Screw,Taptite
Screw,Taptite LGE FAB32938601 Contact Us For Availability
View on Model
CT1
Cover Assembly
Cover Assembly LGE ACQ30671601 Contact Us For Availability
View on Model
FAN1
Fan Module
Fan Module LGE EAL61800807 Contact Us For Availability
View on Model
HAP1
Harness,Multi
Harness,Multi LGE EAD66010601 Contact Us For Availability
View on Model
HAR1
Harness,Single
Harness,Single LGE EAD66009601 Contact Us For Availability
View on Model
HBA1
Harness,Single
Harness,Single LGE EAD66009502 Contact Us For Availability
View on Model
HBLP1
Harness,Multi
Harness,Multi LGE EAD66009702 Contact Us For Availability
View on Model
HIB1
Harness,Multi
Harness,Multi LGE EAD66010701 Contact Us For Availability
View on Model
HL1
Harness,Single
Harness,Single LGE EAD65851106 Contact Us For Availability
View on Model
HR1
Cable,FFC
Cable,FFC LGE EAD66055402 Contact Us For Availability
View on Model
HRF1
Cable,Assembly
Cable,Assembly LGE EAD65924705 Contact Us For Availability
View on Model
HRF2
Cable,Assembly
Cable,Assembly LGE EAD65924707 Contact Us For Availability
View on Model
HSVC1
Antenna,T
Antenna,T LGE EAA65845803 Contact Us For Availability
View on Model
HT1
Harness,Single
Harness,Single LGE EAD63026104 Contact Us For Availability
View on Model
HT2
Harness,Single
Harness,Single LGE EAD63046204 Contact Us For Availability
View on Model
HT3
Harness,Single
Harness,Single LGE EAD63046205 Contact Us For Availability
View on Model
HW1
Harness,Single
Harness,Single LGE EAD65286008 Contact Us For Availability
View on Model
JB1
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU67871801 Contact Us For Availability
View on Model
LCB1
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR35208806 Contact Us For Availability
View on Model
PB1
Power Supply Assembly
Power Supply Assembly LGE EAY65895005 Contact Us For Availability
View on Model
PMB1
Plate Assembly
Plate Assembly LGE AGU30019206 Contact Us For Availability
View on Model
PPB1
Plate Assembly
Plate Assembly LGE AGU30019104 Contact Us For Availability
View on Model
W22B1
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU30040701 Contact Us For Availability
View on Model
Z100
Knob
Knob LGE MEY65475601 Contact Us For Availability
View on Model
ZCB1
Chassis Assembly
Chassis Assembly LGE EBT30224701 Contact Us For Availability
View on Model
