  • LG OLED77G7P Parts List

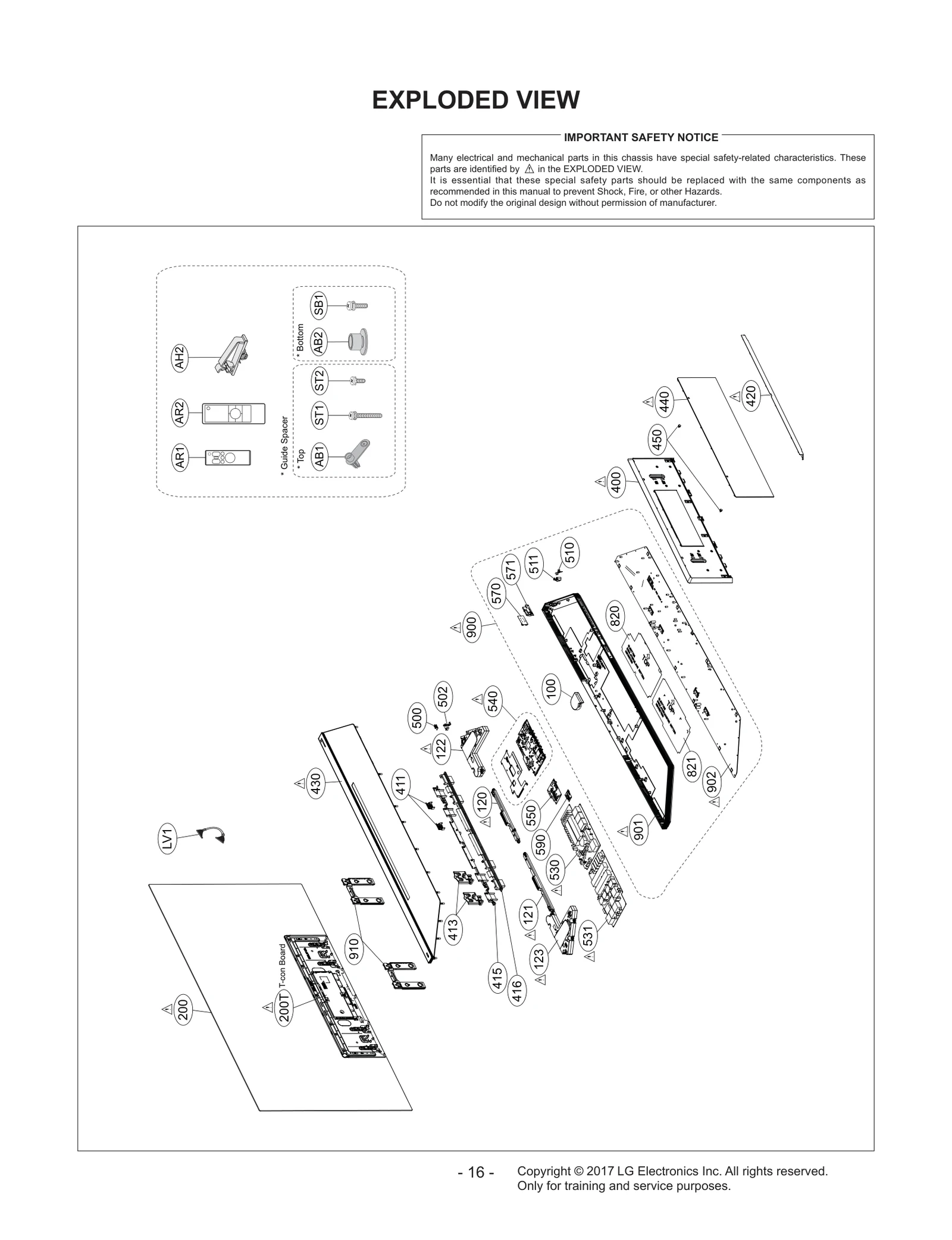

Model LG OLED77G7P – Common Parts & Diagrams

121
Speaker Assembly
Speaker Assembly LGE EAB64028312 Contact Us For Availability
View on Model
123
Speaker Assembly
Speaker Assembly LGE EAB63468606 Contact Us For Availability
View on Model
200
OLED,Module-AM
OLED,Module-AM LGE EAJ63950201 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88527803 Contact Us For Availability
View on Model
411
Bracket
Bracket LGE MAZ65167703 Contact Us For Availability
View on Model
413
Plate Assembly
Plate Assembly LGE AGU75469801 Contact Us For Availability
View on Model
415
Cover
Cover LGE MCK69067901 Contact Us For Availability
View on Model
416
Cover
Cover LGE MCK69088003 Contact Us For Availability
View on Model
420
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88589201 Contact Us For Availability
View on Model
430
Cover Assembly
Cover Assembly LGE ACQ88550301 Contact Us For Availability
View on Model
440
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88589008 Contact Us For Availability
View on Model
450
Bracket
Bracket LGE MAZ65192301 Contact Us For Availability
View on Model
500
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82055003 Contact Us For Availability
View on Model
502
Bracket
Bracket LGE MAZ65203601 Contact Us For Availability
View on Model
510
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82055202 Contact Us For Availability
View on Model
511
Bracket
Bracket LGE MAZ65149301 Contact Us For Availability
View on Model
571
Bracket
Bracket LGE MAZ65111401 Contact Us For Availability
View on Model
590
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82440302 Contact Us For Availability
View on Model
700
Power Cord,Attach
Power Cord,Attach LGE EAD64007402 Contact Us For Availability
View on Model
820
Insulator
Insulator LGE MEV65732001 Contact Us For Availability
View on Model
821
Insulator
Insulator LGE MEV65751801 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN75670530 Contact Us For Availability
View on Model
902
Base
Base LGE MAM64264301 Contact Us For Availability
View on Model
AB1
Bracket
Bracket LGE MAZ65192401 Contact Us For Availability
View on Model
AH2
Holder
Holder LGE MEG64801101 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB75056402 Contact Us For Availability
View on Model
ARC1
Bracket Assembly
Bracket Assembly LGE ABA75890301 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD61946316 Contact Us For Availability
View on Model
S1
Harness,Single
Harness,Single LGE EAD64005602 Contact Us For Availability
View on Model
S2
Harness,Multi
Harness,Multi LGE EAD64165101 Contact Us For Availability
View on Model
S3
Cable,FFC
Cable,FFC LGE EAD63810101 Contact Us For Availability
View on Model
S4
Harness,Single
Harness,Single LGE EAD63046210 Contact Us For Availability
View on Model
S5
Cable,FFC
Cable,FFC LGE EAD63810201 Contact Us For Availability
View on Model
S6
Harness,Single
Harness,Single LGE EAD63026112 Contact Us For Availability
View on Model
S8
Harness,Multi
Harness,Multi LGE EAD64165202 Contact Us For Availability
View on Model
S9
Harness,Single
Harness,Single LGE EAD64168901 Contact Us For Availability
View on Model
S10
Harness,Multi
Harness,Multi LGE EAD63305605 Contact Us For Availability
View on Model
SB1
Screw,Machine
Screw,Machine LGE FAB30007012 Contact Us For Availability
View on Model
ST1
Screw,Machine
Screw,Machine LGE FAB30007016 Contact Us For Availability
View on Model
