Model LG OLED77A2PUA – Common Parts & Diagrams

Common parts from model LG OLED77A2PUA

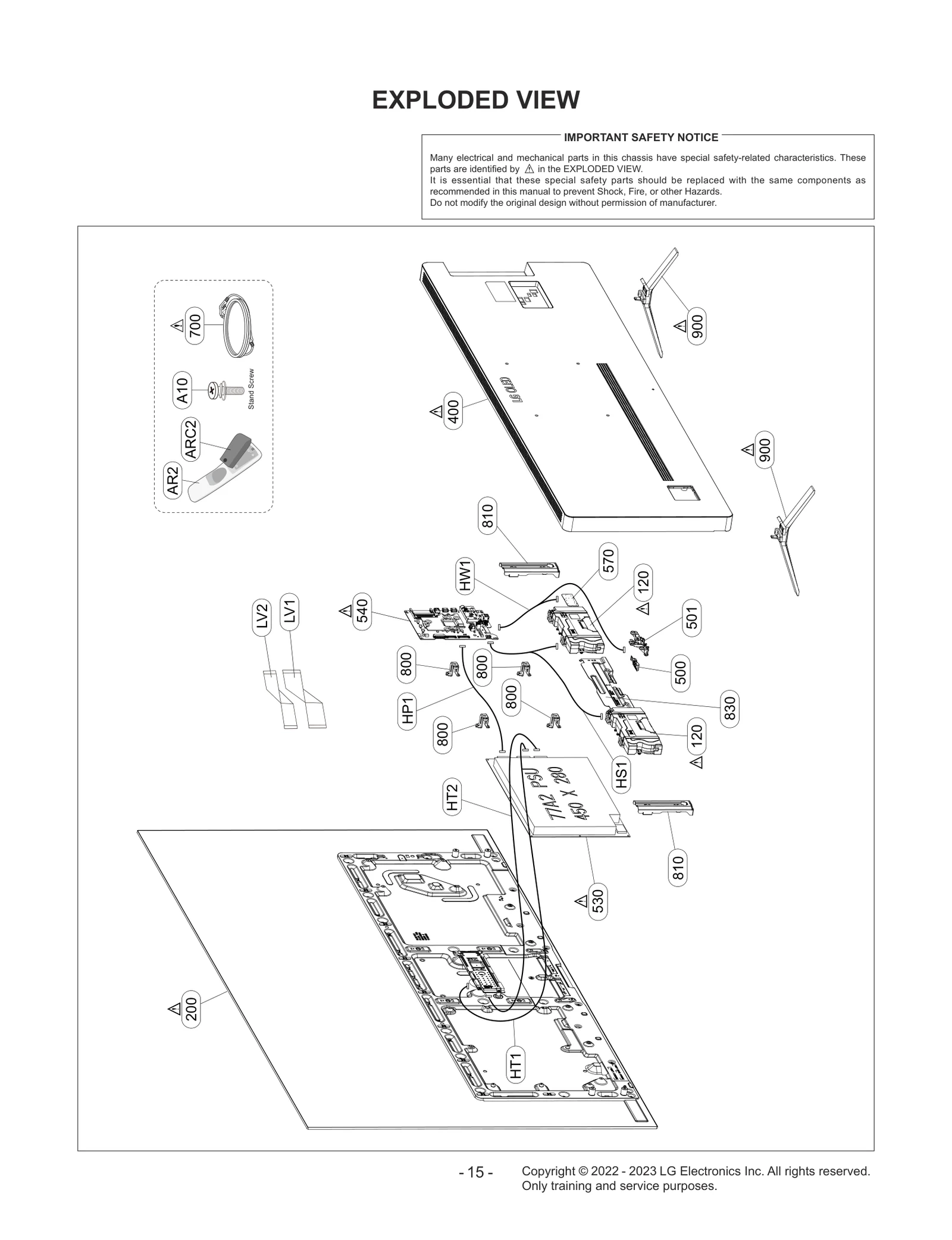

Diagram 0

Print

• This Diagram
• All Diagrams

120

Speaker Assembly LGE EAB64370908 Contact Us For Availability

View on Model

200

OLED Module Assembly LGE EAJ65773403 Contact Us For Availability

View on Model

400

Cover Assembly,Rear LGE ACQ30457102 Contact Us For Availability

View on Model

500

EBR35208501 LG IR Key PCB Assembly Backorder LGE EBR35208501 View Details $17.46

View on Model

501

Bracket Backorder LGE MAZ67571202 View Details $3.79

View on Model

530

EAY65689425 LG Power Supply Assembly Backorder LGE EAY65689425 View Details $338.49

View on Model

530

EBR33783401 LG Power Package PCB Assembly Backorder LGE EBR33783401 View Details $556.80

View on Model

540

EBU66781401 LG Total Assembly Mainboard Backorder LGE EBU66781401 View Details $226.96

View on Model

570

EAT65167004 LG Bluetooth Module Backorder LGE EAT65167004 View Details $49.13

View on Model

700

EAD64007502 LG Power Cord Backorder LGE EAD64007502 View Details $21.15

View on Model

800

MAZ66347902 LG Mount Bracket Backorder LGE MAZ66347902 View Details $2.23

View on Model

810

Bracket LGE MAZ67509503 Contact Us For Availability

View on Model

830

BRACKET Backorder LGE MAZ67570802 View Details $17.46

View on Model

900

Base Assembly LGE AAN30044702 Contact Us For Availability

View on Model

A10

Screw Assembly LGE FAB30016137 Contact Us For Availability

View on Model

AR2

AKB76039902 LG Remote Controller Assembly Backorder LGE AKB76039902 View Details $65.22

View on Model

ARC2

Backorder LGE EBZ64559402 View Details $3.79

View on Model

HP1

Harness,Single LGE EAD65305517 Contact Us For Availability

View on Model

HS1

Harness,Multi LGE EAD63727363 Contact Us For Availability

View on Model

HT1

Harness,Multi Backorder LGE EAD65944101 View Details $17.46

View on Model

HT2

Harness,Single LGE EAD63026120 Contact Us For Availability

View on Model

HW1

Cable,FFC LGE EAD65940108 Contact Us For Availability

View on Model

LV1

Cable,FFC LGE EAD63787927 Contact Us For Availability

View on Model

LV2

Cable,FFC LGE EAD63787848 Contact Us For Availability

View on Model

×
