Model LG OLED65WXPUA – Common Parts & Diagrams

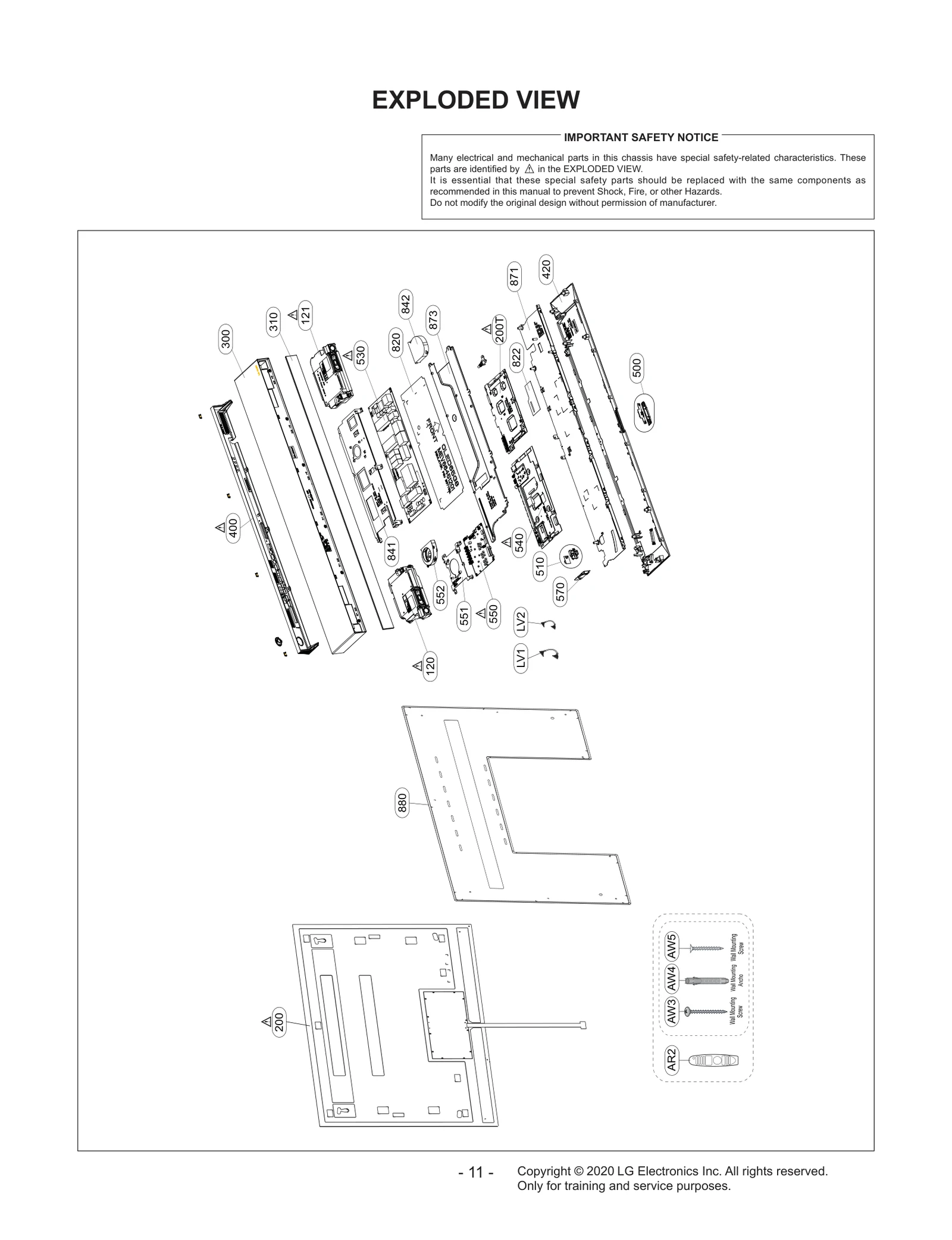

Diagram 0
Diagram 1
Common parts from model LG OLED65WXPUA
200
OLED,Module-AM LGE EAJ65665301 Contact Us For Availability
310
Cover Assembly LGE ACQ91604905 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91604806 Contact Us For Availability
420
Cover LGE MCK71072902 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR89471901 Contact Us For Availability
510
PCB Assembly,IR Key LGE EBR83590701 Contact Us For Availability
530
Power Supply Assembly LGE EAY65729001 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU66142902 Contact Us For Availability
550
sub PCBA,BPR Total Assembly,SVC LGE EBU66143002 Contact Us For Availability
551
Plate,Shield LGE MGJ65218405 Contact Us For Availability
700
Power Cord,Attach LGE EAD64007302 Contact Us For Availability
822
Insulator LGE MEV66091201 Contact Us For Availability
841
Plate Assembly LGE AGU75728520 Contact Us For Availability
842
Fan Module LGE EAL61800807 Contact Us For Availability
871
Base LGE MAM65764601 Contact Us For Availability
873
Plate LGE MGJ66904802 Contact Us For Availability
880
Bracket Assembly LGE ABA76070704 Contact Us For Availability
AW3
Screw,Tapping LGE FAB31878702 Contact Us For Availability
AW4
Bracket LGE MAZ63843201 Contact Us For Availability
AW5
Screw,Tapping LGE FAB31878706 Contact Us For Availability
HF1
Harness,Single LGE EAD64551401 Contact Us For Availability
HK1
Harness,Multi LGE EAD64065201 Contact Us For Availability
HP1
Harness,Multi LGE EAD64551302 Contact Us For Availability
HR1
Harness,Multi LGE EAD64065304 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285710 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285609 Contact Us For Availability
× ![]()
