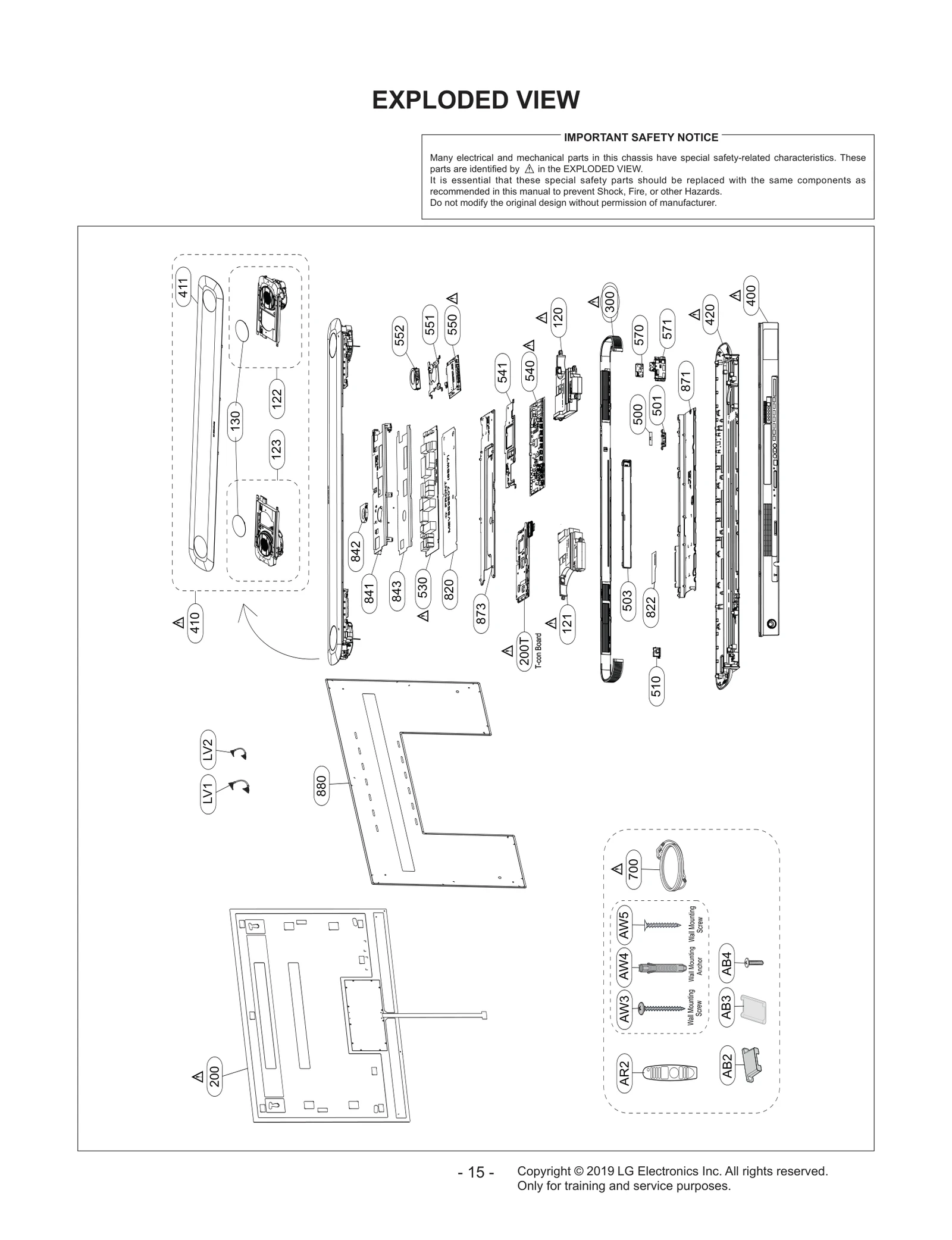

Model LG OLED65W9PUA – Common Parts & Diagrams

121
Speaker Assembly
Speaker Assembly LGE EAB64370403 Contact Us For Availability
View on Model
122
Speaker Assembly
Speaker Assembly LGE EAB64370401 Contact Us For Availability
View on Model
130
Cover
Cover LGE MCK69312501 Contact Us For Availability
View on Model
200
OLED,Module-AM
OLED,Module-AM LGE EAJ65665301 Contact Us For Availability
View on Model
200
OLED,Module-AM
OLED,Module-AM LGE EAJ64671301 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ75547104 Contact Us For Availability
View on Model
410
Cover Assembly
Cover Assembly LGE ACQ89352806 Contact Us For Availability
View on Model
411
Cover
Cover LGE MCK69312403 Contact Us For Availability
View on Model
420
Cover Assembly
Cover Assembly LGE ACQ89320409 Contact Us For Availability
View on Model
500
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR83590501 Contact Us For Availability
View on Model
501
Indicator
Indicator LGE MES63898602 Contact Us For Availability
View on Model
503
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR83842801 Contact Us For Availability
View on Model
510
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR83590701 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU65583101 Contact Us For Availability
View on Model
541
Plate,Shield
Plate,Shield LGE MGJ65882606 Contact Us For Availability
View on Model
550
BPR Total Assembly
BPR Total Assembly LGE EBU65543601 Contact Us For Availability
View on Model
551
Plate,Shield
Plate,Shield LGE MGJ65218403 Contact Us For Availability
View on Model
571
Bracket
Bracket LGE MAZ65405106 Contact Us For Availability
View on Model
700
Power Cord,Attach
Power Cord,Attach LGE EAD64007302 Contact Us For Availability
View on Model
822
Insulator
Insulator LGE MEV66091201 Contact Us For Availability
View on Model
842
Fan Module
Fan Module LGE EAL61800806 Contact Us For Availability
View on Model
843
Plate,Shield
Plate,Shield LGE MGJ65218503 Contact Us For Availability
View on Model
871
Base
Base LGE MAM64387604 Contact Us For Availability
View on Model
880
Bracket Assembly
Bracket Assembly LGE ABA76070704 Contact Us For Availability
View on Model
AB2
Bracket
Bracket LGE MAZ65446603 Contact Us For Availability
View on Model
AB3
Bracket
Bracket LGE MAZ65424501 Contact Us For Availability
View on Model
AB4
Screw,Taptite
Screw,Taptite LGE FAB32938601 Contact Us For Availability
View on Model
AW3
Screw,Tapping
Screw,Tapping LGE FAB31878702 Contact Us For Availability
View on Model
AW4
Bracket
Bracket LGE MAZ63843201 Contact Us For Availability
View on Model
AW5
Screw,Tapping
Screw,Tapping LGE FAB31878706 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63285609 Contact Us For Availability
View on Model
LV2
Cable,FFC
Cable,FFC LGE EAD63285710 Contact Us For Availability
View on Model
