Model LG OLED65W7P – Common Parts & Diagrams

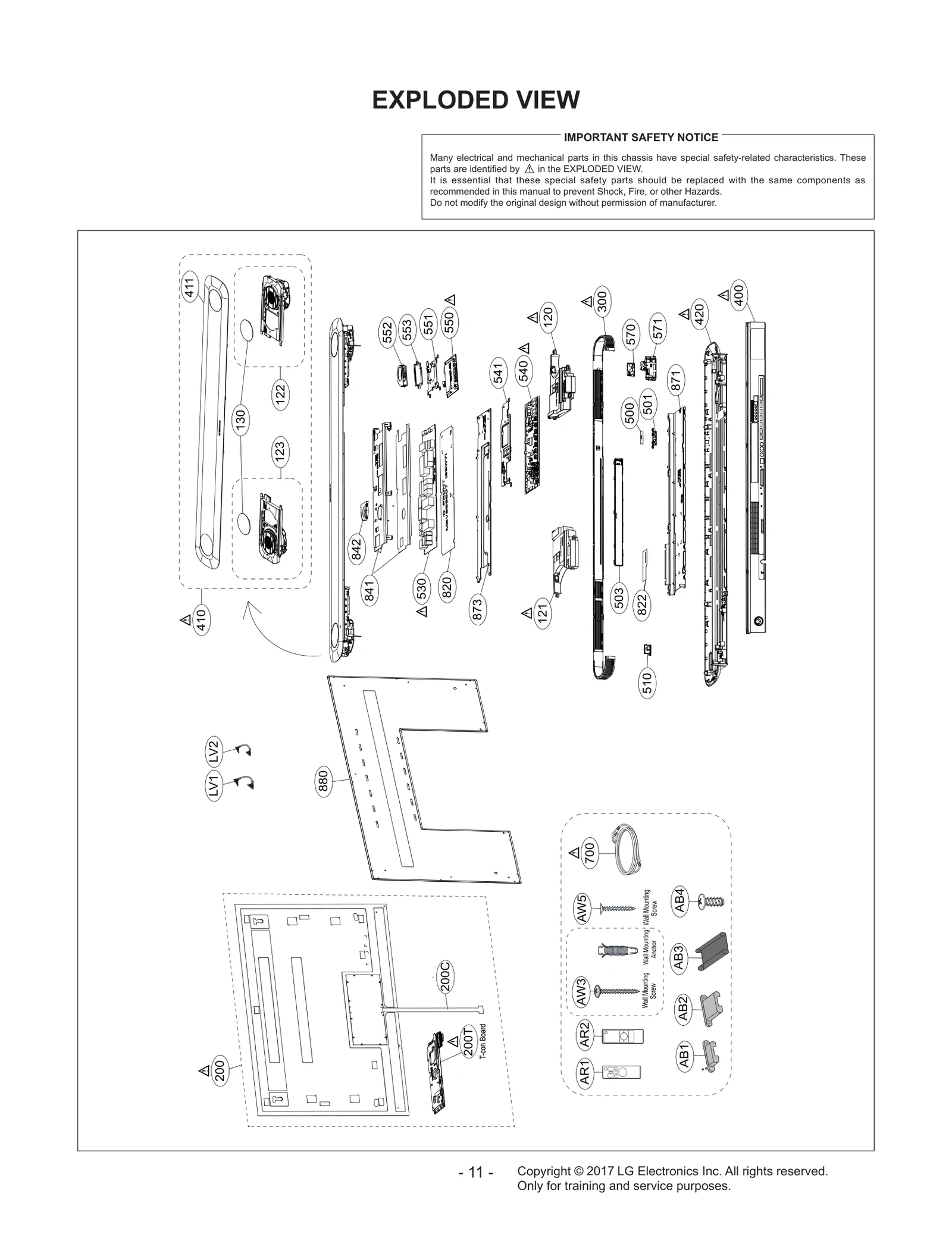

Diagram 0
Diagram 1
Common parts from model LG OLED65W7P
121
Speaker Assembly LGE EAB64370403 Contact Us For Availability
123
Speaker Assembly LGE EAB64370401 Contact Us For Availability
130
Cover LGE MCK69312501 Contact Us For Availability
200
OLED,Module-AM LGE EAJ63950101 Contact Us For Availability
200C
Wire,Flat LGE EAD64248702 Contact Us For Availability
200T
Time Control LGE EAT63655501 Contact Us For Availability
410
Cover Assembly LGE ACQ89352802 Contact Us For Availability
411
Cover LGE MCK69312401 Contact Us For Availability
420
Cover Assembly LGE ACQ89320403 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR83590501 Contact Us For Availability
501
Indicator LGE MES63898602 Contact Us For Availability
503
PCB Assembly,IR Key LGE EBR83842801 Contact Us For Availability
510
PCB Assembly,IR Key LGE EBR83590701 Contact Us For Availability
530
Power Supply Assembly LGE EAY64470001 Contact Us For Availability
541
Plate,Shield LGE MGJ65218303 Contact Us For Availability
550
Chassis Assembly LGE EBT64462021 Contact Us For Availability
551
Plate,Shield LGE MGJ65218403 Contact Us For Availability
553
Bracket LGE MAZ65409302 Contact Us For Availability
571
Bracket LGE MAZ65405106 Contact Us For Availability
700
Power Cord,Attach LGE EAD64007302 Contact Us For Availability
822
Insulator LGE MEV66091201 Contact Us For Availability
841
Plate Assembly LGE AGU75728504 Contact Us For Availability
842
Fan Module LGE EAL61800806 Contact Us For Availability
871
Base LGE MAM64387602 Contact Us For Availability
880
Bracket Assembly LGE ABA76070704 Contact Us For Availability
AB1
Bracket LGE MAZ65503204 Contact Us For Availability
AB3
Bracket LGE MAZ65424502 Contact Us For Availability
AB4
Screw,Taptite LGE FAB32938601 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75056102 Contact Us For Availability
AW3
Install kit,Package Assembly LGE AGF76758014 Contact Us For Availability
AW5
Install kit,Package Assembly LGE AGF76758018 Contact Us For Availability
B1
Box LGE MAY67890001 Contact Us For Availability
B1
Box LGE MAY67890002 Contact Us For Availability
CA1
Harness,Multi LGE EAD63810603 Contact Us For Availability
CA2
Harness,Multi LGE EAD63727413 Contact Us For Availability
CA3
Harness,Single LGE EAD64065001 Contact Us For Availability
CA4
Harness,Single LGE EAD63970902 Contact Us For Availability
CA5
Harness,Multi LGE EAD64065301 Contact Us For Availability
CA6
Harness,Multi LGE EAD64065201 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285609 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285710 Contact Us For Availability
P5901
Conector,Wafer LGE 6602T25009G Contact Us For Availability
× ![]()
