Model LG OLED65R1PUA – Common Parts & Diagrams

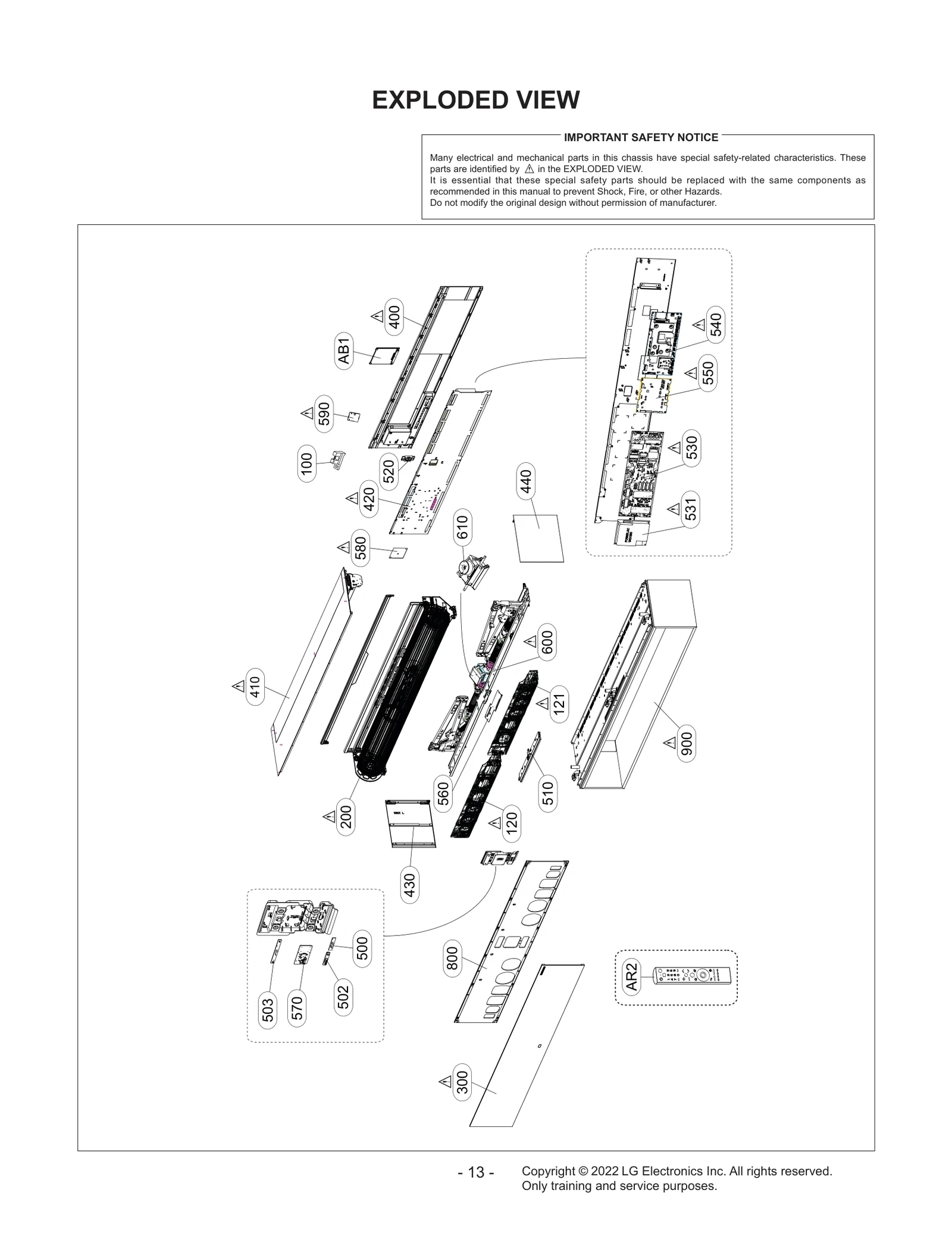

Diagram 0

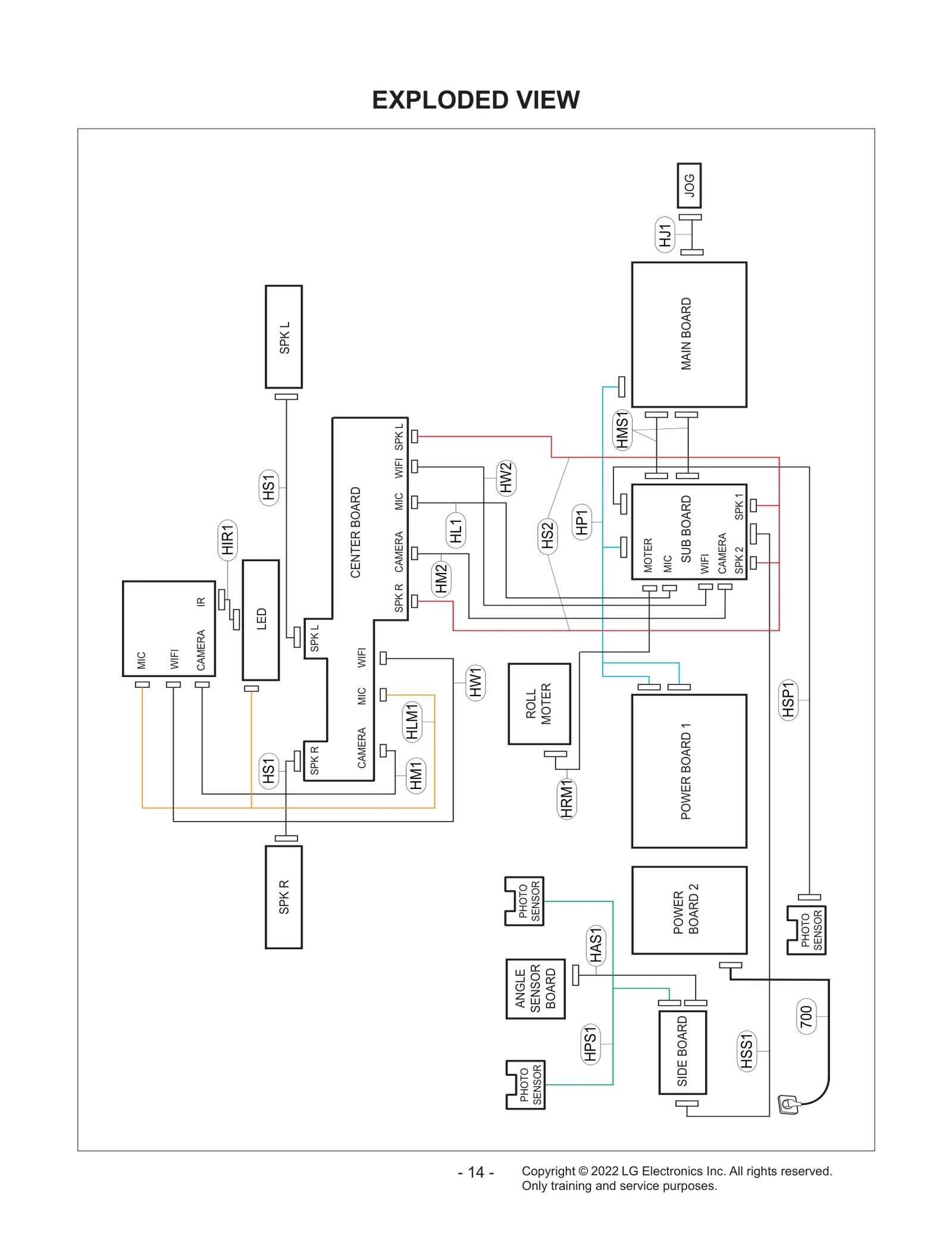

Diagram 1
Common parts from model LG OLED65R1PUA
100
Photo,Interrupter LGE EAV63555701 Contact Us For Availability
200
OLED,Module-AM LGE EAJ65730801 Contact Us For Availability
200
OLED,Module-AM LGE EAJ65771601 Contact Us For Availability
300
Cover Assembly LGE ACQ90969401 Contact Us For Availability
400
Cover Assembly LGE ACQ90788303 Contact Us For Availability
410
Cover Assembly LGE ACQ90810201 Contact Us For Availability
420
Cover Assembly LGE ACQ91152302 Contact Us For Availability
430
Cover Assembly LGE ACQ90876451 Contact Us For Availability
440
Cover Assembly LGE ACQ90876452 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR87460001 Contact Us For Availability
502
Camera Module LGE EBP63741801 Contact Us For Availability
503
PCB Assembly,Control LGE EBR30394901 Contact Us For Availability
510
PCB Assembly,Control LGE EBR87263701 Contact Us For Availability
520
PCB Assembly,IR Key LGE EBR85661402 Contact Us For Availability
530
Power Supply Assembly LGE EAY65308602 Contact Us For Availability
531
Power Supply Assembly LGE EAY65308601 Contact Us For Availability
531
Power Supply Assembly LGE EAY65308603 Contact Us For Availability
550
sub PCBA,BPR Total Assembly,SVC LGE EBU66319901 Contact Us For Availability
560
sub PCBA,BPR Total Assembly,SVC LGE EBU66320601 Contact Us For Availability
580
sub PCBA,BPR Total Assembly,SVC LGE EBU66320501 Contact Us For Availability
590
sub PCBA,BPR Total Assembly,SVC LGE EBU66320401 Contact Us For Availability
600
Movable Part Assembly LGE AFX74912803 Contact Us For Availability
610
Motor,DC LGE EAU64462901 Contact Us For Availability
700
Power Cord,Attach LGE EAD64285302 Contact Us For Availability
800
Plate Assembly LGE AGU76828001 Contact Us For Availability
900
Base Assembly LGE AAN77328903 Contact Us For Availability
AB1
Bracket LGE MAZ66543601 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76036602 Contact Us For Availability
HIR1
Harness,Single LGE EAD65325401 Contact Us For Availability
HL1
Harness,Single LGE EAD65325501 Contact Us For Availability
HLM1
Harness,Multi LGE EAD65365501 Contact Us For Availability
HM1
Harness,Single LGE EAD64808705 Contact Us For Availability
HMS1
Cable,FFC LGE EAD65386801 Contact Us For Availability
HP1
Harness,Multi LGE EAD65365701 Contact Us For Availability
HPS1
Harness,Multi LGE EAD65325301 Contact Us For Availability
HRM1
Harness,Single LGE EAD65325601 Contact Us For Availability
HS2
Harness,Multi LGE EAD63811403 Contact Us For Availability
HSP1
Harness,Multi LGE EAD65365401 Contact Us For Availability
HSS1
Harness,Single LGE EAD65365601 Contact Us For Availability
× ![]()
