Model LG OLED65E6P – Common Parts & Diagrams

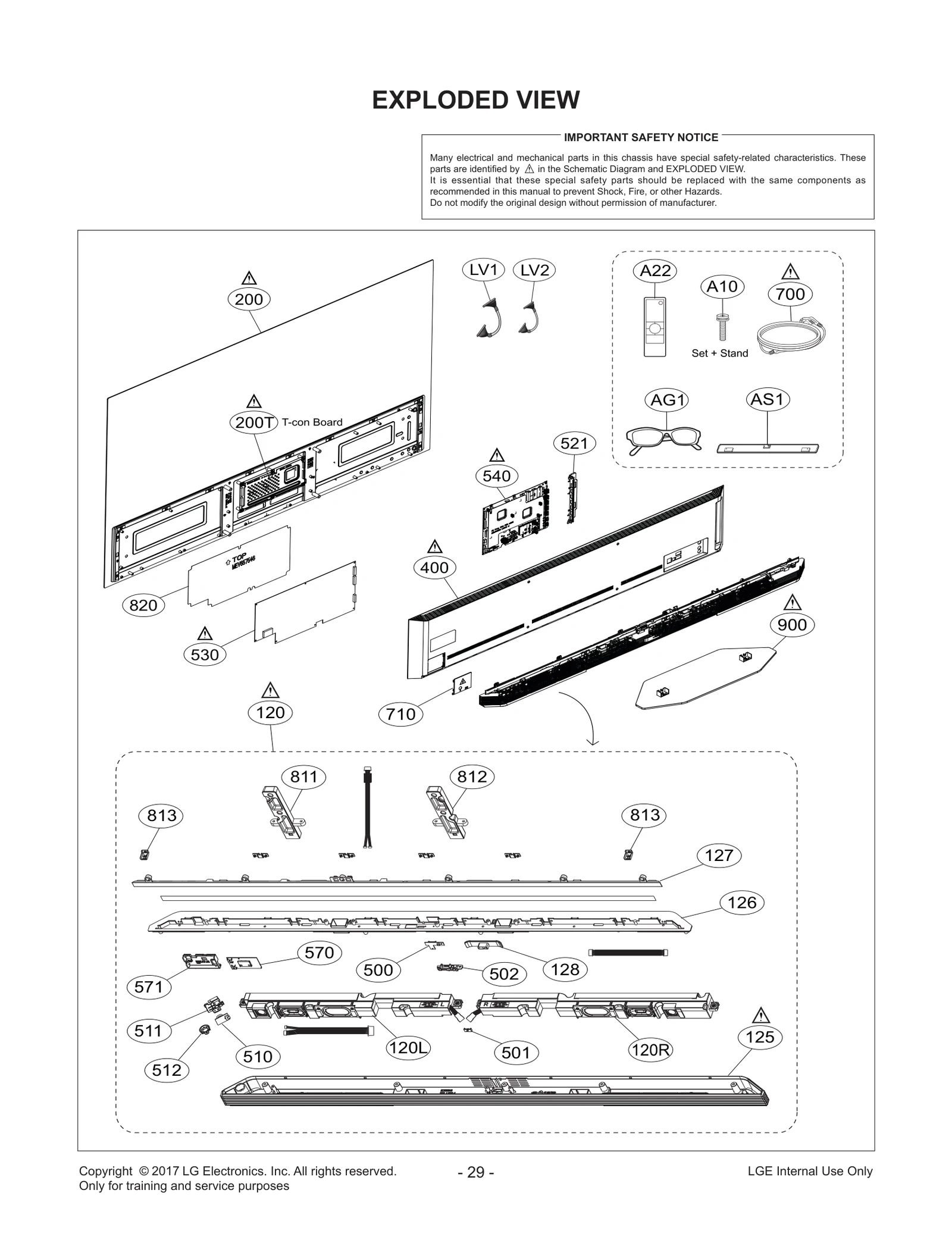

Diagram 0
Diagram 1
Common parts from model LG OLED65E6P
125
Cover Assembly LGE ACQ88553101 Contact Us For Availability
127
Bracket LGE MAZ65184501 Contact Us For Availability
200T
Time Control LGE EAT63793901 Contact Us For Availability
200T
Time Control LGE EAT63593501 Contact Us For Availability
200T
Time Control LGE EAT63360701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88500011 Contact Us For Availability
501
Indicator LGE MES63698301 Contact Us For Availability
502
Bracket LGE MAZ65203901 Contact Us For Availability
511
Bracket LGE MAZ65224001 Contact Us For Availability
512
Cover LGE MCK69105501 Contact Us For Availability
521
Bracket LGE MAZ65203702 Contact Us For Availability
530
Power Supply Assembly LGE EAY64349101 Contact Us For Availability
540
Chassis Assembly LGE EBT64180015 Contact Us For Availability
710
Bracket LGE MAZ65184302 Contact Us For Availability
811
Bracket LGE MAZ65204003 Contact Us For Availability
812
Bracket LGE MAZ65204004 Contact Us For Availability
813
Supporter LGE MJH64333401 Contact Us For Availability
820
Insulator LGE MEV65754601 Contact Us For Availability
900
Base Assembly LGE AAN75650702 Contact Us For Availability
A22
Package Assembly LGE AGF78381201 Contact Us For Availability
AG1
Accessory,3D Glasses LGE EBX61668505 Contact Us For Availability
AS1
Cover LGE MCK69105402 Contact Us For Availability
B1
Box LGE MAY67554901 Contact Us For Availability
CA1
Harness,Single LGE EAD63026108 Contact Us For Availability
CA3
Harness,Single LGE EAD63429405 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61273133 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285708 Contact Us For Availability
× ![]()
