Model LG OLED65C6P – Common Parts & Diagrams

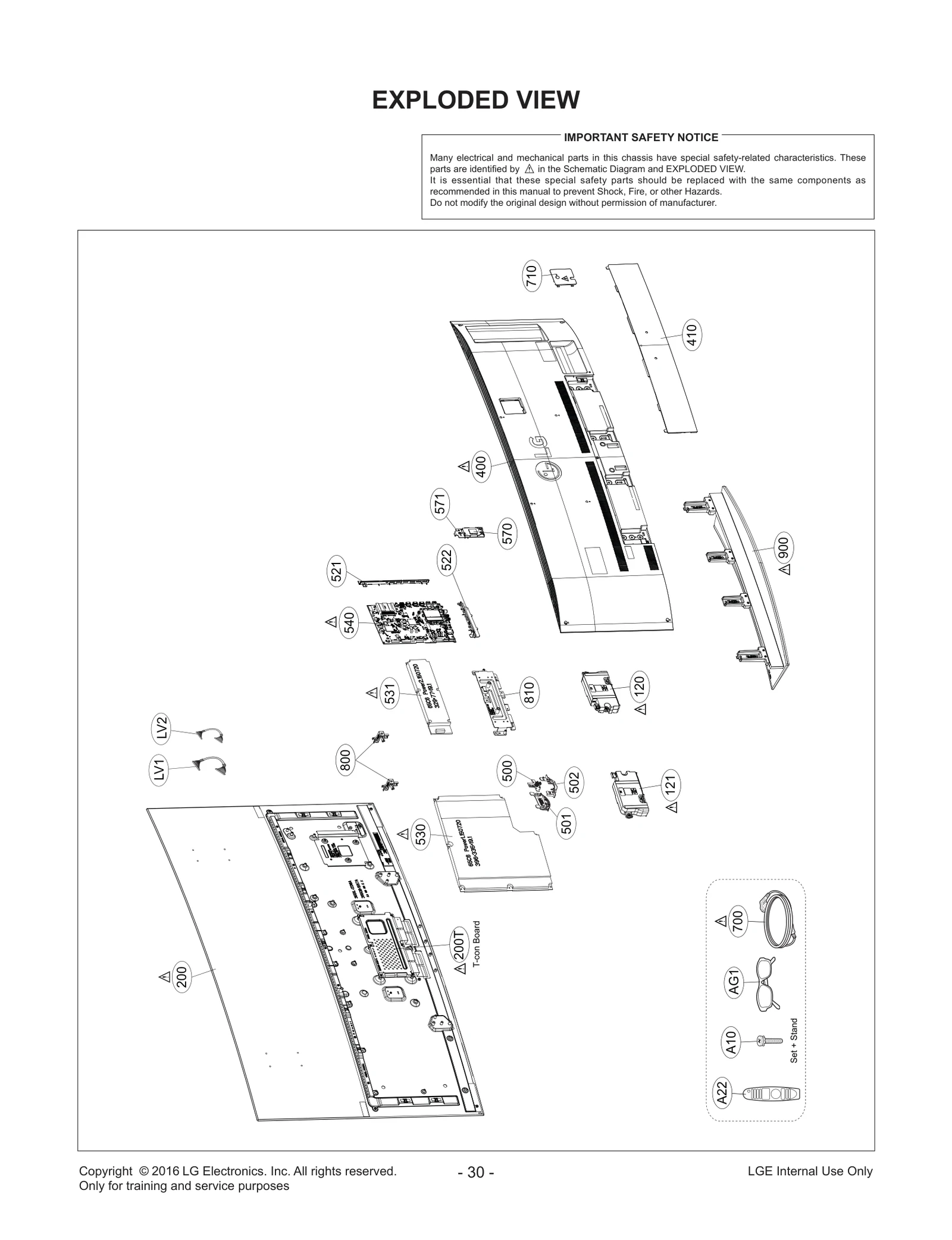

Diagram 0
Diagram 1
Common parts from model LG OLED65C6P
200
OLED,Module-AM LGE EAJ63853001 Contact Us For Availability
200
OLED,Module-AM LGE EAJ63851801 Contact Us For Availability
200T
Time Control LGE EAT63593501 Contact Us For Availability
200T
Time Control LGE EAT63793901 Contact Us For Availability
200T
Time Control LGE EAT63360701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88613901 Contact Us For Availability
410
Cover Assembly LGE ACQ87873407 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR82055601 Contact Us For Availability
501
Bracket Assembly LGE ABA75888801 Contact Us For Availability
502
Bracket LGE MAZ65192701 Contact Us For Availability
521
Bracket LGE MAZ65113201 Contact Us For Availability
522
Bracket LGE MAZ65150401 Contact Us For Availability
571
Bracket LGE MAZ65113101 Contact Us For Availability
700
Power Cord,Attach LGE EAD62394903 Contact Us For Availability
710
Bracket LGE MAZ64550806 Contact Us For Availability
800
Supporter,VESA LGE MJH64335101 Contact Us For Availability
810
Supporter LGE MJH63776605 Contact Us For Availability
900
Base Assembly LGE AAN75148605 Contact Us For Availability
A22
Remote Controller Assembly LGE AKB74855402 Contact Us For Availability
AG1
Accessory,3D Glasses LGE EBX61668505 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787809 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787907 Contact Us For Availability
S1
Harness,Single LGE EAD63367002 Contact Us For Availability
S2
Harness,Single LGE EAD63046204 Contact Us For Availability
S4
Cable,Assembly LGE EAD61273133 Contact Us For Availability
S5
Harness,Single LGE EAD63026108 Contact Us For Availability
S6
Harness,Single LGE EAD63366904 Contact Us For Availability
S7
Harness,Multi LGE EAD63727405 Contact Us For Availability
S8
Harness,Single LGE EAD63429404 Contact Us For Availability
× ![]()
